Isuzu WW
▶
TRUCKS
▶
NLR
▶
51147 - NLR/NMR 55,85(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶

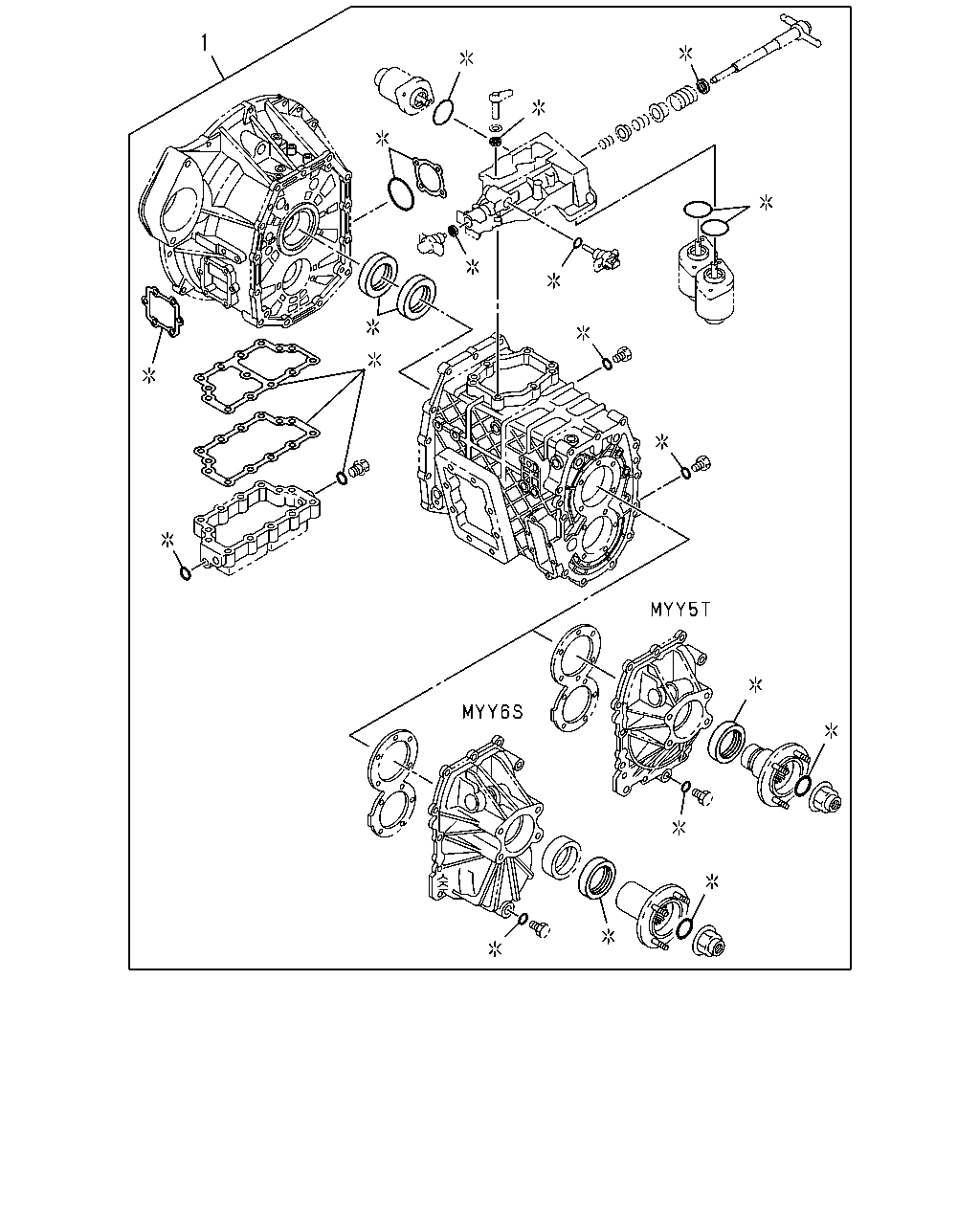

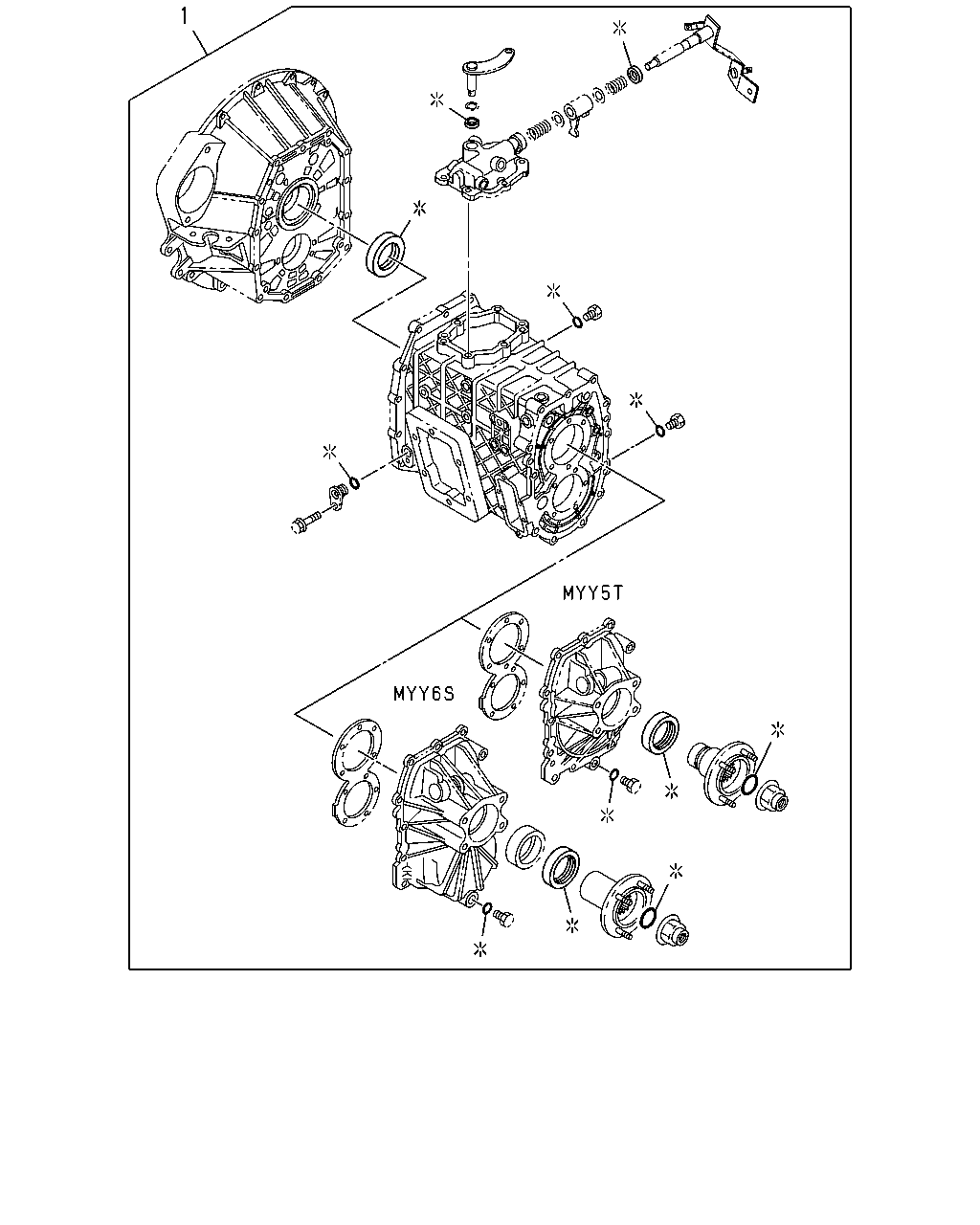

2-10 - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL
(#53046) — 18 parça
Tümü
A - M/T MYY5T
B - M/T MYY6S
C - M/T MSB5S
D - M/T MSB5M
◀
[210A] M/T MSB (6 parça)
[210A] M/T MYY;T/M CONTROL-SMOOTHER DELETE (6 parça)
[210A] M/T MYY;T/M CONTROL-SMOOTHER (6 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-128-2
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0804-0804
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JB1-TC ENG(RDT)
5-87832-186-1
01
1
0805-0809
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0810-1210
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-287-1
01
1
1211-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-128-2
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0804-0804
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JB1-TC ENG(RDT)
5-87832-186-1
01
1
0805-0809
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0810-1210
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-287-1
01
1
1211-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-128-2
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0803-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0804-0804
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JB1-TC ENG(RDT)
5-87832-186-1
01
1
0805-0809
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-186-1
01
1
0810-1210
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-287-1
01
1
1211-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
