◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#53044) — 6 parça

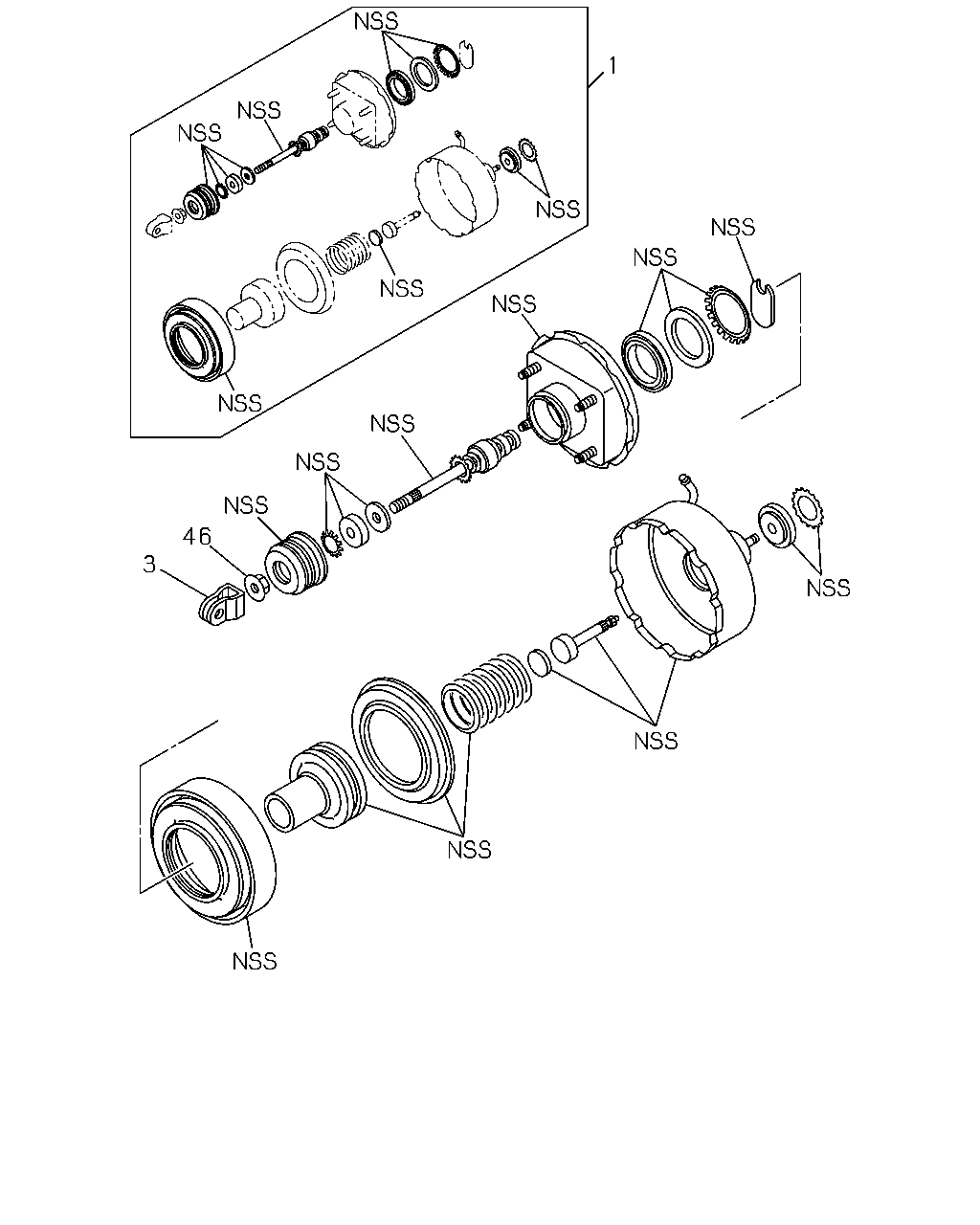

çizim 153901
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 0803-0803 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 0804- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 0803-0803 ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 0804- ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 0803-0803 ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
