2-05 — CLUTCH PIPING (#53042) — 116 parça

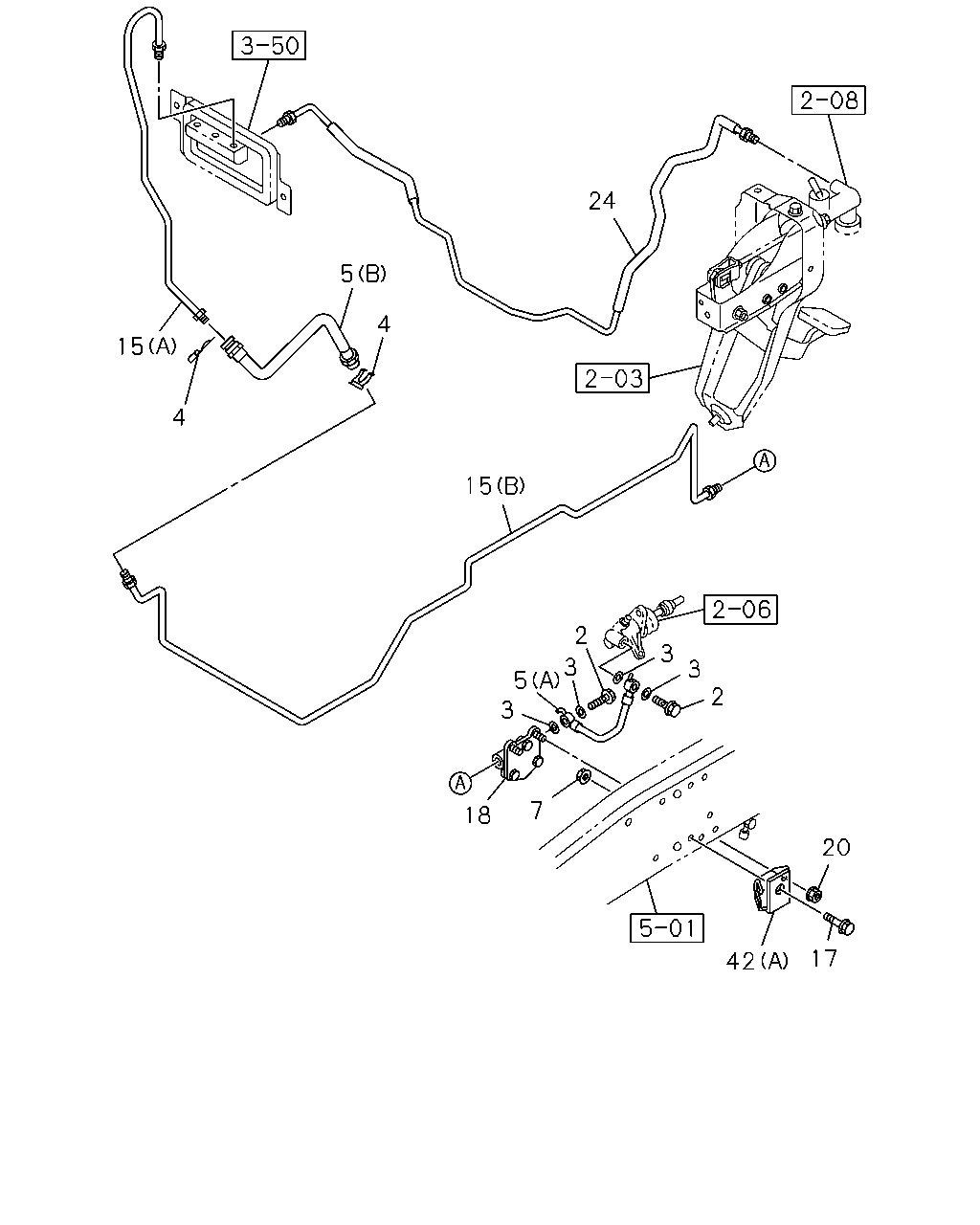

çizim 153888
24 5 4 15 4 15 2 3 3 3 2 5 3 7 18 20 17 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-97381-454-0 02 1 0803-0803 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-97381-454-0 02 1 0804-0905 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 0906- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0803-0803 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0804- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0803-0803 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0804-0804 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0805-0809 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0810- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 0803- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0803-0803 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0804- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0803-0803 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0804- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0804-0804 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0805-0809 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0810- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-0803 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98047-211-1 01 1 0803-0803 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98047-211-1 01 1 0804- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 0803-0803 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 0804- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0804-0804 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0805-0809 ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0810- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0804-0804 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0805-0809 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0810- ● ●
17 00.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0803-0803 ● ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804-0804 ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0805-0809 ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 0803-0803 ● ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 0804- ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0803-0803 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0804- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0803-0803 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0804- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0804-0804 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0805-0809 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0810-1504 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-071-0 01 1 1505- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 0803-0803 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 0804- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0804-0804 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0805-0809 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0810- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0804-0804 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0805-0809 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0810- ● ●

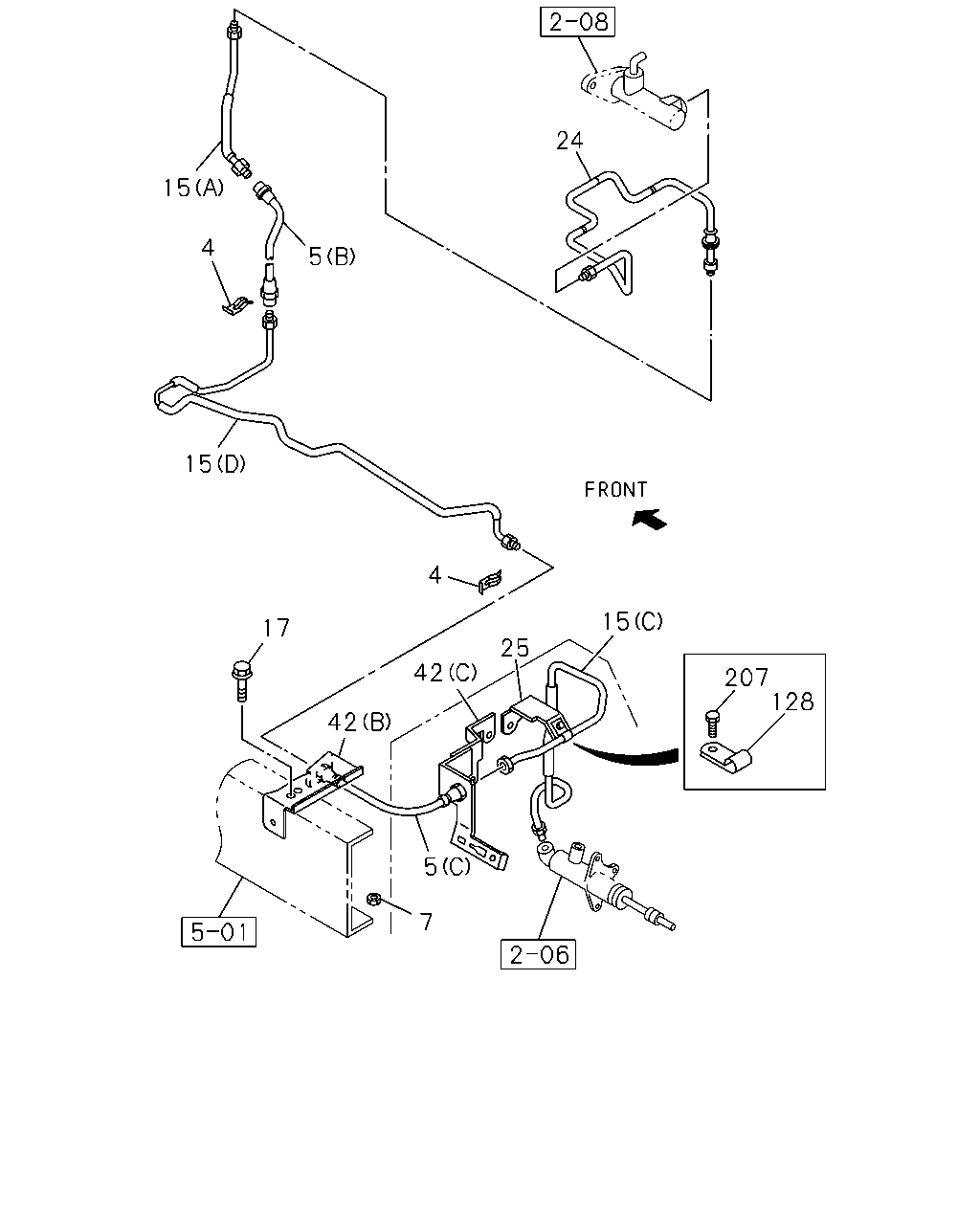

çizim 153891
24 15 4 5 15 4 15 17 25 42 207 128 42 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0803-0803 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0804-0804 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0805-0809 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0810- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 0803- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0803-0803 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0804- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0803-0803 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0804- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0804-0804 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0805-0809 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 0810- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-0803 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98047-211-1 01 1 0803-0803 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98047-211-1 01 1 0804- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 0803-0803 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 0804- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0804-0804 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0805-0809 ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97063-756-2 01 1 0810- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0804-0804 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0805-0809 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98066-115-1 01 1 0810- ● ●
17 00.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0803-0803 ● ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804-0804 ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0805-0809 ●
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0803-0803 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0804- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0803-0803 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0804- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0804-0804 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0805-0809 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-187-1 01 1 0810-1504 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-071-0 01 1 1505- ● ●
25 00.785 BRACKET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97013-211-1 01 1 0804-0804 ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97013-211-1 01 1 0805-0809 ●
25 00.785 BRACKET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97013-211-1 01 1 0810- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 0803-0803 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 0804- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0804-0804 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0805-0809 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 0810- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0804-0804 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0805-0809 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98110-199-0 01 1 0810- ● ●
128 00.785 CLIP; AIR PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=7 L=16 		0-95234-622-0 02 1 0804-0804 ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=7 L=16 		0-95234-622-0 02 1 0805-0809 ●
128 00.785 CLIP; AIR PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=7 L=16 		0-95234-622-0 02 1 0810- ● ●
207 00.785 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0804-0804 ● ●
207 00.785 BOLT; CLIP
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0805-0809 ●
207 00.785 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0810- ● ●
çizim 153906
183
BalonParca AdiParca NoAdetTipApplied Date A B C D
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0803-0803 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
