◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#53040) — 111 parça

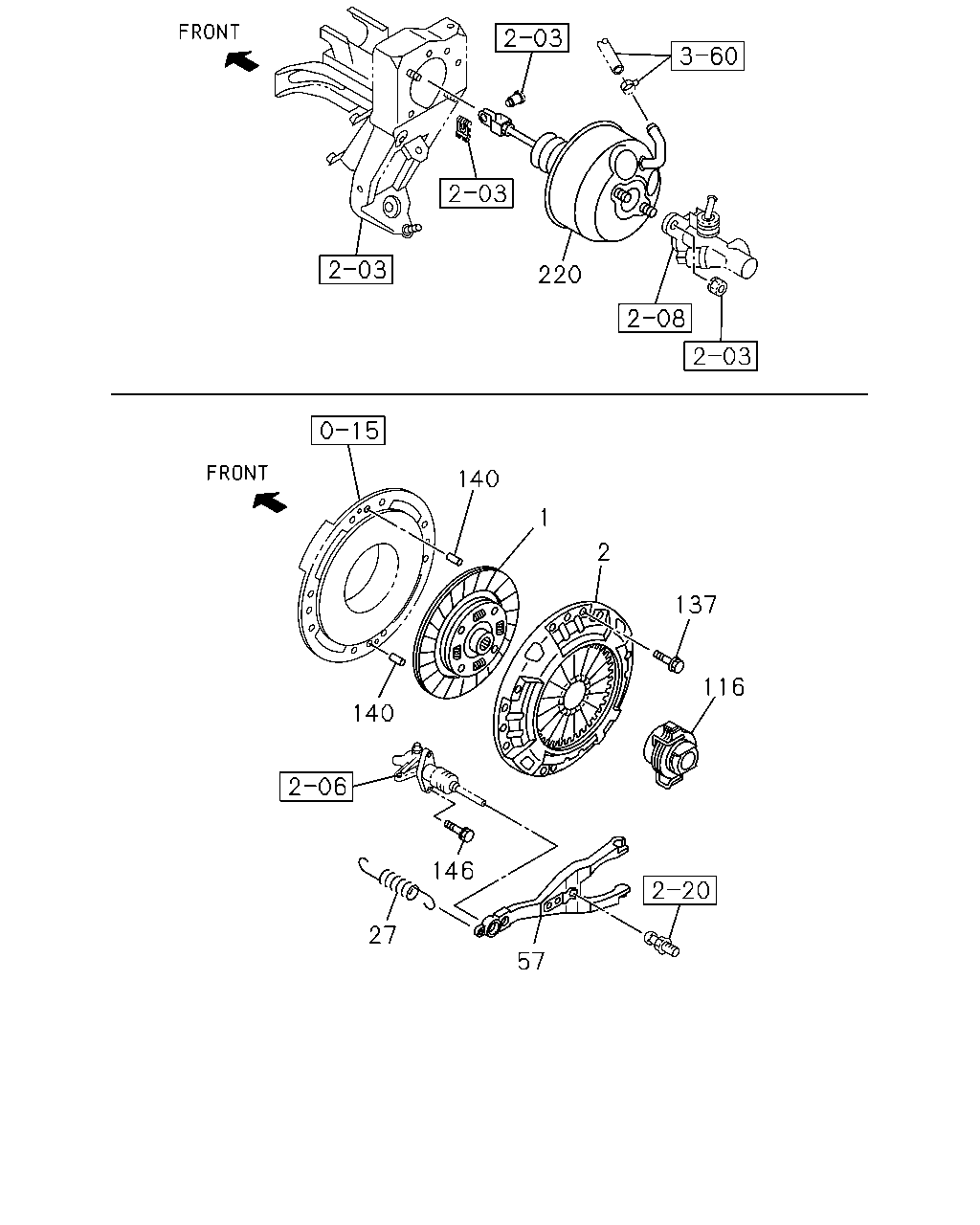

çizim 153885
220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-1 01 1 1502-1509 ● ●
1 00.886 DISC; CLUTCH
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEST VALUE PARTS 		5-87610-077-1 01 1 1510- ● ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0803-1401 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-139-1 01 1 1402-1509 ● ●
1 00.886 DISC; CLUTCH
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98255-139-1 01 1 1510- ● ● ● ●
1 00.886 DISC; CLUTCH 8-98080-661-0 01 1 0804-0804 ● ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-98080-661-0 01 1 0804- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-083-0 01 1 0804-0804 ● ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-083-0 01 1 0804- ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-0 01 1 0806-1401 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0803-1509 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98040-093-0 01 1 1510- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 0804-0804 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) 		8-97109-246-0 01 1 0804- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-091-0 01 1 0803-1509 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEST VALUE PARTS 		5-87610-091-0 01 1 1510- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-082-0 01 1 0804-0804 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-082-0 01 1 0804- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0803-0803 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0804- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0804-0804 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0805-0809 ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0810- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 0803- ● ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 0804-0804 ● ●
57 00.795 FORK; SHIFT,CLU
4JB1-TC ENG(RDT) 		8-97033-701-0 01 1 0805-0809 ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 0810- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 0803- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0804-0804 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) 		8-97316-602-0 01 1 0805-0809 ●
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0810- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 0803- ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 0804-0804 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-116-0 01 1 0805-0809 ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 0810- ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0803-1509 ● ●
137 00.862 BOLT; CLU COVER
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1510- ● ● ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0804-0804 ● ●
137 00.862 BOLT; CLU COVER
4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0804- ● ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0803-1509 ● ●
140 00.862 PIN; STRAIGHT
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> L=25 		8-94410-361-0 02 1 1510- ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 0804-0804 ● ●
140 00.862 PIN; STRAIGHT
4JB1-TC ENG(RDT) OD=6 L=24 		9-09878-532-0 02 1 0804- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0803-0803 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0804- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 0803-0803 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 0804- ● ●

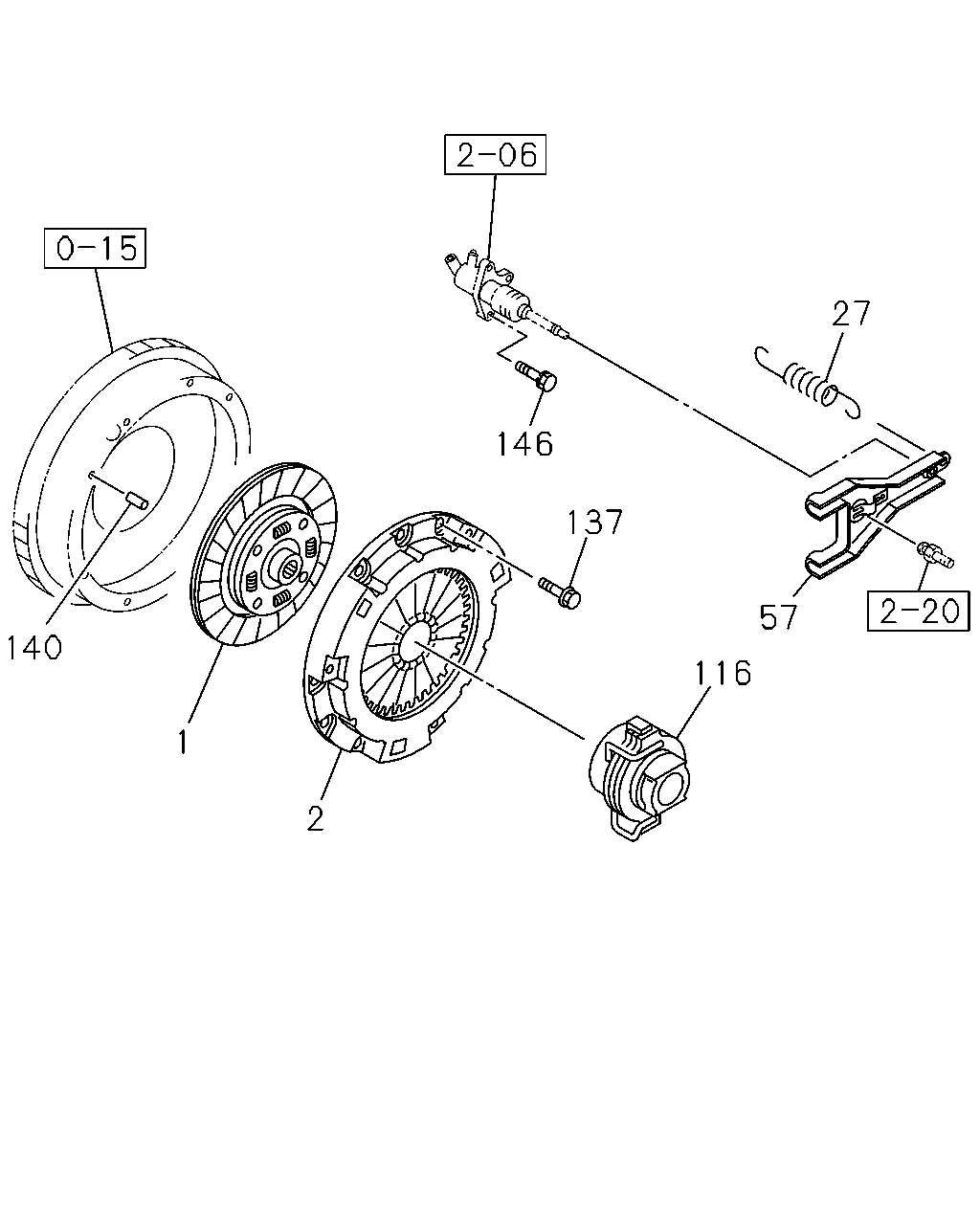

çizim 153895
27 146 137 57 140 116 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-1 01 1 1502-1509 ● ●
1 00.886 DISC; CLUTCH
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEST VALUE PARTS 		5-87610-077-1 01 1 1510- ● ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0803-1401 ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-139-1 01 1 1402-1509 ● ●
1 00.886 DISC; CLUTCH
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98255-139-1 01 1 1510- ● ● ● ●
1 00.886 DISC; CLUTCH 8-98080-661-0 01 1 0804-0804 ● ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-98080-661-0 01 1 0804- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-083-0 01 1 0804-0804 ● ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-083-0 01 1 0804- ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-0 01 1 0806-1401 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0803-1509 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98040-093-0 01 1 1510- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 0804-0804 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) 		8-97109-246-0 01 1 0804- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-091-0 01 1 0803-1509 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEST VALUE PARTS 		5-87610-091-0 01 1 1510- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-082-0 01 1 0804-0804 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-082-0 01 1 0804- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0803-0803 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0804- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0804-0804 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0805-0809 ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 0810- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 0803- ● ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 0804-0804 ● ●
57 00.795 FORK; SHIFT,CLU
4JB1-TC ENG(RDT) 		8-97033-701-0 01 1 0805-0809 ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 0810- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 0803- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0804-0804 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) 		8-97316-602-0 01 1 0805-0809 ●
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0810- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 0803- ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 0804-0804 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-116-0 01 1 0805-0809 ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 0810- ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0803-1509 ● ●
137 00.862 BOLT; CLU COVER
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1510- ● ● ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0804-0804 ● ●
137 00.862 BOLT; CLU COVER
4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0804- ● ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0803-1509 ● ●
140 00.862 PIN; STRAIGHT
SGL CAB(NM**S*) BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL S HORT STAY<D37>,UNDER MIRROR<RR9>, O/SIDEMIRROR ASSIST SIDE MANUAL LONG STAY<6TF> L=25 		8-94410-361-0 02 1 1510- ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 0804-0804 ● ●
140 00.862 PIN; STRAIGHT
4JB1-TC ENG(RDT) OD=6 L=24 		9-09878-532-0 02 1 0804- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0803-0803 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0804- ● ● ● ●

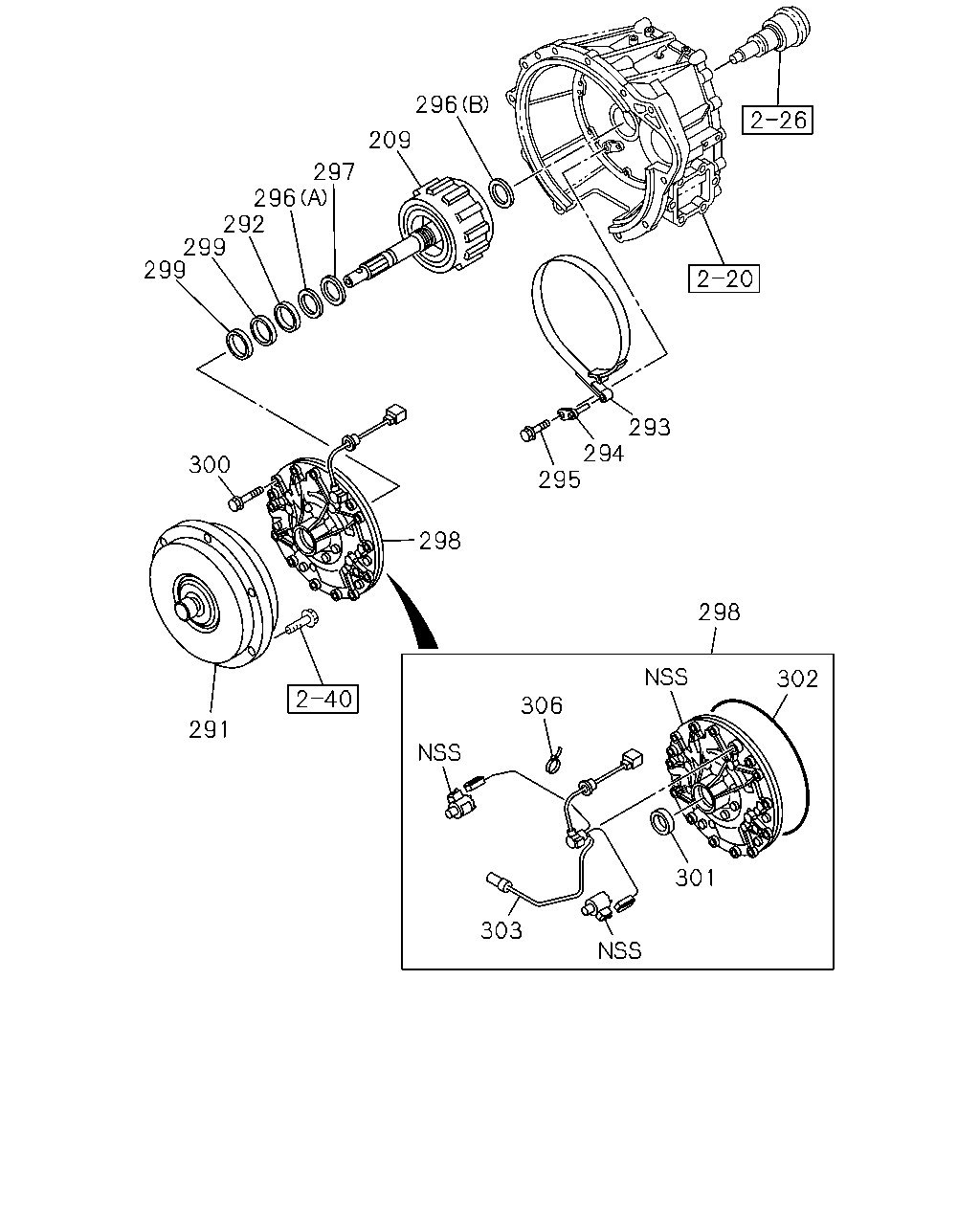

çizim 153898
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 00.885 CLUTCH ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-525-0 01 1 0803-0904 ● ●
209 00.885 CLUTCH ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-2 01 1 0905-1412 ● ●
209 00.885 CLUTCH ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-320-0 01 1 1501- ● ●
291 00.863 COUPLING; FLUID
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-2 01 1 0803- ● ●
292 00.862 RING; SEAL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0803- ● ●
293 00.799 BAND; BRAKE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0803- ● ●
294 00.846 PIN; ANCHOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0803- ● ●
295 00.864 BOLT; ANCHOR PIN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
296 00.862 BEARING; THRUST
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0803- ● ●
296 00.862 BEARING; THRUST
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0803- ● ●
297 00.862 WASHER; THRUST
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0803- ● ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-037-0 01 1 0803-0803 ● ●
298 04.020 PUMP ASM; OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 0804- ● ●
299 04.105 RING; SEAL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0803- ● ●
300 04.226 BOLT; OIL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 0803- ● ●
301 04.166 SEAL; OIL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0803- ● ●
302 04.226 RING; OIL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0803- ● ●
303 02.480 HARNESS ASM; OIL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 0803- ● ●
306 00.785 CLIP; BAND
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
