3-11 — PARKING BRAKE CONTROL (#53039) — 67 parça

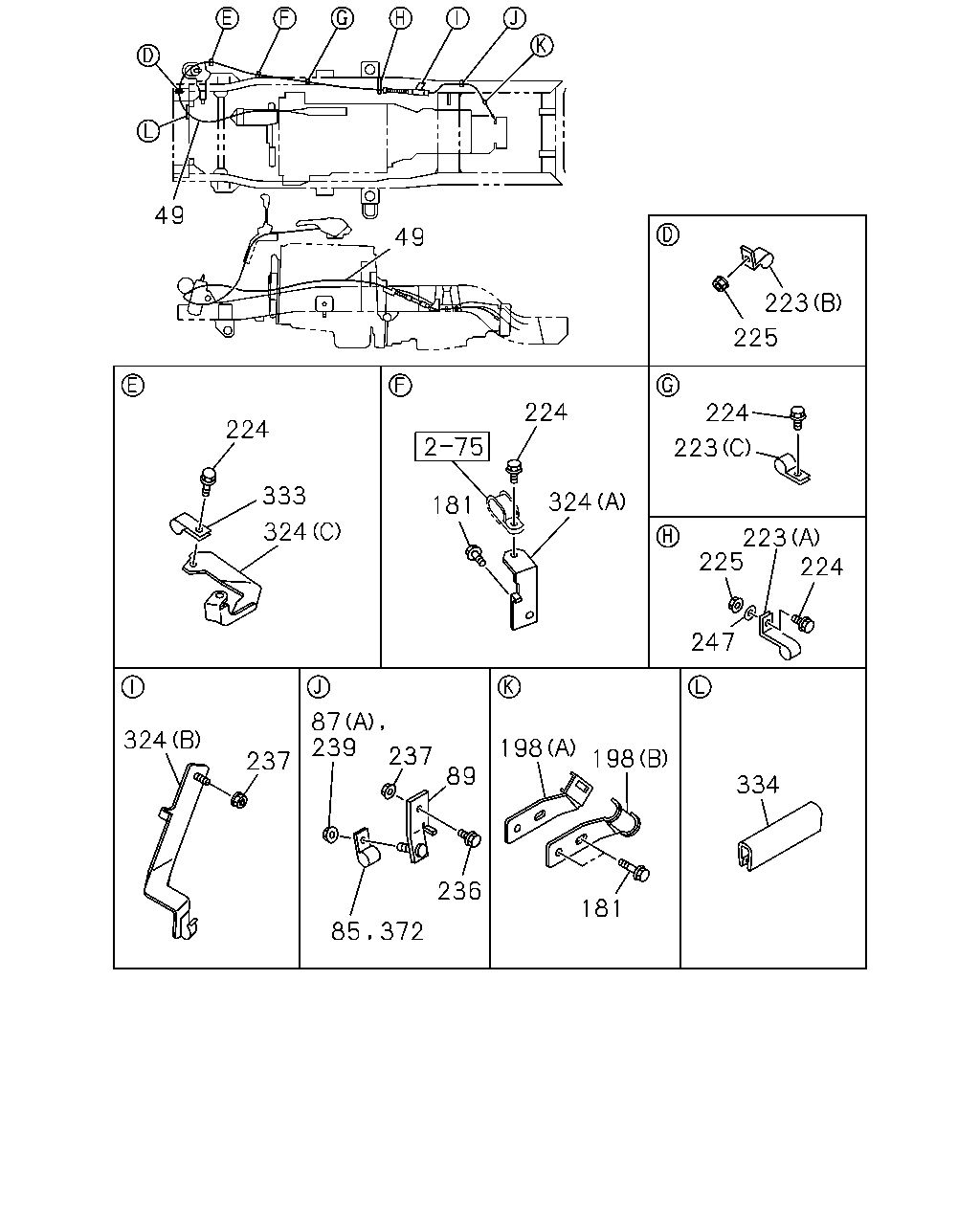

çizim 20278
49 49 223 225 224 224 224 223 333 324 181 324 223 225 224 247 87 239 324 198 237 198 237 89 334 236 181 85 372
BalonParca AdiParca NoAdetTipApplied Date
49 04.779 CABLE; PARKING BRK 8-97373-721-0 01 1 0311-
85 04.785 CLIP; BRKT
01.531 ID=16 L=28 		9-09525-556-0 01 1 0311-0501
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0311-0501
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0311-0501
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612-
89 04.785 BRACKET; CLIP 8-97100-738-1 01 1 0311-
181 04.785 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0311-0512
181 04.785 BOLT; BRKT
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601-
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0311-0512
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
198 04.785 BRACKET; CABLE
(A) 		8-97303-973-0 01 1 0311-
198 04.785 BRACKET; CABLE
(B) 		8-97303-974-0 01 1 0311-
223 04.785 CLIP; PARKING BRK CABLE
02.559 (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0311-
223 04.785 CLIP; PARKING BRK CABLE
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 0311-
223 04.785 CLIP; PARKING BRK CABLE
02.559 (C) ID=11 L=50 		9-09525-085-0 01 1 0311-0504
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=13 L=50 		9-09525-286-0 01 1 0505-0606
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=13 L=50 		0-95235-286-0 01 1 0607-
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0311-0501
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0311-0501
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 03 1 0311-0501
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
236 04.785 BOLT; BRKT TO FRAME
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0311-0512
236 04.785 BOLT; BRKT TO FRAME
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-
237 04.785 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 01 1 0311-0602
237 04.785 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 01 1 0311-0602
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
239 04.785 NUT; CLIP TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602
239 04.785 NUT; CLIP TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
247 04.595 WASHER; PL
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0311-0605
247 04.595 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
324 04.785 BRACKET
(A) 		8-97042-771-0 01 1 0311-
324 04.785 BRACKET
(B) 		8-97210-934-0 01 1 0311-
324 04.785 BRACKET
00.854 (C) 		8-97288-446-0 01 1 0311-
333 04.785 CLIP; CABLE
ID=11 L=28 		9-09525-055-0 01 1 0311-0606
333 04.785 CLIP; CABLE
02.559 ID=11 L=28 		0-95235-055-0 01 1 0607-
334 04.785 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0311-
372 04.785 CLIP; CABLE
01.531 ID=16 L=28 		9-09525-556-0 01 1 0502-0606
372 04.785 CLIP; CABLE
06.672 ID=16 L=28 		0-95235-556-0 01 1 0607-

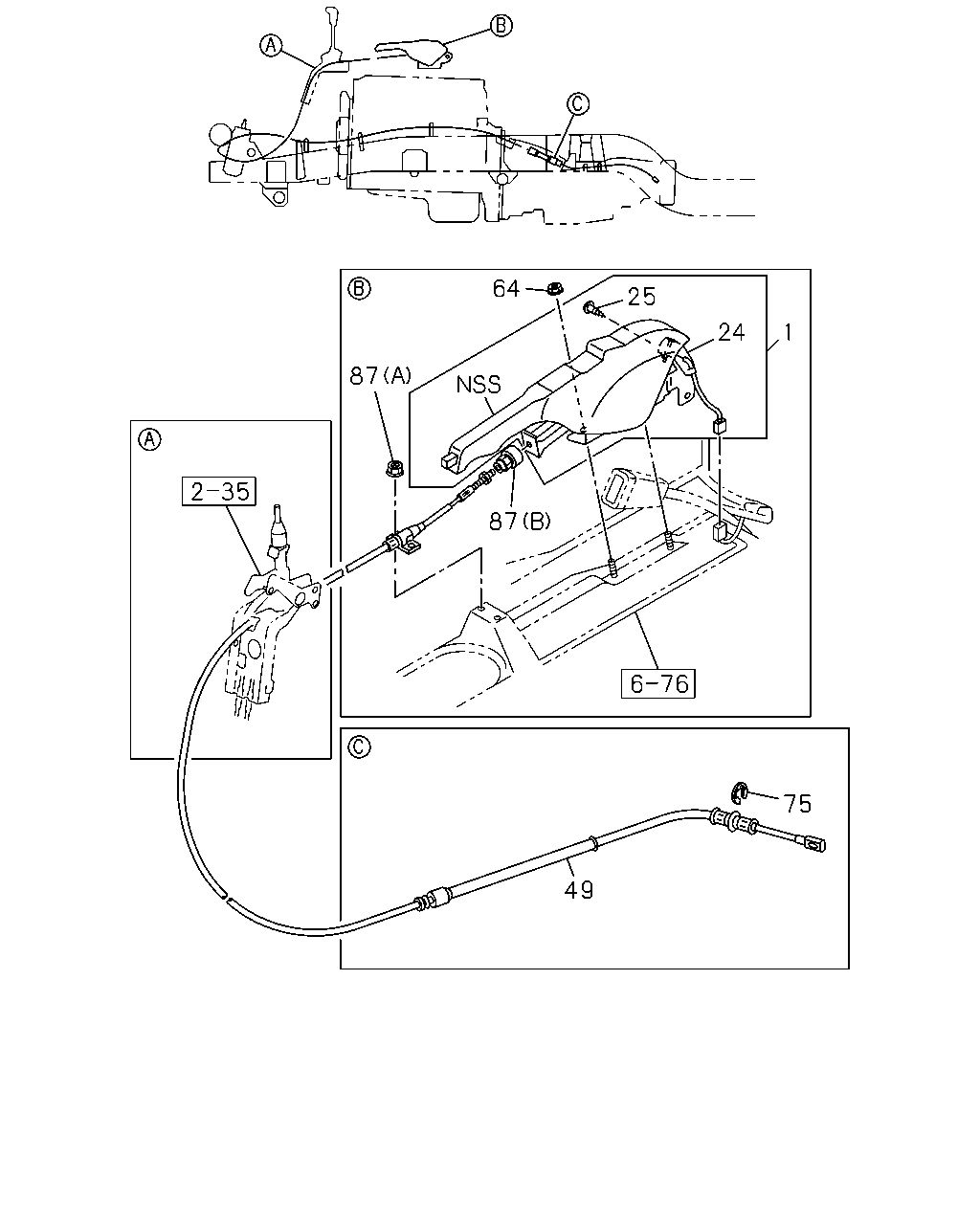

çizim 20359
64 25 24 1 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0311-0501
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0502-0610
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611-
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0311-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0311-
49 04.779 CABLE; PARKING BRK 8-97373-721-0 01 1 0311-
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0311-0610
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611-
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0311-0604
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605-
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0311-0501
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0311-0501
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612-
