2-05 — CLUTCH PIPING (#53018) — 28 parça

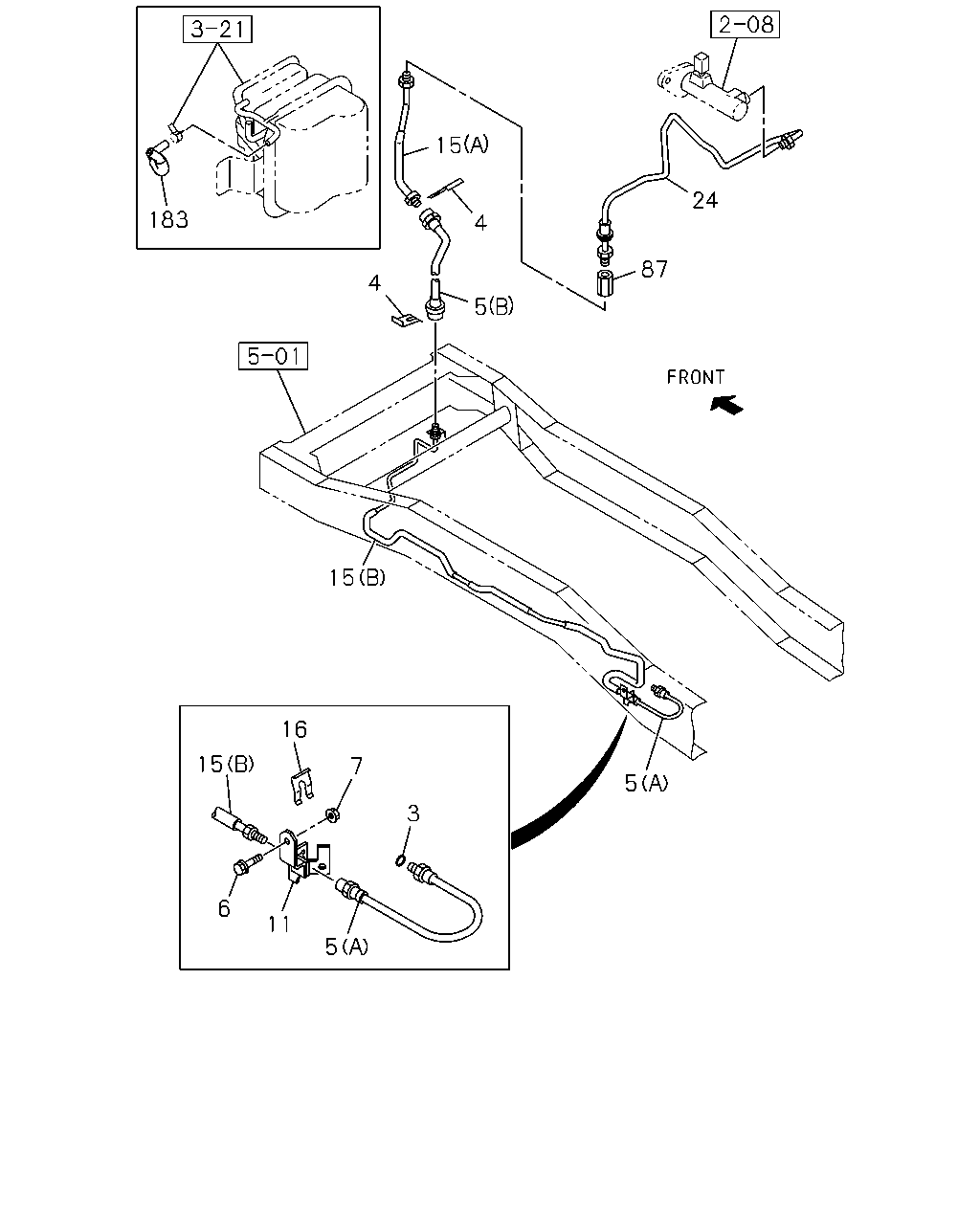

çizim 19987
15 24 183 4 87 4 5 15 16 15 7 5 3 6 11 5
BalonParca AdiParca NoAdetTipApplied Date A B
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0311-0611 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0612- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0311-0610 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97047-058-1 01 1 0311- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0311-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0311-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0611 ●
6 00.785 BOLT; BRKT,FLEX HOSE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0311-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0611 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0311- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0311- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97325-817-3 01 1 0311-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97374-197-0 01 1 0502- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0311-0610 ●
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0611-0611 ●
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0612- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0311-0611 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0612- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0311-0611 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0612- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0311-0607 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0311- ● ●
