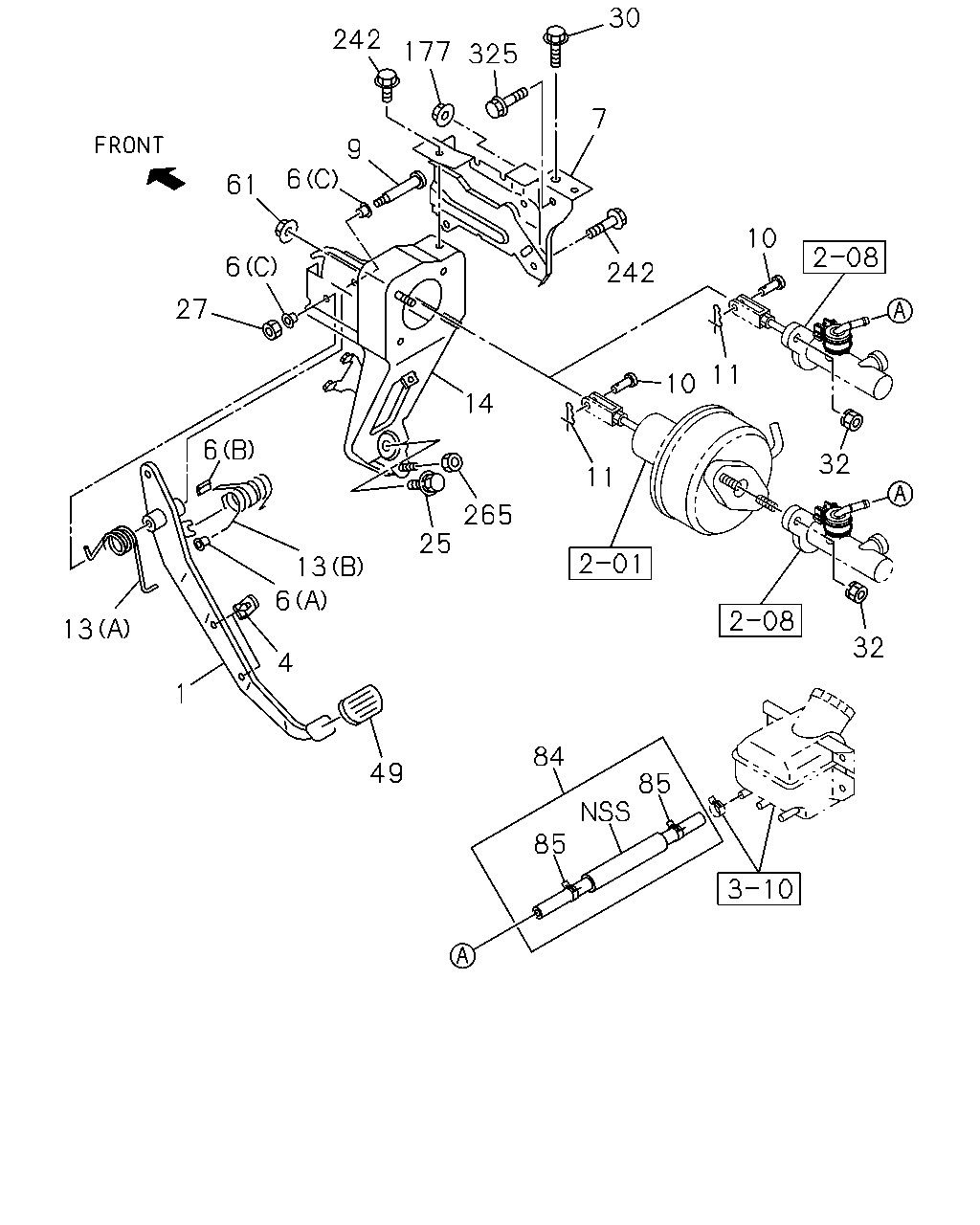

1 |
00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
|
8-97853-220-2 |
01 |
1 |
0311- |
| |
1 |
00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
|
8-97857-984-2 |
01 |
1 |
0311- |
| |
4 |
00.829 STOPPER; CLU PEDAL
|
8-97853-534-1 |
02 |
1 |
0311- |
| |
6 |
00.831 BUSHING; CLU PEDAL
04.792
(C)
|
8-94238-596-0 |
02 |
1 |
0311- |
| |
6 |
00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
8-97853-619-0 |
02 |
1 |
0311- |
| |
6 |
00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
(B)
|
8-97853-620-0 |
01 |
1 |
0311- |
| |
7 |
00.829 BRACKET; CLU PEDAL
|
8-97853-522-5 |
01 |
1 |
0311- |
| |
9 |
00.833 PIN; CLU PEDAL
04.634
|
8-97866-667-0 |
01 |
1 |
0311- |
| |
10 |
00.833 PIN; CLU PEDAL
04.634
|
8-94410-276-0 |
01 |
1 |
0311- |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634
|
8-94279-912-0 |
01 |
1 |
0311- |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
(A)
|
8-97853-535-1 |
01 |
1 |
0311- |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
(B)
|
8-97853-221-1 |
01 |
1 |
0311- |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T)
|
8-97892-849-3 |
01 |
1 |
0311- |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T)
|
8-97892-848-3 |
01 |
1 |
0311- |
| |
25 |
00.833 BOLT; PEDAL
M10X22 W/PL WASHER
|
8-97313-188-0 |
01 |
1 |
0311- |
| |
27 |
00.833 NUT; FULCRUM PIN
M10 FLANGE
|
1-09440-022-0 |
01 |
1 |
0311- |
| |
30 |
00.829 BOLT; CLU MTG BRKT
09.003
M10X25 FLANGE
|
0-28691-025-0 |
01 |
1 |
0311-0512 |
| |
30 |
00.829 BOLT; CLU MTG BRKT
07.833
M10X25 FLANGE
|
0-28661-025-0 |
01 |
1 |
0601- |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
|
8-94279-050-0 |
02 |
1 |
0311- |
| |
49 |
00.829 RUBBER; PAD,CLU PEDAL
|
8-97853-413-2 |
01 |
1 |
0311- |
| |
61 |
00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T)
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
0311- |
| |
84 |
00.785 HOSE; RUBBER,CLU LINE
|
8-97135-025-0 |
01 |
1 |
0311- |
| |
85 |
00.785 CLIP; HOSE TO M/CYL
04.681
|
8-97130-480-0 |
02 |
1 |
0311- |
| |
177 |
00.785 NUT; BRKT
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
02 |
1 |
0311- |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
08.155
M8X16 FLANGE
|
0-28480-816-0 |
02 |
1 |
0311-0512 |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
POWER ASSIST CLUTCH(S2T)
03.604
M8X16 FLANGE
|
0-28450-816-0 |
02 |
1 |
0601-0611 |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
4HG1 ENG(RJH)
EXC. POWER ASSIST CLUTCH(S2T)
03.604
M8X16 FLANGE
|
0-28450-816-0 |
02 |
1 |
0601-0611 |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
03.604
M8X16 FLANGE
|
0-28450-816-0 |
02 |
1 |
0612- |
| |
265 |
00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010
M8 FLANGE
|
8-97046-127-0 |
01 |
1 |
0311-0610 |
| |
265 |
00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
01 |
1 |
0611- |
| |
325 |
00.782 BOLT; BRKT,STRG SUPPORT
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0311-0512 |
| |
325 |
00.782 BOLT; BRKT,STRG SUPPORT
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
