◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#53013) — 115 parça
çizim 19967
165 162 164 95 166 104 124 137 105 357 88 94 126 81 105 70 88 144 143 168 357 94 105
BalonParca AdiParca NoAdetTipApplied Date
70 03.706 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512
70 03.706 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-
81 03.704 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
81 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
88 03.708 CLAMP; EXH PIPE
4HG1-T ENG(RDP) 		8-98034-766-0 02 1 0807-
88 03.708 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 0311-0806
88 03.708 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 0311-0806
88 03.708 CLAMP; EXH PIPE
4HG1 ENG(RJH) ID=61.6 		8-97010-307-0 01 1 0807-
88 03.708 CLAMP; EXH PIPE
4HG1 ENG(RJH) ID=61.6 		8-97010-307-0 01 1 0807-
94 03.704 BOLT; CLAMP
4HG1-T ENG(RDP) 00.685 REAR M10X45 FLANGE 		0-28051-045-0 01 1 0807-
94 03.704 BOLT; CLAMP
4HG1-T ENG(RDP) 03.023 FRONT M10X50 FLANGE 		8-97301-165-0 01 1 0807-
94 03.704 BOLT; CLAMP
03.708 M8X45 		0-20800-845-0 01 1 0311-0806
94 03.704 BOLT; CLAMP
03.708 M8X45 		0-20800-845-0 01 1 0311-0806
94 03.704 BOLT; CLAMP
4HG1 ENG(RJH) 03.708 M8X45 		0-20800-845-0 01 1 0807-
94 03.704 BOLT; CLAMP
4HG1 ENG(RJH) 03.708 M8X45 		0-20800-845-0 01 1 0807-
95 03.708 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512
95 03.708 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-
104 03.704 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
104 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
105 03.704 NUT; CLAMP
4HG1-T ENG(RDP) 00.833 (A) M10 		0-91110-510-0 02 1 0807-
105 03.704 NUT; CLAMP
02.559 (A) M8 		9-09110-408-0 01 1 0311-0512
105 03.704 NUT; CLAMP
02.559 (A) M8 		9-09110-408-0 01 1 0311-0512
105 03.704 NUT; CLAMP
02.334 (A) M8 		0-91110-508-0 01 1 0601-0806
105 03.704 NUT; CLAMP
02.334 (A) M8 		0-91110-508-0 01 1 0601-0806
105 03.704 NUT; CLAMP
4HG1 ENG(RJH) 02.334 (A) M8 		0-91110-508-0 01 1 0807-
105 03.704 NUT; CLAMP
4HG1 ENG(RJH) 02.334 (A) M8 		0-91110-508-0 01 1 0807-
105 03.704 NUT; CLAMP
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0311-0602
105 03.704 NUT; CLAMP
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-
124 03.704 NUT; SUPPORT RUBBER
04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0602
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
126 03.705 PIPE; EXH,RR
4HG1-T ENG(RDP) 		8-98049-519-0 01 1 0612-0805
126 03.705 PIPE; EXH,RR
4HG1-T ENG(RDP) 		8-98125-496-1 01 1 0806-
126 03.705 PIPE; EXH,RR 8-97043-236-0 01 1 0311-0504
126 03.705 PIPE; EXH,RR
4HG1 ENG(RJH) 		8-97043-236-0 01 1 0505-
137 03.706 BRACKET; TAIL PIPE 8-94114-022-1 01 1 0311-
143 03.704 RUBBER; SUPPORT
4HG1-T ENG(RDP) 		8-98034-767-0 01 1 0807-
143 03.704 RUBBER; SUPPORT 8-97371-655-0 01 1 0311-0806
143 03.704 RUBBER; SUPPORT
4HG1 ENG(RJH) 		8-97371-655-1 01 1 0807-
144 03.613 NUT; MTG RUBBER
07.633 M8 FLANGE 		0-91150-108-0 01 1 0311-0602
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HG1-T ENG(RDP) L=115 		8-98034-765-0 01 1 0807-
162 03.706 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-94156-256-0 01 1 0311-0806
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HG1 ENG(RJH) L=115 		8-94156-256-0 01 1 0807-
164 03.706 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0311-
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28081-070-0 01 1 0311-0512
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0601-
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
ID=10.5 OD=32 		9-09164-810-0 01 1 0311-0605
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0606-
168 03.613 BRACKET; EXH PIPE,FRT
03.704 (C) 		5-22151-044-0 01 1 0311-
168 03.613 BRACKET; EXH PIPE,FRT
(A) 		8-97046-681-1 01 1 0311-
168 03.613 BRACKET; EXH PIPE,FRT
(B) 		8-97226-274-0 01 1 0311-
357 03.708 WASHER; PL,CLAMP
4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22 		0-91614-610-0 02 1 0807-
357 03.708 WASHER; PL,CLAMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0311-0605
357 03.708 WASHER; PL,CLAMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0311-0605
357 03.708 WASHER; PL,CLAMP
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0806
357 03.708 WASHER; PL,CLAMP
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0806
357 03.708 WASHER; PL,CLAMP
4HG1 ENG(RJH) 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0807-
357 03.708 WASHER; PL,CLAMP
4HG1 ENG(RJH) 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0807-

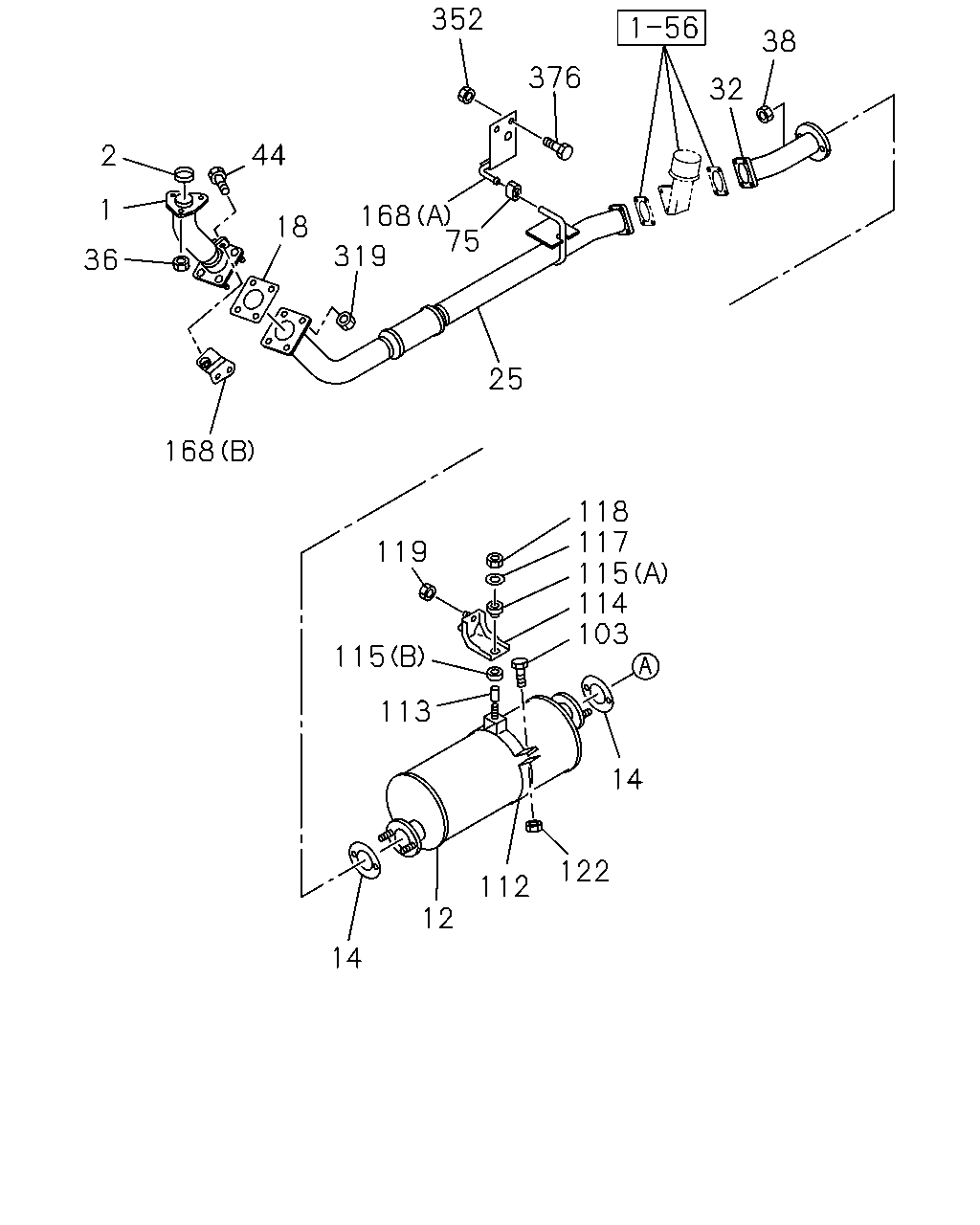

çizim 20500
352 38 376 32 44 2 1 168 75 18 319 36 25 168 118 117 115 114 103 119 115 113 14 122 112 12 14
BalonParca AdiParca NoAdetTipApplied Date
1 03.609 PIPE; EXH
4HG1-T ENG(RDP) 		8-98049-518-3 01 1 0612-
1 03.609 PIPE; EXH
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97187-143-1 01 1 0311-0501
1 03.609 PIPE; EXH
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97226-272-0 01 1 0311-0501
1 03.609 PIPE; EXH
4HG1 ENG(RJH) 		8-97226-272-0 01 1 0502-
2 03.611 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97180-749-2 01 1 0311-0408
2 03.611 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0409-
12 03.701 SILENCER ASM; EXH
4HG1-T ENG(RDP) 		8-97114-564-1 01 1 0612-0805
12 03.701 SILENCER ASM; EXH
4HG1-T ENG(RDP) 		8-98125-505-0 01 1 0806-0806
12 03.701 SILENCER ASM; EXH
4HG1-T ENG(RDP) 		8-97114-564-1 01 1 0807-0807
12 03.701 SILENCER ASM; EXH
4HG1-T ENG(RDP) 		8-98125-505-0 01 1 0807-
12 03.701 SILENCER ASM; EXH
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97206-525-3 01 1 0311-0501
12 03.701 SILENCER ASM; EXH
4HG1 ENG(RJH) 		8-97206-525-3 01 1 0502-
12 03.701 SILENCER ASM; EXH
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97114-564-1 01 1 0311-0501
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0311-
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0311-
18 03.611 GASKET; EXH PIPE TO PIPE
03.634 ID=64 		8-97037-694-0 01 1 0311-
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HG1-T ENG(RDP) 		8-98125-494-1 01 1 0807-
25 03.609 PIPE; EXH,BRK VLV TO SILENCER 8-97201-746-1 01 1 0311-0805
25 03.609 PIPE; EXH,BRK VLV TO SILENCER 8-98125-494-0 01 1 0806-0806
25 03.609 PIPE; EXH,BRK VLV TO SILENCER 8-97201-746-1 01 1 0807-0807
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HG1 ENG(RJH) 		8-97201-746-1 01 1 0807-
32 03.609 PIPE; EXH,FRT 8-97254-685-0 01 1 0311-0805
32 03.609 PIPE; EXH,FRT 8-98125-495-0 01 1 0806-
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 0311-
38 00.002 NUT; SILENCER
04.785 M10 FLANGE 		0-91150-110-0 02 1 0311-0602
38 00.002 NUT; SILENCER
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-
44 03.613 BOLT; BRKT
00.683 M10X50 W/LK&PL WASHER 		0-50141-050-0 01 1 0311-0512
44 03.613 BOLT; BRKT 0-50641-050-0 01 1 0601-
75 03.704 RUBBER; SUPPORT,BRKT
03.613 		8-97166-498-1 01 1 0311-
103 03.704 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0802-0802
103 03.704 BOLT; SILENCER BRKT FIX
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 0311-0707
103 03.704 BOLT; SILENCER BRKT FIX
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0708-0801
103 03.704 BOLT; SILENCER BRKT FIX
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 0802-0909
103 03.704 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
112 03.706 BRACKET; HANGER
4HG1 ENG(RJH) 		8-97076-020-0 01 1 0807-
112 03.706 BRACKET; HANGER 8-97076-020-0 01 1 0311-0805
112 03.706 BRACKET; HANGER 8-98125-504-0 01 1 0806-0806
112 03.706 BRACKET; HANGER
4HG1-T ENG(RDP) 		8-98125-504-0 01 1 0807-
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 01 1 0311-
114 03.704 BRACKET; EXH SILENCER 8-94329-996-0 01 1 0311-
115 03.704 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 0311-
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 0311-
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0311-
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 01 1 0311-
119 03.704 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
119 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
122 03.275 NUT; HANGER BRKT
02.559 M8 		9-09110-408-0 01 1 0311-0512
122 03.275 NUT; HANGER BRKT
02.334 M8 		0-91110-508-0 01 1 0601-
168 03.613 BRACKET; EXH PIPE,FRT
03.704 (C) 		5-22151-044-0 01 1 0311-
168 03.613 BRACKET; EXH PIPE,FRT
(A) 		8-97046-681-1 01 1 0311-
168 03.613 BRACKET; EXH PIPE,FRT
(B) 		8-97226-274-0 01 1 0311-
319 03.602 NUT; PROTECTOR
07.633 M8 FLANGE 		0-91150-108-0 04 1 0311-0602
319 03.602 NUT; PROTECTOR
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-
352 03.613 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
352 03.613 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
376 03.708 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512
376 03.708 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-
