1-41 — FUEL PIPING; CHASSIS (#53011) — 85 parça

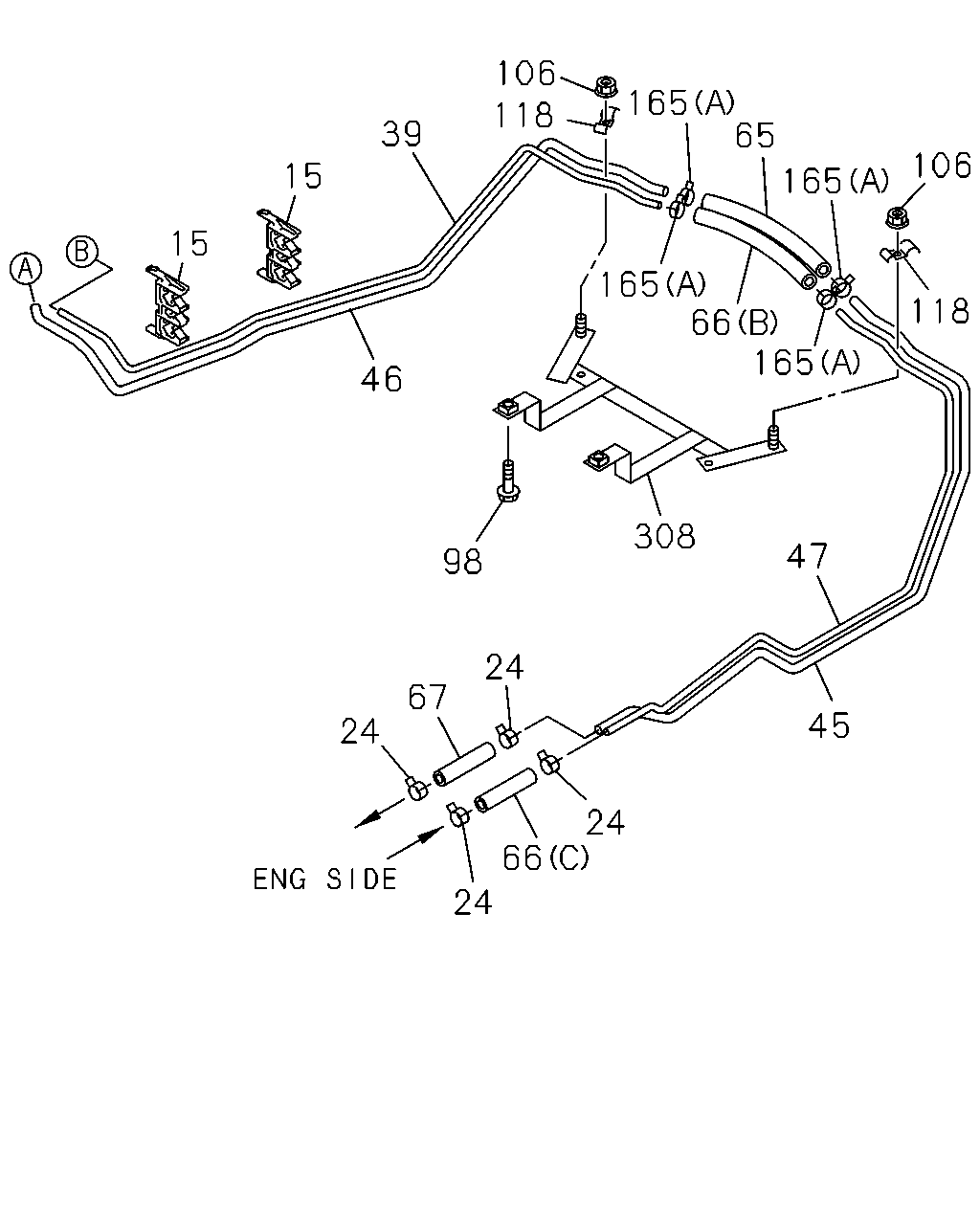

106 118 165 65 39 106 15 165 15 165 66 165 118 46 308 47 98 24 67 45 24 24 66 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE 04.930 ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0311-0501
15	03.162 CLIP; FUEL PIPE 04.930 ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0502-
24	03.162 CLIP; FUEL HOSE 04.930 ID=16	8-94238-568-0	02	1	0311-0911
24	03.162 CLIP; FUEL HOSE ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 ID=13	8-94238-571-0	02	1	0311-0911
24	03.162 CLIP; FUEL HOSE ID=13	8-98150-357-0	02	1	0912-
39	03.163 PIPE; FUEL	8-97325-841-2	01	1	0311-
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP)	8-98079-876-1	01	1	0804-
45	03.163 PIPE; FUEL,DELIVERY	8-97373-726-0	01	1	0311-0803
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH)	8-97373-726-0	01	1	0804-
46	03.163 PIPE; FUEL,TANK SIDE	8-97325-838-2	01	1	0311-
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP)	8-98079-877-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN	8-97373-727-0	01	1	0311-0803
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH)	8-97373-727-0	01	1	0804-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0311-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0807
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-
67	03.163 HOSE; FUEL,DELIVERY 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0311-
98	03.162 BOLT; BRKT,FUEL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
98	03.162 BOLT; BRKT,FUEL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512
98	03.162 BOLT; BRKT,FUEL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	02	1	0311-0501
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602
106	03.162 NUT; FUEL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0311-
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0502-0606
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0611
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0611
165	03.162 CLIP; FUEL HOSE 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE (A) ID=13	8-98150-357-0	02	1	0912-
308	03.162 BRACKET; FUEL PIPE	8-97350-456-0	01	1	0311-0501
308	03.162 BRACKET; FUEL PIPE	8-97350-456-0	01	1	0502-

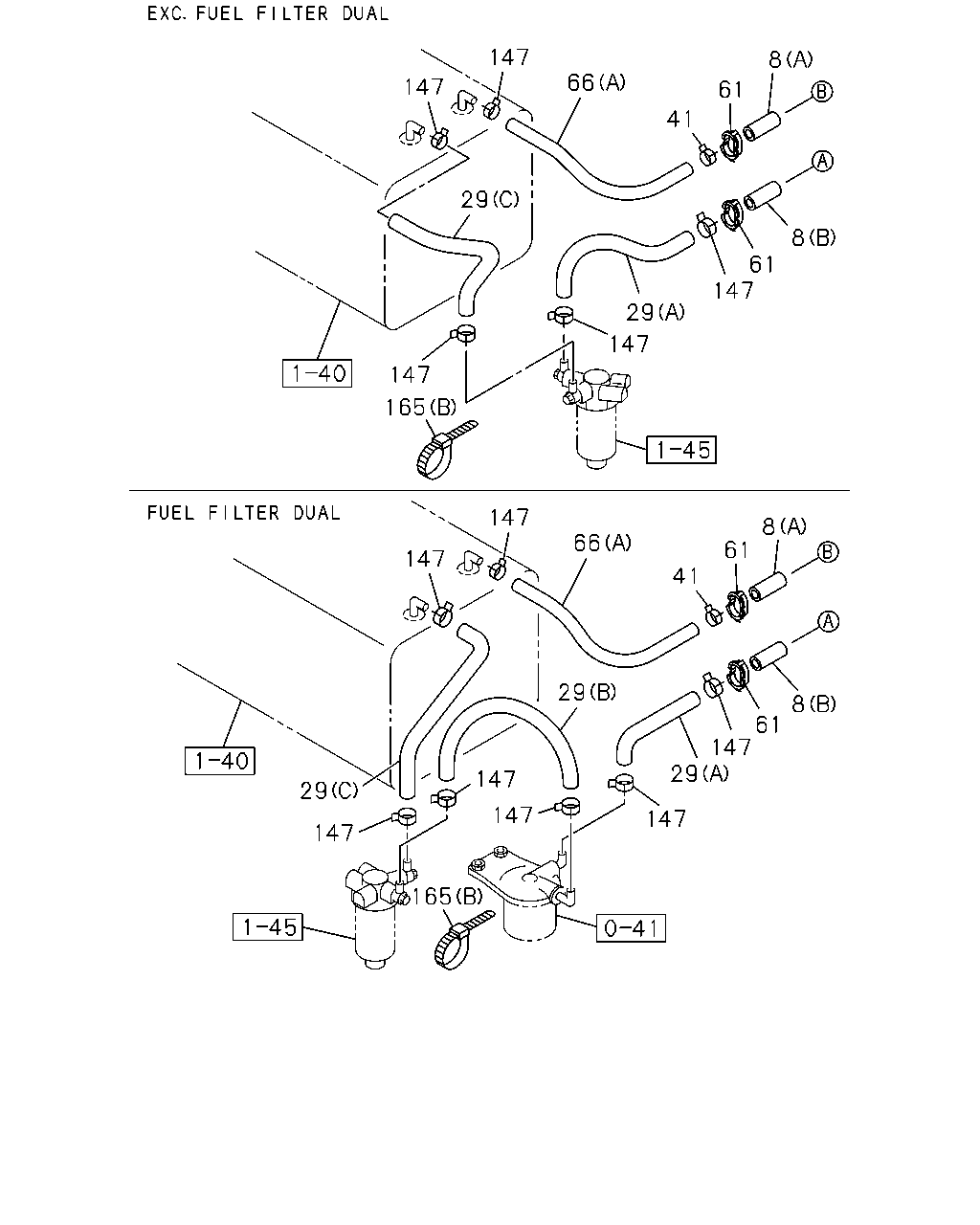

147 8 66 147 61 41 29 8 61 147 29 147 147 165 147 8 66 61 147 41 29 8 61 147 29 147 29 147 147 147 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0311-
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0311-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0804
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0805-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) (C) L=500	8-97353-527-0	01	1	0805-
29	03.163 HOSE; FUEL 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0311-0611
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL (C) L=380	8-97353-524-0	01	1	0311-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) (C) L=380	8-97353-524-0	01	1	0502-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=13	8-94238-571-0	01	1	0311-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK ID=13	8-98150-357-0	01	1	0912-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0311-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0807
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 BLACK ID=19	8-94238-569-0	01	1	0502-0911
147	03.162 CLIP; FUEL PIPE TO HOSE BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0911
147	03.162 CLIP; FUEL PIPE TO HOSE GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0911
147	03.162 CLIP; FUEL PIPE TO HOSE GRAY ID=13	8-98150-357-0	01	1	0912-
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0502-0606
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0611
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0611
165	03.162 CLIP; FUEL HOSE 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE (A) ID=13	8-98150-357-0	02	1	0912-
