Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#53007) — 25 parça
◀

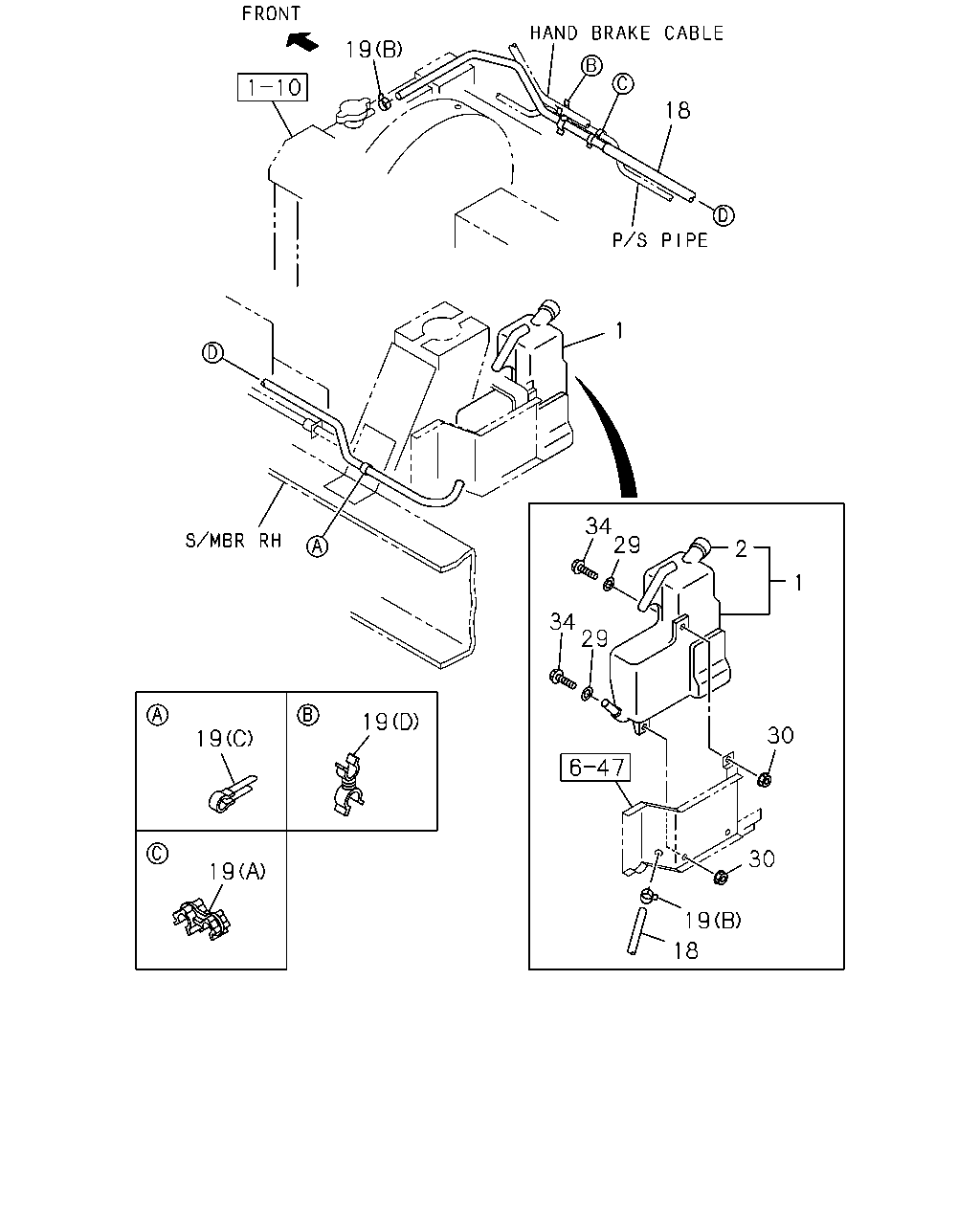

[111A] SURGE TANK AND HOSE (22 parça)
[111A] RADIATOR HOSE (3 parça)
▶
19
18
1
34
29
2
1
34
29
19
30
19
30
19
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 TANK; SURGE,RAD
8-97210-844-0
01
1
0311-1010
1
01.219 TANK; SURGE,RAD
8-98178-177-0
01
1
1011-
2
01.203 CAP; SURGE TANK
8-97217-796-0
01
1
0311-1010
2
01.203 CAP; SURGE TANK
8-98178-074-0
01
1
1011-
18
01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP)
8-98049-038-2
01
1
0612-
18
01.240 HOSE; RAD TO SURGE TANK
8-97129-559-1
01
1
0311-0501
18
01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH)
8-97129-559-1
01
1
0502-
19
01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) (C) ID=10 & 12
8-94416-613-0
01
1
0807-
19
01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) (C) ID=14 L=47
5-09700-319-0
01
1
0808-
19
01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
01
1
0311-0807
19
01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP) (C) ID=14 L=47
5-09700-319-0
02
1
0808-
19
01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12
8-94416-613-0
01
1
0311-0806
19
01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP) (A) ID=10 & 12
8-94416-613-0
02
1
0807-
19
01.240 CLIP; HOSE,SURGE TANK
02.559 (D) ID=10 & 11
8-94438-996-0
01
1
0311-
19
01.240 CLIP; HOSE,SURGE TANK
01.219 (B) ID=12
8-94238-610-0
02
1
0311-0911
19
01.240 CLIP; HOSE,SURGE TANK
(B) ID=12
8-98150-358-0
02
1
0912-
29
01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18
9-09160-706-0
03
1
0311-0605
29
01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18
0-91610-706-0
03
1
0606-
30
01.203 NUT
04.594 M6 FLANGE
0-91150-106-0
03
1
0311-0602
30
01.203 NUT
01.062 M6 FLANGE
0-91180-106-0
03
1
0603-
34
01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE
0-28680-620-0
03
1
0311-0512
34
01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE
0-28650-620-0
03
1
0601-
56
128
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
01.173 HOSE; WATER,RAD OUTLET
8-97124-745-0
01
1
0311-
56
01.166 CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0311-
128
01.159 HOSE; WATER,RAD INL
8-97128-677-0
01
1
0311-
