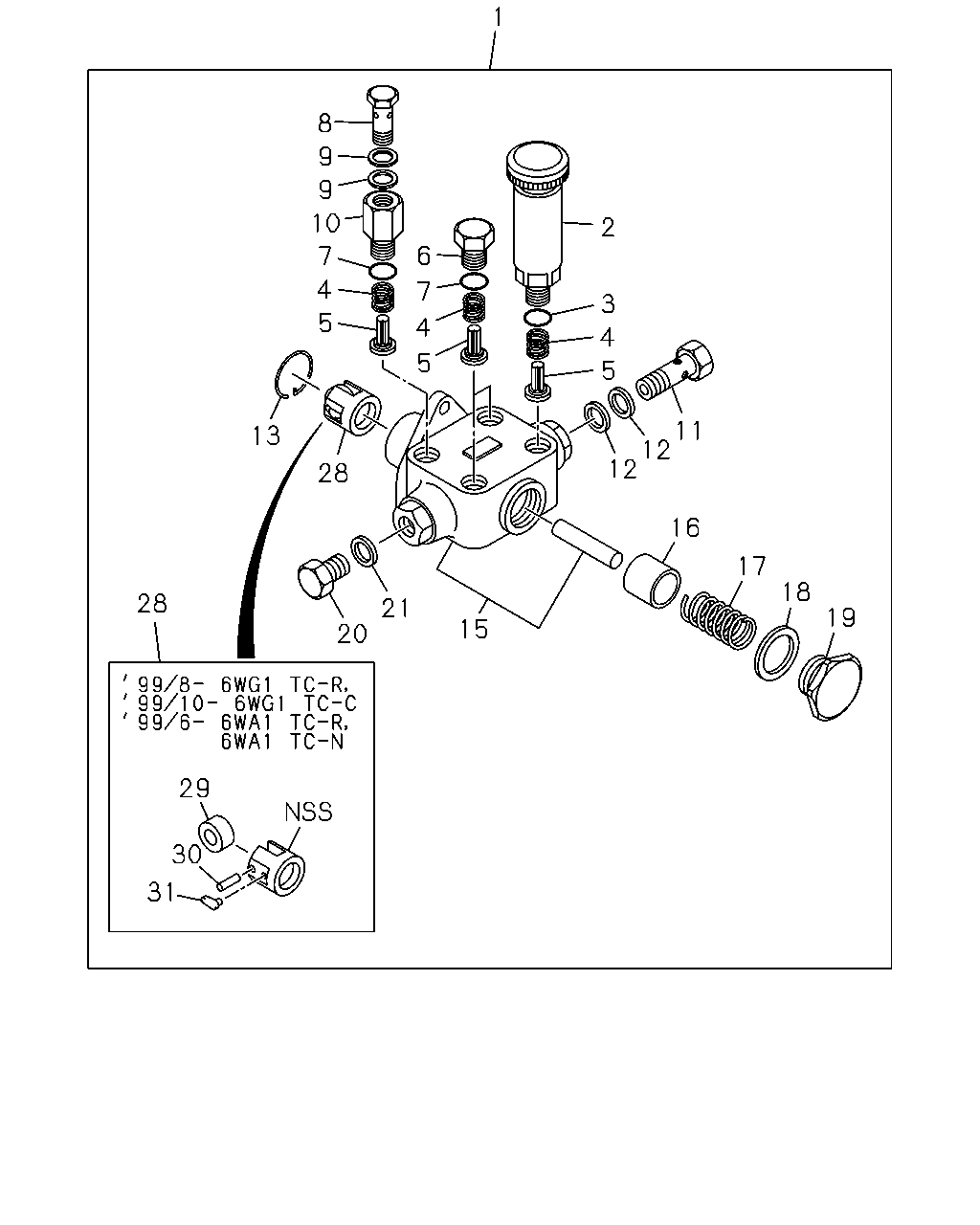

0-84A — FEED PUMP; INJECTION PUMP (#5300) — 80 parça

1 8 9 9 10 2 6 7 4 7 3 5 4 4 5 5 11 12 12 13 28 16 17 18 28 21 19 15 20 29 30 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15750-151-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 1-15603-290-5	1-15750-152-0	01	1	-9910
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 1-15603-296-4	1-15750-152-0	01	1	-9907
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 1-15603-265-3	1-15750-152-0	01	1	-9912
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-065-7	1-15750-190-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 1-15603-290-5	1-15750-190-0	01	1	9911-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 1-15603-265-3	1-15750-190-0	01	1	0001-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 1-15603-296-4	1-15750-190-0	01	1	9908-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15755-002-0	04	1	0001-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15755-002-0	04	1	9908-
5	VALVE; FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15755-002-0	04	1	9911-
5	VALVE; FUEL FEED PUMP ASM PART: F = 1-15603-265-3	9-81351-602-0	04	1	-9912
5	VALVE; FUEL FEED PUMP ASM PART: H = 1-15603-296-4	9-81351-602-0	04	1	-9907
5	VALVE; FUEL FEED PUMP ASM PART: G = 1-15603-290-5	9-81351-602-0	04	1	-9910
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-009-0	02	1	-9905
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-066-0	02	1	9906-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-19623-016-0	03	1	9906-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81355-031-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	9-81355-031-0	03	1	-9905
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-052-0	01	1	-9905
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-067-0	01	1	9906-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-265-3	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: G = 1-15603-290-5	1-15759-029-0	01	1	-9910
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: H = 1-15603-296-4	1-15759-029-0	01	1	-9907
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-029-0	01	1	-9905
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	8-97203-957-0	01	1	9906-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: H = 1-15603-296-4	8-97203-957-0	01	1	9908-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: A = 1-15603-065-7	8-97203-957-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: G = 1-15603-290-5	8-97203-957-0	01	1	9911-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15751-010-0	01	1	-9905
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15603-068-5	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15751-031-0	01	1	-9912
15	HOUSING; FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15751-031-0	01	1	-9910
15	HOUSING; FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15751-031-0	01	1	-9907
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-065-7	1-15751-046-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15751-046-0	01	1	9911-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15751-046-0	01	1	0001-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15751-046-0	01	1	9908-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15751-050-0	01	1	9906-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-065-7, B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15759-004-0	01	1	-9910
20	PLUG; HSG,FUEL FEED PUMP ASM PART: B = 1-15603-068-5	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15759-004-0	01	1	-9907
20	PLUG; HSG,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-004-0	01	1	-9905
20	PLUG; HSG,FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15759-004-0	01	1	-9912
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-068-5	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-09630-085-0	01	1	-9905
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: H = 1-15603-296-4	1-09630-085-0	01	1	-9907
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15603-265-3	1-09630-085-0	01	1	-9912
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15603-290-5	1-09630-085-0	01	1	-9910
28	TAPPET ASM; FUEL FEED PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-065-7, F = 1-15603-265-3, G = 1-15603-290-5, H = 1-15603-296-4	1-15754-006-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15759-055-0	01	1	9911-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15759-055-0	01	1	9908-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-065-7	1-15759-055-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15759-055-0	01	1	0001-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	9-81355-059-0	01	1	9906-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15759-056-0	01	1	9908-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-065-7	1-15759-056-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15759-056-0	01	1	0001-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15759-056-0	01	1	9911-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	9-81355-060-0	01	1	9906-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: H = 1-15603-296-4	1-15759-057-0	02	1	9908-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: F = 1-15603-265-3	1-15759-057-0	02	1	0001-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-065-7	1-15759-057-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: G = 1-15603-290-5	1-15759-057-0	02	1	9911-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-2	1-15759-078-0	02	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
