◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#52994) — 85 parça

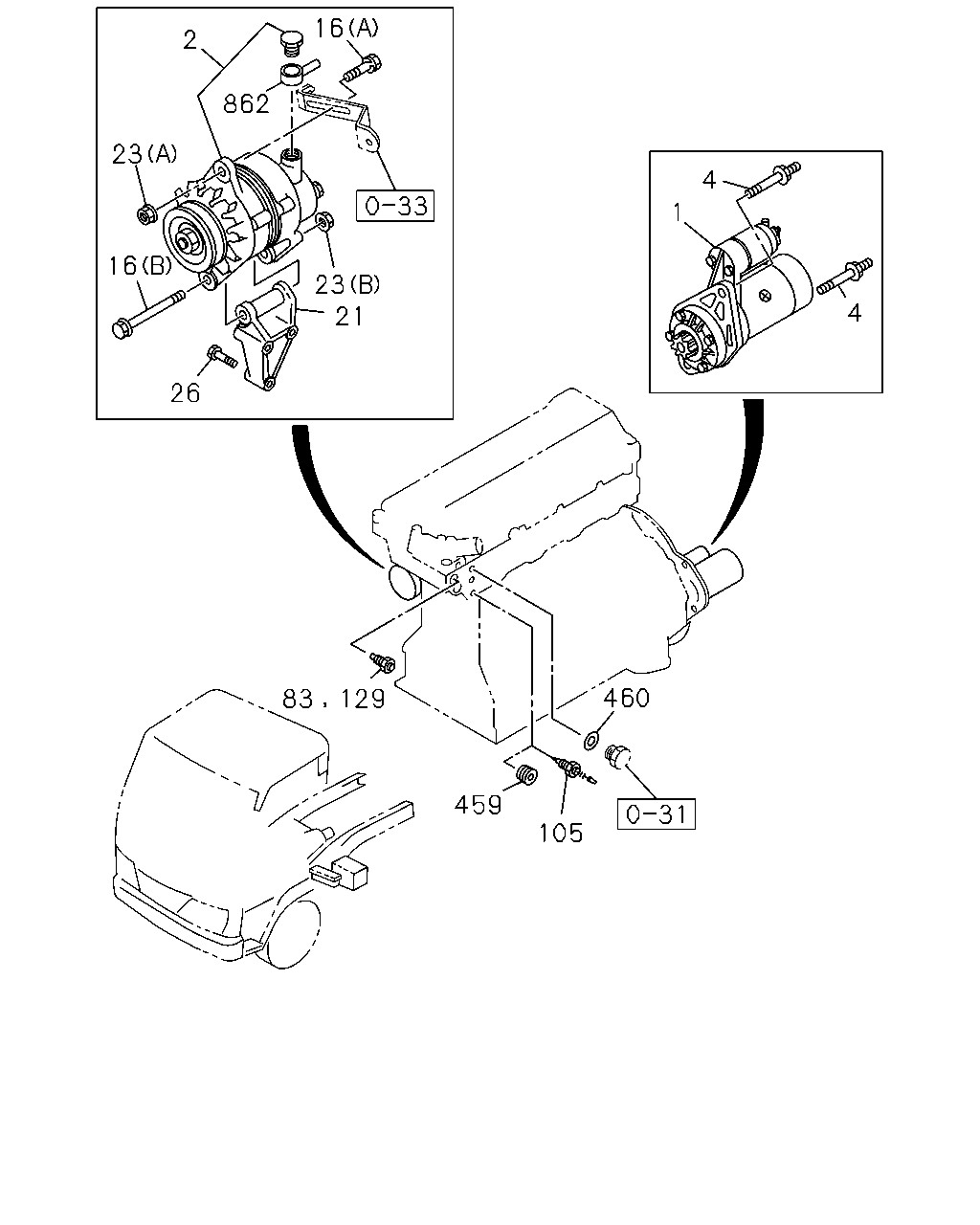

çizim 19600
16 2 862 23 4 1 16 23 21 4 26 460 83 129 459 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0311-0611 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0612- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0311-0611 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0612-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0311-0611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0612- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-1 01 1 0311-0611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-1 01 1 0612- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0311-0611 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0612- ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0311-0611 ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0612- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0311-0611 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0612- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0311-0501 ●
21 02.277 BRACKET; GEN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97075-884-2 01 1 0502-0502 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502-0611 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0612- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0311-0602 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0611 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0311-0602 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0611 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0612- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0311-0501 ●
26 02.277 BOLT; GEN BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0502-0502 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601-0611 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0612- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0311-0501 ●
26 02.277 BOLT; GEN BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0502-0502 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0611 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0612- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0311-0501 ●
83 01.150 THERMOMETER UNIT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) DENSO 		8-94235-691-0 01 1 0502-0502 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0311-0501 ●
83 01.150 THERMOMETER UNIT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) YAZAKI 		8-94237-861-0 01 1 0502-0502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94121-152-1 01 1 0612- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0311-0312 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0612- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0612-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
459 02.183 PLUG
01.073 PT3/8 		5-09605-005-0 01 1 0401-0501 ●
459 02.183 PLUG
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.073 PT3/8 		5-09605-005-0 01 1 0502-0502 ●
459 02.183 PLUG
01.073 PT3/8 		5-09605-005-0 01 1 0502- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0612- ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0311-0611 ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0612- ● ●
çizim 99025
46 10 10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0311-0501 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0502- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0612- ● ●

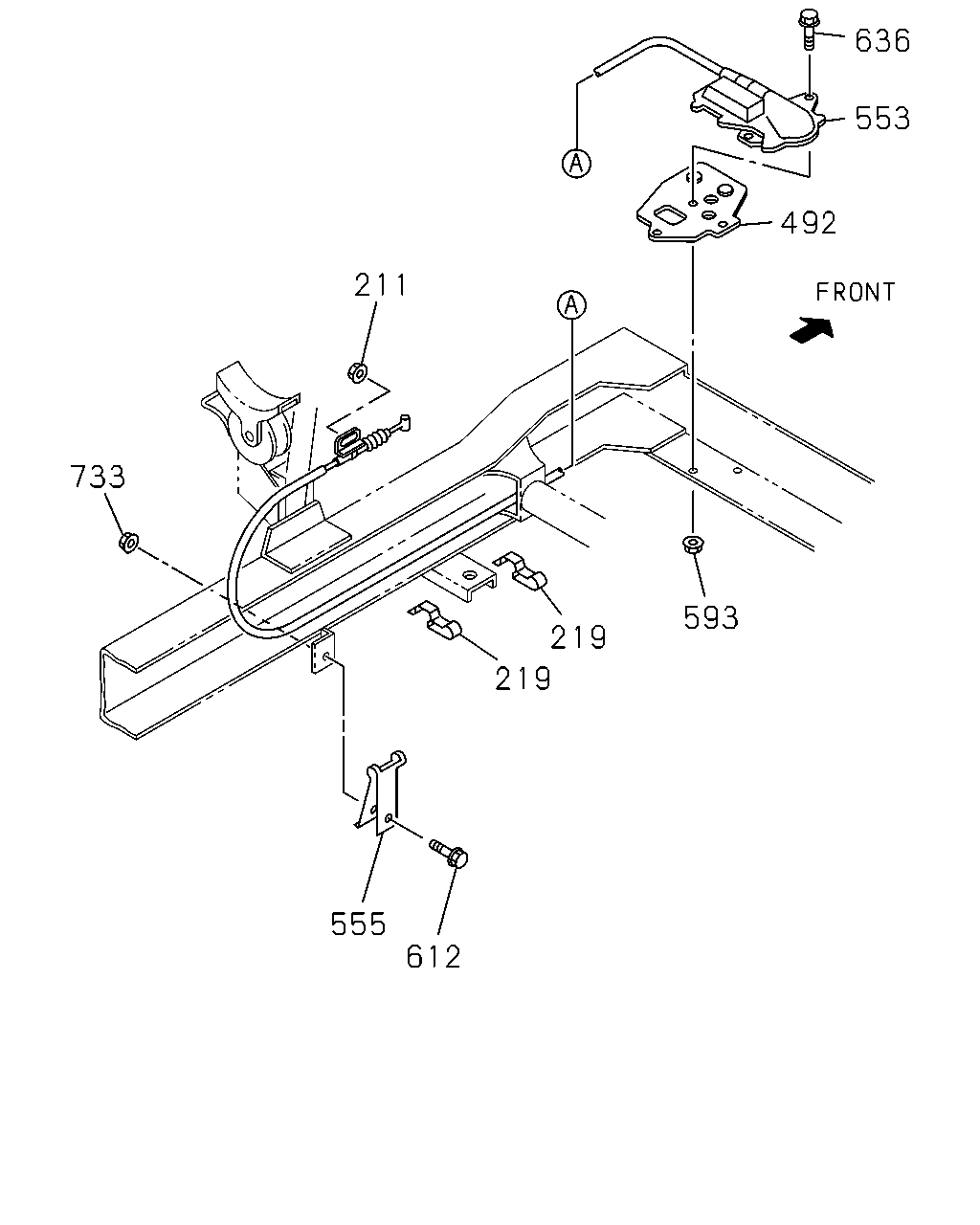

çizim 99026
636 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0311-0602 ●
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0611 ●
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0612- ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 T=4.5 & 9 		5-09709-023-0 01 1 0311-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 T=4.5 & 9 		5-09709-023-0 01 1 0311-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 T=4.5 & 9 		5-09709-023-0 02 1 0502-0611 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 T=4.5 & 9 		5-09709-023-0 02 1 0612- ● ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 0311-0611 ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 0612- ● ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-068-0 01 1 0311-0611 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-068-0 01 1 0612- ● ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0311-0611 ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0612- ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0311-0602 ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0611 ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0612- ● ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0311-0611 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0612- ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512 ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0611 ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0612- ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0311-0602 ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0611 ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
çizim 99028
578
BalonParca AdiParca NoAdetTipApplied Date A B
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0311-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●

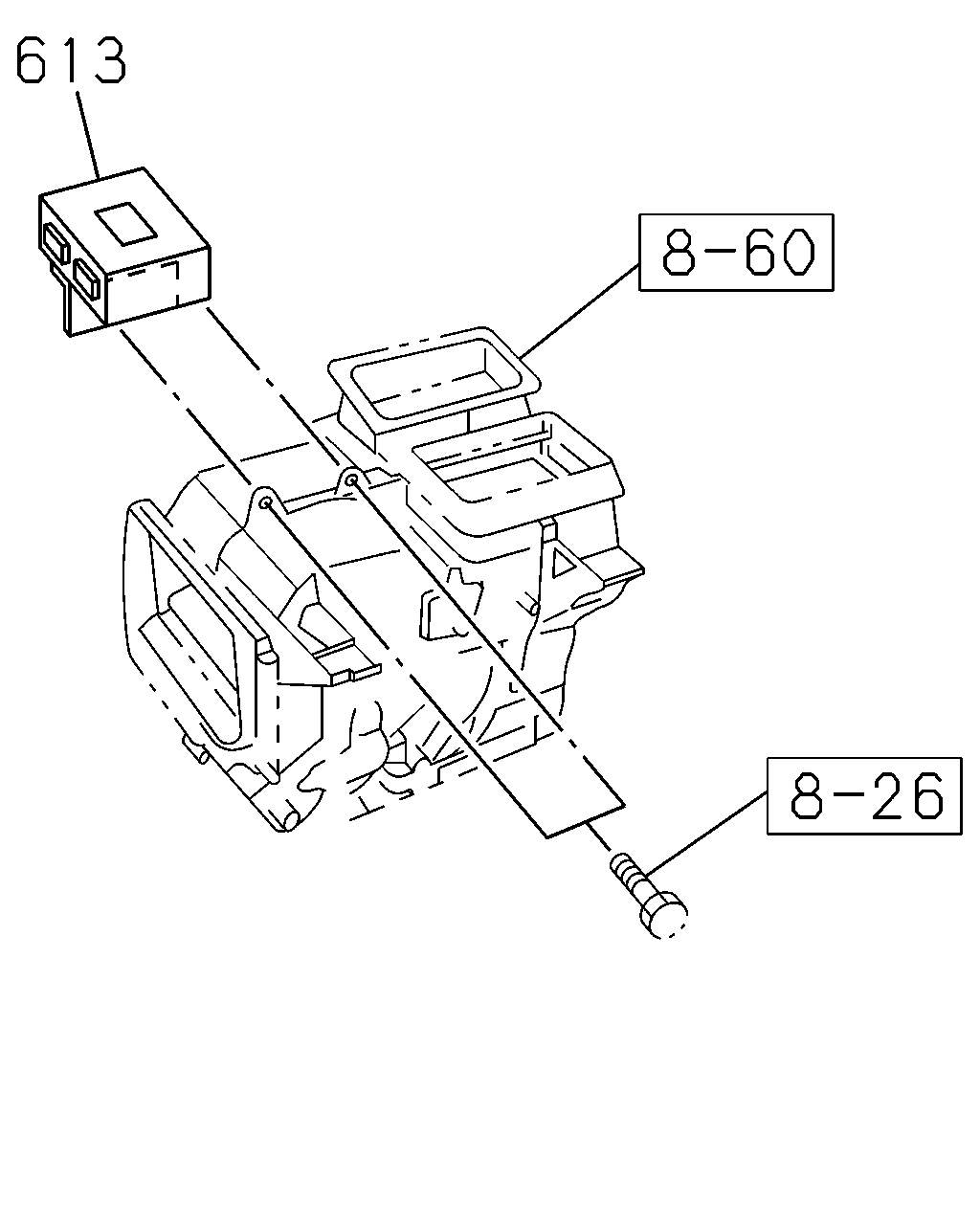

çizim 99154
613
BalonParca AdiParca NoAdetTipApplied Date A B
613 03.670 CONTROL UNIT; ENG 8-97187-466-7 01 1 0612- ●
613 03.670 CONTROL UNIT; ENG
TURBOCHARGER(K51) 		8-97187-466-5 01 1 0311-0501 ●

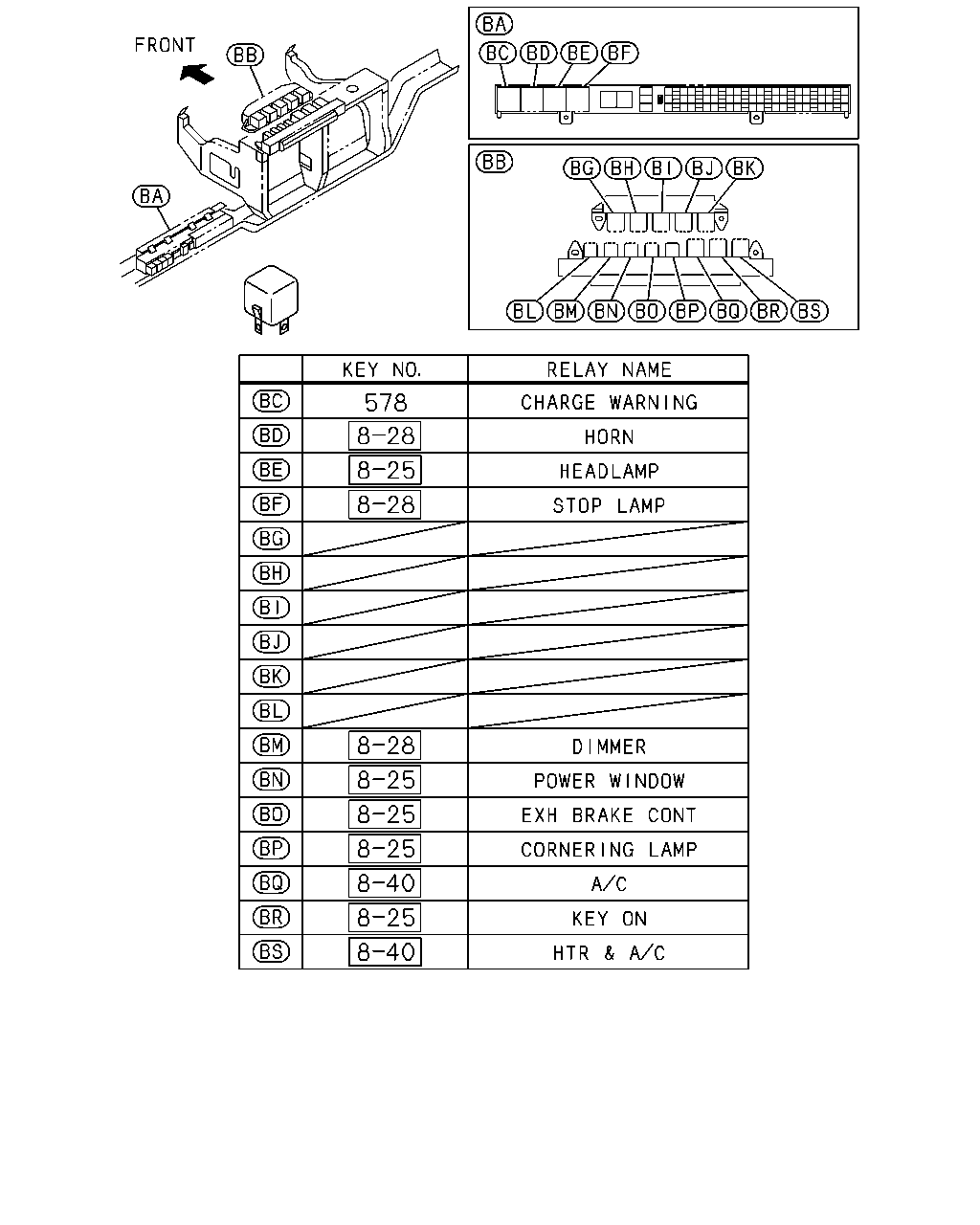

çizim 99213
578
BalonParca AdiParca NoAdetTipApplied Date A B
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0311-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
