◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#52991) — 70 parça

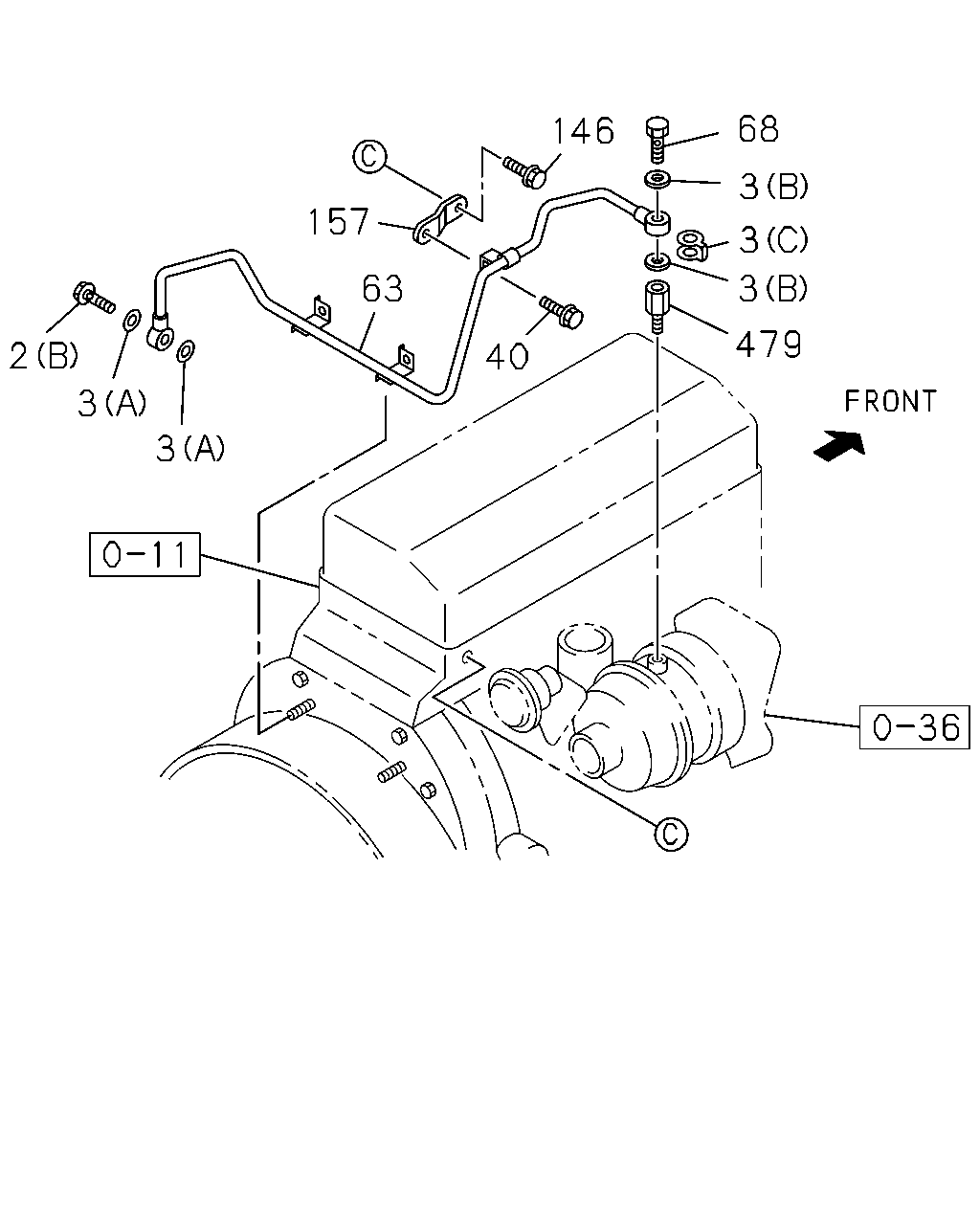

çizim 19827
68 146 3 157 3 63 3 479 2 40 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
(B) M10X40 FLANGE 		8-97182-847-0 01 1 0612- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (A) M10X24 		9-09906-205-1 01 1 0612- ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0311-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0502 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0805 ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0612- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0612-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0311-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502-0502 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502- ●
40 01.531 BOLT; OIL PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 0612- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 0612- ●
146 01.531 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612- ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 0612- ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0612- ●
çizim 20409
3 3 2 3 63 3 3 3 3 3 3 2 2 1 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-3 01 1 0612- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0311-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97093-547-1 01 1 0502-0502 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M10X40 FLANGE 		8-97182-847-0 01 1 0612- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (A) M10X24 		9-09906-205-1 01 1 0612- ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0311-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0502 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0805 ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0612- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0612-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0311-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502-0502 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 0612- ●
çizim 20507
202 202 89 86 202 89 65 83 202 65 27 340
BalonParca AdiParca NoAdetTipApplied Date A B
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0311-0512 ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0611 ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0311-0611 ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0612- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0311-0611 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0612-0805 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0311-0611 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0612- ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0311-0501 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.430 		8-94455-311-1 01 1 0502-0502 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0502-0611 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0612- ● ●
89 04.681 CLIP; VAC HOSE
EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 03.280 ID=17.1 		8-94122-679-0 01 1 0311-0501 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0311-0501 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502-0502 ●
89 04.681 CLIP; VAC HOSE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.280 ID=17.1 		8-94122-679-0 01 1 0502-0502 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502-0507 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0508-0611 ●
89 04.681 CLIP; VAC HOSE
EXC. AIR CONDITIONER MANUAL CONT(C60) 03.280 ID=17.1 		8-94122-679-0 01 1 0508-0611 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0612-0612 ● ●
89 04.681 CLIP; VAC HOSE
GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.280 ID=17.1 		8-94122-679-0 01 1 0612-0612 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0612-0612 ● ●
89 04.681 CLIP; VAC HOSE
GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.280 ID=17.1 		8-94122-679-0 01 1 0612-0612 ●
89 04.681 CLIP; VAC HOSE
FAST GLOW SYSTEM<KM6> 03.280 ID=17.1 		8-94122-679-0 01 1 0612-0612 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0612- ● ●
89 04.681 CLIP; VAC HOSE
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.280 ID=17.1 		8-94122-679-0 01 1 0612- ●
89 04.681 CLIP; VAC HOSE
FAST GLOW SYSTEM<KM6> 03.280 ID=17.1 		8-94122-679-0 01 1 0612- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0311-0611 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0612- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0311-0611 ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0612- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0311-0611 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0612- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
