Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

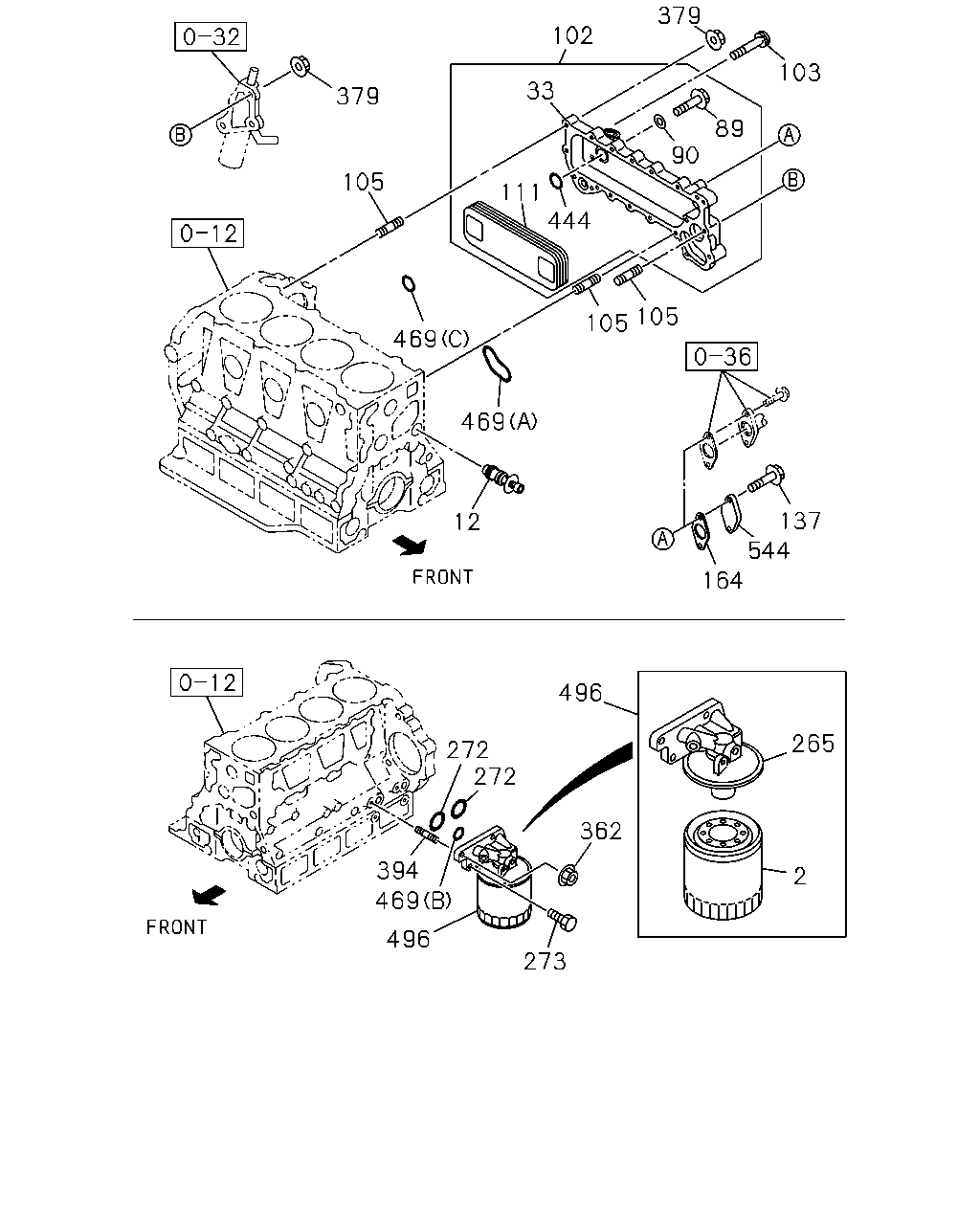

0-50 — OIL COOLER AND OIL FILTER (#52989) — 106 parça

102 105 379 33 111 444 90 89 103 379 105 105 469 469 12 164 544 137 496 272 272 362 2 265 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0612-	●
2	01.836 ELEMENT; OIL FILTER	8-94321-219-1	01	1	0311-0501		●
2	01.836 ELEMENT; OIL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94321-219-1	01	1	0502-0502		●
2	01.836 ELEMENT; OIL FILTER	8-94321-219-1	01	1	0502-		●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0311-0501		●
12	01.540 VALVE ASM; BYPASS EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97013-566-2	01	1	0502-0502		●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0502-0611		●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0612-	●	●
33	01.540 HOUSING ASM; COOLER	8-97212-335-3	01	1	0311-0501		●
33	01.540 HOUSING ASM; COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-335-3	01	1	0502-0502		●
33	01.540 HOUSING ASM; COOLER	8-97212-335-3	01	1	0502-0611		●
33	01.540 HOUSING ASM; COOLER	8-97212-335-3	01	1	0612-	●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0311-0501		●
89	01.540 BOLT; ELEMENT TO CASE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0502		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0611		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0612-	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0311-0501		●
90	01.540 GASKET; BOLT,OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.550	1-21729-043-0	04	1	0502-0502		●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0502-0611		●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0612-	●	●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0311-0406		●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0407-0501		●
102	01.540 COOLER ASM; OIL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-200-0	01	1	0502-0502		●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0502-0611		●
102	01.540 COOLER ASM; OIL	8-97385-200-4	01	1	0612-	●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0311-0501		●
103	01.540 BOLT; OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0502-0502		●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0502-0512		●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0601-0611		●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0612-	●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0311-0501		●
103	01.540 BOLT; OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0502-0502		●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0502-0512		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0601-0611		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0612-	●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0311-0501		●
105	01.540 STUD; OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X52 L=63	8-97016-314-0	03	1	0502-0502		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0502-0611		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0612-	●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0311-0501		●
111	01.540 CORE; OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97334-101-0	01	1	0502-0502		●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0502-0611		●
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0612-	●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0311-0501		●
137	01.840 BOLT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0502		●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0611		●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0311-0501		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97146-684-0	01	1	0502-0502		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0502-0611		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0612-	●	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0612-	●
265	01.837 BODY; OIL FILTER	8-97096-675-3	01	1	0311-0501		●
265	01.837 BODY; OIL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97096-675-3	01	1	0502-0502		●
265	01.837 BODY; OIL FILTER	8-97096-675-4	01	1	0502-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0311-0501		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=22.1	8-94399-399-0	02	1	0502-0502		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0502-0611		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0612-	●	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0311-0501		●
273	01.840 BOLT; OIL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0502-0502		●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0502-0512		●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-0611		●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0612-	●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501		●
362	01.837 NUT; OIL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0502		●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611		●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501		●
379	01.540 NUT; OIL COOLER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0502		●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602		●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0611		●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-	●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0311-0501		●
394	01.837 STUD; OIL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.275 M10X25 L=40	0-49841-025-0	02	1	0502-0502		●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0502-0512		●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0611		●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0612-	●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0311-0406		●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0501		●
444	01.550 GASKET; ELEMENT TO BODY EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97384-130-0	02	1	0502-0502		●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0502-0611		●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0612-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0311-0501		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-94338-878-1	01	1	0502-0502		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0502-0611		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0612-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0311-0501		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-0502		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-0611		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0612-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0311-0501		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) ID=26.2	9-09566-226-0	01	1	0502-0502		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0502-0606		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0611		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0612-	●	●
496	01.835 FILTER ASM; OIL	8-97148-268-3	01	1	0612-	●
496	01.835 FILTER ASM; OIL	8-97148-269-2	01	1	0311-0501		●
496	01.835 FILTER ASM; OIL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97148-269-2	01	1	0502-0502		●
496	01.835 FILTER ASM; OIL	8-97148-269-3	01	1	0502-		●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0311-0501		●
544	08.845 COVER; HEATER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97147-028-0	01	1	0502-0502		●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0502-0611		●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0612-	●	●
