Sayfa 0-40 - Isuzu EPC

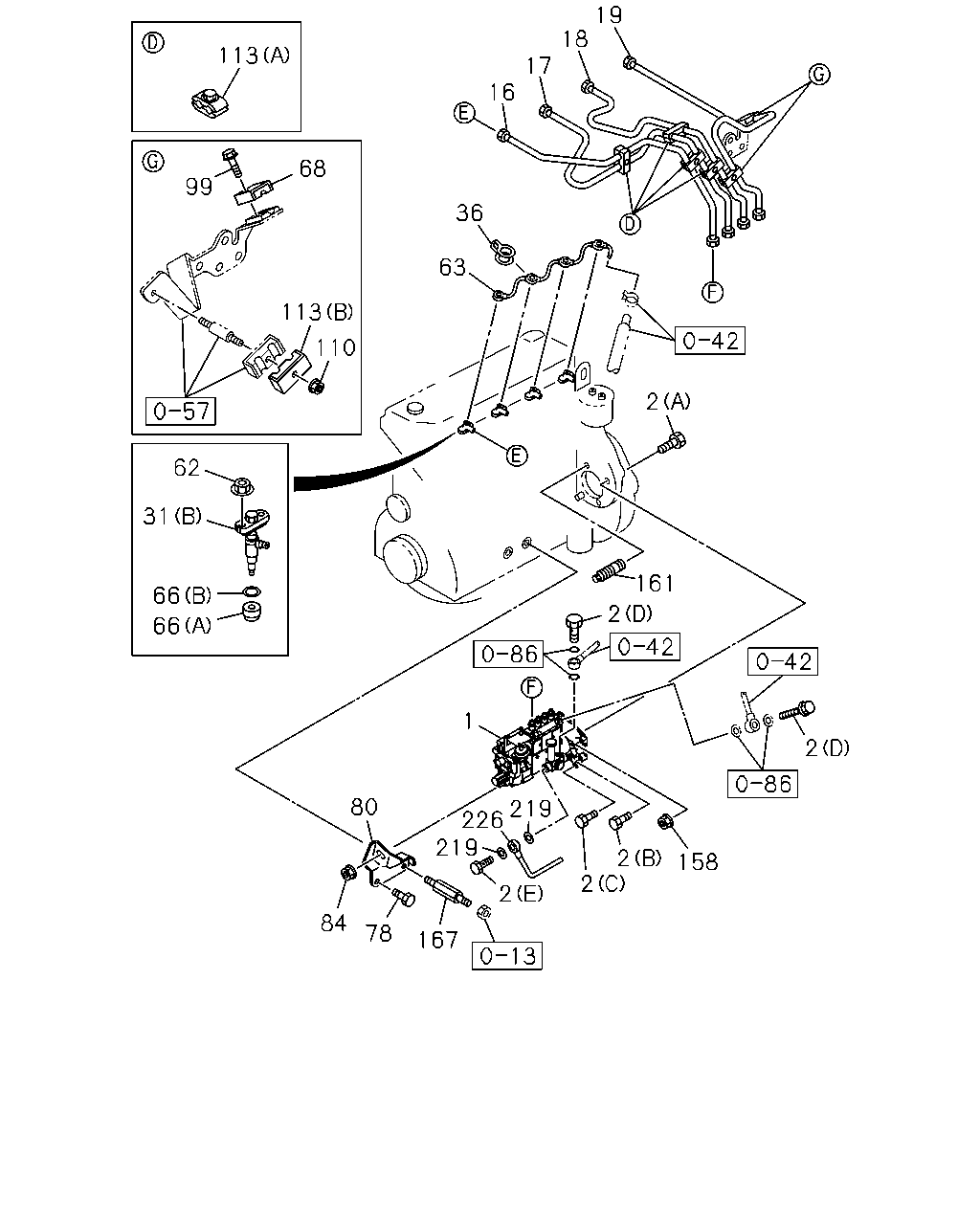

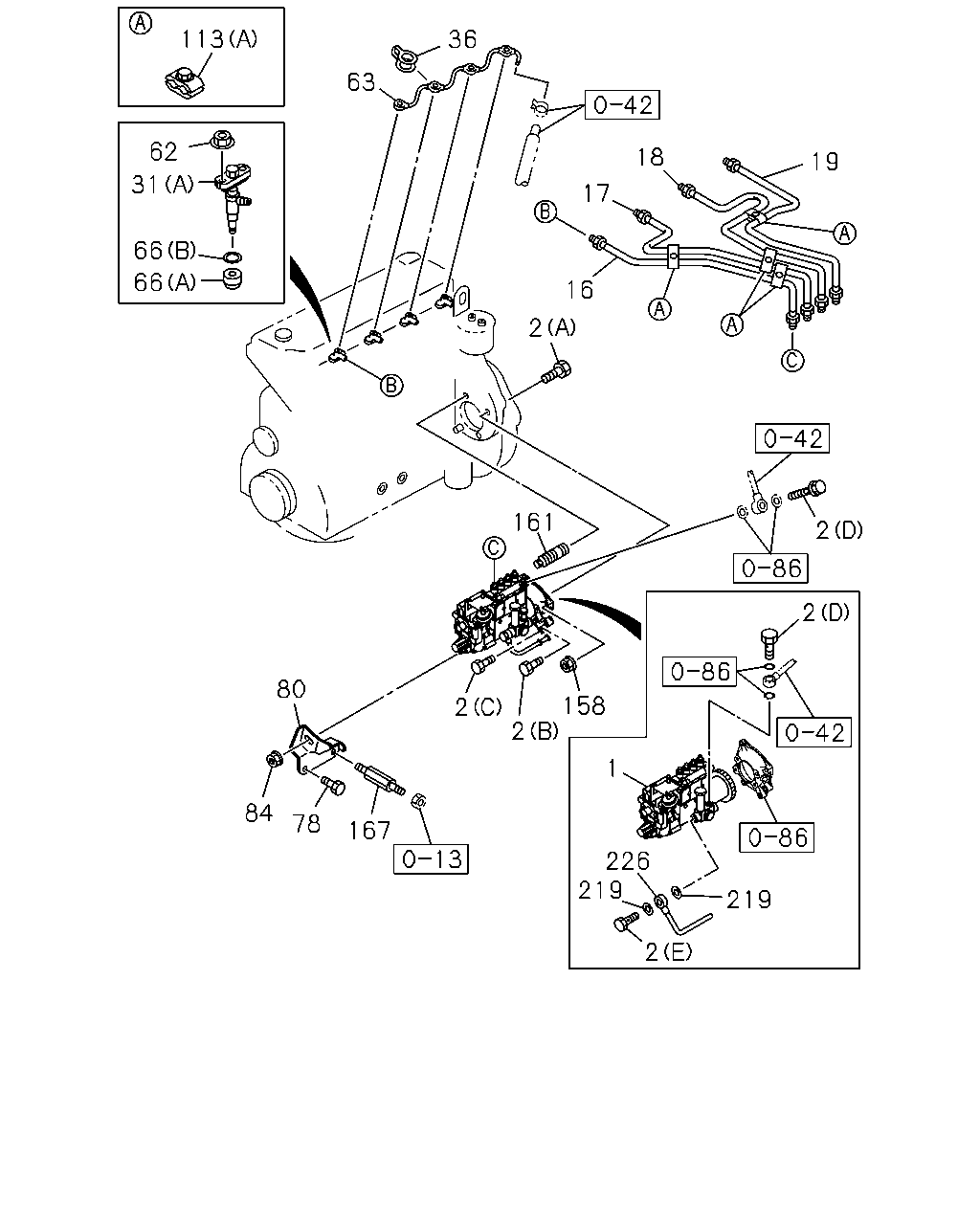

0-40 — FUEL INJECTION SYSTEM (#52986) — 315 parça

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-101-0	01	1	0502-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-0611	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (E) M14X30	8-97203-957-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-0611	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-0501	●
16	03.330 PIPE; INJ NO.1 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-374-0	01	1	0502-0502	●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-0501	●
17	03.330 PIPE; INJ NO.2 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-375-0	01	1	0502-0502	●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-0501	●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-376-0	01	1	0502-0502	●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-0501	●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-377-1	01	1	0502-0502	●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-0501	●
31	03.332 NOZZLE ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97119-811-0	04	1	0502-0502	●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0311-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=8.6	8-94395-214-0	04	1	0502-0502	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0502-0611	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0612-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0311-0501	●
62	03.332 NUT; NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0502	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-0611	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-0502	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	0612-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0311-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B)	8-94326-439-0	04	1	0502-0502	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0502-0611	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-0502	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-	●
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	0612-		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0311-0501	●
78	03.330 BOLT; BRKT TO C/BL EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0502	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-0611	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0501	●
80	03.306 BRACKET; PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97136-677-0	01	1	0502-0502	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-0611	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0311-0501	●
84	03.330 NUT; BRKT TO BRKT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0502	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0611	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0311-0501	●
113	03.162 CLIP; INJ PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97213-050-0	04	1	0502-0502	●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-0611	●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501	●
158	03.330 NUT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0502	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501	●
161	03.340 STUD; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0502	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0611	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0311-0501	●
167	03.330 SPACER; GUIDE TUBE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97065-515-2	01	1	0502-0502	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0502-0611	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0501	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0502	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0611	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0311-0501	●
226	03.163 PIPE; FUEL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-567-0	01	1	0502-0502	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-0611	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-0501	●
31	03.332 NOZZLE ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97119-811-0	04	1	0502-0502	●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-	●
32	03.332 HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	0612-		●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0311-0501	●
32	03.332 HOLDER ASM; NOZZLE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-94311-966-2	04	1	0502-0502	●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0502-	●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0311-0501	●
33	03.332 NOZZLE; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97119-809-0	04	1	0502-0502	●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0502-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0612-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0311-0501	●
34	03.330 BOLT; EYE,NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	1-15339-009-0	04	1	0502-0502	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0502-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0612-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0311-0501	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94174-184-0	04	1	0502-0502	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0502-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97223-339-0	04	1	0612-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97349-452-0	04	1	0612-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0311-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-94329-555-0	04	1	0502-0502	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0502-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0612-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0311-0501	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94174-141-0	04	1	0502-0502	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0502-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0612-		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0311-0501	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94174-139-0	08	1	0502-0502	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0502-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0612-		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0311-0501	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97065-713-0	04	1	0502-0502	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0502-0611	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0612-	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	1-15349-042-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	1-15349-043-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.10	8-97027-432-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.20	8-97027-433-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.30	8-97027-434-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.40	8-97027-435-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.50	8-97027-436-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.52	8-97027-437-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.54	8-97027-438-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.56	8-97027-439-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0502-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0311-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.332 (A) T=0.58	8-97027-440-0	AR	1	0502-0502	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0502-	●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0311-0501	●
146	03.332 SPACER; NOZZLE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94344-439-0	04	1	0502-0502	●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0502-	●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0612-		●

113 36 63 62 18 19 31 17 66 66 16 2 161 2 2 80 2 158 2 1 84 78 167 226 219 219 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-101-0	01	1	0502-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-0611	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (E) M14X30	8-97203-957-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-0611	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0501	●
2	03.330 BOLT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0502	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0512	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-0501	●
16	03.330 PIPE; INJ NO.1 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-374-0	01	1	0502-0502	●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-0501	●
17	03.330 PIPE; INJ NO.2 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-375-0	01	1	0502-0502	●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-0501	●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-376-0	01	1	0502-0502	●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-0501	●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-377-1	01	1	0502-0502	●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-0501	●
31	03.332 NOZZLE ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97119-811-0	04	1	0502-0502	●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0311-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=8.6	8-94395-214-0	04	1	0502-0502	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0502-0611	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0612-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0311-0501	●
62	03.332 NUT; NOZZLE HOLDER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0502	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-0611	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-0502	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	0612-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0311-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B)	8-94326-439-0	04	1	0502-0502	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0502-0611	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-0502	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0311-0501	●
78	03.330 BOLT; BRKT TO C/BL EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0502	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-0611	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0501	●
80	03.306 BRACKET; PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97136-677-0	01	1	0502-0502	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-0611	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0311-0501	●
84	03.330 NUT; BRKT TO BRKT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0502	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0611	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0311-0501	●
113	03.162 CLIP; INJ PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97213-050-0	04	1	0502-0502	●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-0611	●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501	●
158	03.330 NUT; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0502	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501	●
161	03.340 STUD; INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0502	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0611	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0311-0501	●
167	03.330 SPACER; GUIDE TUBE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97065-515-2	01	1	0502-0502	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0502-0611	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0501	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0502	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0611	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0311-0501	●
226	03.163 PIPE; FUEL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-567-0	01	1	0502-0502	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-0611	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
