0-31 — THERMOSTAT AND HOUSING (#52981) — 41 parça

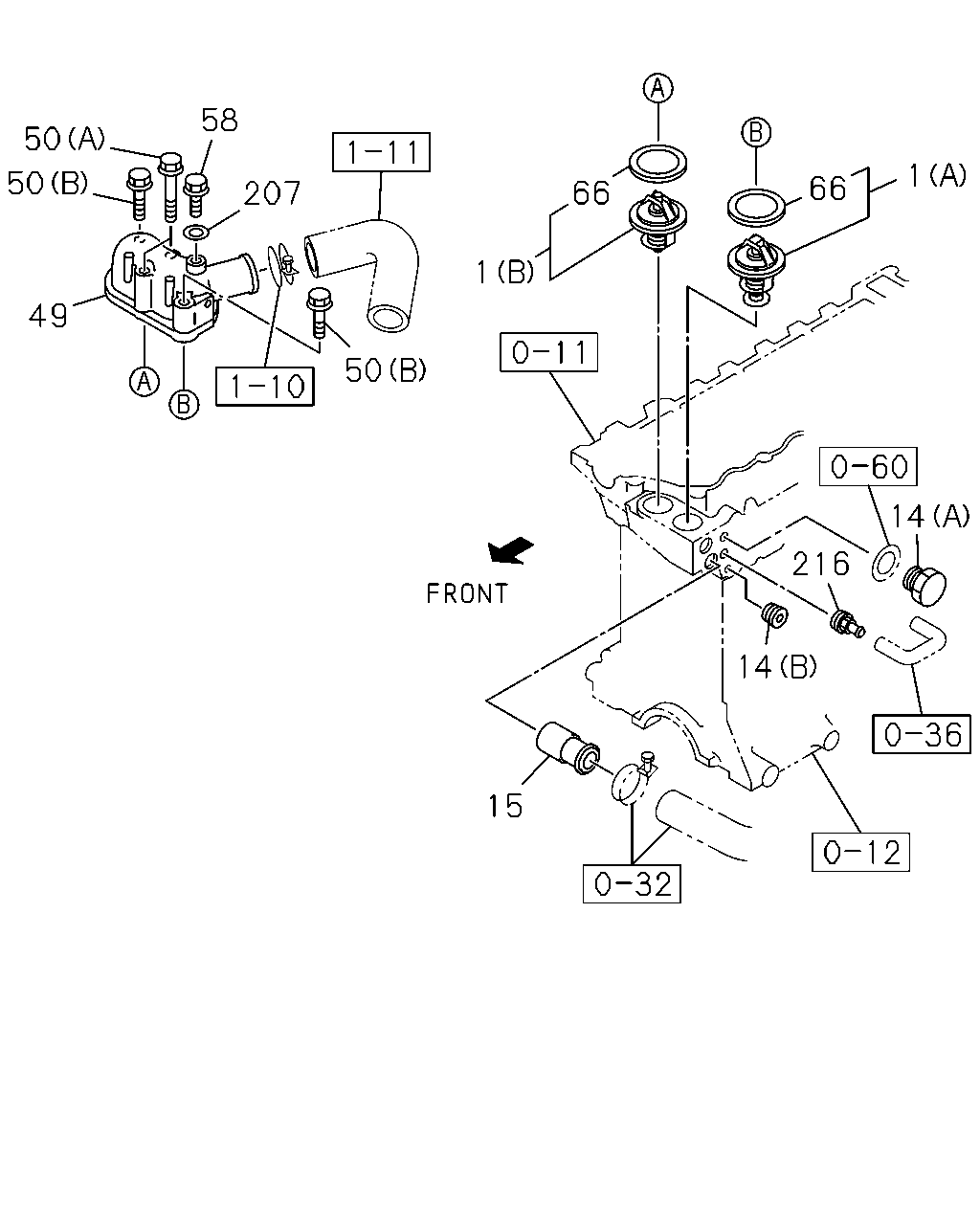

çizim 20503
58 50 1 50 66 66 207 1 49 14 216 14 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0311-0501 ●
1 01.246 THERMOSTAT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 82 CELSIUS 		8-97300-789-2 01 1 0502-0502 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0502-0611 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0612- ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-792-1 01 1 0311-0501 ●
1 01.246 THERMOSTAT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) 85 CELSIUS 		8-97300-792-1 01 1 0502-0502 ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-792-1 01 1 0502-0611 ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-792-1 01 1 0612- ● ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 0612- ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0612- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0311-0501 ●
15 01.251 PIPE; BYPASS
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.153 		8-94342-574-0 01 1 0502-0502 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0502-0611 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0612- ● ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0311-0407 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0501 ●
49 01.153 PIPE; WATER OUTLET
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97372-769-0 01 1 0502-0502 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0502-0611 ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0612- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0311-0501 ●
50 01.252 BOLT; OUTLET PIPE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0502-0502 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0502-0611 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0612- ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0311-0501 ●
50 01.252 BOLT; OUTLET PIPE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0502 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0611 ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0612- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0311-0501 ●
58 00.073 PLUG; WATER OUTLET PIPE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X16 		8-97021-211-1 01 1 0502-0502 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0502-0611 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0612- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0311-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97300-793-0 02 1 0502-0502 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0502-0611 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0612- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0311-0501 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502-0502 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502-0611 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0612- ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0612- ●
