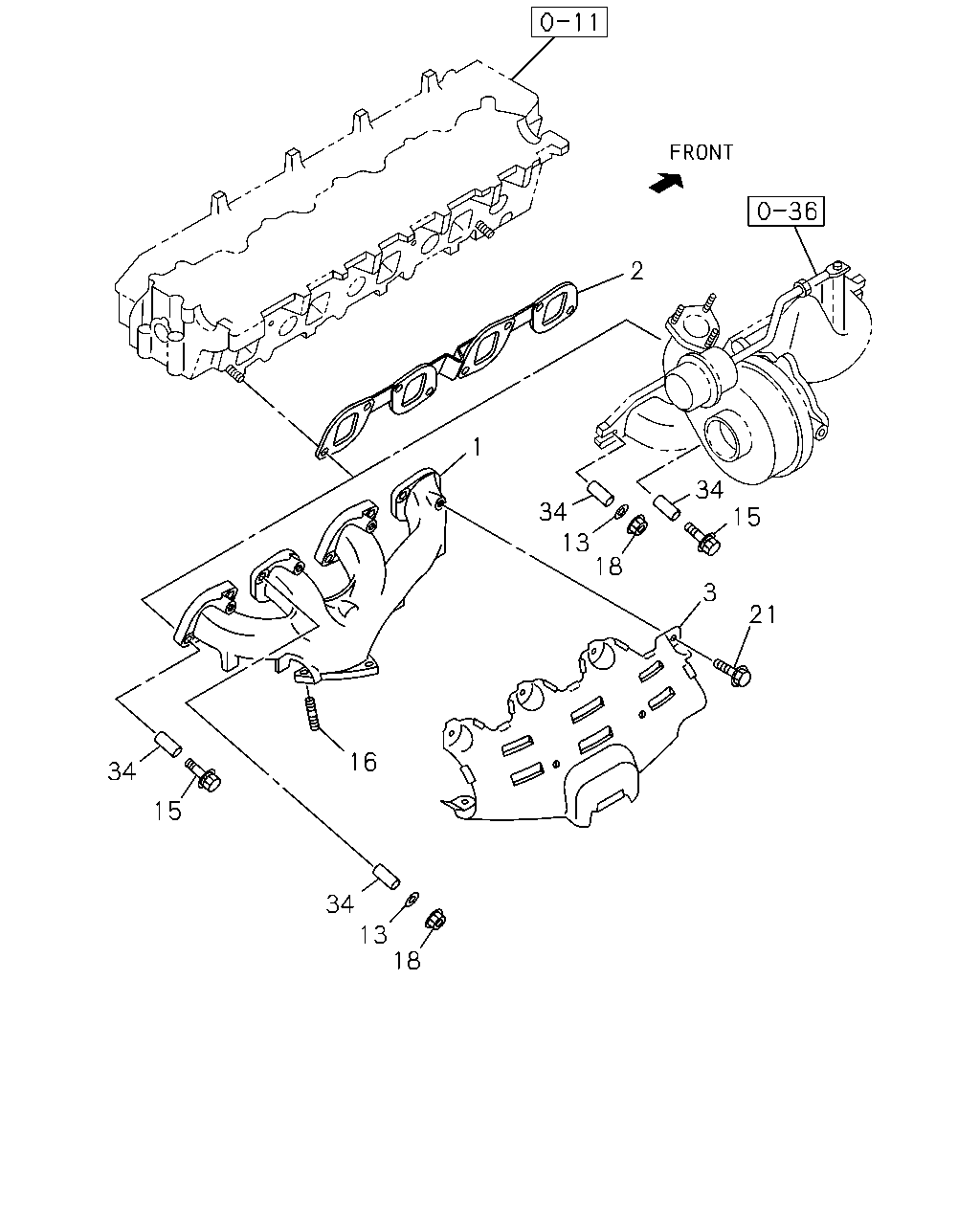

0-27 — EXHAUST MANIFOLD (#52978) — 33 parça

2 1 34 15 34 13 18 3 21 16 34 15 34 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	0311-0501	●
1	03.601 MANIFOLD; EXHAUST EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97163-079-0	01	1	0502-0502	●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0502-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-0	01	1	0311-0501	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97146-499-0	01	1	0502-0502	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-0	01	1	0502-0611	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	0612-	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-1	01	1	0311-0501	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97096-424-1	01	1	0502-0502	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-1	01	1	0502-	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0311-0501	●
13	03.613 WASHER; LK,EXH MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.604 T=2.2	1-09556-015-0	02	1	0502-0502	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0502-0611	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0612-	●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0311-0501	●
15	03.604 BOLT; EXH MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) M10X60	8-97061-543-0	06	1	0502-0502	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0502-0611	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0612-	●	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0311-0501	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) M10X38 L=53	8-97077-549-0	03	1	0502-0502	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0502-	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0311-0501	●
18	03.604 NUT; EXH MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.002 M10	9-09110-510-0	02	1	0502-0502	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0502-0512	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0611	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0612-	●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0311-0501	●
21	03.604 BOLT; HEAT PROTECTOR EXC. HIGH ALTITUDE COMPENSATOR(EE2) M6X12 FLANGE	8-97108-669-0	08	1	0502-0502	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0502-	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0311-0501	●
34	03.603 COLLAR; DIST,EXH MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) L=28	8-97250-073-1	08	1	0502-0502	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0502-0611	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0612-	●	●
