◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶

0-25 — INLET MANIFOLD (#52977) — 163 parça

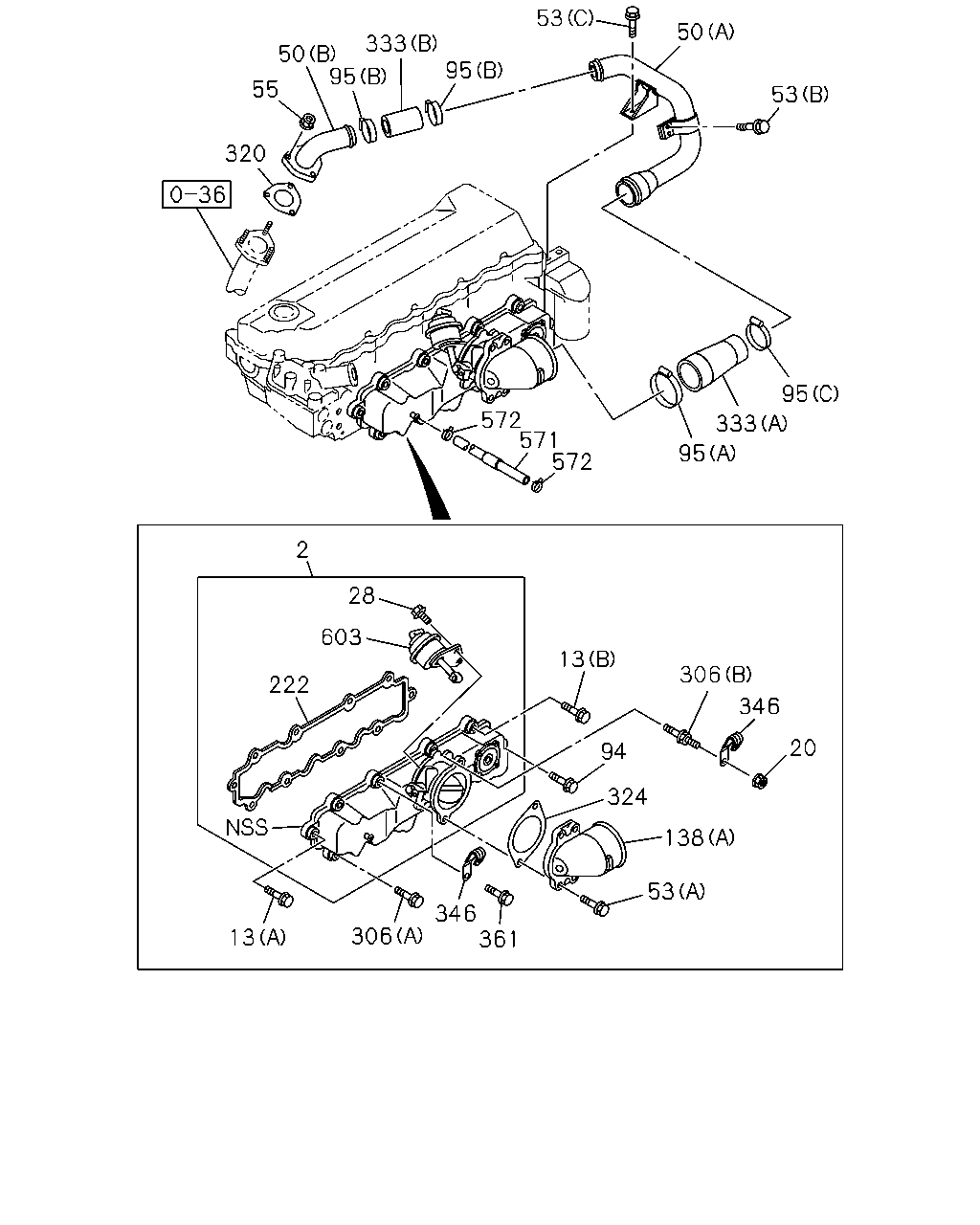

53 50 333 95 50 95 55 53 320 572 571 572 95 333 95 2 28 603 13 306 222 346 20 94 324 138 53 346 361 306 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-0501		●
2	03.407 COVER; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97146-866-2	01	1	0502-0502		●
2	03.407 COVER; INL	8-97146-866-2	01	1	0502-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0501		●
13	03.275 BOLT; INL MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0502		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501		●
20	03.275 NUT; INL MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0502		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0501		●
28	03.278 BOLT; CHAMBER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0502		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0611		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●	●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	0612-	●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0612-	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0501		●
53	03.602 BOLT; INL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0502-0502		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0502-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●	●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	0612-	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0612-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0311-0501		●
94	02.559 BOLT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0502		●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0501		●
138	03.265 PIPE; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97180-566-1	01	1	0502-0502		●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0502-0611		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0311-0501		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97084-938-2	01	1	0502-0502		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0502-0611		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0612-	●	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0612-0701	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0311-0501		●
306	03.265 BOLT; VLV EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0502		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0512		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0611		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-	●	●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97202-328-1	01	1	0612-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-0	01	1	0311-0501		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97180-546-0	01	1	0502-0502		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0502-0611		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0612-	●	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0612-	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0501		●
346	02.559 CLIP; ENG HARNESS EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0502		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0611		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●	●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0612-	●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0612-	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0311-0501		●
603	03.278 CHAMBER; THROTTLE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97204-780-0	01	1	0502-0502		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0502-0611		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-	●	●

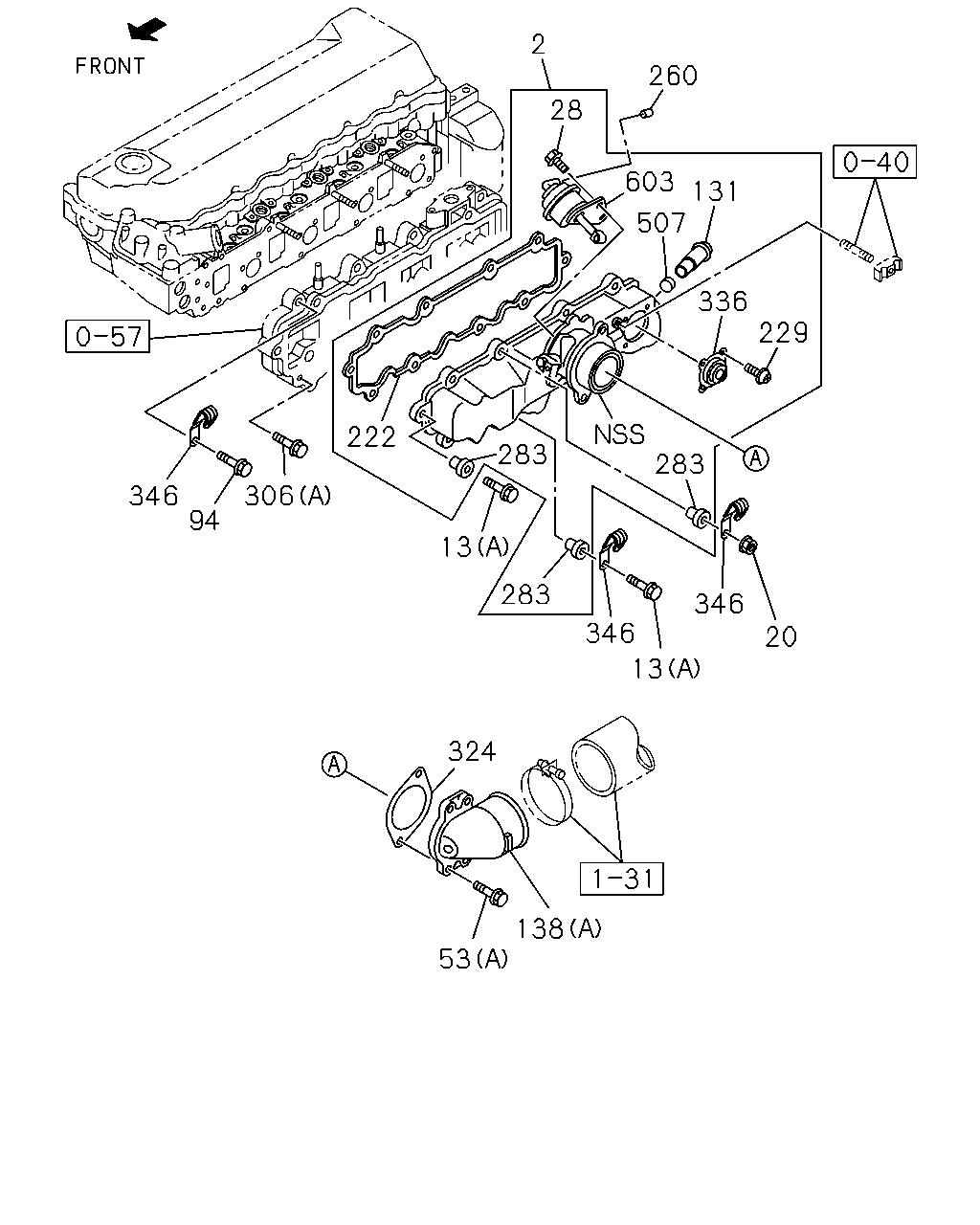

2 260 28 603 131 507 336 229 283 222 283 306 346 94 13 283 346 346 20 13 324 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-0501		●
2	03.407 COVER; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97146-866-2	01	1	0502-0502		●
2	03.407 COVER; INL	8-97146-866-2	01	1	0502-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0501		●
13	03.275 BOLT; INL MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0502		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501		●
20	03.275 NUT; INL MANIF EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0502		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0501		●
28	03.278 BOLT; CHAMBER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0502		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0611		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0501		●
53	03.602 BOLT; INL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0502-0502		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0502-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0612-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0311-0501		●
94	02.559 BOLT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0502		●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0311-0501		●
131	03.278 PIPE; PCV,INL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97102-601-0	01	1	0502-0502		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0502-		●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0501		●
138	03.265 PIPE; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97180-566-1	01	1	0502-0502		●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0502-0611		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0311-0501		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97084-938-2	01	1	0502-0502		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0502-0611		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0612-	●	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0311-0501		●
229	03.278 SCREW; VENTILATION VLV EXC. HIGH ALTITUDE COMPENSATOR(EE2) 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0502-0502		●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0502-0604		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0311-0501		●
260	03.278 CAP; RUBBER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.780 ID=4	8-94217-809-0	01	1	0502-0502		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0311-0501		●
283	03.265 RUBBER EXC. HIGH ALTITUDE COMPENSATOR(EE2) OD=23	8-97105-689-6	10	1	0502-0502		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0502-		●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0612-0701	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0311-0501		●
306	03.265 BOLT; VLV EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0502		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0512		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0611		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-	●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-0	01	1	0311-0501		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97180-546-0	01	1	0502-0502		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0502-0611		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0612-	●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0311-0501		●
336	03.415 VALVE; VENTILATION EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97119-887-0	01	1	0502-0502		●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0502-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0501		●
346	02.559 CLIP; ENG HARNESS EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0502		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0611		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●	●
507	03.415 ORIFICE	8-97088-649-0	01	1	0311-0501		●
507	03.415 ORIFICE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97088-649-0	01	1	0502-0502		●
507	03.415 ORIFICE	8-97088-649-0	01	1	0502-		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0311-0501		●
603	03.278 CHAMBER; THROTTLE EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97204-780-0	01	1	0502-0502		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0502-0611		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-	●	●

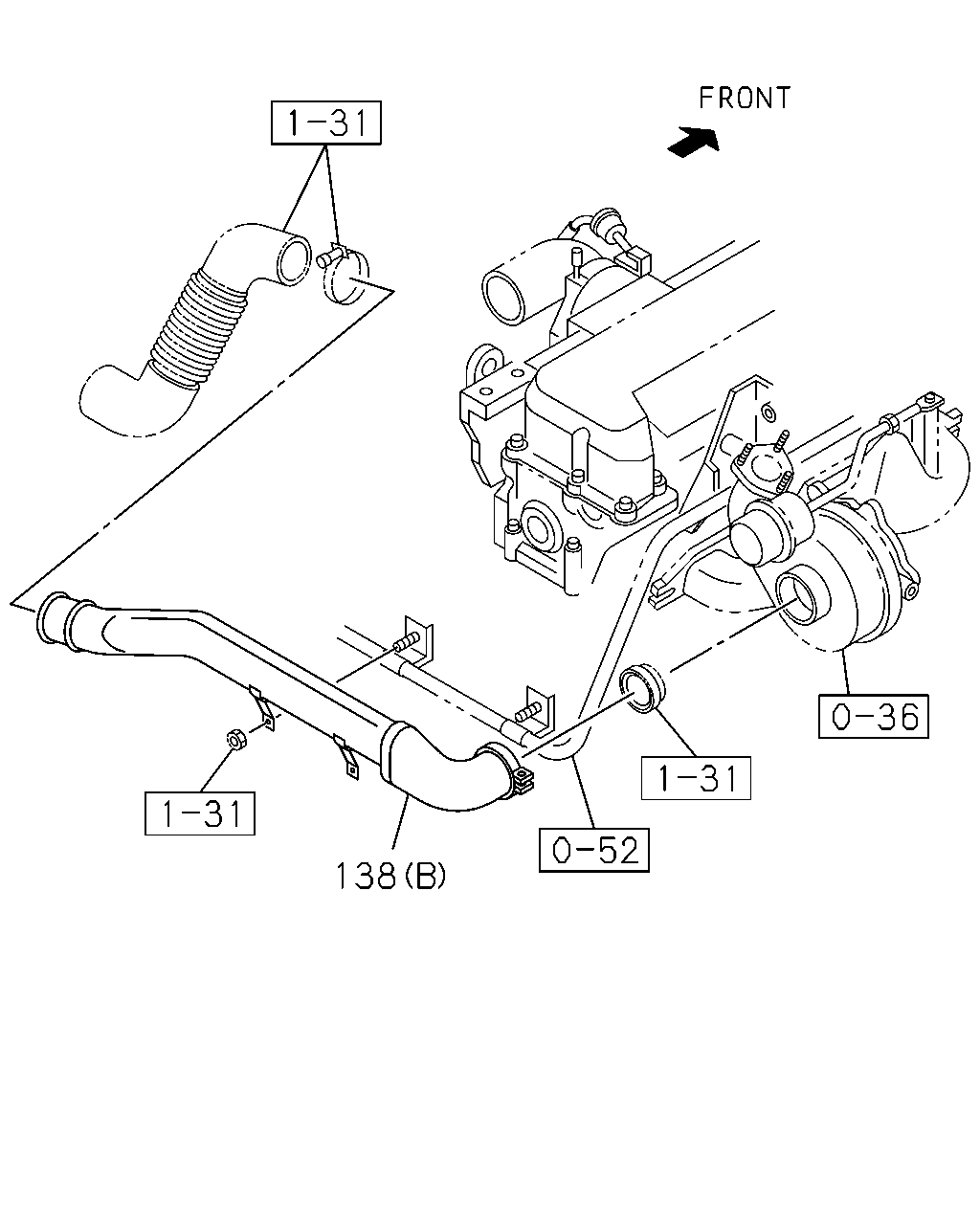

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0501		●
138	03.265 PIPE; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97180-566-1	01	1	0502-0502		●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0502-0611		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●	●
