0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#52975) — 114 parça

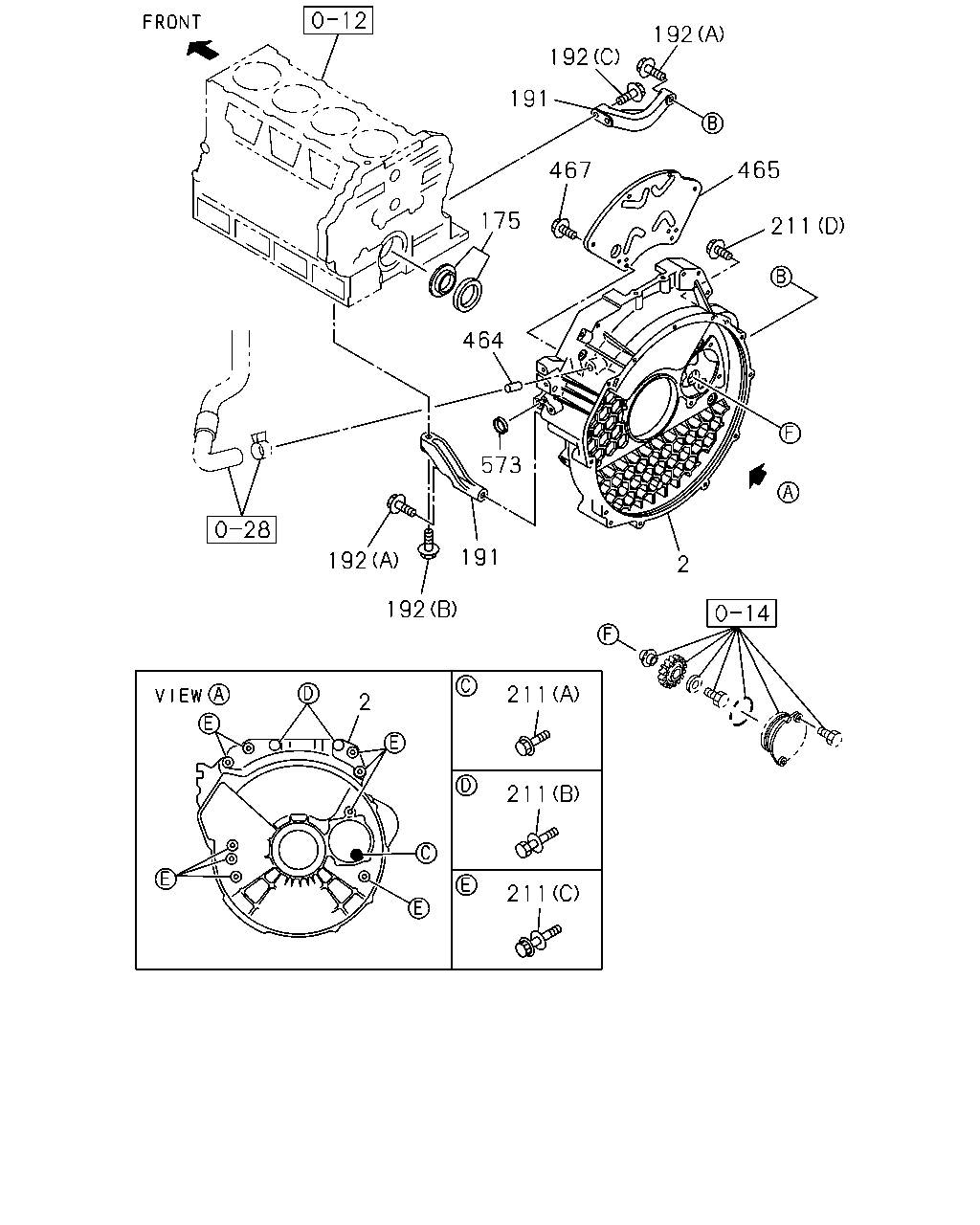

192 192 191 465 467 175 211 464 573 191 192 2 192 211 2 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0311-0501	●
2	00.683 HOUSING; FLYWHEEL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97364-899-2	01	1	0502-0502	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0502-0611	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-5	01	1	0612-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0311-0501	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97602-379-0	01	1	0502-0502	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0502-0611	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0612-	●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0311-0611	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0612-	●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0311-0611	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0612-	●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	0311-0512	●
192	00.206 BOLT; STAY TO HSG 09.181 (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-0611	●
192	00.206 BOLT; STAY TO HSG 09.181 (C) M10X45 FLANGE	0-28151-045-0	02	1	0612-	●	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0311-0512	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-0611	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0612-	●	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	01	1	0311-0501	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0502-0512	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0601-0611	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0612-	●	●
211	00.669 BOLT; HSG (B) M8X20,M8X65 L=90	8-97200-622-1	02	1	0612-		●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0311-0501	●
211	00.669 BOLT; HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-0502	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0311-0501	●
211	00.669 BOLT; HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M12X30 FLANGE	8-97135-419-0	01	1	0502-0502	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0502-0611	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0612-	●	●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0311-0501	●
211	00.669 BOLT; HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D) M10X40 FLANGE	0-28781-040-0	01	1	0502-0502	●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0601-0611	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0612-	●	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0311-0501	●
211	00.669 BOLT; HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0502	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0611	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0612-1102	●	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0311-0501	●
464	00.686 PIPE; PCV,FLYWHEEL HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.669	8-94373-246-3	01	1	0502-0502	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-0611	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0612-	●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0311-0501	●
465	00.686 PLATE; FLYWHEEL HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97363-824-1	01	1	0502-0502	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0502-0611	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0612-	●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0311-0501	●
467	00.686 BOLT; PLATE EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0502	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0611	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0612-0805	●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-	●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0311-0501	●
573	00.206 CUP; SEALING EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.034 OD=19	8-94150-231-0	01	1	0502-0502	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-0611	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0612-	●	●

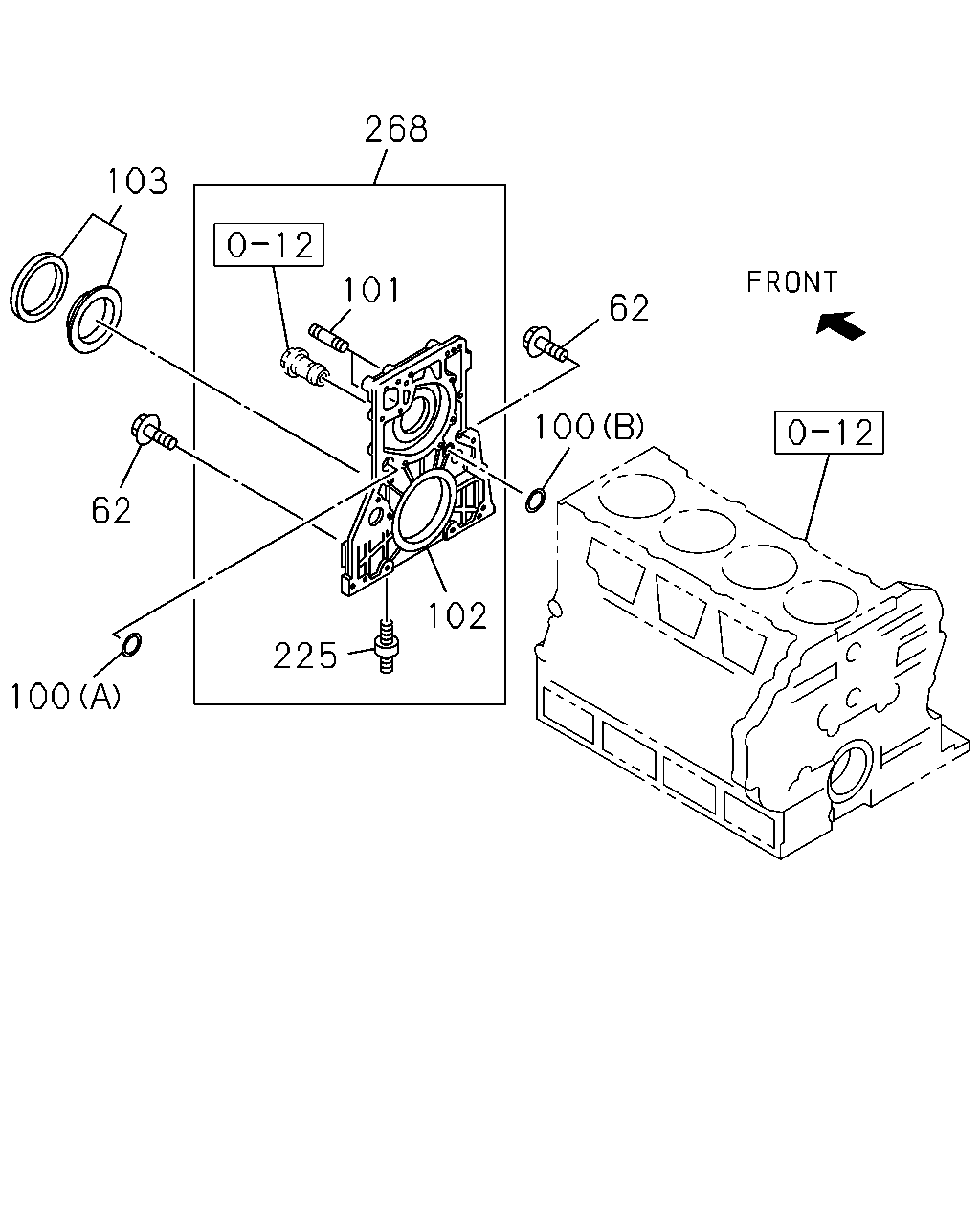

268 103 101 62 100 62 102 225 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0311-0501	●
62	00.206 BOLT; COVER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0502-0502	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0502-0512	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0611	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0612-	●	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0311-0501	●
62	00.206 BOLT; COVER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0502-0502	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0502-0512	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0611	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0612-	●	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0311-0501	●
62	00.206 BOLT; COVER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0502-0502	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0502-0512	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0611	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0612-0706	●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0707-	●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0311-0501	●
62	00.206 BOLT; COVER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0502-0502	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0502-0611	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0612-0706	●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0707-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0311-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-0502	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-0611	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0612-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0311-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-0502	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-0611	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0612-	●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0311-0501	●
101	01.073 STUD; WATER PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-0502	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-0611	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0612-	●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0311-0501	●
101	01.073 STUD; WATER PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0502	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0604	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-0611	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0612-	●	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0311-0501	●
102	00.137 RETAINER; FRT EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97094-943-3	01	1	0502-0502	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0502-0611	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0612-0706	●	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0707-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0311-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97329-780-0	01	1	0502-0502	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0502-0611	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0612-	●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0311-0501	●
225	01.428 STUD; OIL PAN EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0502-0502	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0502-0611	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0612-	●	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0311-0501	●
268	00.206 COVER; FRT EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97259-416-0	01	1	0502-0502	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0502-0611	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0612-0706	●	●
268	00.206 COVER; FRT	8-98039-931-2	01	1	0707-	●	●
