◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#52974) — 119 parça

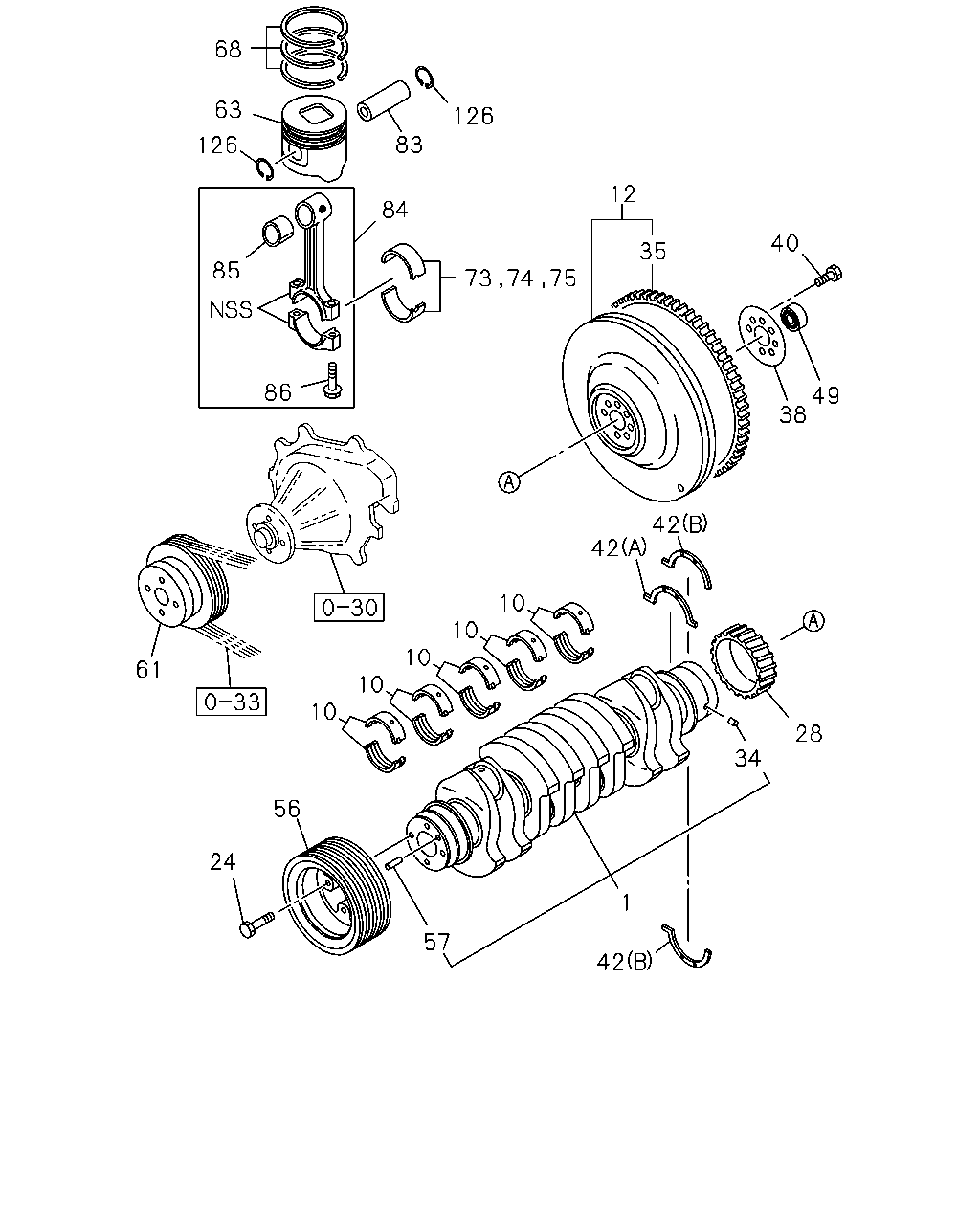

çizim 19278
68 63 126 83 126 12 84 40 35 85 86 49 38 42 42 10 10 10 61 10 10 28 34 56 24 1 57 42 73 75 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0311-0501 ●
1 00.646 CRANKSHAFT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97112-981-3 01 1 0502-0502 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502-0611 ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0612- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0311-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) BLUE 		8-97372-076-0 05 1 0502-0502 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0502-0611 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0612- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0311-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) BLACK 		8-97372-077-0 05 1 0502-0502 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0502-0611 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0612- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0311-0501 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) BROWN 		8-97372-078-0 05 1 0502-0502 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0502-0611 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0612- ● ●
12 00.666 FLYWHEEL 8-97330-892-0 01 1 0311-0501 ●
12 00.666 FLYWHEEL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97330-892-0 01 1 0502-0502 ●
12 00.666 FLYWHEEL 8-97330-892-0 01 1 0502-0611 ●
12 00.666 FLYWHEEL 8-97330-892-1 01 1 0612- ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0311-0501 ●
24 00.659 BOLT; DAMPER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M16X42 		8-97028-733-0 04 1 0502-0502 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0502-0611 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0612- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0311-0501 ●
28 00.728 GEAR; CR/SHF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) Z=42 		8-97109-626-1 01 1 0502-0502 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0502-0611 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0612- ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0311-0501 ●
34 00.738 PIN; GEAR SETTING
EXC. HIGH ALTITUDE COMPENSATOR(EE2) OD=5 L=6 		9-09878-626-0 01 1 0502-0502 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0502-0611 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0612- ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0311-0501 ●
35 00.673 GEAR; RING
EXC. HIGH ALTITUDE COMPENSATOR(EE2) Z=138 		8-97046-366-0 01 1 0502-0502 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0502-0611 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0612- ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0311-0501 ●
38 00.862 WASHER; FLYWHEEL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=55 OD=110 		8-94397-496-1 01 1 0502-0502 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-0611 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0612- ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0311-0501 ●
40 00.669 BOLT; FLYWHEEL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M16X42 		8-97178-013-0 08 1 0502-0502 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-0611 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0612- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0311-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-94399-277-0 01 1 0502-0502 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0502-0611 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0612-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0311-0501 ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) 		8-94399-283-0 02 1 0502-0502 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0611 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0612-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0311-0501 ●
49 00.669 BEARING; PILOT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97258-239-0 01 1 0502-0502 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0502-0611 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0612- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0311-0501 ●
56 00.659 PULLEY; CR/SHF DAMPER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 4-GROOVE 		8-97222-031-3 01 1 0502-0502 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0502-0611 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0612- ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0311-0501 ●
57 00.662 PIN; PULLEY
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.862 OD=8 L=20 		9-08150-820-0 02 1 0502-0502 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0502-0611 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0612- ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0311-0501 ●
61 00.659 PULLEY; FAN DRIVE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 2-GROOVE 		8-97174-757-3 01 1 0502-0502 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502-0611 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0612- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 0612-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-0 04 1 0311-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. HIGH ALTITUDE COMPENSATOR(EE2) NON GRADE 		8-97183-666-0 04 1 0502-0502 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-1 04 1 0502-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-746-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 0311-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97219-054-0 04 1 0502-0502 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 0502-0611 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 0612- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0311-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) YELLOW 		8-97045-800-0 04 1 0502-0502 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502-0611 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0612- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0311-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) GREEN 		8-97045-801-0 04 1 0502-0502 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502-0611 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0612- ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0311-0501 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97175-127-0 04 1 0502-0502 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0502-0611 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0612- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0311-0501 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97175-128-0 04 1 0502-0502 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0502-0611 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0612- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0311-0501 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-94396-589-1 04 1 0502-0502 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502-0611 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0612- ● ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0311-0501 ●
84 00.603 ROD ASM; CONN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97135-032-1 04 1 0502-0502 ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0502-0611 ●
84 00.603 ROD ASM; CONN 8-97135-032-5 04 1 0612- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0311-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		1-12251-036-0 04 1 0502-0502 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0611 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0612-0805 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906- ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0311-0501 ●
86 00.623 BOLT; CONNROD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M13X57 FLANGE 		1-12235-035-0 08 1 0502-0502 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-0611 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0612-1004 ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 0311-0501 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-94318-798-2 08 1 0502-0502 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 0502-0611 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 0612- ● ●
