Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#52973) — 209 parça

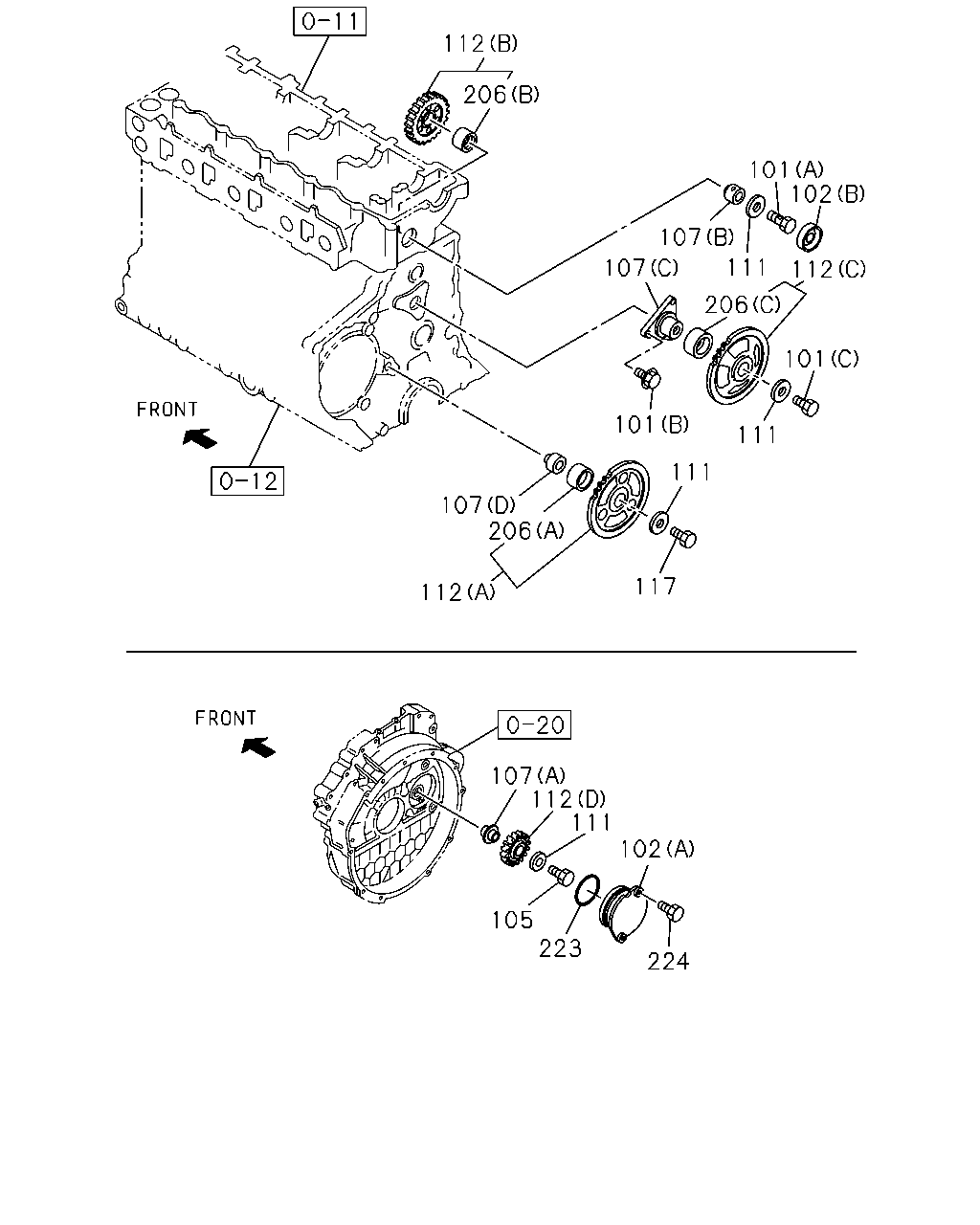

112 206 101 102 107 111 107 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0311-0501	●
101	00.724 BOLT; THRUST COLLAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M14X36.5	8-94372-221-1	01	1	0502-0502	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0502-0611	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0612-	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0311-0501	●
101	00.724 BOLT; THRUST COLLAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) M14X25	9-92361-425-0	01	1	0502-0502	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0502-0611	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0612-	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0311-0501	●
101	00.724 BOLT; THRUST COLLAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M8X16 FLANGE	0-28090-816-0	03	1	0502-0502	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0502-0512	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0611	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0612-	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0311-0501	●
102	00.724 COVER; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-94334-681-1	01	1	0502-0502	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0502-0611	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0612-	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0311-0501	●
102	00.724 COVER; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) OD=51	8-97096-826-0	01	1	0502-0502	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0502-0611	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0612-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	0311-0501	●
105	00.724 BOLT; IDLE GEAR SHAFT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.900 M14X60	9-91666-460-0	01	1	0502-0502	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	0502-0512	●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0601-0611	●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0612-	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0311-0501	●
107	00.724 SHAFT; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-94334-682-0	01	1	0502-0502	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0502-0611	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0612-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0311-0501	●
107	00.724 SHAFT; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B)	8-97186-398-1	01	1	0502-0502	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0502-0611	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0612-	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0311-0501	●
107	00.724 SHAFT; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C)	8-97350-021-0	01	1	0502-0502	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0502-0611	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0612-	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0311-0501	●
107	00.724 SHAFT; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97104-380-0	01	1	0502-0502	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0502-0609	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-0611	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0612-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	04	1	0311-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=14.5 OD=46	8-97209-728-1	04	1	0502-0502	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0502-0611	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0612-	●	●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0612-		●
112	00.724 GEAR; IDLE (B) Z=41	8-97112-607-1	01	1	0612-		●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0612-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0311-0501	●
112	00.724 GEAR; IDLE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) Z=122	8-97088-053-1	01	1	0502-0502	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0502-	●
112	00.724 GEAR; IDLE (B) Z=82	8-97088-055-1	01	1	0311-0501	●
112	00.724 GEAR; IDLE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) Z=82	8-97088-055-1	01	1	0502-0502	●
112	00.724 GEAR; IDLE (B) Z=82	8-97088-055-2	01	1	0502-	●
112	00.724 GEAR; IDLE (D) Z=34	8-97120-005-0	01	1	0311-0501	●
112	00.724 GEAR; IDLE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D) Z=34	8-97120-005-0	01	1	0502-0502	●
112	00.724 GEAR; IDLE (D) Z=34	8-97120-005-0	01	1	0502-0611	●
112	00.724 GEAR; IDLE (D) Z=34	8-97120-005-1	01	1	0612-	●	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0311-0501	●
112	00.724 GEAR; IDLE EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) Z=72-60	8-97227-213-0	01	1	0502-0502	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0502-	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0311-0501	●
117	00.662 BOLT; FLANGE EXC. HIGH ALTITUDE COMPENSATOR(EE2) M14X65 FLANGE	8-97113-167-0	01	1	0502-0502	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0502-0611	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0612-	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0311-0501	●
206	00.724 BUSHING; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0502-0502	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0502-0611	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0612-	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0311-0501	●
206	00.724 BUSHING; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0502-0502	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0502-0611	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0612-0802	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0311-0501	●
206	00.724 BUSHING; IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0502-0502	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0502-0611	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0612-0809	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0311-0501	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=105.6	1-09623-423-0	01	1	0502-0502	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0502-0611	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0612-	●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0311-0501	●
224	00.724 BOLT; COVER EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0502	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0611	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-	●	●

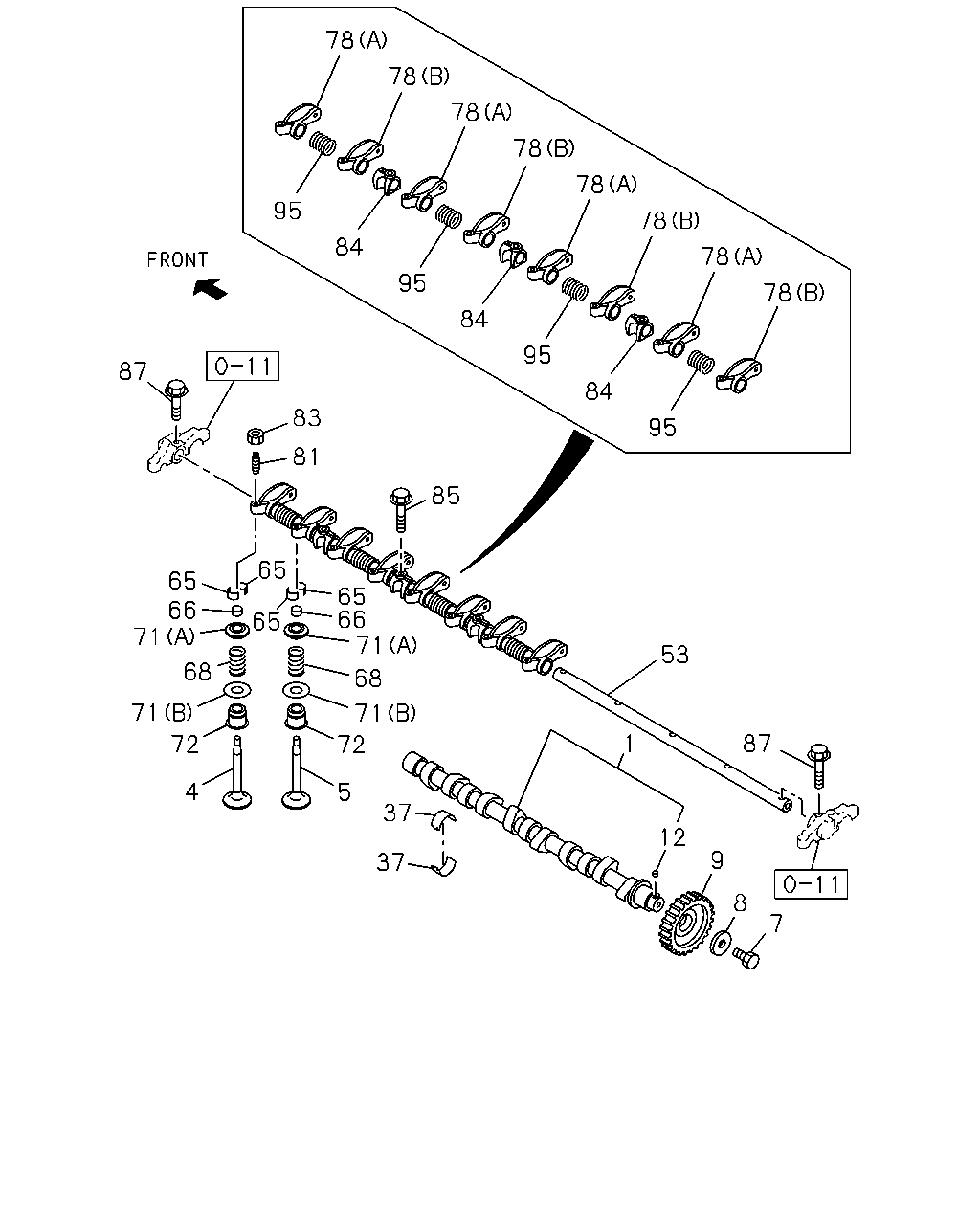

78 78 78 78 78 95 78 84 78 95 78 84 95 7 84 83 95 81 85 65 65 66 71 65 66 71 65 53 68 68 71 71 1 87 72 72 4 5 37 12 9 37 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0311-0501	●
1	00.519 CAMSHAFT EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97077-829-0	01	1	0502-0502	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0502-0611	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0612-	●	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0311-0501	●
4	00.296 VALVE; INL EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97171-398-0	04	1	0502-0502	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0502-0611	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0612-	●	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0311-0501	●
5	00.297 VALVE; EXH EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97171-399-0	04	1	0502-0502	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0502-0611	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0612-	●	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0311-0501	●
7	00.738 BOLT; CM/SHF GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) M14X40	8-94396-439-0	01	1	0502-0502	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0502-0611	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0612-	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0311-0501	●
8	00.738 WASHER; CM/SHF GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=14.5	9-09851-850-3	01	1	0502-0502	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0502-0611	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0612-	●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0612-		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0311-0501	●
9	00.736 GEAR; CM/SHF EXC. HIGH ALTITUDE COMPENSATOR(EE2) Z=70 OD=208.6	8-97088-057-2	01	1	0502-0502	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0502-	●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	0311-0501	●
12	00.738 KEY; CAM GEAR SET EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94399-487-0	01	1	0502-0502	●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	0502-0611	●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	0612-	●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0311-0501	●
37	00.539 METAL; CM/SHF EXC. HIGH ALTITUDE COMPENSATOR(EE2) B=16	8-97356-939-0	10	1	0502-0502	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0502-0611	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0612-0706	●	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0311-0501	●
53	00.353 SHAFT; ROCKER ARM EXC. HIGH ALTITUDE COMPENSATOR(EE2) JBK	8-97074-617-1	01	1	0502-0502	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0502-0611	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0612-	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0311-0501	●
53	00.353 SHAFT; ROCKER ARM EXC. HIGH ALTITUDE COMPENSATOR(EE2) KEIHIN SEIMITSU	8-97174-567-0	01	1	0502-0502	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0502-0611	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0612-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0311-0501	●
65	00.310 COLLAR; SPLIT EXC. HIGH ALTITUDE COMPENSATOR(EE2)	5-12565-006-0	16	1	0502-0502	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0502-0611	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0612-	●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0311-0501	●
66	00.303 CAP; VLV STEM END EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94396-015-2	08	1	0502-0502	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0502-0611	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0612-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0311-0501	●
68	00.303 SPRING; VLV EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=28.5	8-97023-559-0	08	1	0502-0502	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0502-0611	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0612-	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0311-0501	●
71	00.309 SEAT; SPR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) OD=38	8-94385-029-2	08	1	0502-0502	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0502-0611	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0612-	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0311-0501	●
71	00.309 SEAT; SPR EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) ID=14.3 OD=40	8-94399-526-1	08	1	0502-0502	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0502-0611	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0612-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0311-0501	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94396-609-2	08	1	0502-0502	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0502-0611	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0612-	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0311-0501	●
78	00.333 ARM; ROCKER EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) JBK	8-97014-258-2	04	1	0502-0502	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0502-0611	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0612-	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0311-0501	●
78	00.333 ARM; ROCKER EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) JBK	8-97074-614-1	04	1	0502-0502	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0502-0611	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0612-	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0311-0501	●
78	00.333 ARM; ROCKER EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0502-0502	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0502-0611	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0612-	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0311-0501	●
78	00.333 ARM; ROCKER EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0502-0502	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0502-0611	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0612-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0311-0501	●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-94367-526-2	08	1	0502-0502	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0502-0611	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0612-	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0311-0501	●
83	00.787 NUT; ADJ SCREW,LK EXC. HIGH ALTITUDE COMPENSATOR(EE2) 06.822 M10	9-09111-410-0	08	1	0502-0502	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0502-0512	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0611	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0612-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0311-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER EXC. HIGH ALTITUDE COMPENSATOR(EE2) JBK	8-94388-109-3	03	1	0502-0502	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0502-0611	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0612-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0311-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER EXC. HIGH ALTITUDE COMPENSATOR(EE2) KEIHIN SEIMITSU	8-97174-568-0	03	1	0502-0502	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0502-0611	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0612-	●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0311-0501	●
85	00.349 BOLT; BRKT EXC. HIGH ALTITUDE COMPENSATOR(EE2) JBK M10X62 FLANGE	8-94393-131-0	03	1	0502-0502	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0502-0611	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0612-	●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0311-0501	●
85	00.349 BOLT; BRKT EXC. HIGH ALTITUDE COMPENSATOR(EE2) KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0502-0502	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0502-0611	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0612-	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0311-0501	●
87	00.349 BOLT; ROCKER SHAFT EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0502-0502	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0502-0512	●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-0611	●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0612-	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0311-0501	●
95	00.376 SPRING; ROCKER SHAFT EXC. HIGH ALTITUDE COMPENSATOR(EE2) JBK	8-94397-263-0	04	1	0502-0502	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0502-0611	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0612-	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0311-0501	●
95	00.376 SPRING; ROCKER SHAFT EXC. HIGH ALTITUDE COMPENSATOR(EE2) KEIHIN SEIMITSU	8-97174-654-0	04	1	0502-0502	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0502-0611	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0612-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
