◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#52972) — 86 parça

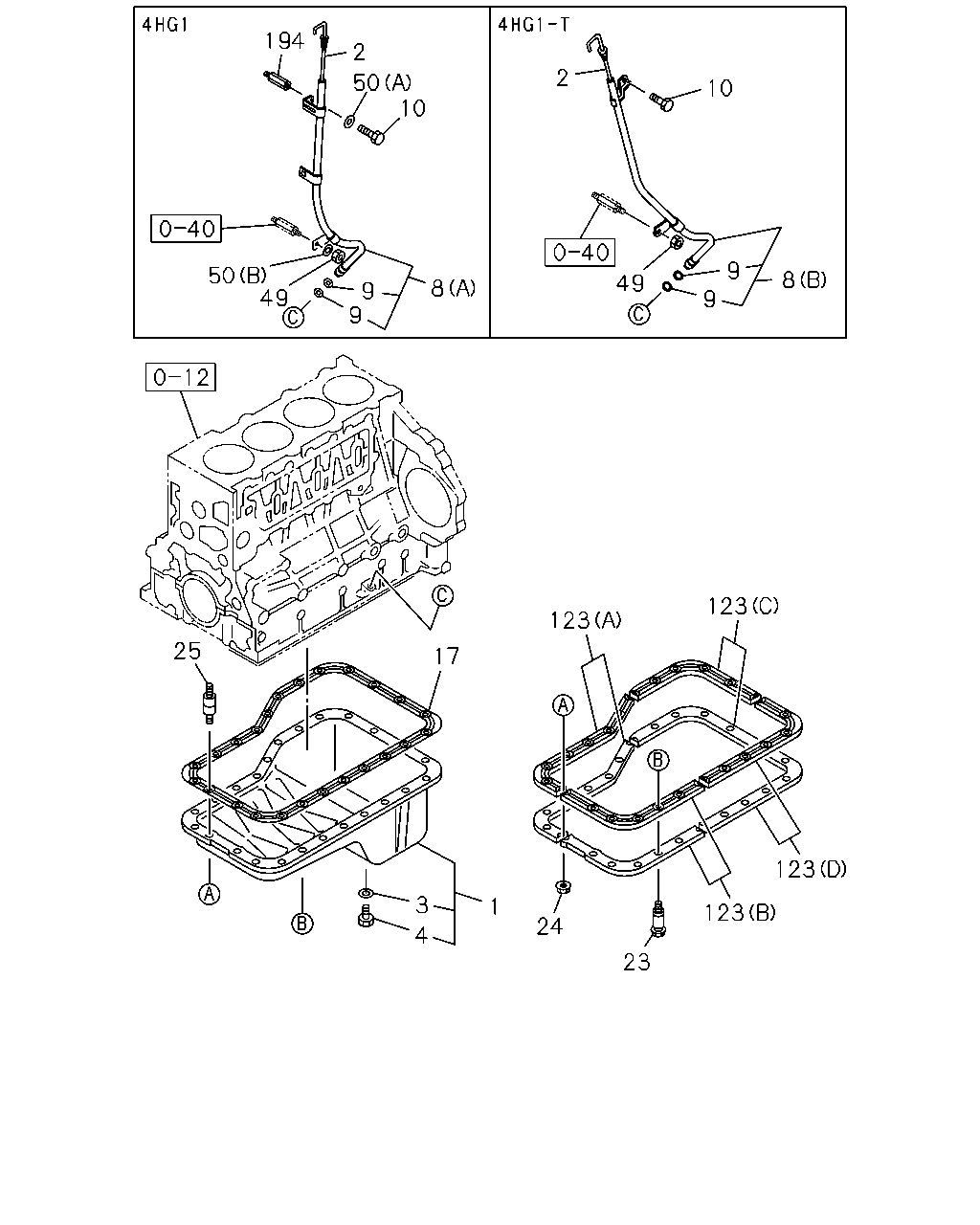

çizim 20344
194 2 2 50 10 10 9 50 49 8 49 8 9 9 9 123 123 25 17 123 3 1 123 24 4 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97385-249-0 01 1 0612-1202 ●
1 01.426 PAN ASM; OIL 8-98203-596-0 01 1 1203- ●
1 01.426 PAN ASM; OIL 8-97092-476-3 01 1 0311-0405 ●
1 01.426 PAN ASM; OIL 8-97385-244-0 01 1 0406-0501 ●
1 01.426 PAN ASM; OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-244-0 01 1 0502-0502 ●
1 01.426 PAN ASM; OIL 8-97385-244-1 01 1 0502- ●
2 01.516 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0612- ●
2 01.516 GAUGE; OIL LEVEL 8-97251-080-1 01 1 0311-0501 ●
2 01.516 GAUGE; OIL LEVEL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97251-080-1 01 1 0502-0502 ●
2 01.516 GAUGE; OIL LEVEL 8-97251-080-1 01 1 0502- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0311-0501 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=14.2 OD=24 		8-94158-328-0 01 1 0502-0502 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0502-0611 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0612- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0311-0501 ●
4 01.453 PLUG; DRAIN,OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.001 M14X14 		8-94152-613-0 01 1 0502-0502 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0502-0611 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0612- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97200-567-1 01 1 0612- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97106-685-1 01 1 0311-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97106-685-1 01 1 0502-0502 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97106-685-3 01 1 0502- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0612- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0311-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) ID=11 		5-09623-002-0 02 1 0502-0502 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0502-0504 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0505- ●
10 01.516 BOLT; GUIDE TUBE
09.171 M10X110 FLANGE 		0-28156-011-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0311-0501 ●
10 01.516 BOLT; GUIDE TUBE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0502 ●
10 01.516 BOLT; GUIDE TUBE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97190-191-1 01 1 0311-0402 ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0403-0501 ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97364-386-0 01 1 0502-0502 ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0502-0611 ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0612- ● ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0311-0501 ●
23 01.428 BOLT; OIL PAN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0502-0502 ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0502-0611 ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0612- ● ●
24 01.453 NUT; OIL PAN
07.633 M8 FLANGE 		0-91150-108-0 13 1 0311-0501 ●
24 01.453 NUT; OIL PAN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE 		0-91150-108-0 13 1 0502-0502 ●
24 01.453 NUT; OIL PAN
07.633 M8 FLANGE 		0-91150-108-0 13 1 0502-0602 ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0603-0611 ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0612- ● ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0311-0501 ●
25 01.453 STUD; OIL PAN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0502-0502 ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0502-0611 ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0612- ● ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0311-0501 ●
25 01.453 STUD; OIL PAN
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0502-0502 ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0502-0611 ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0612- ● ●
49 01.516 NUT; GUIDE TUBE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0501 ●
49 01.516 NUT; GUIDE TUBE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0502 ●
49 01.516 NUT; GUIDE TUBE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
49 01.516 NUT; GUIDE TUBE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0611 ●
49 01.516 NUT; GUIDE TUBE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0612- ● ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (A) ID=10.5 OD=22 		9-09164-610-0 01 1 0311-0501 ●
50 01.516 WASHER; PL,GUIDE TUBE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.085 (A) ID=10.5 OD=22 		9-09164-610-0 01 1 0502-0502 ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (A) ID=10.5 OD=22 		9-09164-610-0 01 1 0502-0605 ●
50 01.516 WASHER; PL,GUIDE TUBE
00.002 (A) ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (B) ID=10.5 OD=26 		9-09164-710-0 01 1 0311-0501 ●
50 01.516 WASHER; PL,GUIDE TUBE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.085 (B) ID=10.5 OD=26 		9-09164-710-0 01 1 0502-0502 ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (B) ID=10.5 OD=26 		9-09164-710-0 01 1 0502-0605 ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (B) ID=10.5 OD=26 		0-91614-710-0 01 1 0606- ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0311-0501 ●
123 01.516 RUBBER; SEAL OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97186-988-0 01 1 0502-0502 ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0502-0611 ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0311-0501 ●
123 01.516 RUBBER; SEAL OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) 		8-97186-994-0 01 1 0502-0502 ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0502-0611 ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0311-0501 ●
123 01.516 RUBBER; SEAL OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) 		8-97186-998-0 01 1 0502-0502 ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0502-0611 ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0311-0501 ●
123 01.516 RUBBER; SEAL OIL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D) 		8-97187-000-0 01 1 0502-0502 ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0502-0611 ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0612- ● ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0311-0501 ●
194 01.429 SPACER; GUIDE TUBE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97101-215-0 01 1 0502-0502 ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0502- ●
