0-11 — CYLINDER HEAD (#52970) — 117 parça

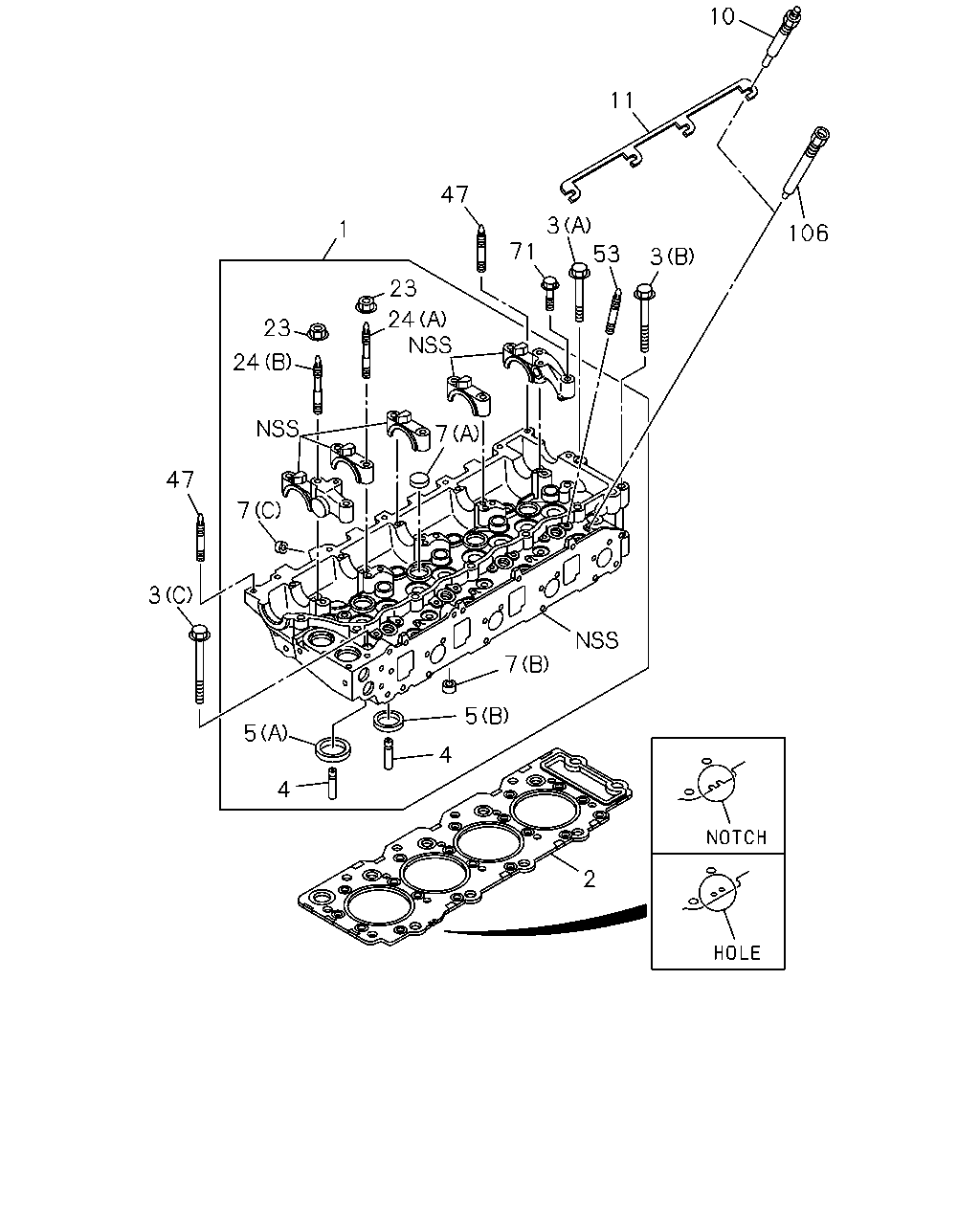

çizim 18921
10 11 47 3 53 1 106 71 3 23 24 23 24 7 47 7 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0612- ●
1 00.269 HEAD ASM; CYL 8-97186-589-6 01 1 0311-0501 ●
1 00.269 HEAD ASM; CYL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97186-589-6 01 1 0502-0502 ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0311-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0502-0502 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0502-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0311-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.525 1-HOLE 		8-97349-490-0 01 1 0502-0502 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0502-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0311-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.575 2-HOLE 		8-97349-491-0 01 1 0502-0502 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0502-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0612- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0311-0501 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M10X73 		8-94399-554-0 01 1 0502-0502 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0502-0611 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0612- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0311-0501 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M10X43 		8-94399-555-0 01 1 0502-0502 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0502-0611 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0612- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0311-0501 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0502 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0611 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0612- ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0311-0501 ●
4 00.283 GUIDE; VLV
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-94396-598-0 08 1 0502-0502 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0502-0611 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0311-0501 ●
5 00.253 SEAT; VLV INSERT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) INLET OD=52 		8-94394-127-0 04 1 0502-0502 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0502-0611 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0311-0501 ●
5 00.253 SEAT; VLV INSERT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0502 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0611 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0311-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.293 (B) OD=25 		1-09600-016-0 02 1 0502-0502 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0311-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) OD=12 		8-97036-335-1 04 1 0502-0502 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0311-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) OD=32 		8-97096-821-0 12 1 0502-0502 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0612- ● ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 0612- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 0612- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0612-0612 ●
11 02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 0612- ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0311-0501 ●
23 00.349 NUT; CAM BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0502-0502 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0502-0602 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0611 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0612- ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0311-0501 ●
24 00.413 STUD; CM/SHF BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (B) M8X54 L=79 		8-94322-512-2 02 1 0502-0502 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0502-0611 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0612- ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0311-0501 ●
24 00.413 STUD; CM/SHF BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) M8X41 L=66 		8-94322-513-2 08 1 0502-0502 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0502-0611 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0612- ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0612- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0311-0501 ●
47 00.413 STUD; CYL HD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0502-0502 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0502-0611 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0612- ● ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0311-0501 ●
47 00.413 STUD; CYL HD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.163 M8X40 L=57 		0-49740-840-0 02 1 0502-0502 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0502-0512 ●
47 00.413 STUD; CYL HD
03.275 M8X40 L=58 		0-49140-840-0 02 1 0601-0910 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0911- ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0311-0501 ●
53 03.332 STUD; INJ NOZZLE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M8X64 L=85 		8-97178-608-0 08 1 0502-0502 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0502-0611 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0612- ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0311-0501 ●
71 00.413 BOLT; CAM BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0502-0502 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0502-0512 ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0611 ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0612- ● ●
106 00.293 PLUG; GLOW PLUG HOLE
02.270 		1-11119-018-0 04 1 0311-0501 ●
106 00.293 PLUG; GLOW PLUG HOLE
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 02.270 		1-11119-018-0 04 1 0502-0502 ●
106 00.293 PLUG; GLOW PLUG HOLE
02.270 		1-11119-018-0 04 1 0502- ●
250 00.293 CAP 8-94393-194-0 01 1 0311- ● ●
250 00.293 CAP 8-94393-809-0 01 1 0311- ● ●
250 00.293 CAP 8-94393-196-0 03 1 0311- ● ●

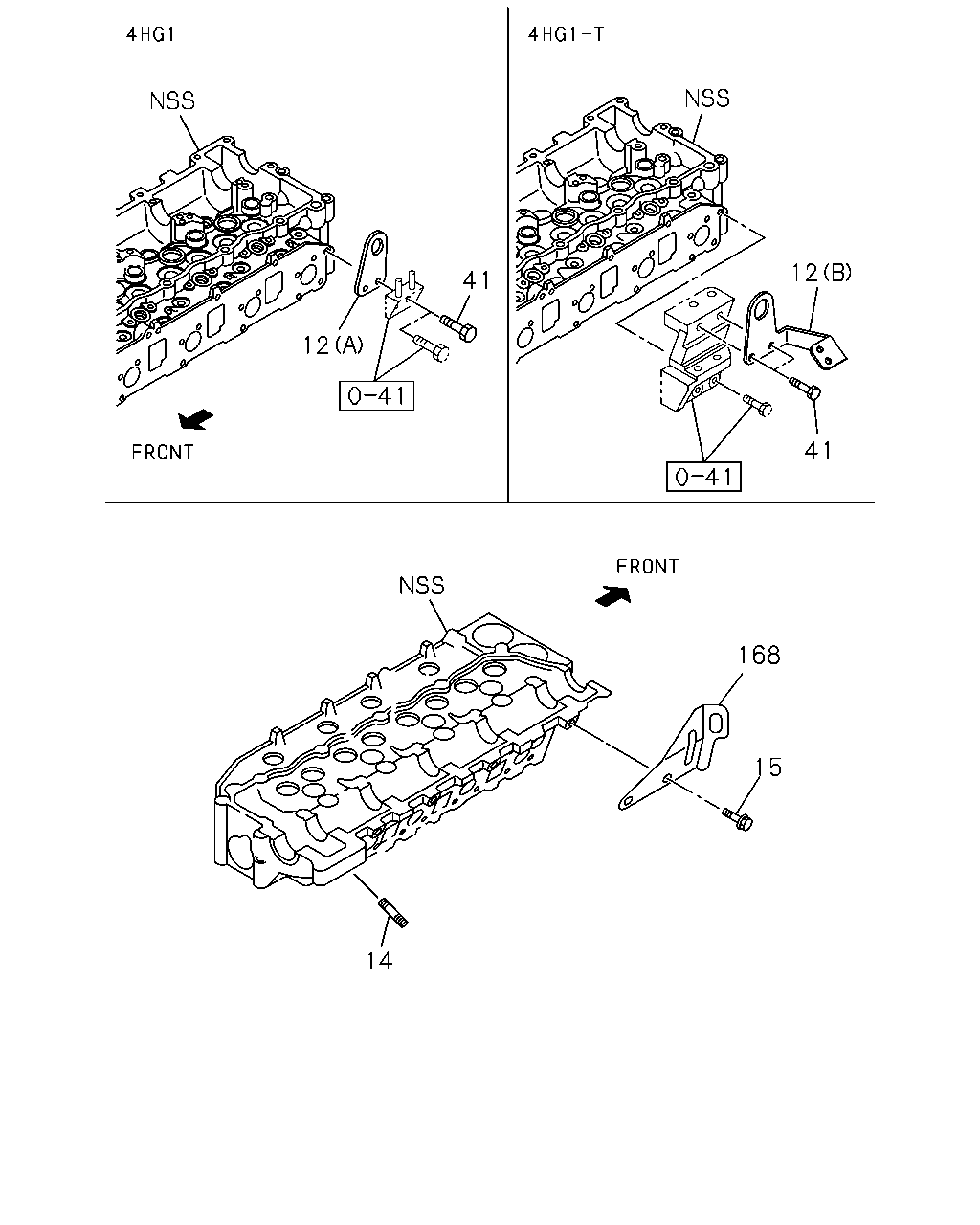

çizim 19358
12 41 12 41 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 00.004 HANGER; ENG,RR
(B) 		8-97210-326-0 01 1 0612- ●
12 00.004 HANGER; ENG,RR
(A) 		8-97071-960-0 01 1 0311-0501 ●
12 00.004 HANGER; ENG,RR
EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97071-960-0 01 1 0502-0502 ●
12 00.004 HANGER; ENG,RR
(A) 		8-97071-960-0 01 1 0502- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0311-0501 ●
14 03.275 STUD; EXH MANIF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) M10X60 L=75 		8-94397-286-0 02 1 0502-0502 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0502-0611 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0612- ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0311-0501 ●
15 00.004 BOLT; HANGER,FRT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0502 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0611 ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0612- ● ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0612- ●
168 00.004 HANGER; ENG,FRT 8-97200-618-1 01 1 0612- ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0311-0501 ●
168 00.004 HANGER; ENG,FRT
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97127-373-0 01 1 0502-0502 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0502- ●
250 00.293 CAP 8-94393-194-0 01 1 0311- ● ●
250 00.293 CAP 8-94393-809-0 01 1 0311- ● ●
250 00.293 CAP 8-94393-196-0 03 1 0311- ● ●
