0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#5297) — 15 parça

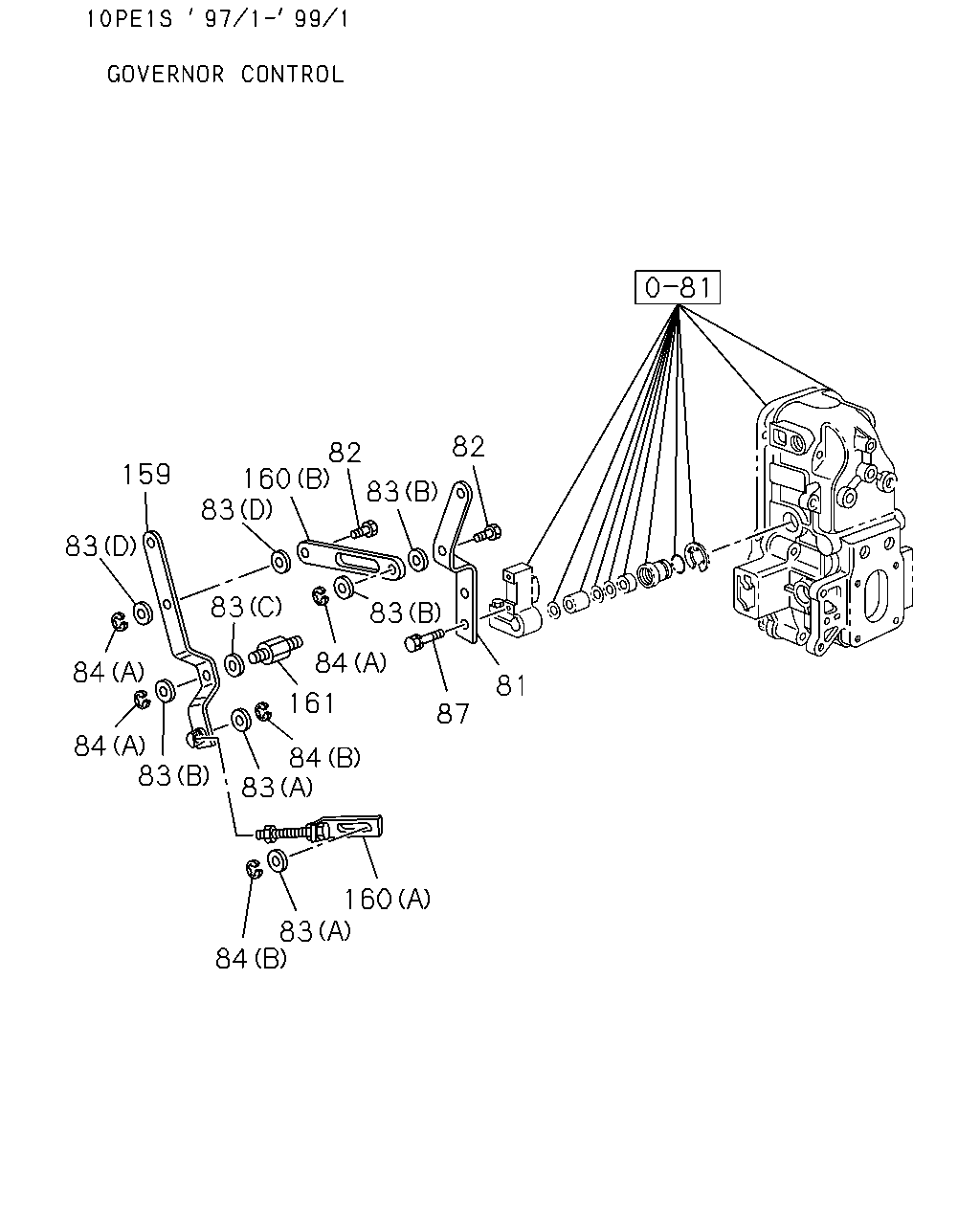

çizim 39785
82 82 160 83 159 83 83 83 83 84 84 81 161 87 84 83 84 83 160 83 84
BalonParca AdiParca NoAdetTipApplied Date
81 LEVER; INNER
ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15725-662-0 01 1 -
82 PIN; LEVER TO LEVER
ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15729-722-0 02 1 -
83 WASHER; LEVER
(D), ID=10.5 OD=18 ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		9-09160-510-0 02 1 -
83 WASHER; LEVER
(A), ID=6.4 OD=14 ASM PART: F = 1-15603-315-2 		9-09160-606-0 03 1 -
83 WASHER; LEVER
(A), ID=6.4 OD=14 ASM PART: E = 1-15603-227-0 		9-09160-606-0 02 1 -
83 WASHER; LEVER
(B), ID=10.5 ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		9-09164-510-0 03 1 -
83 WASHER; LEVER
(C), T=0.20 ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		9-88410-421-0 01 1 -
84 RING; SNAP
(A) ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15729-723-0 03 1 -
84 RING; SNAP
(B) ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		8-94244-599-0 02 1 -
87 BOLT; LEVER
M6X16 W/LK WASHER ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		9-01900-616-0 02 1 -
159 LEVER; OUTER
ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15725-408-0 01 1 -
160 LINK; LEVER
(A) ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15725-410-0 01 1 -
160 LINK; LEVER
(B) ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15725-904-0 01 1 -
161 PIN; LEVER
ASM PART: E = 1-15603-227-0, F = 1-15603-315-2 		1-15729-724-0 01 1 -

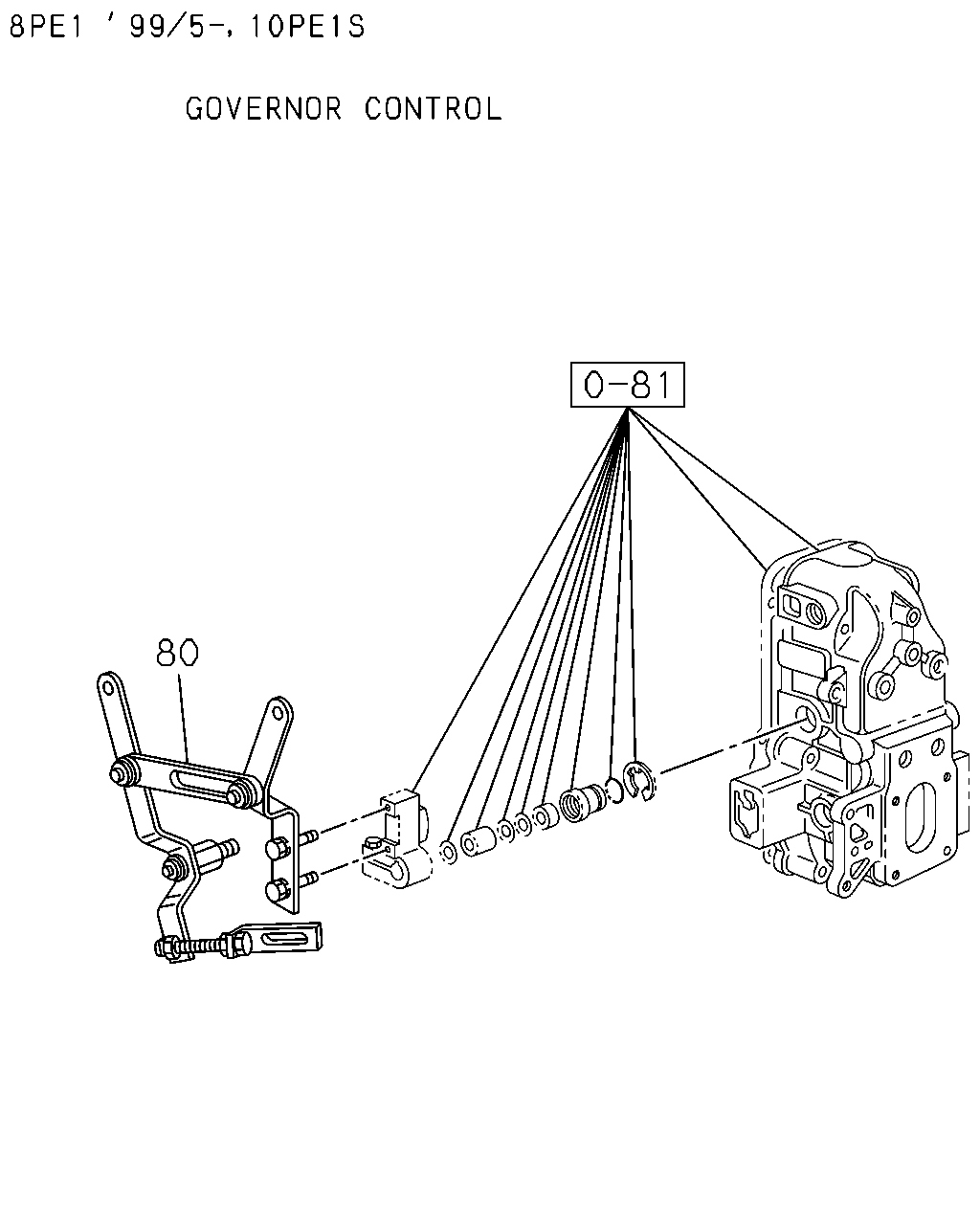

çizim 42111
80
BalonParca AdiParca NoAdetTipApplied Date
80 LEVER KIT
ASM PART: A = 1-15603-072-1, B = 1-15603-206-2, C = 1-15603-207-2, D = 1-15603-208-2 		1-15725-678-0 01 1 -
