◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#52969) — 41 parça

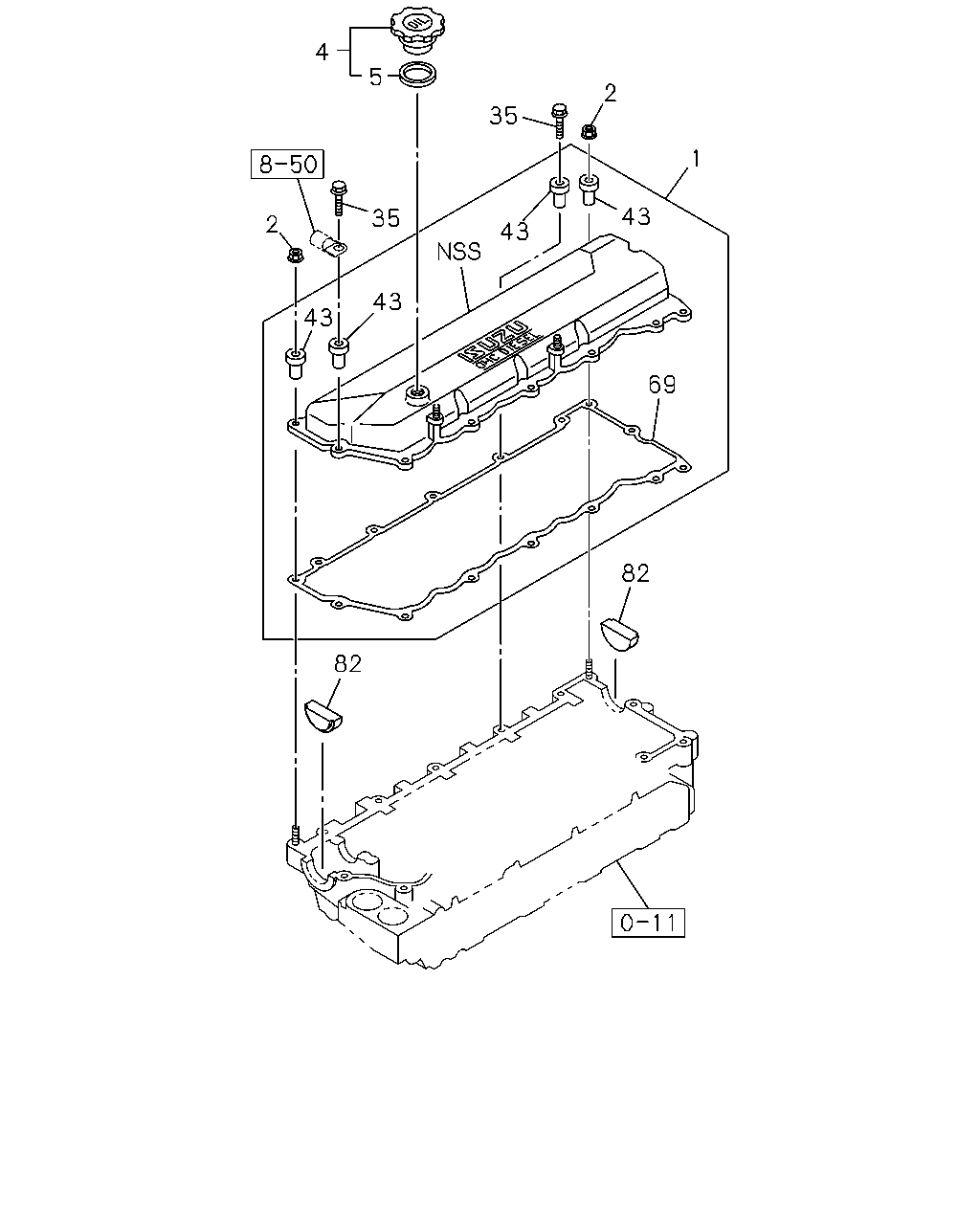

çizim 20199
4 5 2 35 1 43 35 2 43 43 43 69 82 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0612-0910 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0911-1006 ● ●
1 00.386 COVER; CYL HD 8-98171-615-0 01 1 1007- ● ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0311-0501 ●
1 00.386 COVER; CYL HD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97226-760-1 01 1 0502-0502 ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0502-0910 ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0501 ●
2 00.413 NUT; COVER,HD
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0502 ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0611 ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0311-0501 ●
4 01.758 CAP; OIL FILLER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-94133-207-5 01 1 0502-0502 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0502-0611 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0612- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0311-0501 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502-0502 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502-0611 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0612- ● ●
35 00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE 		0-28650-830-0 12 1 0612- ●
35 00.293 BOLT; NOISE SHIELD COVER
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0311-0501 ●
35 00.293 BOLT; NOISE SHIELD COVER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0502-0502 ●
35 00.293 BOLT; NOISE SHIELD COVER
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0502-0512 ●
35 00.293 BOLT; NOISE SHIELD COVER
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0601-0910 ●
35 00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE 		0-28650-830-0 13 1 0911- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0612-0910 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0911- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0311-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) OD=23 		8-97190-120-2 08 1 0502-0502 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0502-0910 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0612-0910 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0911- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97189-871-1 01 1 0311-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97189-871-1 01 1 0502-0502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97189-871-1 01 1 0502-0910 ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0311-0501 ●
82 00.386 PLUG; CYL HD COVER
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-94399-605-0 02 1 0502-0502 ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0502-0611 ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0612-1005 ● ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1006- ● ●
