◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#52968) — 39 parça

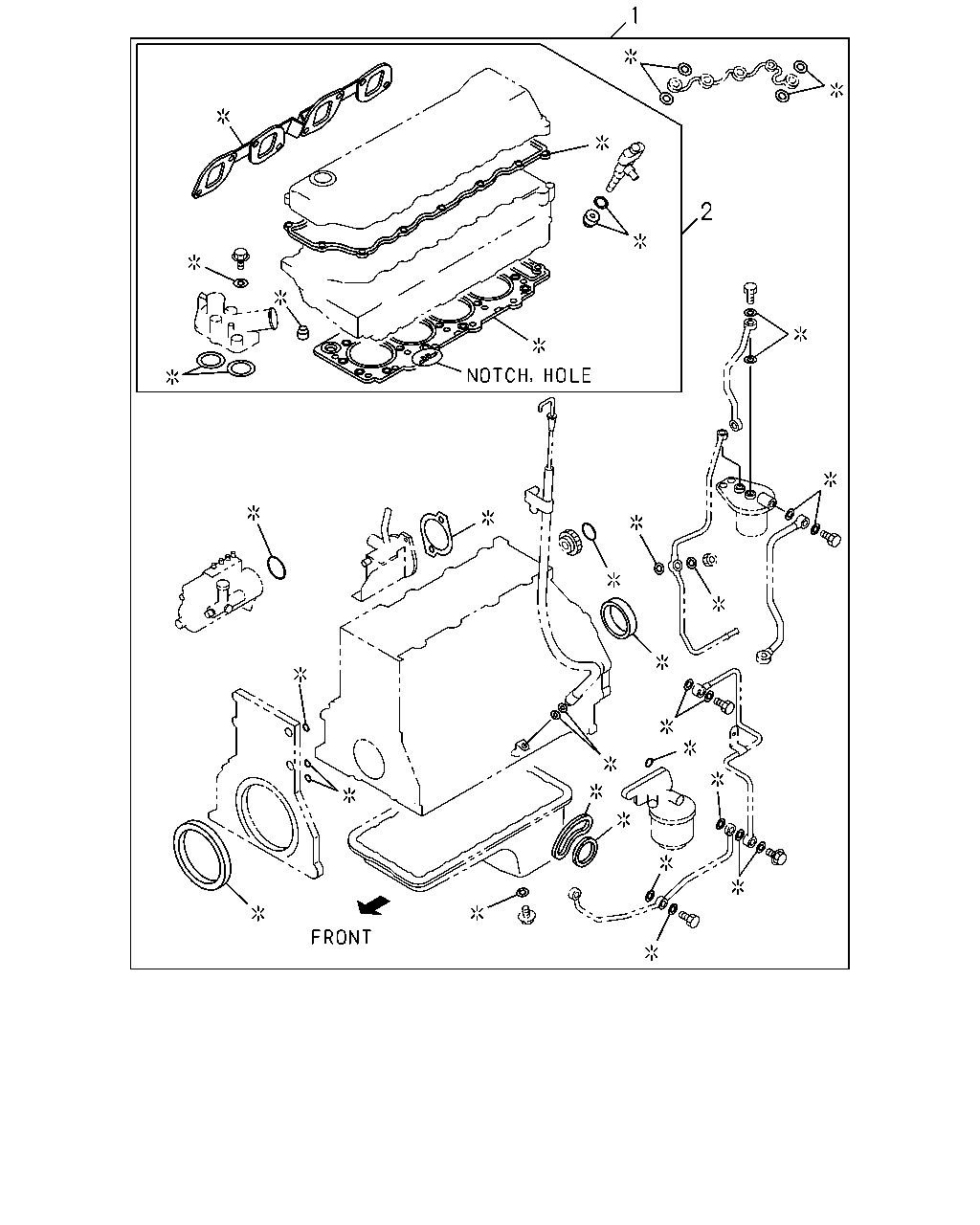

çizim 19599
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0612-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0612-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0612-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-3 01 1 0311-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.475 NON-HOLE 		5-87814-347-3 01 1 0502-0502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-3 01 1 0311-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.525 1-HOLE 		5-87814-348-3 01 1 0502-0502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-3 01 1 0311-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.575 2-HOLE 		5-87814-349-3 01 1 0502-0502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0612- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0612- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0612- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0311-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.475 NON-HOLE 		5-87814-232-1 01 1 0502-0502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0311-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.525 1-HOLE 		5-87814-233-1 01 1 0502-0502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0311-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) T=1.575 2-HOLE 		5-87814-234-1 01 1 0502-0502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
