◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#52967) — 9 parça

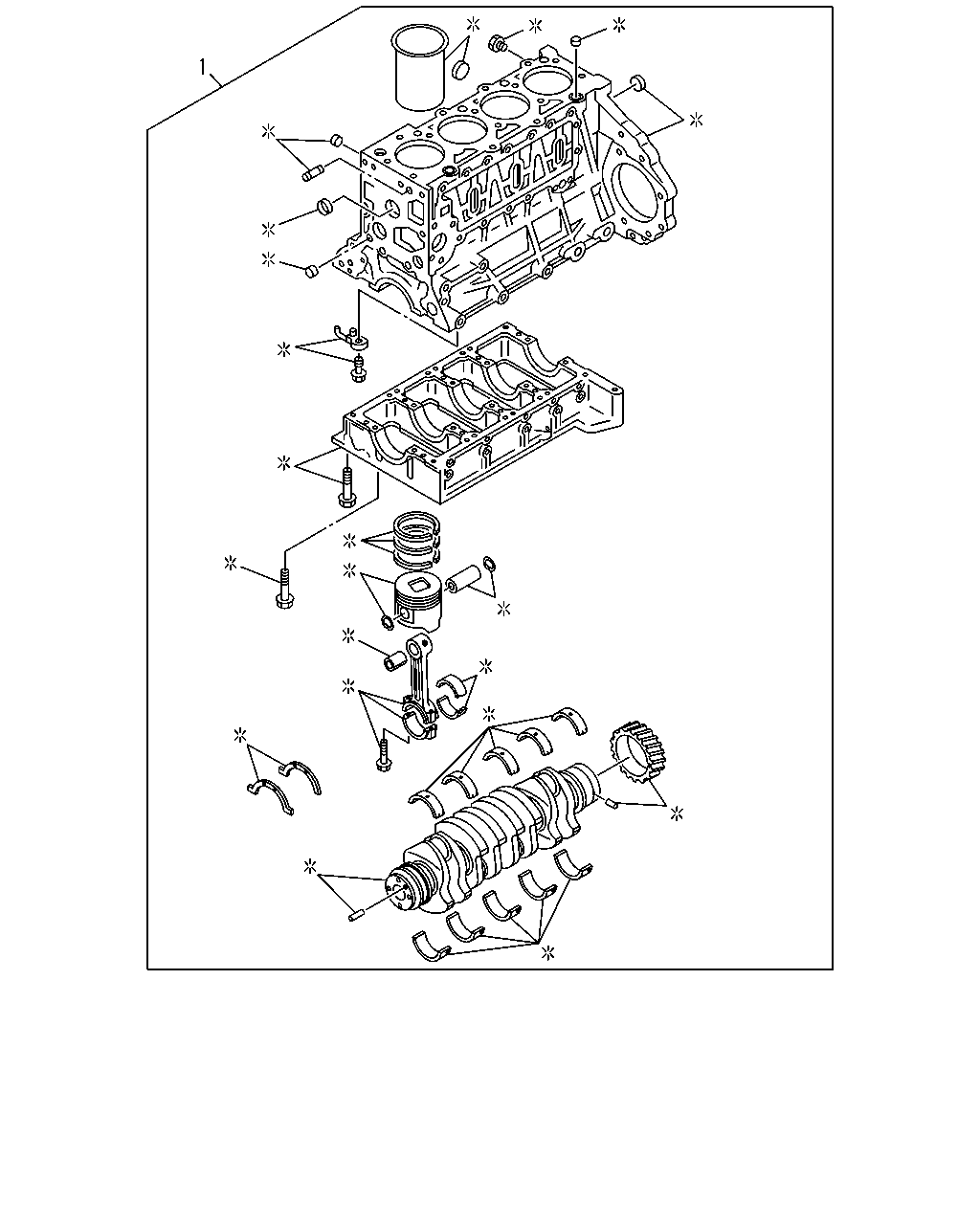

çizim 20862
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 ENGINE ASM; PARTIAL 5-87310-777-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-934-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 0911- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 0311-0501 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-87310-540-4 01 1 0502-0502 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 0502-0504 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-774-3 01 1 0505-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-933-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 0911- ●
