◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#52963) — 12 parça

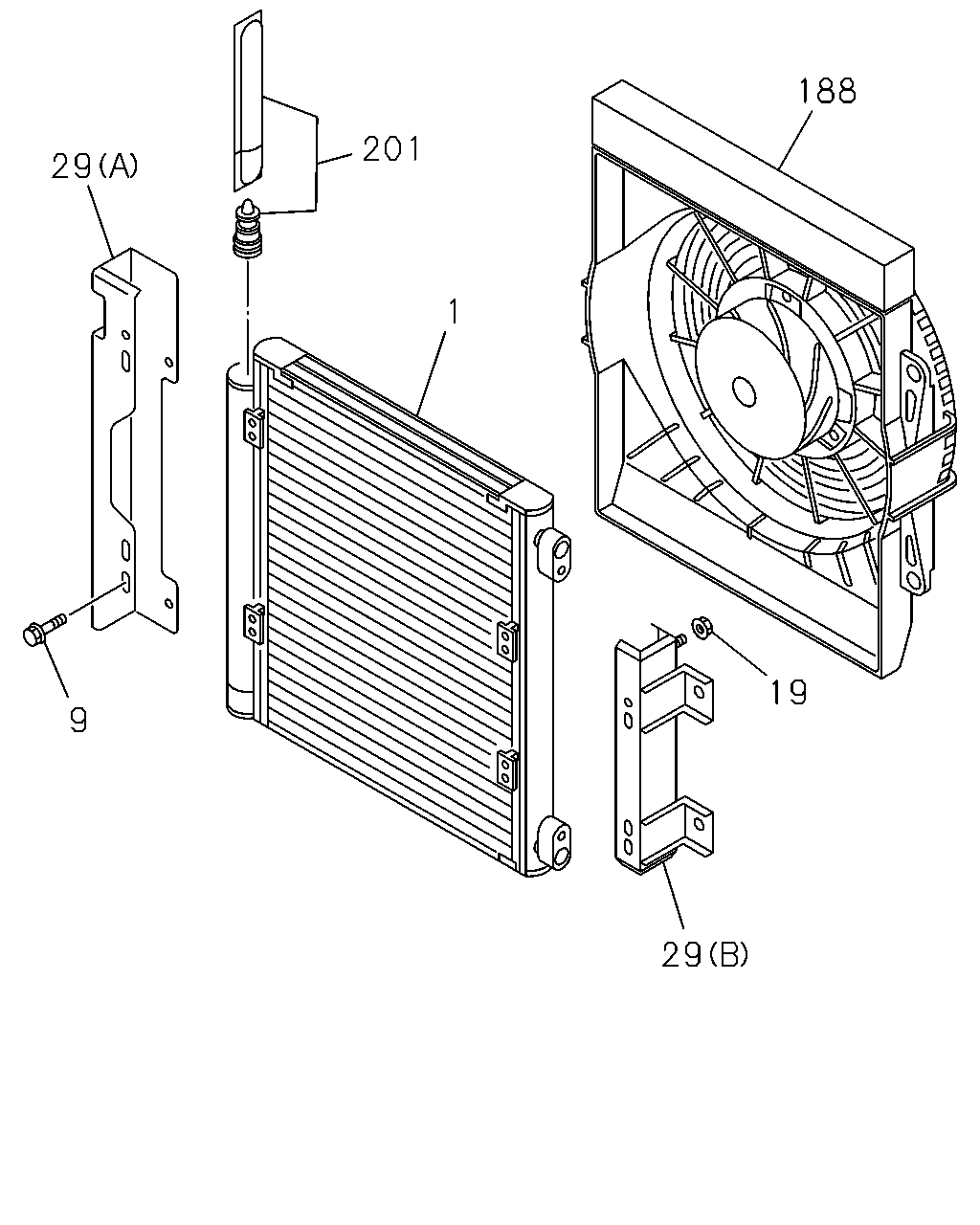

çizim 149817
188 201 29 1 19 9 29
BalonParca AdiParca NoAdetTipApplied Date
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-456-1 01 1 0804-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X14 		1-83539-382-0 08 1 0804-
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 		1-83539-354-0 04 1 0804-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98042-466-0 01 1 0804-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98042-467-0 01 1 0804-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-461-0 01 1 0804-
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		1-83535-097-0 01 1 0804-1409
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98282-482-0 01 1 1410-

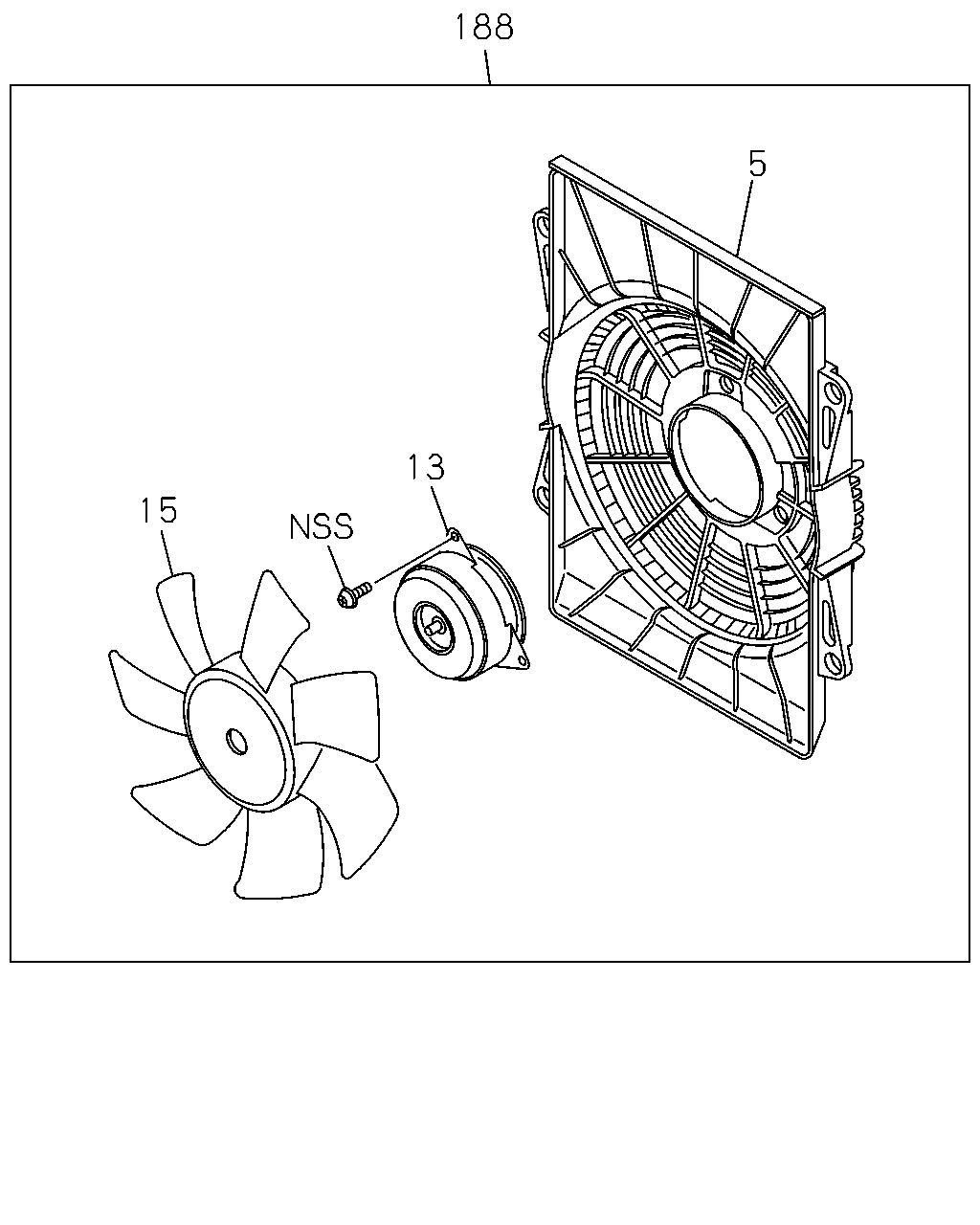

çizim 149818
188 5 13 15
BalonParca AdiParca NoAdetTipApplied Date
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-866-0 01 1 0804-
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98157-045-0 01 1 0804-
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-861-0 01 1 0804-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-461-0 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
