3-11 — PARKING BRAKE CONTROL (#52956) — 56 parça

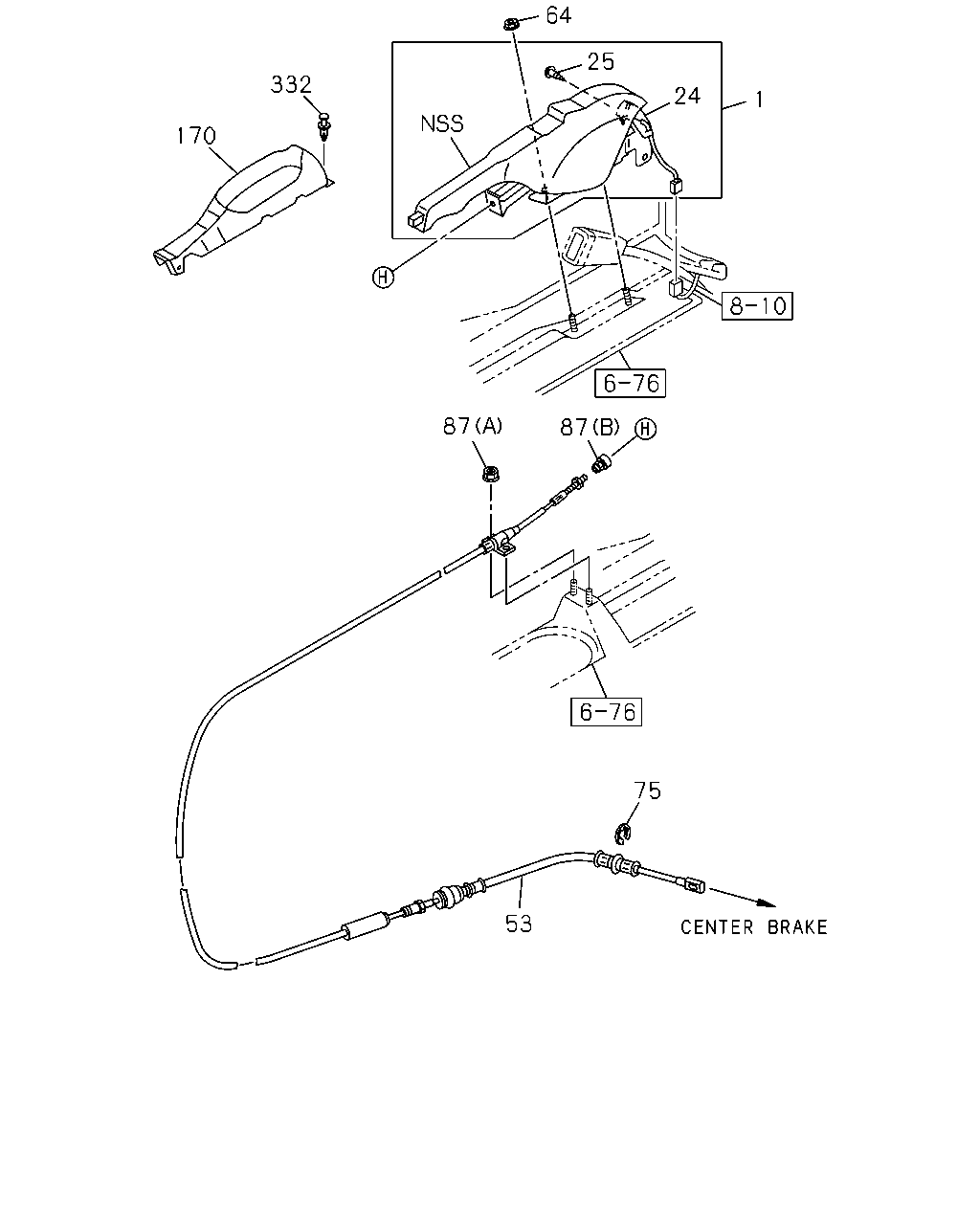

170 332 64 25 24 1 87 87 75 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0908-1011	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	1012-1303	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0908-1011	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	1012-1303	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0908-1011	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1012-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98081-697-0	01	1	0908-1011	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98081-697-0	01	1	1012-	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0908-1011	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1012-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0908-1011	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1012-	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0908-1011	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	1012-	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	0908-1011	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	1012-	●	●
332	04.785 CLIP; COVER 04.012 GRAY	8-97406-179-0	01	1	0908-1011	●
332	04.785 CLIP; COVER 04.012 GRAY	8-97406-179-0	01	1	1012-	●	●

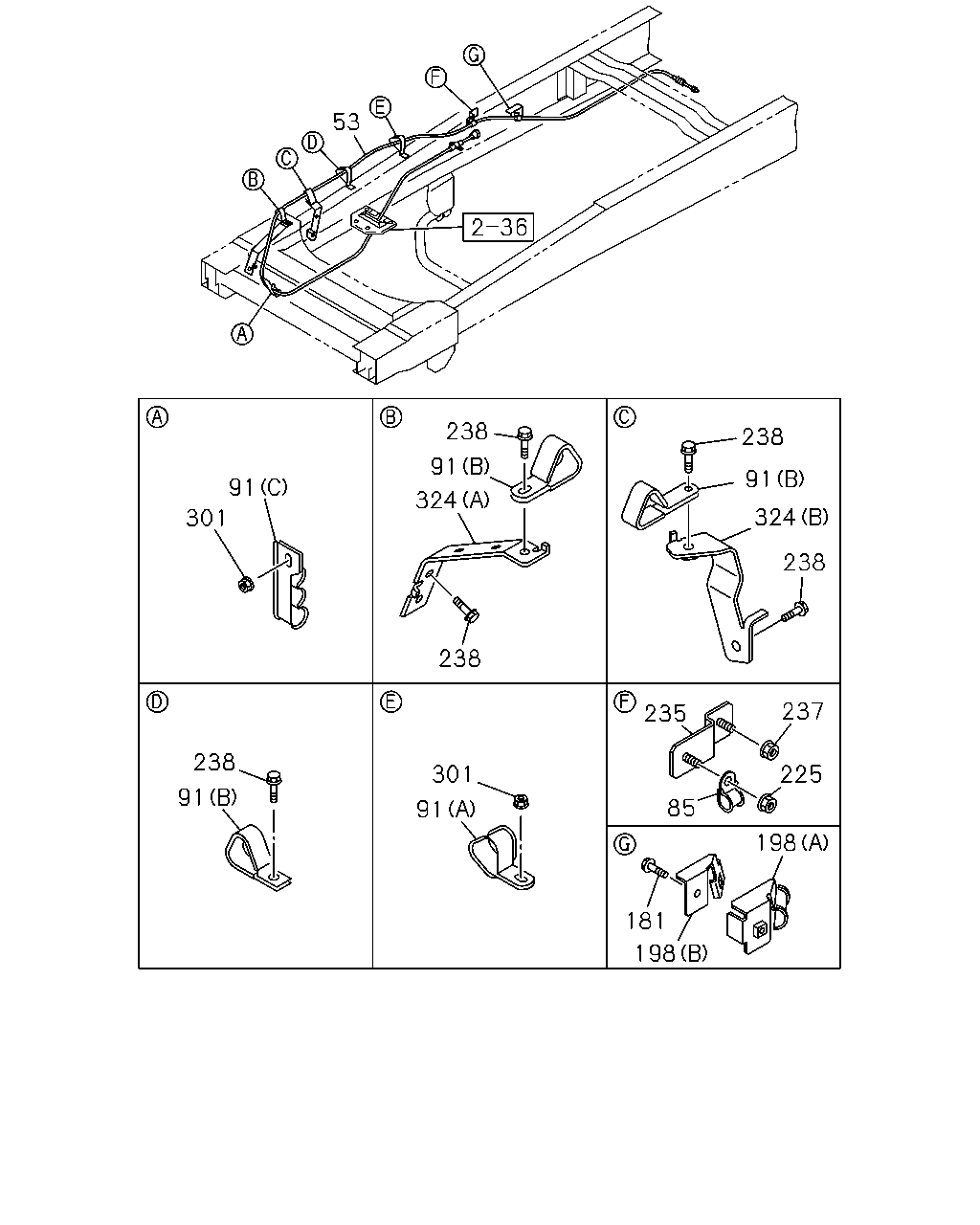

91 301 238 91 301 91 238 238 238 91 324 238 235 237 85 225 198 181 198 53 91 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	04.779 CABLE; PARK BRK,FRT LWR	8-98081-697-0	01	1	0908-1011	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98081-697-0	01	1	1012-	●	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0908-1011	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	1012-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-332-1	01	1	0908-1011	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-332-1	01	1	1012-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	03	1	0908-1011	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	03	1	1012-	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	0908-1011	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1012-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0908-1011	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0908-1011	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
198	04.785 BRACKET; CABLE (B)	8-98034-361-0	01	1	0908-1011	●
198	04.785 BRACKET; CABLE (B)	8-98034-361-0	01	1	1012-	●	●
198	04.785 BRACKET; CABLE (A)	8-98034-362-0	01	1	0908-1011	●
198	04.785 BRACKET; CABLE (A)	8-98034-362-0	01	1	1012-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME	8-98034-352-0	01	1	0908-1011	●
235	04.785 BRACKET; CONT CABLE TO FRAME	8-98034-352-0	01	1	1012-	●	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0908-1011	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1012-	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
324	04.785 BRACKET (A)	8-98032-783-1	01	1	0908-1011	●
324	04.785 BRACKET (A)	8-98032-783-1	01	1	1012-	●	●
324	04.785 BRACKET 04.010 (B)	8-98036-882-1	01	1	0908-1011	●
324	04.785 BRACKET 04.010 (B)	8-98036-882-1	01	1	1012-	●	●
