3-05 — REAR WHEEL BRAKE (#52953) — 71 parça
çizim 159966
95 107 108 106 99 101 96 97 102 94 101 104
BalonParca AdiParca NoAdetTipApplied Date A B
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-689-0 01 1 0908-1011 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-689-0 01 1 1012- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-690-0 01 1 0908-1011 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-690-0 01 1 1012- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-691-0 01 1 0908-1011 ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-691-0 01 1 1012- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-692-0 01 1 0908-1011 ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-692-0 01 1 1012- ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0908-1011 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 1012- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0908-1011 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 1012- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0908-1011 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1012- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0908-1011 ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 1012- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0908-1011 ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 1012- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0908-1011 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1012- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0908-1011 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1012- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0908-1011 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 1012- ● ●
102 04.668 PISTON; REAR WHEEL CYL
D=25.4 		8-94128-531-1 04 1 0908-1011 ●
102 04.668 PISTON; REAR WHEEL CYL
D=25.4 		8-94128-531-1 04 1 1012- ● ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0908-1011 ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 1012- ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0908-1011 ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 1012- ● ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0908-1011 ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 1012- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0908-1011 ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 1012- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0908-1011 ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 1012- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0908-1011 ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 1012- ● ●

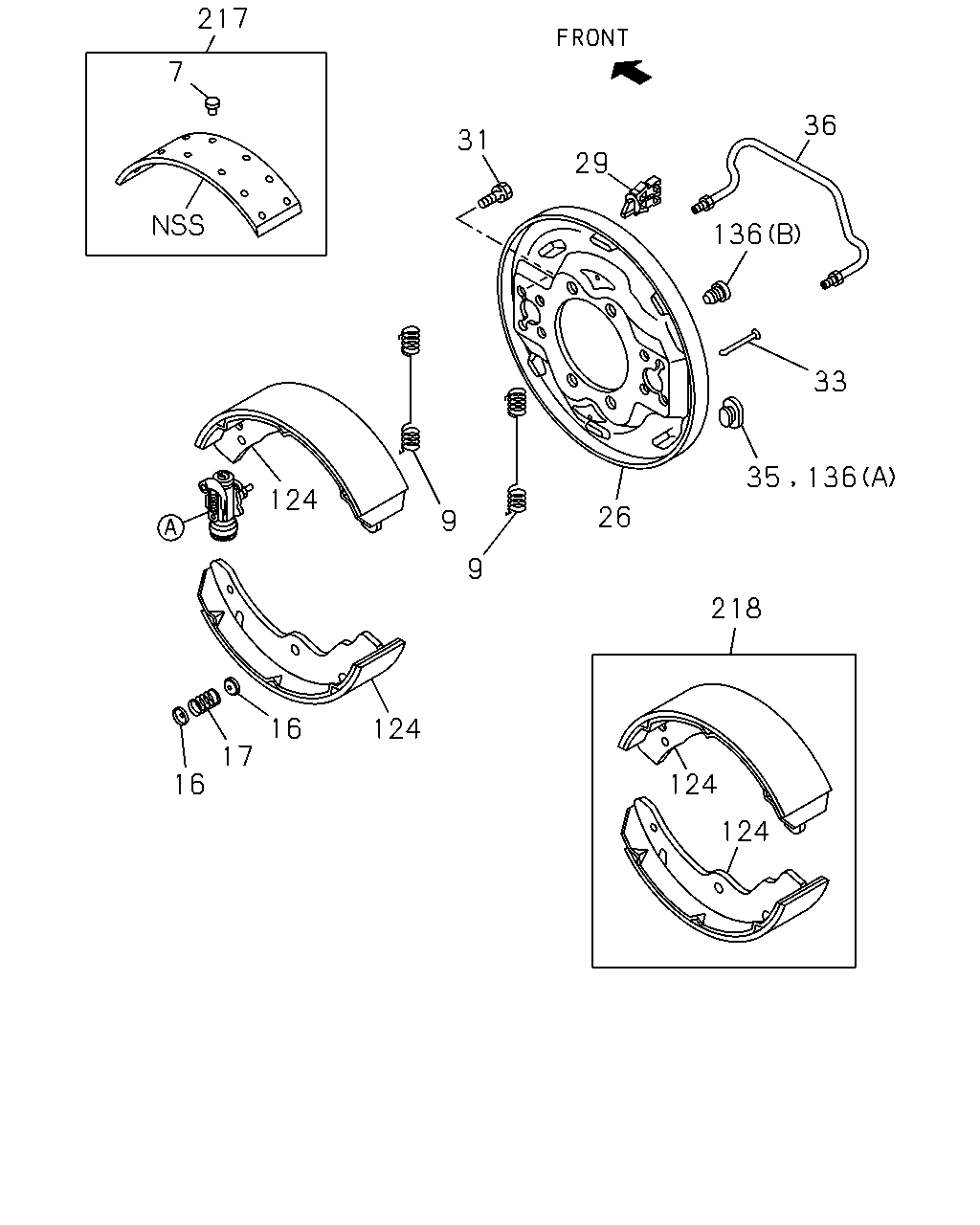

çizim 159978
124 124 218 26 35 136 33 136 36 29 31 9 9 124 16 17 16 124 217 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0908-1011 ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 1012- ● ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0908-1011 ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 1012- ● ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0908-1011 ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1012- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0908-1011 ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 1012- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 0908-1011 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 1012- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 0908-1011 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 1012- ● ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0908-1011 ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 1012- ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0908-1011 ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 1012- ● ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0908-1011 ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 1012- ● ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0908-1011 ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1012- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0908-1011 ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 1012- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0908-1011 ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 1012- ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0908-1011 ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 1012- ● ●
136 05.002 GROMMET
(A) 		8-94171-287-0 04 1 0908-1011 ●
136 05.002 GROMMET
(A) 		8-94171-287-0 04 1 1012- ● ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0908-1011 ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 1012- ● ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1012- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0908-1011 ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 1012- ● ●
