◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#52952) — 32 parça

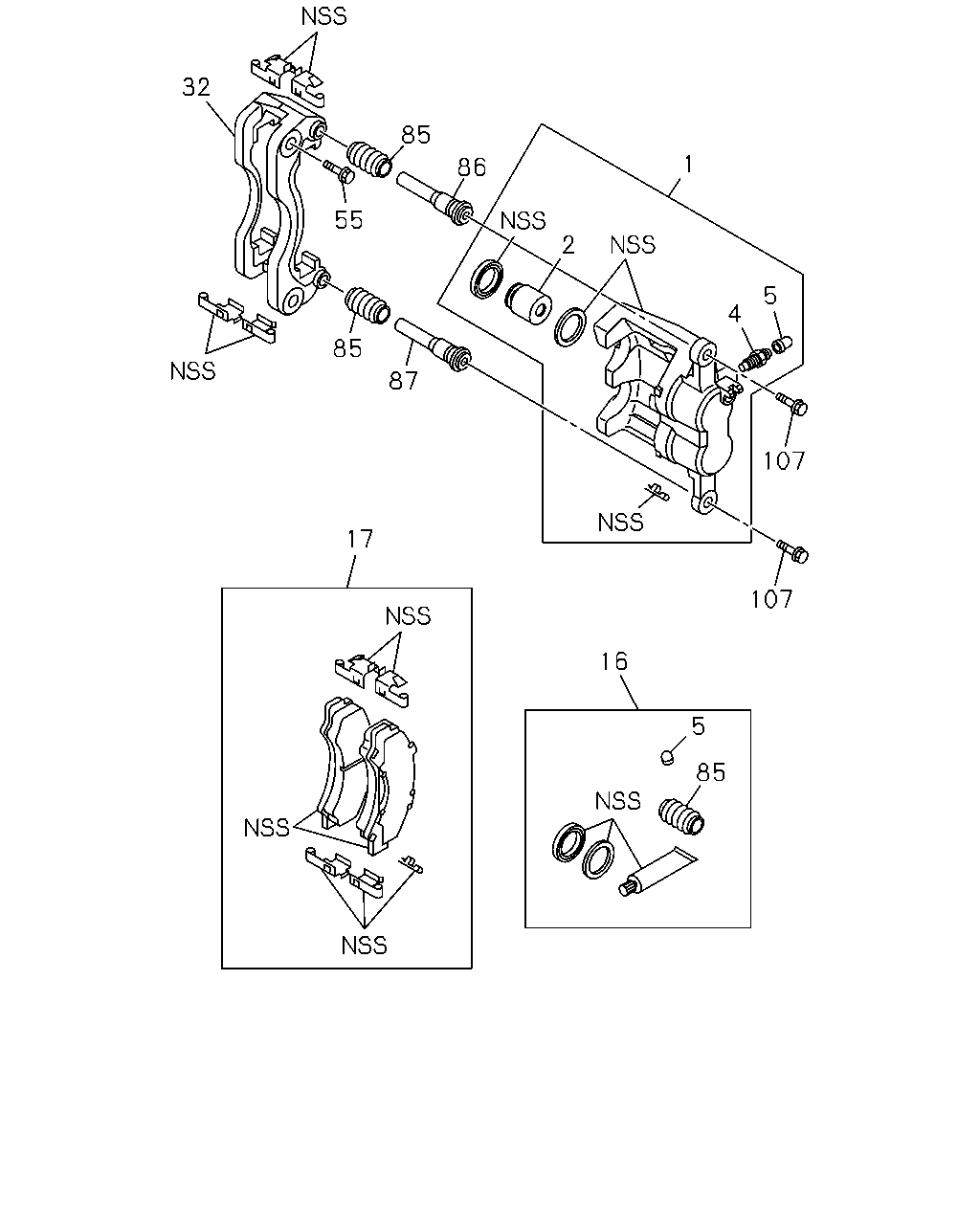

çizim 159981
32 55 85 2 1 5 4 107 107 16 17 5 85 87 85 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK 8-97367-533-0 01 1 0908-1011 ●
1 04.665 CALIPER; FRT DISC BRK 8-97367-533-0 01 1 1012-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-459-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97367-534-0 01 1 0908-1011 ●
1 04.665 CALIPER; FRT DISC BRK 8-97367-534-0 01 1 1012-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-460-0 01 1 1501- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-256-0 04 1 0908-1011 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-256-0 04 1 1012- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0908-1011 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1012-1412 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0908-1011 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1012-1412 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-383-0 01 1 0908-1011 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-383-0 01 1 1012-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-529-0 01 1 1501- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98091-271-0 01 1 0908-1011 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98091-271-0 01 1 1012-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-921-0 01 1 1301- ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97365-266-0 02 1 0908-1011 ●
32 04.665 SUPPORT; FRT DISC BRK 8-97365-266-0 02 1 1012- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X48 FLANGE 		8-98033-656-0 04 1 0908-1011 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X48 FLANGE 		8-98033-656-0 04 1 1012- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0908-1011 ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1012- ● ●
86 04.665 PIN; GUIDE 8-98047-530-0 02 1 0908-1011 ●
86 04.665 PIN; GUIDE 8-98047-530-0 02 1 1012- ● ●
87 04.665 PIN; LOCK 8-98047-532-0 02 1 0908-1011 ●
87 04.665 PIN; LOCK 8-98047-532-0 02 1 1012- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0908-1011 ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1012- ● ●
