Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-62 - TRANSFER SIDE CASE AND SHIFT LEVER
▶

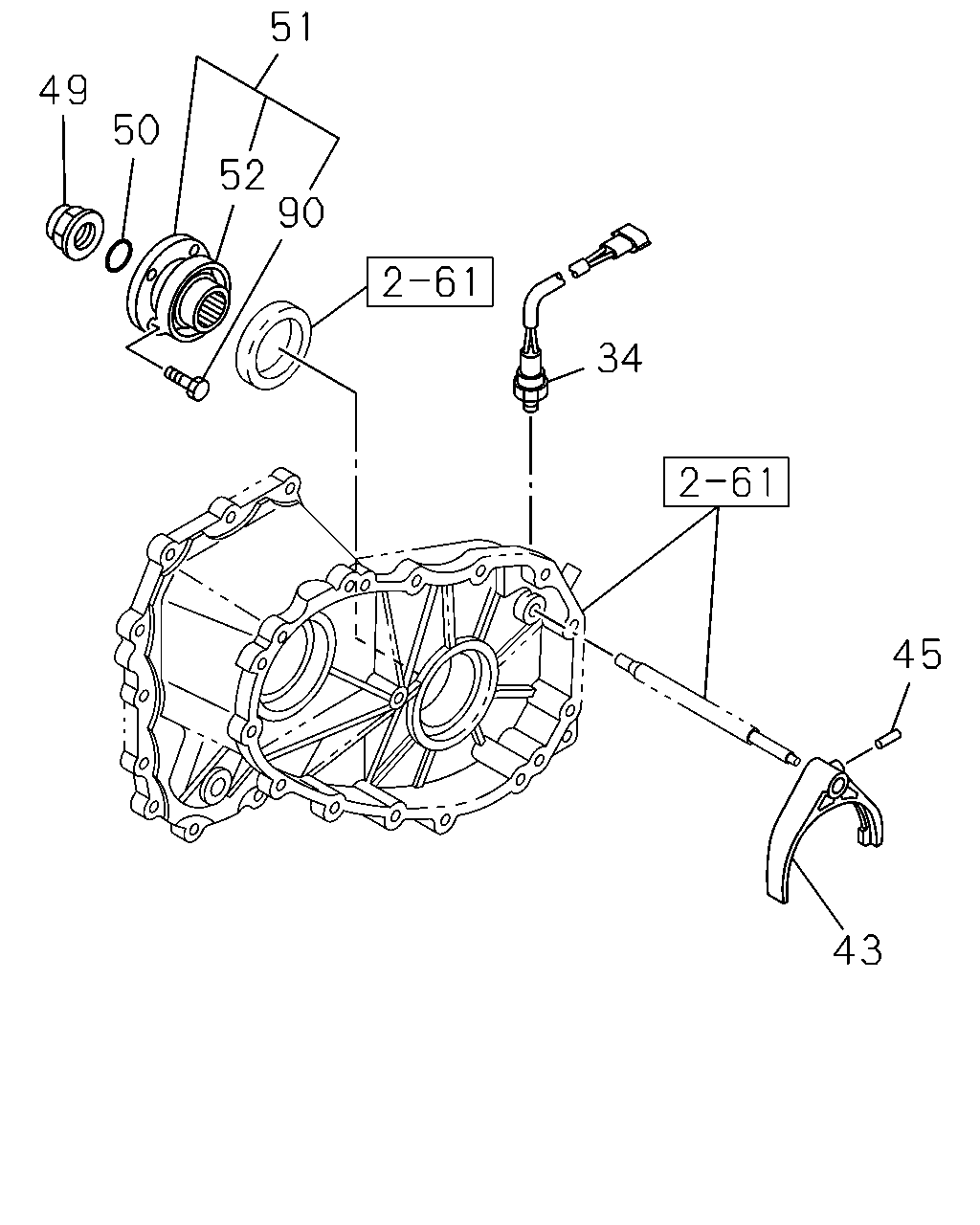

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER
(#52946) — 17 parça
Tümü
A - NMS5SE
B - NMS5WE
43
45
34
90
52
50
49
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
04.075 SWITCH; TRANSFER INDICATOR
02.698
8-98023-050-0
01
1
0908-1011
●
34
04.075 SWITCH; TRANSFER INDICATOR
02.698
8-98023-050-0
01
1
1012-1312
●
●
34
04.075 SWITCH; TRANSFER INDICATOR
04.054
8-98242-172-1
01
1
1401-
●
●
43
04.555 ARM; SHIFT,4X2-4X4,TRANSFER
04.302
8-97241-325-1
01
1
0908-1011
●
43
04.555 ARM; SHIFT,4X2-4X4,TRANSFER
04.302
8-97241-325-1
01
1
1012-
●
●
45
04.303 PIN; SPR,SHIFT ARM TO ROD
04.302 L=32
8-97011-596-2
01
1
0908-1011
●
45
04.303 PIN; SPR,SHIFT ARM TO ROD
04.302 L=32
8-97011-596-2
01
1
1012-
●
●
49
04.525 NUT; COUPLING DRIVER,FRT OUTPUT
M27 FLANGE
8-94422-073-0
01
1
0908-1011
●
49
04.525 NUT; COUPLING DRIVER,FRT OUTPUT
M27 FLANGE
8-94422-073-0
01
1
1012-
●
●
50
04.552 GASKET; COUPLING DRIVER,FRT OUTP
ID=29.7 OD=36.1
8-94483-035-0
01
1
0908-1011
●
50
04.552 GASKET; COUPLING DRIVER,FRT OUTP
ID=29.7 OD=36.1
8-94483-035-0
01
1
1012-
●
●
51
05.555 FLANGE ASM; COUPLING DRIVER,TRAN
8-98034-186-0
01
1
0908-1011
●
51
05.555 FLANGE ASM; COUPLING DRIVER,TRAN
8-98034-186-0
01
1
1012-
●
●
52
05.545 COVER; DUST,TRANSFER FLANGE
8-94320-867-3
01
1
0908-1011
●
52
05.545 COVER; DUST,TRANSFER FLANGE
8-94320-867-3
01
1
1012-
●
●
90
05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
M10X27
8-98034-315-0
04
1
0908-1011
●
90
05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
M10X27
8-98034-315-0
04
1
1012-
●
●
