◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#52945) — 29 parça

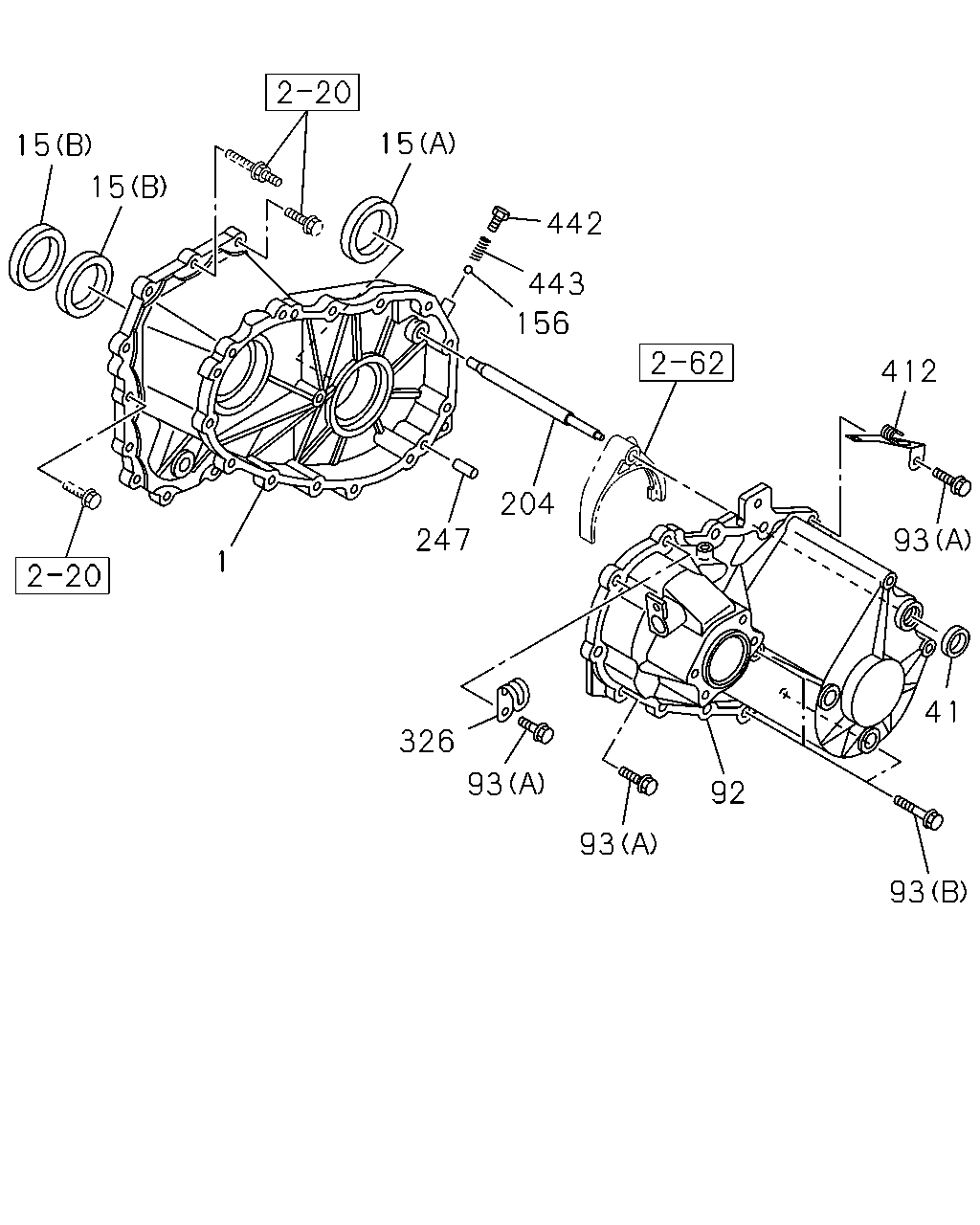

çizim 159975
15 15 15 1 247 326 93 92 93 204 156 443 442 412 93 41 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.510 CASE; TRANSFER 8-97369-489-0 01 1 0908-1011 ●
1 04.510 CASE; TRANSFER 8-97369-489-0 01 1 1012- ● ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97326-790-0 02 1 0908-1011 ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97326-790-0 02 1 1012-1111 ● ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-98201-475-0 02 1 1112- ● ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-791-0 01 1 0908-1011 ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-791-0 01 1 1012- ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97326-792-0 01 1 0908-1011 ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97326-792-0 01 1 1012- ● ●
92 04.552 COVER; RR,TRANSFER 8-97369-490-0 01 1 0908-1011 ●
92 04.552 COVER; RR,TRANSFER 8-97369-490-0 01 1 1012- ● ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(A) 		8-97326-813-0 11 1 0908-1011 ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(A) 		8-97326-813-0 11 1 1012- ● ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(B) 		8-97326-814-0 03 1 0908-1011 ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(B) 		8-97326-814-0 03 1 1012- ● ●
156 04.555 BALL; DETENT,SHIFT ROD 8-97326-864-0 01 1 0908-1011 ●
156 04.555 BALL; DETENT,SHIFT ROD 8-97326-864-0 01 1 1012- ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT 8-97326-784-0 01 1 0908-1011 ●
204 04.246 ROD; SHIFT,TRANSFER CONT 8-97326-784-0 01 1 1012- ● ●
247 04.105 PIN; DOWEL,TRANSFER CASE COVER 8-97326-815-0 02 1 0908-1011 ●
247 04.105 PIN; DOWEL,TRANSFER CASE COVER 8-97326-815-0 02 1 1012- ● ●
326 04.128 CLIP; HARNESS
02.559 ID=8 		8-97329-633-0 02 1 0908-1011 ●
326 04.128 CLIP; HARNESS
02.559 ID=8 		8-97329-633-0 02 1 1012- ● ●
412 04.555 BRACKET; SW CONN 8-97321-823-0 01 1 0908-1011 ●
412 04.555 BRACKET; SW CONN 8-97321-823-0 01 1 1012- ● ●
442 04.555 BOLT; CHECKING BALL 8-97326-850-0 01 1 0908-1011 ●
442 04.555 BOLT; CHECKING BALL 8-97326-850-0 01 1 1012- ● ●
443 04.555 SPRING; CHECK 8-97326-860-0 01 1 0908-1011 ●
443 04.555 SPRING; CHECK 8-97326-860-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
