◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#52940) — 79 parça

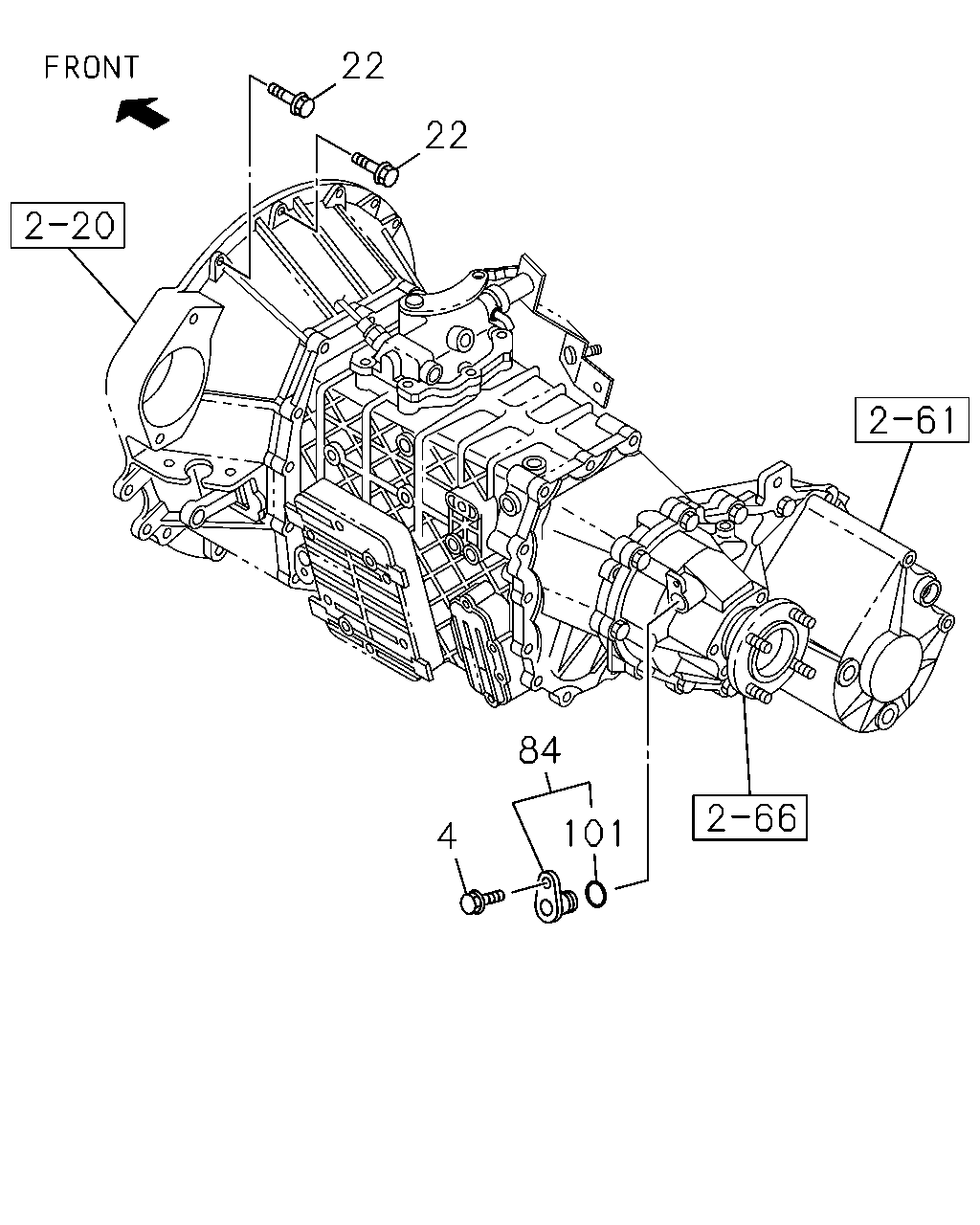

çizim 159964
101 84 4 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0908-1011 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE 		0-28151-035-0 01 1 0908-1007 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE 		0-28151-035-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE 		0-28151-035-0 04 1 1212- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 0908-1007 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 1212- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0908-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0908-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0908-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X140 FLANGE 		0-28156-014-0 01 1 0908-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 0908-1007 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1212- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0908-1007 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1008-1011 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1012-1211 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1012-1211 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1212-1212 ●
22 00.685 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1301- ●
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1301- ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 0908-1011 ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 1012- ● ●
101 04.338 GASKET; CAP
04.439 		9-09561-324-0 01 1 0908-1011 ●
101 04.338 GASKET; CAP
04.439 		9-09561-324-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
