2-20 — MANUAL TRANSMISSION ASM AND CASE (#52939) — 60 parça

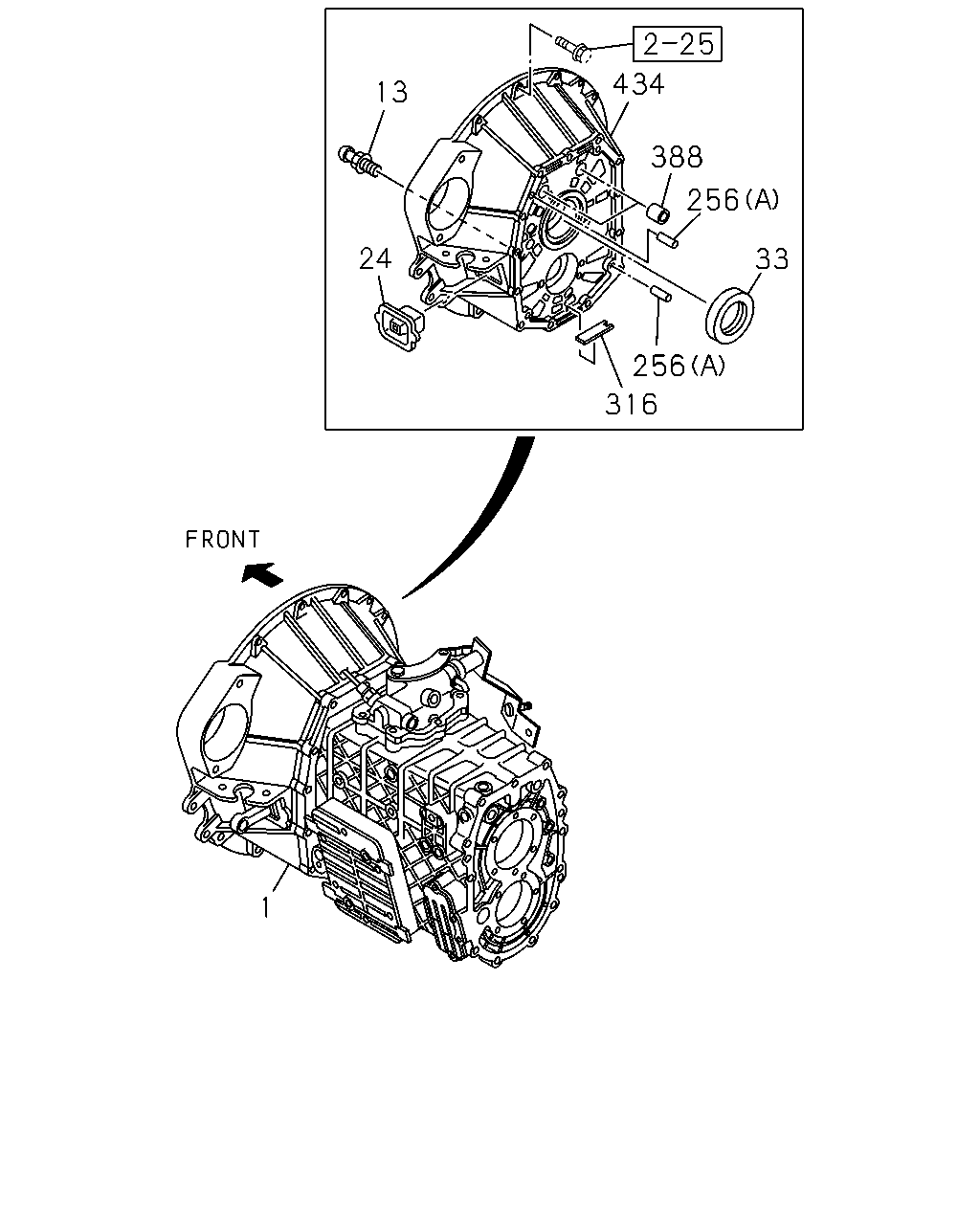

434 388 33 256 256 316 24 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98083-267-0	01	1	1301-
1	04.003 TRANSMISSION ASM; MANUAL PTO T/M SIDE DIRECT PUMP(8KZ)	8-98033-584-0	01	1	1008-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98083-267-0	01	1	0908-1212
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98083-267-0	01	1	1301-
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98083-267-0	01	1	0908-1007
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	8-98083-267-0	01	1	1008-
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0908-
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0908-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0908-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0908-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0908-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0908-
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0908-
434	00.683 HOUSING; CLU	8-98073-470-2	01	1	0908-

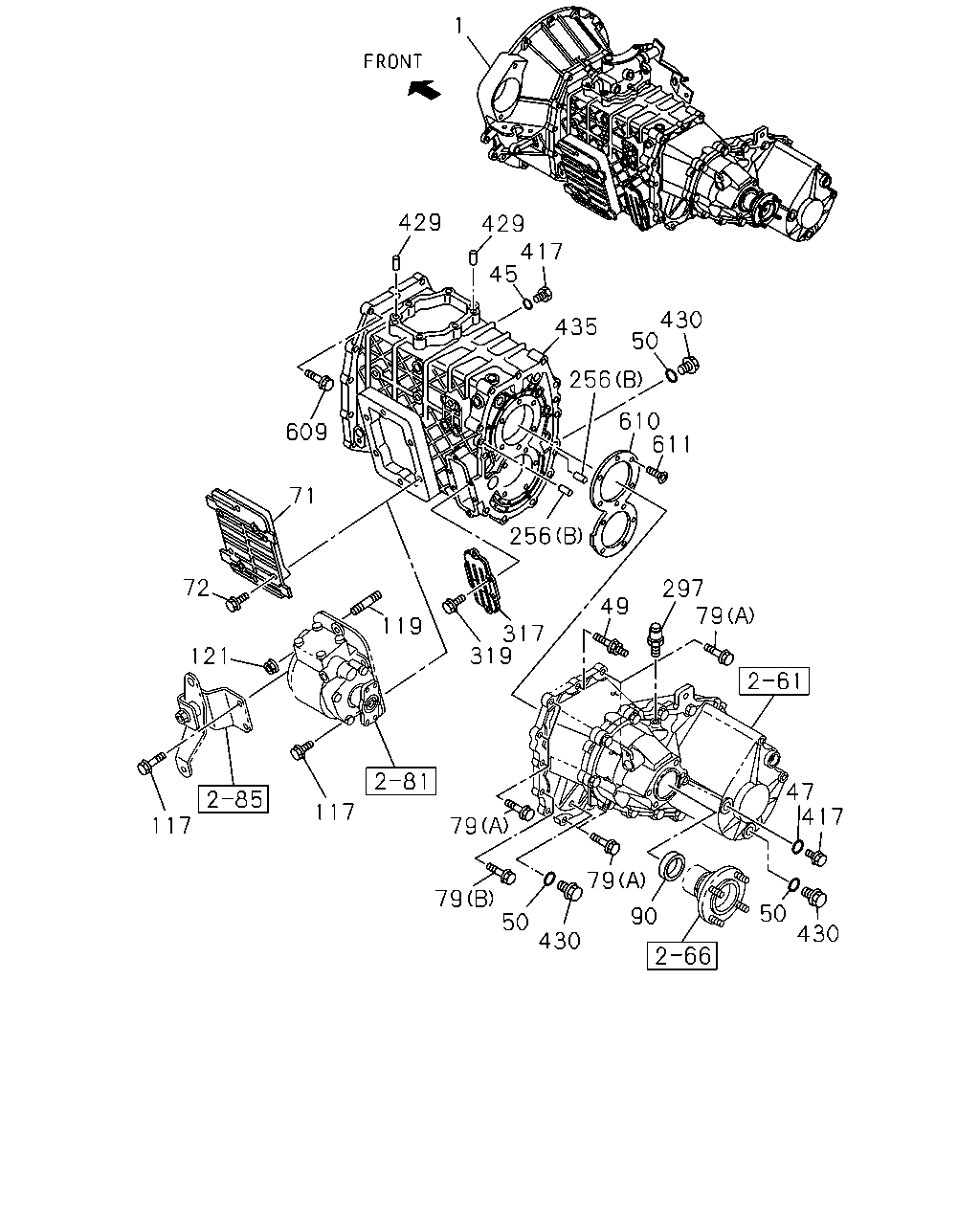

1 429 429 417 45 435 430 50 256 610 611 609 71 72 121 117 117 119 319 317 256 49 297 79 47 417 430 50 90 79 430 50 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98083-267-0	01	1	1301-
1	04.003 TRANSMISSION ASM; MANUAL PTO T/M SIDE DIRECT PUMP(8KZ)	8-98033-584-0	01	1	1008-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98083-267-0	01	1	0908-1212
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98083-267-0	01	1	1301-
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98083-267-0	01	1	0908-1007
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	8-98083-267-0	01	1	1008-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0908-
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	0908-
49	04.510 STUD; TRANSFER CASE M10X15,M10X40 L=65	8-97365-379-0	01	1	0908-1405
49	04.510 STUD; TRANSFER CASE M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	03	1	0908-
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0908-1007
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	8-97252-625-0	01	1	1008-
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0908-1007
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1008-
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0908-1405
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-
79	04.510 BOLT; TRANSFER CASE (B) M10X40 FLANGE	8-97365-377-0	02	1	0908-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0908-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1301-
117	04.439 BOLT; PTO FIX PTO T/M SIDE DIRECT PUMP(8KZ) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	1008-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0908-1107
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1212
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1301-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	03	1	1301-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1212
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.403 M10X30 L=45	0-44011-030-0	02	1	1301-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0908-1107
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1212
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	02	1	1301-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	03	1	1301-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0908-1006
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-1212
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	04	1	1301-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0908-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0908-
297	04.104 BREATHER; AIR,TRANSFER CASE	8-98031-520-0	01	1	0908-
317	04.109 COVER; CASE	8-97252-626-0	01	1	0908-
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0908-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	02	1	0908-
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0908-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	03	1	0908-
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0908-
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0908-
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0908-
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0908-
