◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#52932) — 13 parça

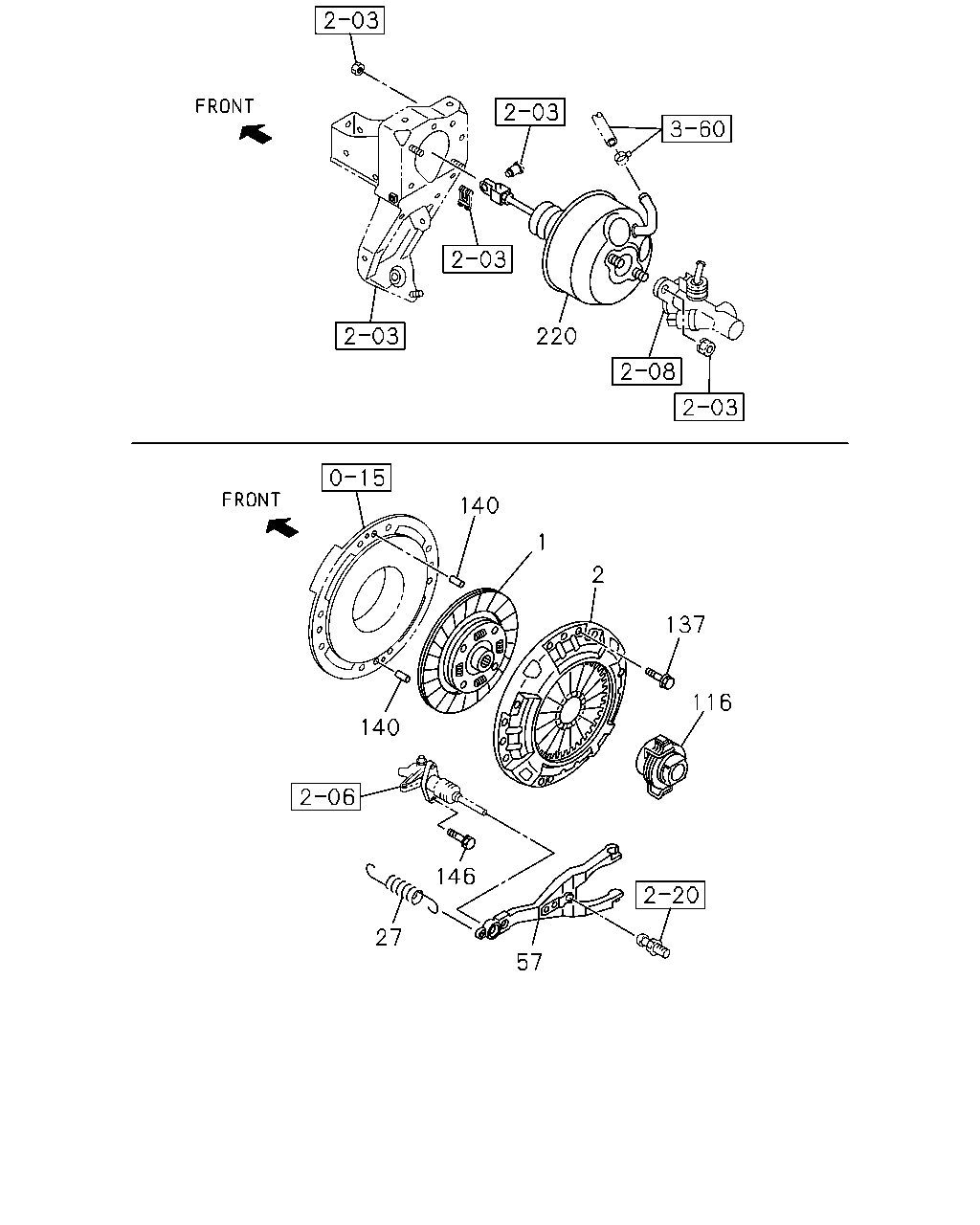

çizim 159950
140 140 27 57 137 2 1 116 220 146
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH 8-98037-004-2 01 1 0908-1401
1 00.886 DISC; CLUTCH 8-98255-139-1 01 1 1402-
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-077-1 01 1 1012-1501
2 00.859 PLATE ASM; PRESSURE,CLU 8-98040-093-0 01 1 0908-
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-091-0 01 1 1012-
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0908-
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0908-
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0908-
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1012-
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0908-
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0908-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0908-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		8-98043-208-0 01 1 0908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
