◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#52931) — 64 parça

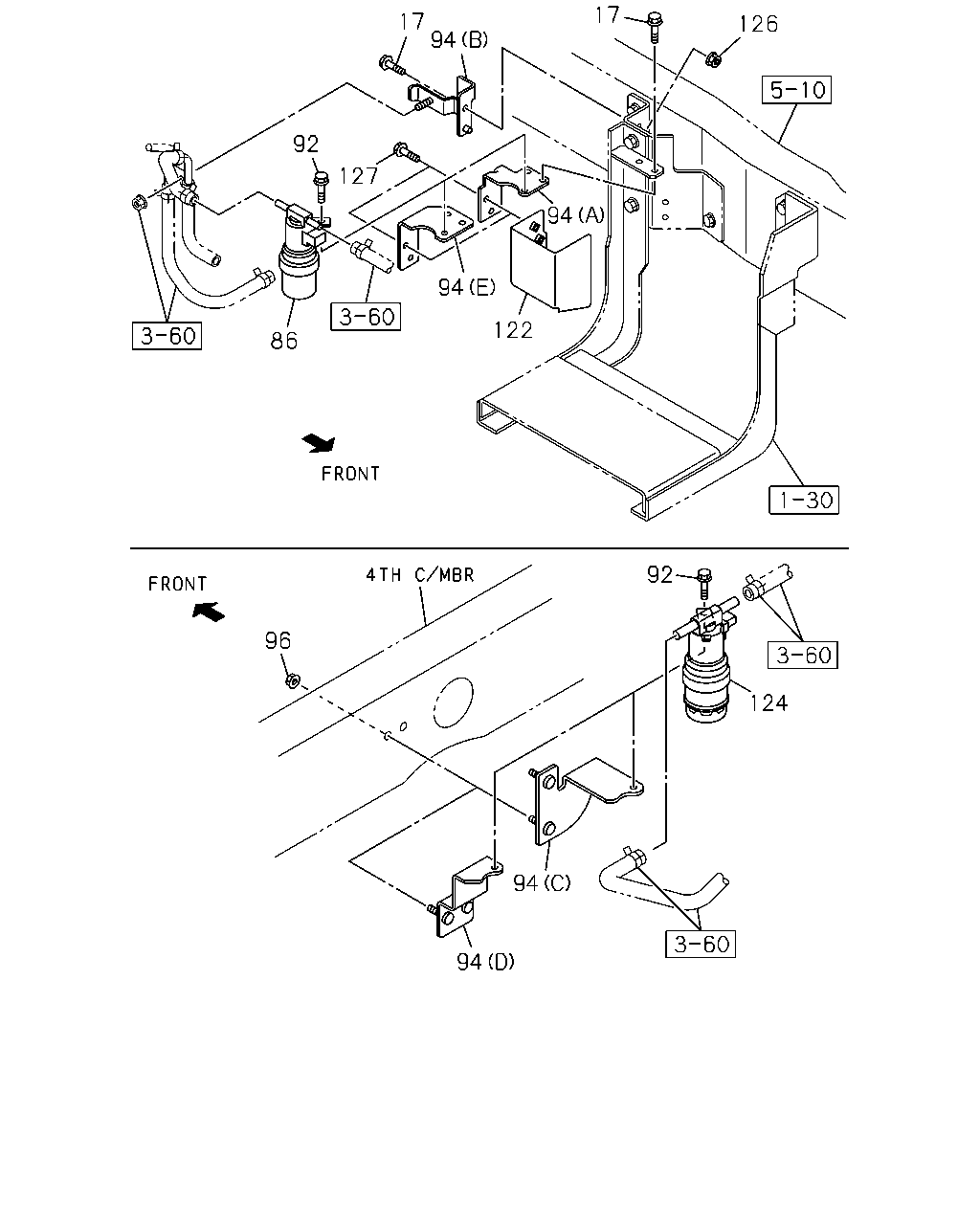

çizim 159947
17 17 94 126 92 94 94 122 86 127 92 124 94 96 94
BalonParca AdiParca NoAdetTipApplied Date A B
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0908-0910 ●
17 03.634 BOLT; BRKT
EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0908- ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 0908-1011 ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1012- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0908-1008 ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0908-1008 ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ●
92 08.900 BOLT; MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
92 08.900 BOLT; MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(D) 		8-98039-764-1 01 1 1012- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(C) 		8-98039-763-1 01 1 0908-1008 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98039-763-1 01 1 1009- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98042-145-2 01 1 0908-1206 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(E) 		8-98211-757-1 01 1 1207- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98042-694-2 01 1 0908-0910 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-694-2 01 1 0911- ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0908-1008 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 0908- ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 0908-1008 ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 		8-98043-344-0 01 1 1009-1011 ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 		8-98043-344-0 01 1 1012- ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 1012- ●
126 03.634 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0908-0910 ●
126 03.634 NUT; BRKT
EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911- ●
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0908- ●

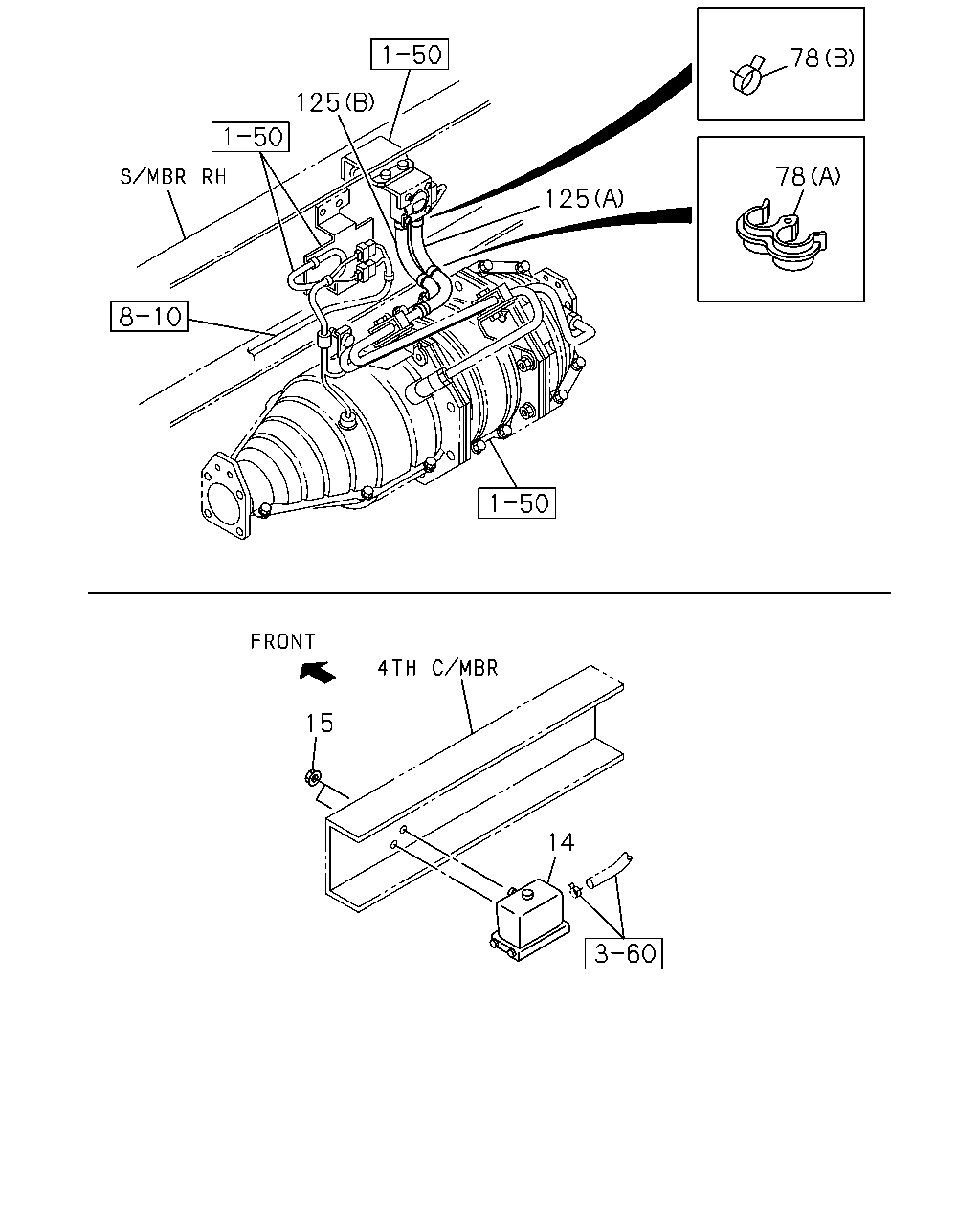

çizim 159952
78 78 125 125 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 03.634 FILTER; AIR,EXH BRAKE 8-97033-888-0 01 1 0908-1011 ●
14 03.634 FILTER; AIR,EXH BRAKE 8-97033-888-0 01 1 1012- ● ●
15 03.634 NUT; AIR FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
15 03.634 NUT; AIR FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 0908-1008 ●
78 03.636 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) 		8-97173-119-0 01 1 1009-1011 ●
78 03.636 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) 		8-97173-119-0 01 1 1012- ●
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 1012- ●
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 0908-1008 ●
78 03.636 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13 		8-97329-627-0 04 1 1009-1011 ●
78 03.636 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13 		8-97329-627-0 04 1 1012- ●
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 1012- ●
125 03.630 HOSE; DPD
(A) FRONT L=90 		8-98029-399-0 01 1 0908-1008 ●
125 03.630 HOSE; DPD
CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT L=90 		8-98029-399-0 01 1 1009-1011 ●
125 03.630 HOSE; DPD
CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT L=90 		8-98029-399-0 01 1 1012- ●
125 03.630 HOSE; DPD
(A) FRONT L=90 		8-98029-399-0 01 1 1012- ●
125 03.630 HOSE; DPD
(B) REAR L=110 		8-98029-400-0 01 1 0908-1008 ●
125 03.630 HOSE; DPD
CATALYSIS CONTROL WITH DPD(8JM) (B) REAR L=110 		8-98029-400-0 01 1 1009-1011 ●
125 03.630 HOSE; DPD
CATALYSIS CONTROL WITH DPD(8JM) (B) REAR L=110 		8-98029-400-0 01 1 1012- ●
125 03.630 HOSE; DPD
(B) REAR L=110 		8-98029-400-0 01 1 1012- ●
çizim 159956
1 8 5 5 1 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH
(B) 		8-97384-098-2 01 1 0908-1011 ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-97384-098-2 01 1 1012-1012 ● ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98167-677-1 01 1 1101-1310 ● ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98258-268-0 01 1 1311- ● ●
1 03.632 BRAKE UNIT; EXH
(A) 		8-98068-179-1 01 1 0908-1011 ●
1 03.632 BRAKE UNIT; EXH
(A) 		8-98068-179-1 01 1 1012-1212 ● ●
1 03.632 BRAKE UNIT; EXH
(A) 		8-98227-171-0 01 1 1301- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 0908-1011 ●
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 1012- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0908-1011 ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1012- ● ●
10 03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0908-1011 ●
10 03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1012- ● ●
