1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#52930) — 94 parça

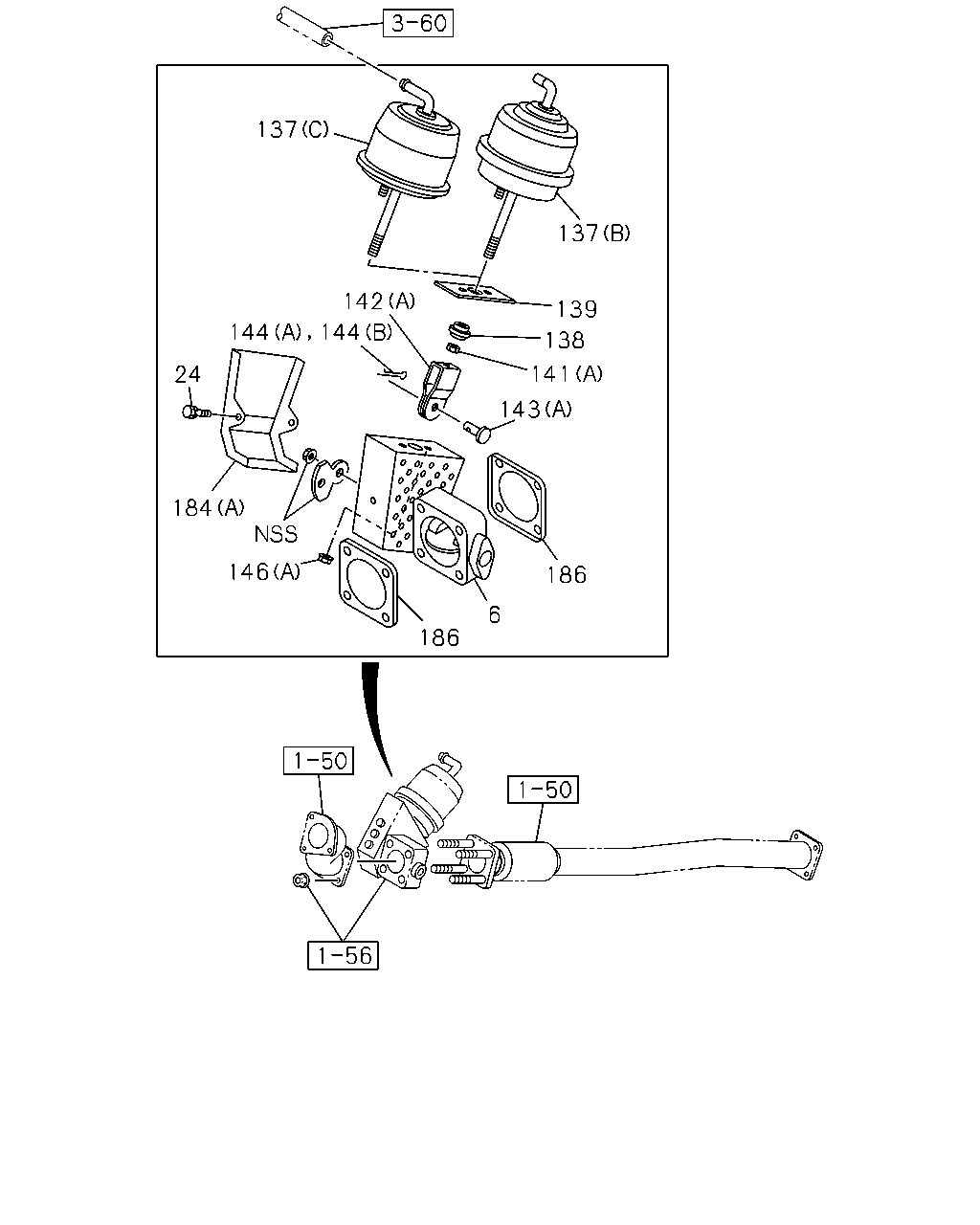

çizim 159945
186 6 186 143 141 138 139 137 137 142 144 144 24 184 146
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.632 VALVE; EXH BRAKE 8-98069-292-0 01 1 0908-1011 ●
6 03.632 VALVE; EXH BRAKE 8-98069-292-0 01 1 1012- ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 04 1 0908-1011 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 04 1 1012- ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98038-348-0 01 1 0908-1011 ●
137 03.634 CHAMBER; POWER
(A) 		8-98038-348-0 01 1 1012-1012 ● ●
137 03.634 CHAMBER; POWER
(A) 		8-97985-132-0 01 1 1101- ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98043-597-0 01 1 0908-1011 ●
137 03.634 CHAMBER; POWER
(B) 		8-98043-597-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
(C) 		8-98229-059-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV
FRONT 		8-98231-608-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 02 1 0908-1011 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 02 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
REAR 		5-22189-004-0 01 1 1301- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 02 1 0908-1011 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 02 1 1012- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1101- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 02 1 0908-1011 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 02 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1101- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1101- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 02 1 0908-1011 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 02 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-98231-609-0 01 1 1301- ● ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1101- ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 02 1 0908-1011 ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 02 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-98231-610-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1101-1212 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 02 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 02 1 0908-1011 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 02 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ●
146 03.634 NUT; EXH BRK VLV
07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0908-1011 ●
146 03.634 NUT; EXH BRK VLV
07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 1104- ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0908-1011 ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 1012- ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0908-1011 ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 1012- ● ●
186 03.611 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 0908-1011 ●
186 03.611 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 1012- ● ●
çizim 159948
137 139 138 140 187 141 141 142 142 143 143 146 184 24 180 144 144 180
BalonParca AdiParca NoAdetTipApplied Date A B
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 04 1 0908-1011 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 04 1 1012- ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98038-348-0 01 1 0908-1011 ●
137 03.634 CHAMBER; POWER
(A) 		8-98038-348-0 01 1 1012-1012 ● ●
137 03.634 CHAMBER; POWER
(A) 		8-97985-132-0 01 1 1101- ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98043-597-0 01 1 0908-1011 ●
137 03.634 CHAMBER; POWER
(B) 		8-98043-597-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
(C) 		8-98229-059-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV
FRONT 		8-98231-608-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 02 1 0908-1011 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 02 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
REAR 		5-22189-004-0 01 1 1301- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 02 1 0908-1011 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 02 1 1012- ● ●
140 03.634 INSULATOR; EXH BRK VLV 8-98037-494-0 01 1 0908-1011 ●
140 03.634 INSULATOR; EXH BRK VLV 8-98037-494-0 01 1 1012- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1101- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 02 1 0908-1011 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 02 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1101- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1101- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 02 1 0908-1011 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 02 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-98231-609-0 01 1 1301- ● ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1101- ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 02 1 0908-1011 ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 02 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-98231-610-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1101-1212 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 02 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 02 1 0908-1011 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 02 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ●
146 03.634 NUT; EXH BRK VLV
07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0908-1011 ●
146 03.634 NUT; EXH BRK VLV
07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 1104- ● ●
180 03.640 COLLAR; EXH BRK VLV
03.440 		8-97018-597-0 02 1 0912-1011 ●
180 03.640 COLLAR; EXH BRK VLV
03.440 		8-97018-597-0 02 1 1012- ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0908-1011 ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 1012- ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0908-1011 ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 1012- ● ●
187 03.685 PROTECTOR; EXH BRK VLV 8-98037-495-0 01 1 0908-1011 ●
187 03.685 PROTECTOR; EXH BRK VLV 8-98037-495-0 01 1 1012- ● ●
