Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#52929) — 385 parça

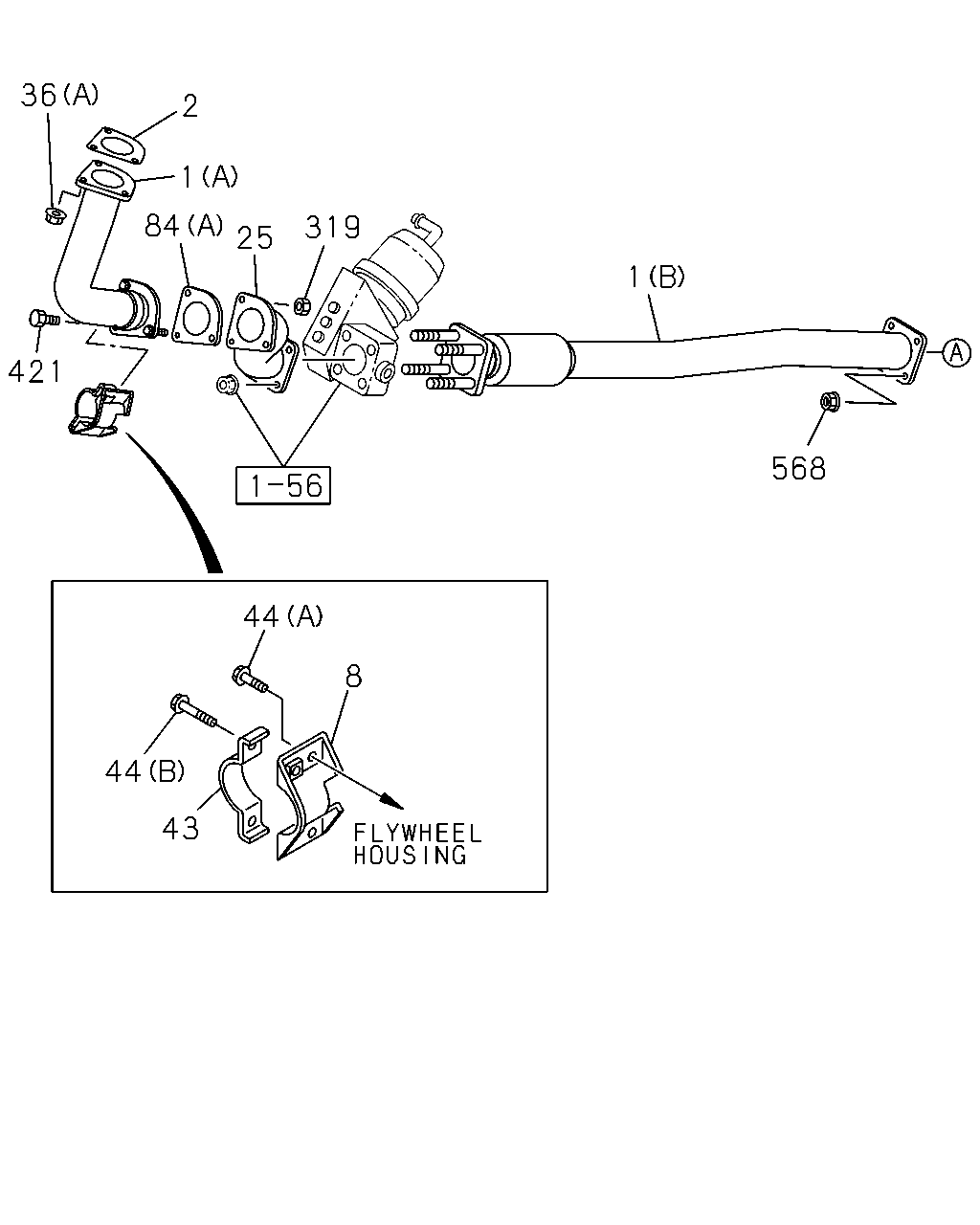

568 1 319 25 84 1 2 36 421 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (A)	8-98001-827-2	01	1	0908-1011	●
1	03.609 PIPE; EXH (A)	8-98001-827-2	01	1	1012-	●	●
1	03.609 PIPE; EXH (B)	8-98084-410-1	01	1	0908-1011	●
1	03.609 PIPE; EXH (B)	8-98084-410-1	01	1	1012-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0908-1011	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1012-	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0908-1011	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1012-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98084-409-1	01	1	0908-1011	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98084-409-1	01	1	1012-1406	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98282-479-0	01	1	1407-	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0908-1011	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0908-	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0908-1011	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1012-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1012-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0908-1011	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	0908-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1011	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
421	03.706 BOLT; PIPE BRKT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0908-1011	●
421	03.706 BOLT; PIPE BRKT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0908-1011	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●

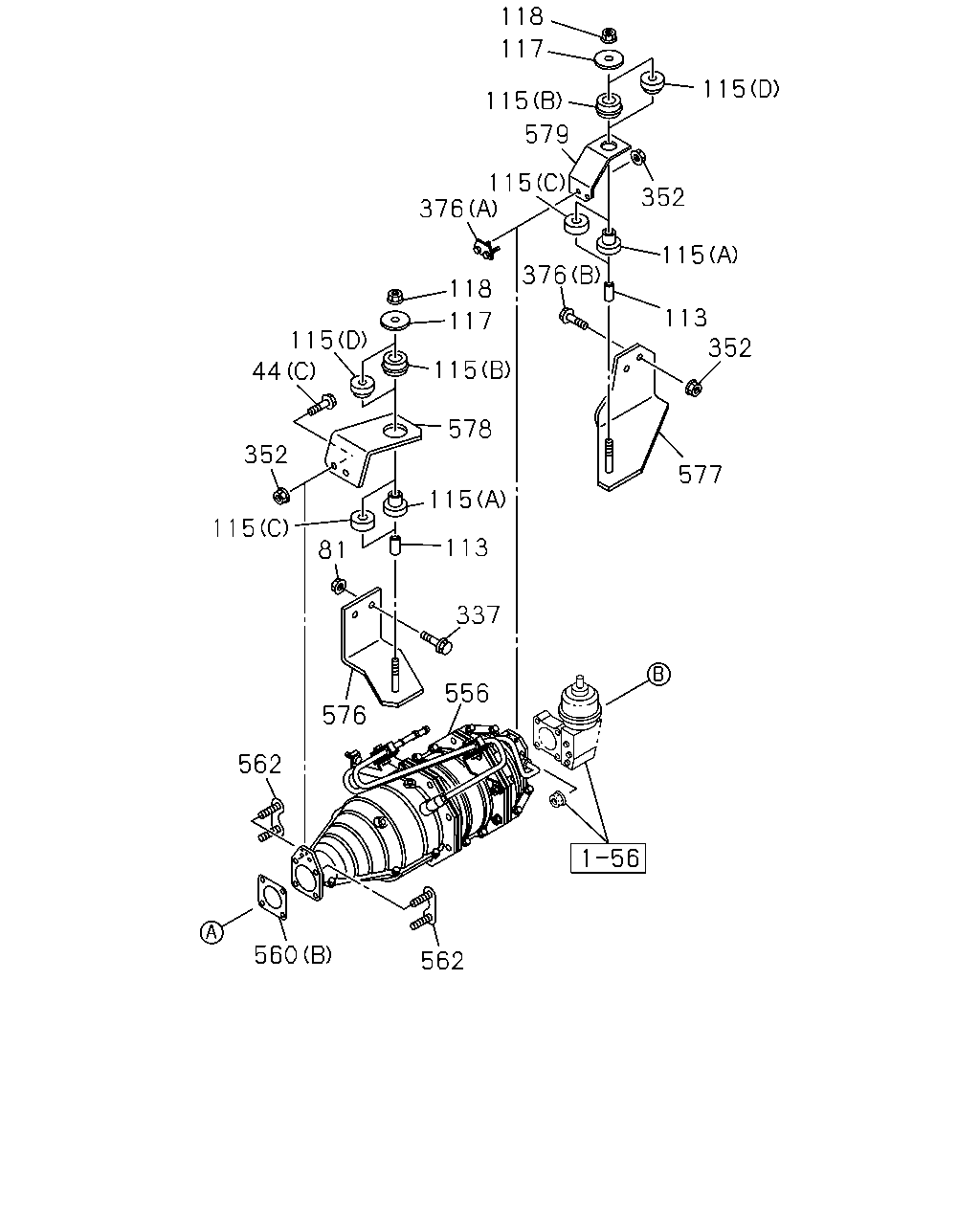

562 560 562 556 337 113 115 578 115 115 44 352 115 117 118 376 115 352 579 115 117 118 115 115 113 376 352 577 576 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1011	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0908-1011	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER (C)	8-97379-882-0	02	1	0908-0908	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0908-1011	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER (D)	8-97379-927-0	02	1	0908-0908	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0908-1011	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1012-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0908-1011	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0908-1011	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1001-1011	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	0908-1011	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	1012-	●	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●

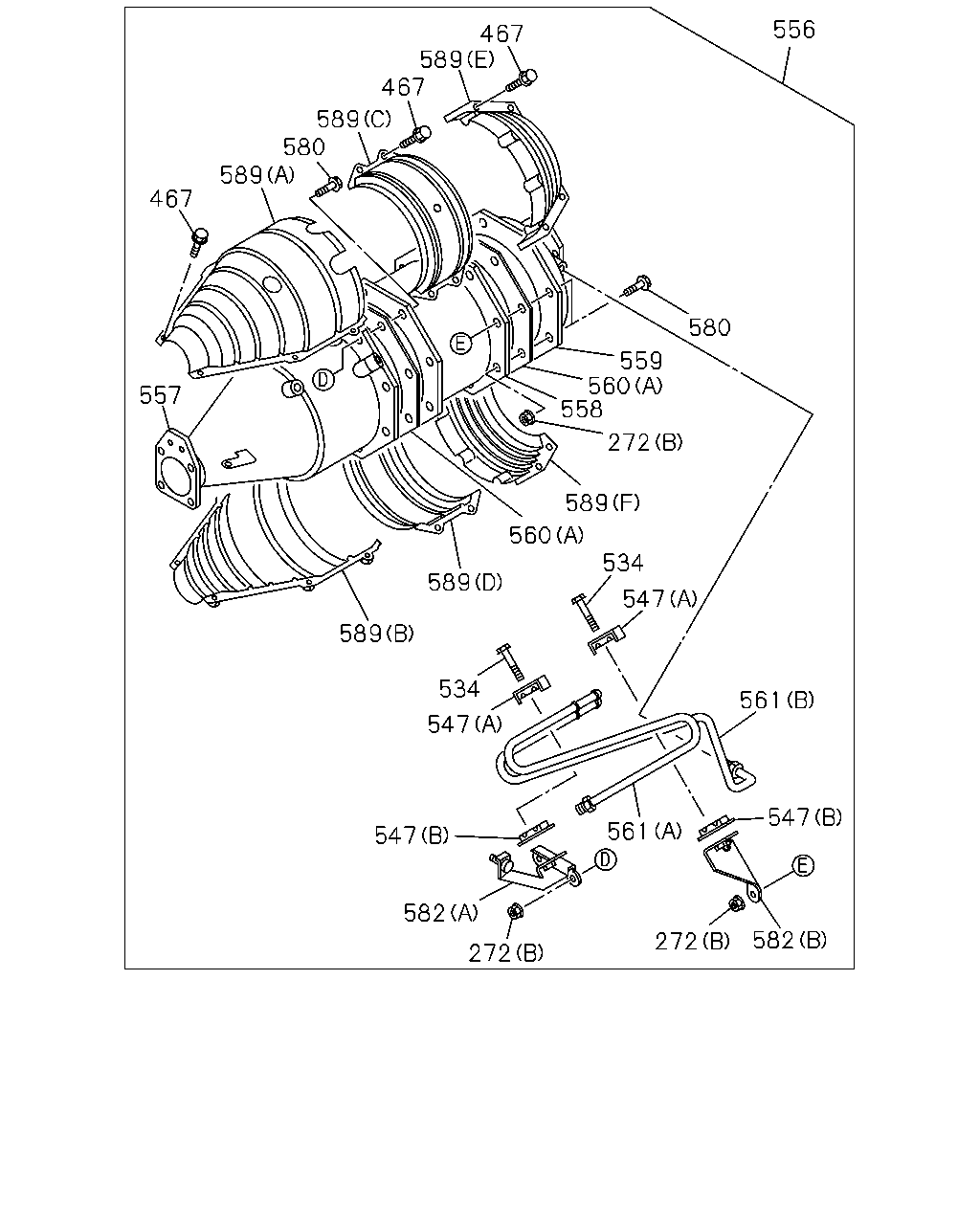

556	03.701 DPD ASM	8-98036-810-7	01	1	0908-1008	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	1009-1011	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0908-1008	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1009-1011	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1012-	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1012-		●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0908-1011	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1012-	●	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	0908-1011	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	1012-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	0908-1011	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	1012-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98072-139-0	01	1	1012-		●
577	03.706 BRACKET; DPD RR TO FRAME	8-98124-720-0	01	1	0908-	●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	0908-1011	●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	1012-	●	●
579	03.704 BRACKET; DPD RR	8-98168-530-1	01	1	1012-		●
579	03.704 BRACKET; DPD RR	8-98124-719-0	01	1	0908-	●

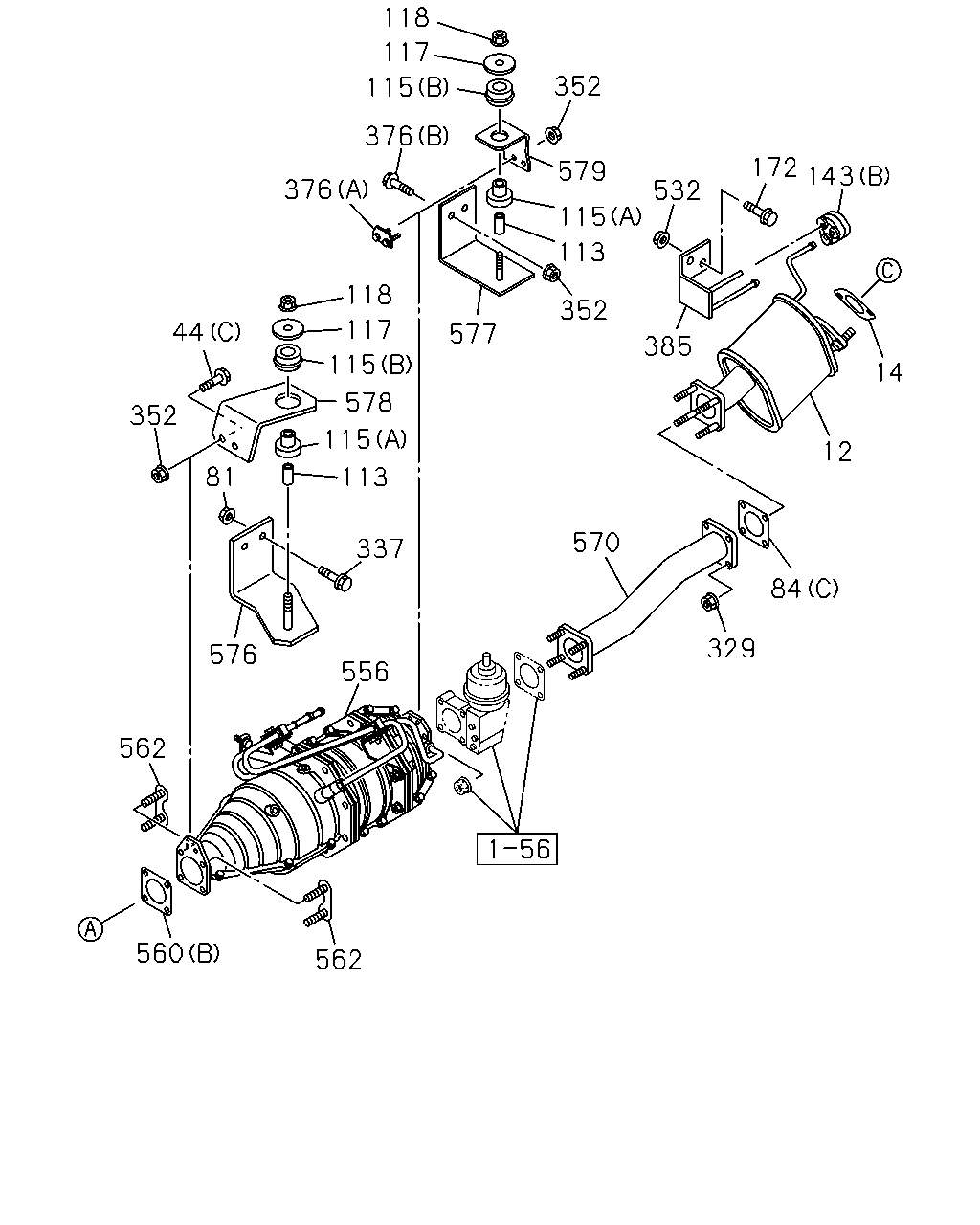

118 115 117 376 376 118 115 117 578 113 115 337 556 576 352 44 81 562 560 562 570 329 84 12 14 143 172 532 385 352 113 115 579 352 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-98001-836-1	01	1	1012-1308		●
12	03.701 SILENCER ASM; EXH	8-98254-781-0	01	1	1309-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1012-		●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0908-1011	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1011	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1012-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0908-1011	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	0908-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0908-1011	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER (C)	8-97379-882-0	02	1	0908-0908	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0908-1011	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1012-	●	●
115	03.704 RUBBER; MTG,SILENCER (D)	8-97379-927-0	02	1	0908-0908	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0908-1011	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1012-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0908-1011	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0908-1011	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1012-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0908-1011	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1012-	●	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
329	03.613 NUT; EXH PIPE TO PIPE 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-		●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1001-1011	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-0912	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	0908-1011	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	1012-	●	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
385	03.704 BRACKET; SILENCER MTG	8-98051-655-0	01	1	1012-		●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
556	03.701 DPD ASM	8-98036-810-7	01	1	0908-1008	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	1009-1011	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0908-1008	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1009-1011	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1012-	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1012-		●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0908-1011	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1012-	●	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	0908-1011	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	1012-	●	●
570	03.704 ADAPTER; EXH PIPE	8-98168-531-0	01	1	1012-		●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	0908-1011	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	1012-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98072-139-0	01	1	1012-		●
577	03.706 BRACKET; DPD RR TO FRAME	8-98124-720-0	01	1	0908-	●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	0908-1011	●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	1012-	●	●
579	03.704 BRACKET; DPD RR	8-98168-530-1	01	1	1012-		●
579	03.704 BRACKET; DPD RR	8-98124-719-0	01	1	0908-	●

165 137 124 162 104 95 164 166 124 165 125 97 70 137 81 144 143 94 84 3 36 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

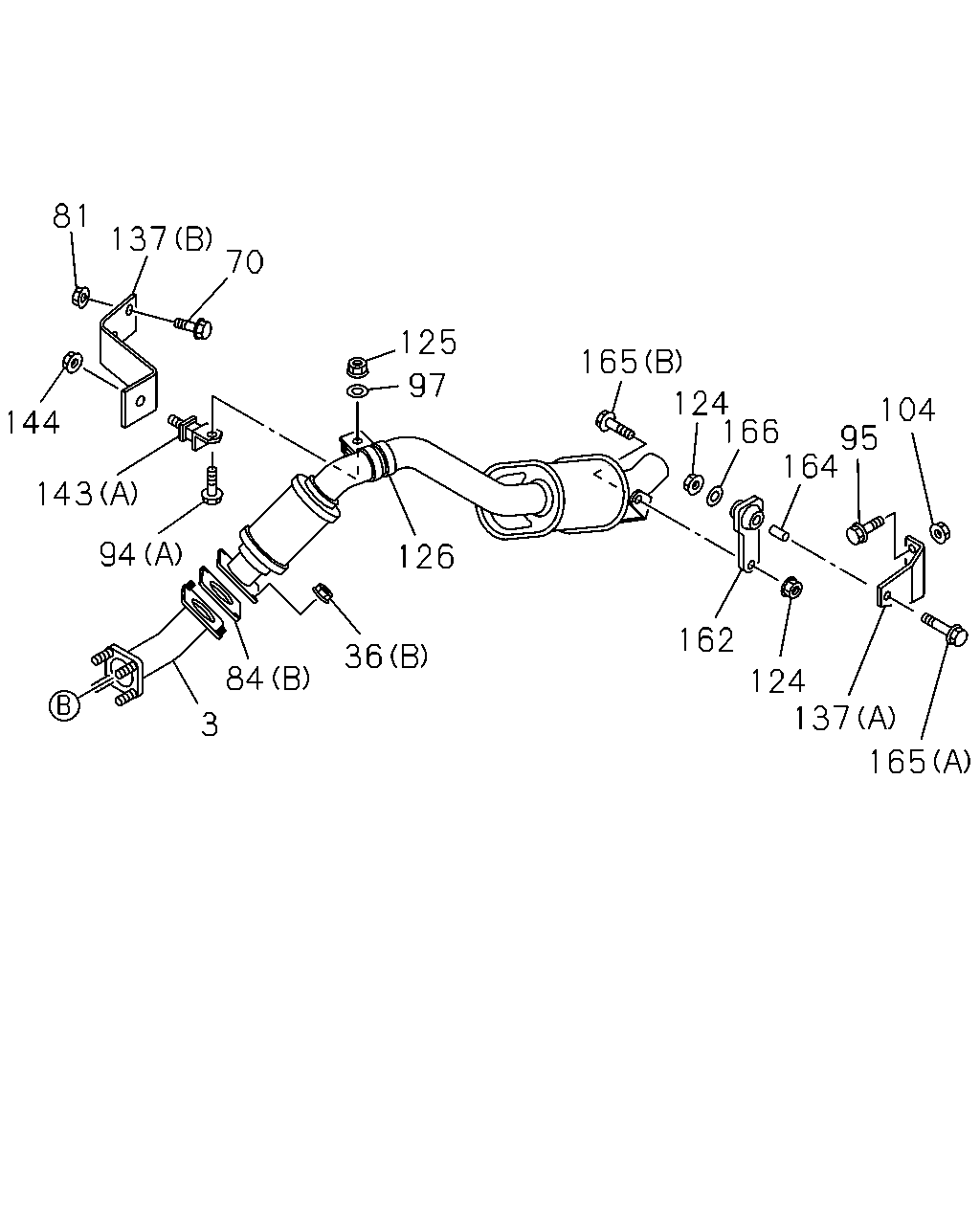

3	03.609 PIPE; EXH,CENTER	8-98150-021-0	01	1	0908-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0908-1011	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0908-	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1011	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1012-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0908-1011	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1012-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	0908-	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0908-1011	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0908-1011	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1011	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0908-1011	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-	●	●
126	03.705 PIPE; EXH,RR	8-98161-529-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR	8-98150-020-0	01	1	0908-1308	●
126	03.705 PIPE; EXH,RR	8-98254-817-0	01	1	1309-	●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-913-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	0908-1011	●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	1012-	●	●
137	03.706 BRACKET; TAIL PIPE (A)	8-98001-908-1	01	1	0908-	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1012-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0908-1011	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1012-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1012-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-98032-150-0	01	1	0908-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1012-		●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	0908-	●
165	03.706 BOLT; SUPPORT RUBBER (C) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0908-	●
165	03.706 BOLT; SUPPORT RUBBER 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0908-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0908-1011	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●

81 144 137 125 97 70 126 143 94 38 124 105 166 88 162 357 165 95 164 137 94 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1003	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1011	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0908-1011	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1011	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0908-1011	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-1011	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0908-1011	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-	●	●
126	03.705 PIPE; EXH,RR	8-98161-529-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR	8-98150-020-0	01	1	0908-1308	●
126	03.705 PIPE; EXH,RR	8-98254-817-0	01	1	1309-	●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-913-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	0908-1011	●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	1012-	●	●
137	03.706 BRACKET; TAIL PIPE (A)	8-98001-908-1	01	1	0908-	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1012-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0908-1011	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1012-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1012-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-98032-150-0	01	1	0908-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1012-		●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	0908-	●
165	03.706 BOLT; SUPPORT RUBBER (C) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0908-	●
165	03.706 BOLT; SUPPORT RUBBER 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0908-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0908-1011	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-		●

467 556 589 467 589 580 589 467 557 580 559 560 558 272 589 560 534 589 589 547 561 547 582 272 272 582 561 547 547 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0908-1008	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-		●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0908-1008	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1009-1011	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1012-	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1012-		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0908-1008	●
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	1009-1011	●
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	1012-	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1012-		●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0908-1008	●
534	03.704 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1009-1011	●
534	03.704 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-		●
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0908-1008	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	1009-1011	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	1012-	●
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	1012-		●
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0908-1008	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	1009-1011	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	1012-	●
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	1012-		●

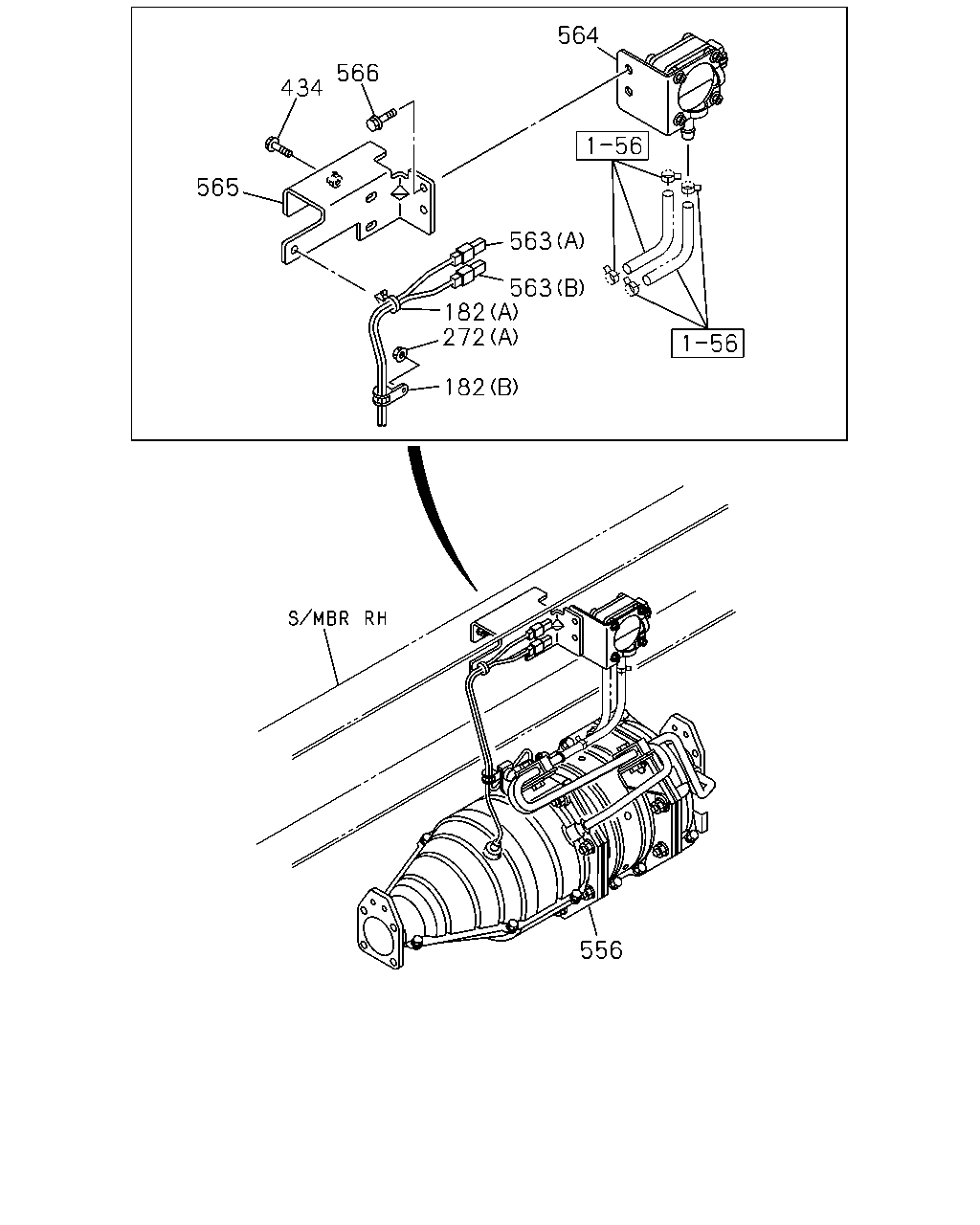

556	03.701 DPD ASM	8-98036-810-7	01	1	0908-1008	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	1009-1011	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
557	03.701 CATALYST ASM	8-98036-815-6	01	1	0908-1008	●
557	03.701 CATALYST ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-6	01	1	1009-1011	●
557	03.701 CATALYST ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-7	01	1	1012-	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1012-		●
558	03.634 FILTER ASM	8-98032-908-2	01	1	0908-1008	●
558	03.634 FILTER ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	1009-1011	●
558	03.634 FILTER ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	1012-	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1012-		●
559	03.602 COVER; RR	8-98084-599-0	01	1	0908-1008	●
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	1009-1011	●
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-		●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0908-1008	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1009-1011	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	1012-	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1012-		●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0908-1011	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1012-	●	●
561	03.609 PIPE; DPD (A)	8-98032-910-0	01	1	0908-1008	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-910-0	01	1	1009-1011	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-600-0	01	1	1012-	●
561	03.609 PIPE; DPD (A)	8-98084-600-0	01	1	1012-		●
561	03.609 PIPE; DPD (B)	8-98032-911-1	01	1	0908-1008	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-911-1	01	1	1009-1011	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-601-0	01	1	1012-	●
561	03.609 PIPE; DPD (B)	8-98084-601-0	01	1	1012-		●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0908-1008	●
580	03.704 BOLT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1009-1011	●
580	03.704 BOLT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1012-	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1012-		●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0908-1008	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	1009-1011	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	1012-	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	1012-		●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0908-1008	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	1009-1011	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	1012-	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	1012-		●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0908-1008	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	1009-1011	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	1012-	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	1012-		●

565 434 566 564 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0908-1008	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	1009-1011	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	1012-	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	1012-		●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0908-1008	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	1009-1011	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	1012-	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1012-		●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0908-1008	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-		●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0908-1008	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1009-1011	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1012-	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1012-		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-1008	●
434	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011	●
434	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
556	03.701 DPD ASM	8-98036-810-7	01	1	0908-1008	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	1009-1011	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	0908-1008	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT	8-98004-329-0	01	1	1009-1011	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT	8-98004-329-0	01	1	1012-	●
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	1012-		●
563	01.150 SENSOR; TEMPERATURE,DPD (B) CENTER	8-98004-330-0	01	1	0908-1008	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B) CENTER	8-98004-330-0	01	1	1009-1011	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B) CENTER	8-98004-330-0	01	1	1012-	●
563	01.150 SENSOR; TEMPERATURE,DPD (B) CENTER	8-98004-330-0	01	1	1012-		●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	0908-1008	●
564	01.150 SENSOR; PRESSURE,DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97360-368-2	01	1	1009-1011	●
564	01.150 SENSOR; PRESSURE,DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97360-368-2	01	1	1012-	●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	1012-		●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	0908-1008	●
565	03.706 BRACKET; SENSOR,PRESSURE CATALYSIS CONTROL WITH DPD(8JM)	8-98063-129-0	01	1	1009-1011	●
565	03.706 BRACKET; SENSOR,PRESSURE CATALYSIS CONTROL WITH DPD(8JM)	8-98063-129-0	01	1	1012-	●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	1012-		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0908-1008	●
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1009-1011	●
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
