Sayfa 1-41 - Isuzu EPC

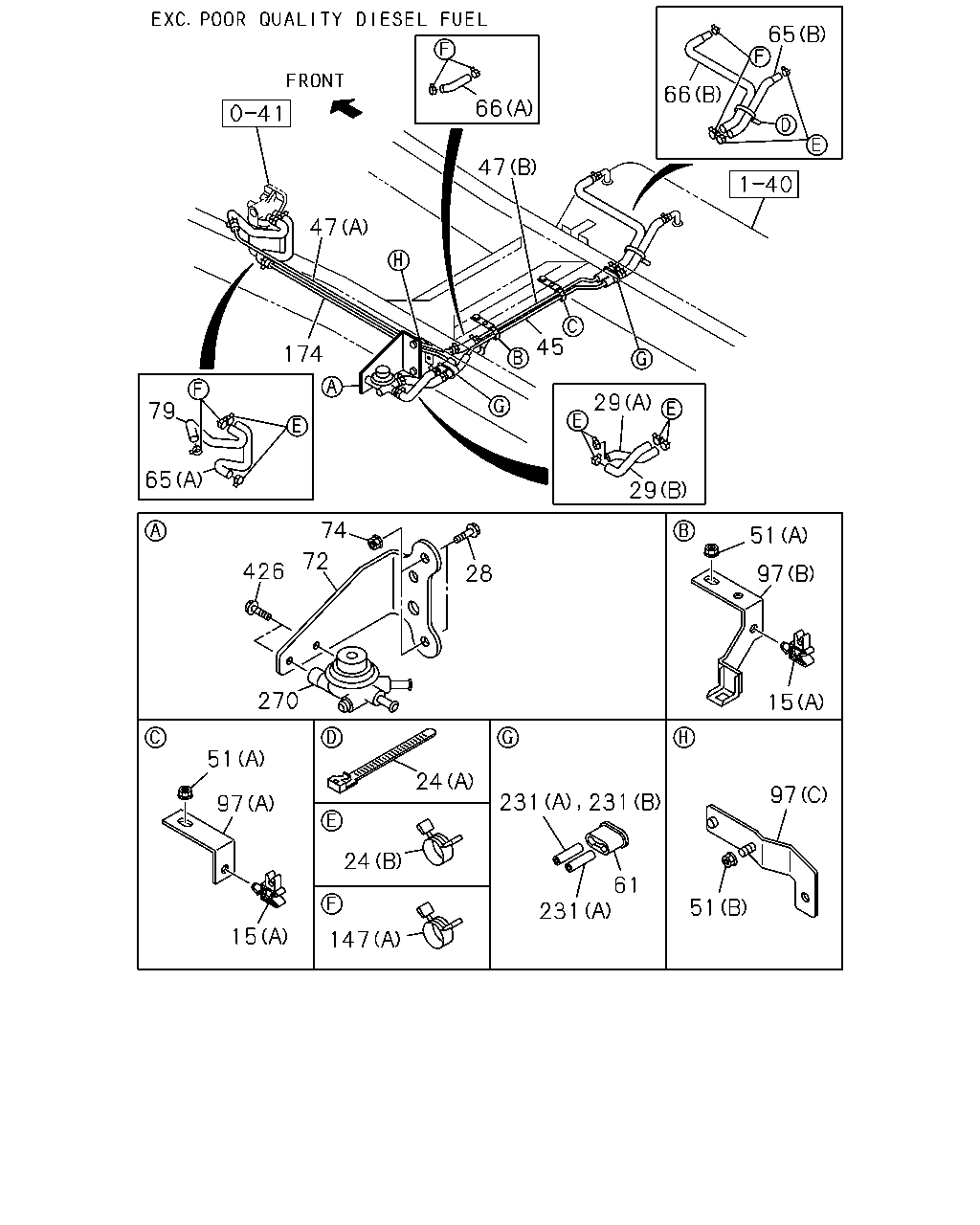

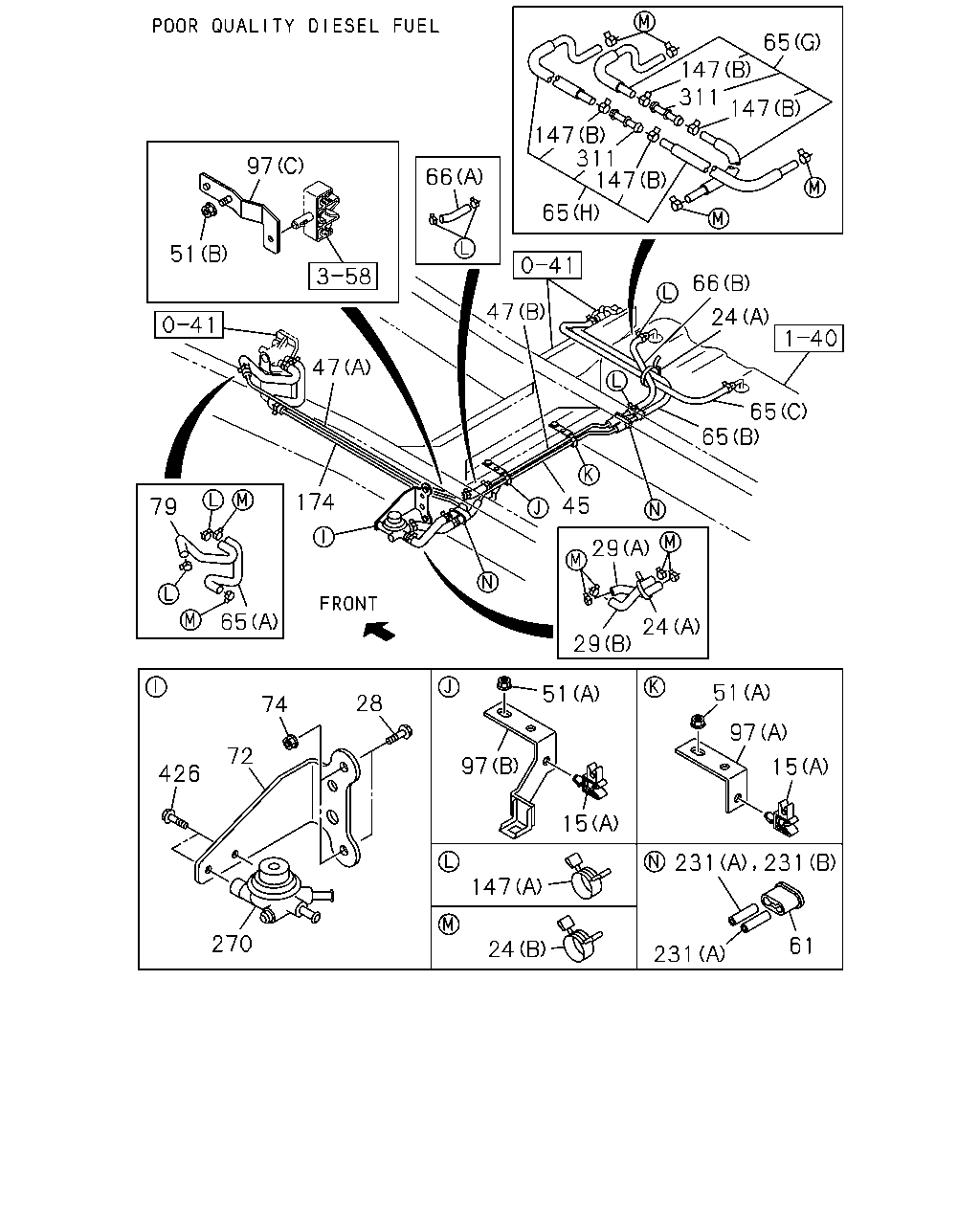

1-41 — FUEL PIPING; CHASSIS (#52928) — 457 parça

66 65 66 47 47 174 79 65 29 29 45 74 28 270 426 72 51 97 15 51 97 24 24 231 231 61 97 51 231 147 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1012-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0908-1011		●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1012-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0908-0911		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1012-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-		●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98175-084-0	01	1	1009-		●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1012-	●
29	03.163 HOSE; FUEL (F)	8-98139-112-1	01	1	1012-	●
29	03.163 HOSE; FUEL (G)	8-98139-113-1	01	1	1012-	●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200	8-98133-838-0	01	1	1009-		●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1009-		●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	1009-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0908-1011		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1012-	●	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (C) L=971	8-98137-013-2	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (D) L=984	8-98137-015-0	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0908-1005		●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1006-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0908-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	1009-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1012-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-175-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (H)	8-98098-176-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98175-082-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98175-083-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1009-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98175-081-0	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98175-085-1	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	1009-1009		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=960	8-98133-498-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0908-1008		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1009-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0908-0910		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0908-		●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0908-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-1011		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1009-1009		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1009-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0908-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	1012-	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0908-1011		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-3	01	1	0908-1011		●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

627 629 313 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL EURO5 SPECIFICATION(NT5)	8-98141-558-0	01	1	1009-1011		●
313	03.163 COOLER ASM; FUEL EURO5 SPECIFICATION(NT5)	8-98141-558-0	01	1	1012-		●
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1012-	●
627	03.162 BOLT; FUEL CLR EURO5 SPECIFICATION(NT5) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1009-1011		●
627	03.162 BOLT; FUEL CLR EURO5 SPECIFICATION(NT5) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1012-		●
627	03.162 BOLT; FUEL CLR 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1012-	●
628	03.162 NUT; FUEL CLR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-1011		●
628	03.162 NUT; FUEL CLR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-		●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-	●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (A)	8-98142-068-1	01	1	1009-1011		●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (A)	8-98142-068-1	01	1	1012-		●
629	03.162 BRACKET; FUEL CLR (A)	8-98142-068-1	01	1	1012-	●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (B)	8-98142-069-1	01	1	1009-1011		●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (B)	8-98142-069-1	01	1	1012-		●
629	03.162 BRACKET; FUEL CLR (B)	8-98142-069-1	01	1	1012-	●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (C)	8-98146-892-0	02	1	1009-1011		●
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (C)	8-98146-892-0	02	1	1012-		●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1012-	●
639	03.162 BOLT; BRKT,FUEL CLR EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1009-1011		●
639	03.162 BOLT; BRKT,FUEL CLR EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-		●
639	03.162 BOLT; BRKT,FUEL CLR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-	●

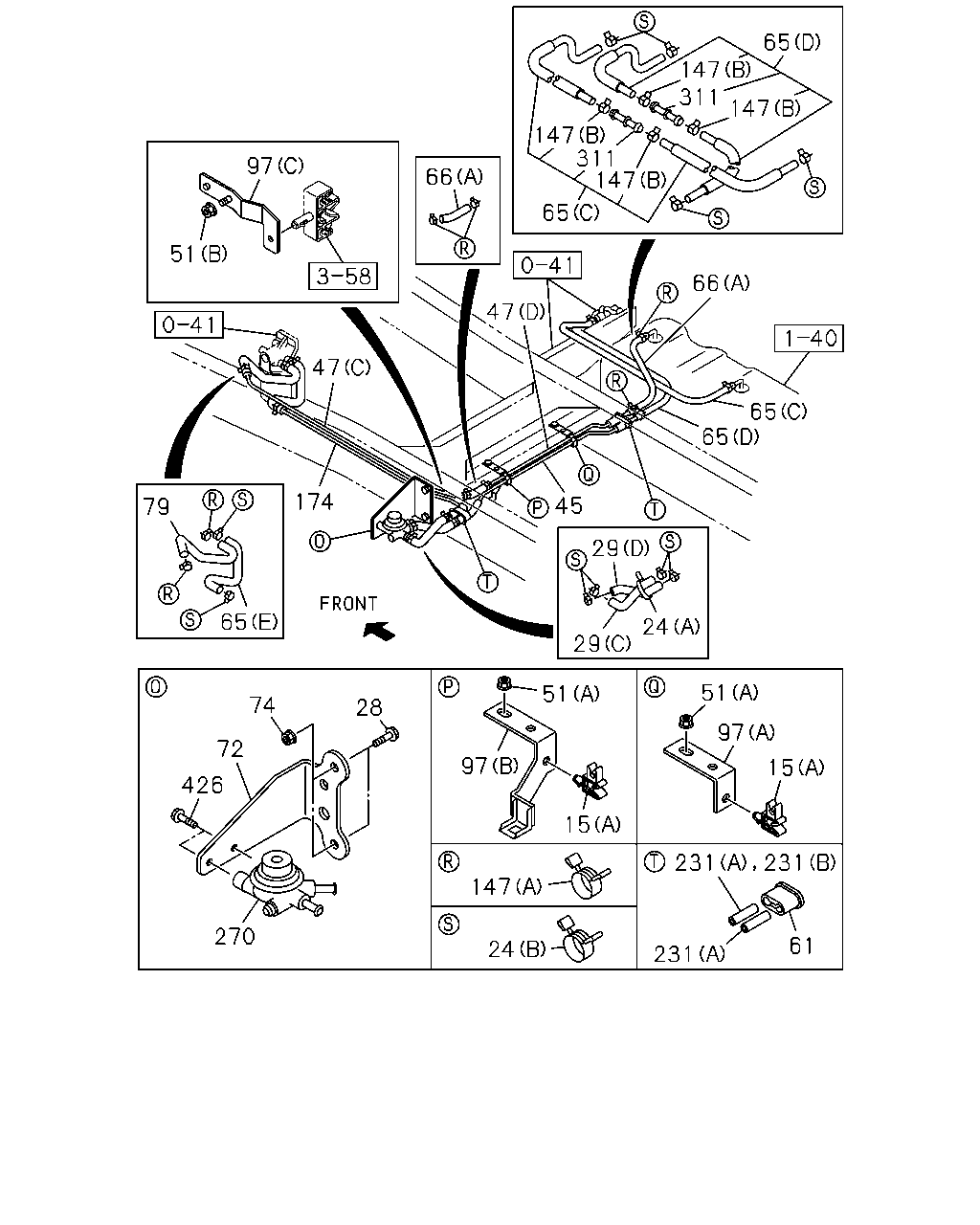

66 97 51 47 174 79 45 29 65 65 66 47 65 147 311 147 311 147 65 147 24 29 51 97 15 231 231 231 147 24 270 426 74 72 28 65 15 97 51 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1012-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0908-1011		●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1012-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0908-0911		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1012-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-		●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98175-084-0	01	1	1009-		●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1012-	●
29	03.163 HOSE; FUEL (F)	8-98139-112-1	01	1	1012-	●
29	03.163 HOSE; FUEL (G)	8-98139-113-1	01	1	1012-	●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200	8-98133-838-0	01	1	1009-		●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1009-		●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	1009-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0908-1011		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1012-	●	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (C) L=971	8-98137-013-2	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (D) L=984	8-98137-015-0	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0908-1005		●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1006-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0908-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	1009-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1012-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-175-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (H)	8-98098-176-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98175-082-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98175-083-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1009-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98175-081-0	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98175-085-1	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	1009-1009		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=960	8-98133-498-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0908-1008		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1009-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0908-0910		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0908-		●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0908-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-1011		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1009-1009		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1009-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0908-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	1012-	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0908-1011		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-3	01	1	0908-1011		●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1009-1009		●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1010-		●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1012-	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

65 147 147 147 311 147 65 66 66 97 51 24 47 47 174 79 65 45 65 65 29 29 24 51 97 15 51 15 97 28 74 72 426 270 231 231 61 231 24 147 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1012-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0908-1011		●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1012-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0908-0911		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1012-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0908-		●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98175-084-0	01	1	1009-		●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1012-	●
29	03.163 HOSE; FUEL (F)	8-98139-112-1	01	1	1012-	●
29	03.163 HOSE; FUEL (G)	8-98139-113-1	01	1	1012-	●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200	8-98133-838-0	01	1	1009-		●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1009-		●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	1009-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0908-1011		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1012-	●	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (C) L=971	8-98137-013-2	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (D) L=984	8-98137-015-0	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0908-1005		●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1006-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0908-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	1009-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1012-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-175-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (H)	8-98098-176-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98175-082-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98175-083-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1009-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98175-081-0	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98175-085-1	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	1009-1009		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=960	8-98133-498-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0908-1008		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1009-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0908-0910		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0908-		●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0908-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0908-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-1011		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1009-1009		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1009-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0908-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	1012-	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0908-1011		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-3	01	1	0908-1011		●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1009-1009		●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1010-		●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1012-	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

47 66 24 45 66 66 29 29 29 65 79 174 47 270 426 311 65 24 147 147 15 62 64 97 51 51 15 97 15 97 51 231 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1012-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0908-1011		●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1012-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0908-0911		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-1011		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0908-0910		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1011		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1012-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1012-	●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98175-084-0	01	1	1009-		●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1012-	●
29	03.163 HOSE; FUEL (F)	8-98139-112-1	01	1	1012-	●
29	03.163 HOSE; FUEL (G)	8-98139-113-1	01	1	1012-	●
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200	8-98133-838-0	01	1	1009-		●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1009-		●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0908-1008		●
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	1009-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0908-1011		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1012-	●	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (C) L=971	8-98137-013-2	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1009-1011		●
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN (D) L=984	8-98137-015-0	01	1	1012-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0908-1005		●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1006-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0908-1008		●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	1009-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1012-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0908-1011		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-175-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (H)	8-98098-176-1	01	1	1010-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98175-082-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98175-083-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1009-1011		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98175-081-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98175-081-0	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (F)	8-98175-085-1	01	1	1012-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	1009-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0908-1008		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	1009-1009		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=960	8-98133-498-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1009-1011		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1012-	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0908-1008		●
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1009-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0908-0910		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0908-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-1011		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1012-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0908-1011		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1009-1009		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-		●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1009-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	1012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	1012-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0908-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-1011		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	1012-	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0908-1011		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0908-1011		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-3	01	1	0908-1011		●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1009-1009		●
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1010-		●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1012-	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
