◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#52925) — 268 parça

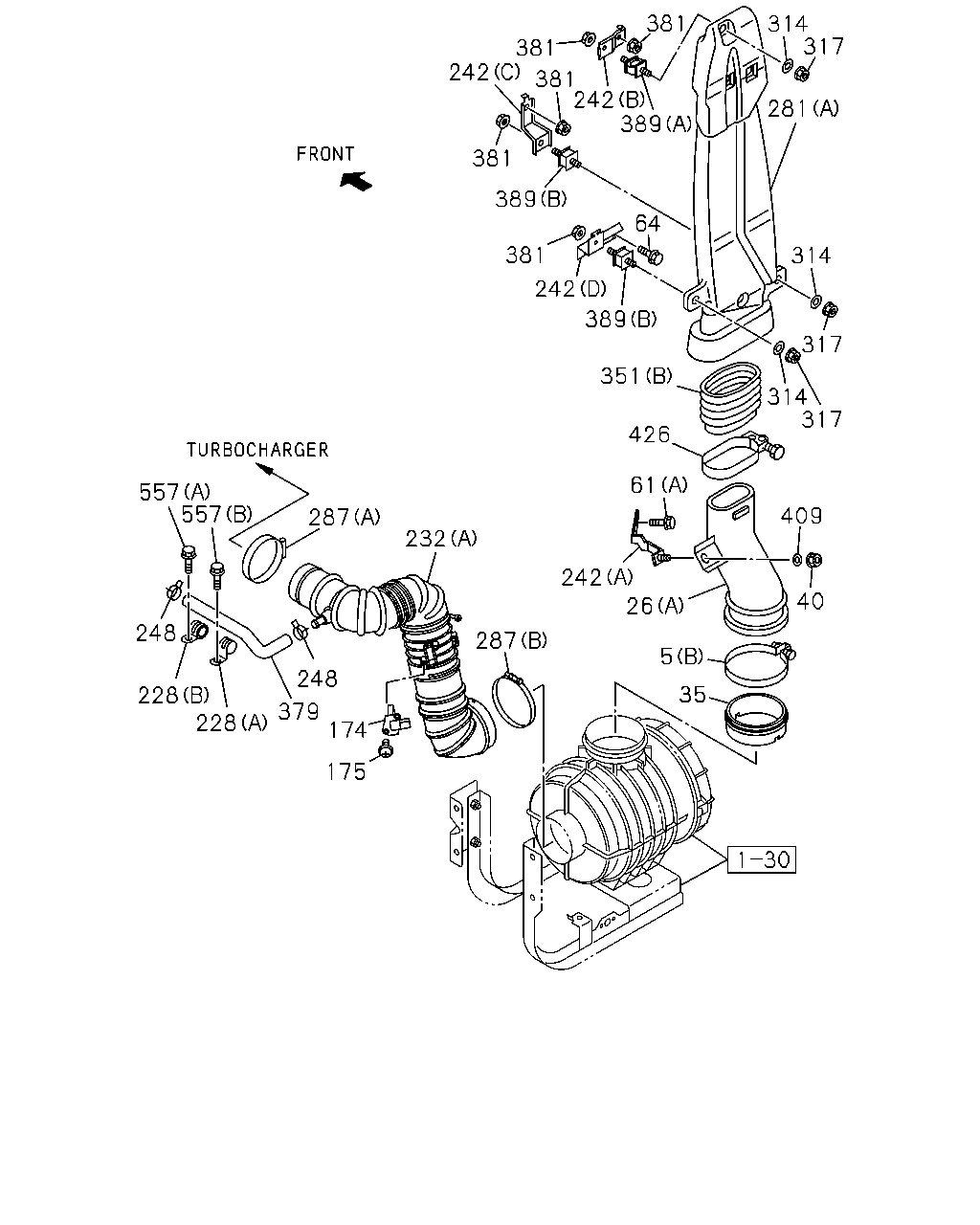

çizim 159934
381 381 314 381 317 281 314 317 314 317 409 40 35 5 26 242 61 426 351 389 242 64 381 389 381 242 389 242 287 232 287 248 174 175 379 228 228 248 557 557
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 1012- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0908-1011 ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1012- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0908- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0908-1011 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0908-1011 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0908- ●
174 03.682 SENSOR; AIR FLOW CONT
EURO5 SPECIFICATION(NT5) 		8-98113-202-1 01 1 1009-1011 ●
174 03.682 SENSOR; AIR FLOW CONT
EURO5 SPECIFICATION(NT5) 		8-98113-202-1 01 1 1012- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1012- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0908-1008 ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 1009- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0908-1011 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
EURO5 SPECIFICATION(NT5) (A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1009-1011 ●
228 03.278 CLIP; PCV HOSE
EURO5 SPECIFICATION(NT5) (A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1012- ●
228 03.278 CLIP; PCV HOSE
(A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1012- ●
228 03.278 CLIP; PCV HOSE
04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0908-1001 ●
228 03.278 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1002-1008 ●
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1009- ●
228 03.278 CLIP; PCV HOSE
09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0908-1001 ●
228 03.278 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002-1008 ●
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1009- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1012- ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0908-1011 ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 0908- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0908-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0908- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0908-1011 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0908-1011 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1012- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1012- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0908-1011 ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0908- ●
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98156-950-0 01 1 1009-1011 ●
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98156-950-0 01 1 1012- ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1012- ●
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0908-1008 ●
379 03.675 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) 03.278 		8-98045-343-0 01 1 1009- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0912-1011 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 05 1 0908-0911 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0912- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0908-1011 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0908-1011 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0908-1011 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 0908- ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0908-1008 ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1009-1011 ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ● ●
557 03.403 BOLT; HOSE CLIP
03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0908-1008 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1009- ●

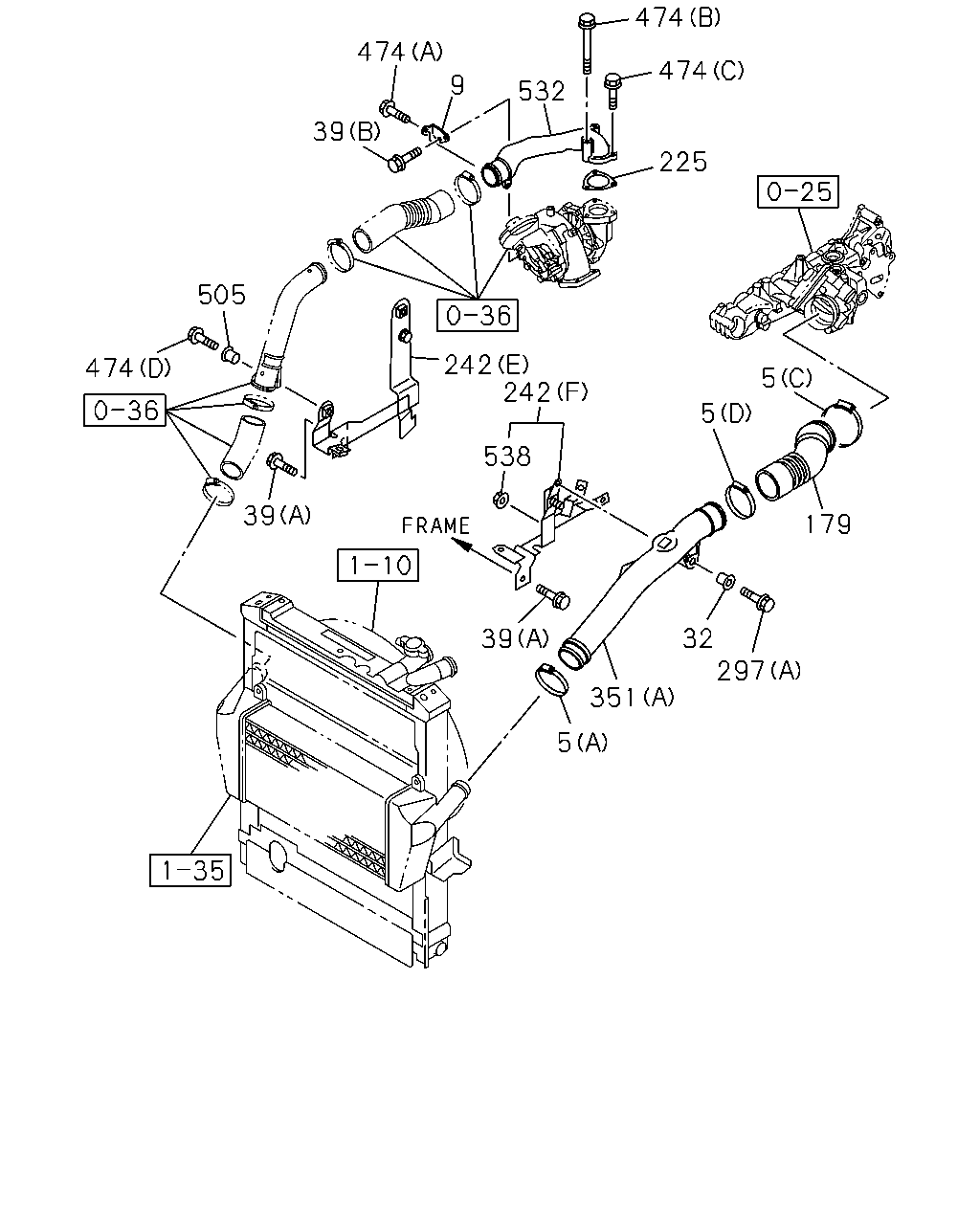

çizim 159938
474 474 474 225 532 9 39 5 5 538 39 5 32 297 351 39 474 505 242 179 242
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 1012- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0908-1011 ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1012- ● ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 0908-1011 ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 0908-1011 ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 1012- ● ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 0908-1011 ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0908-1011 ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1012- ● ●
179 03.417 HOSE; AIR INT 8-98050-917-2 01 1 0908-1011 ●
179 03.417 HOSE; AIR INT 8-98050-917-2 01 1 1012- ● ●
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 0908-1011 ●
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1012- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0908-1011 ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1012- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1012- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0908-1011 ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0908- ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0908-1011 ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 1012- ● ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0908-1011 ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0908-1011 ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1012- ● ●
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 0908-1011 ●
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 1012- ● ●
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 0908-1011 ●
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 1012- ● ●
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 0908-1011 ●
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 1012-1303 ● ●
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ●
538 03.417 NUT; PLATE,AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●

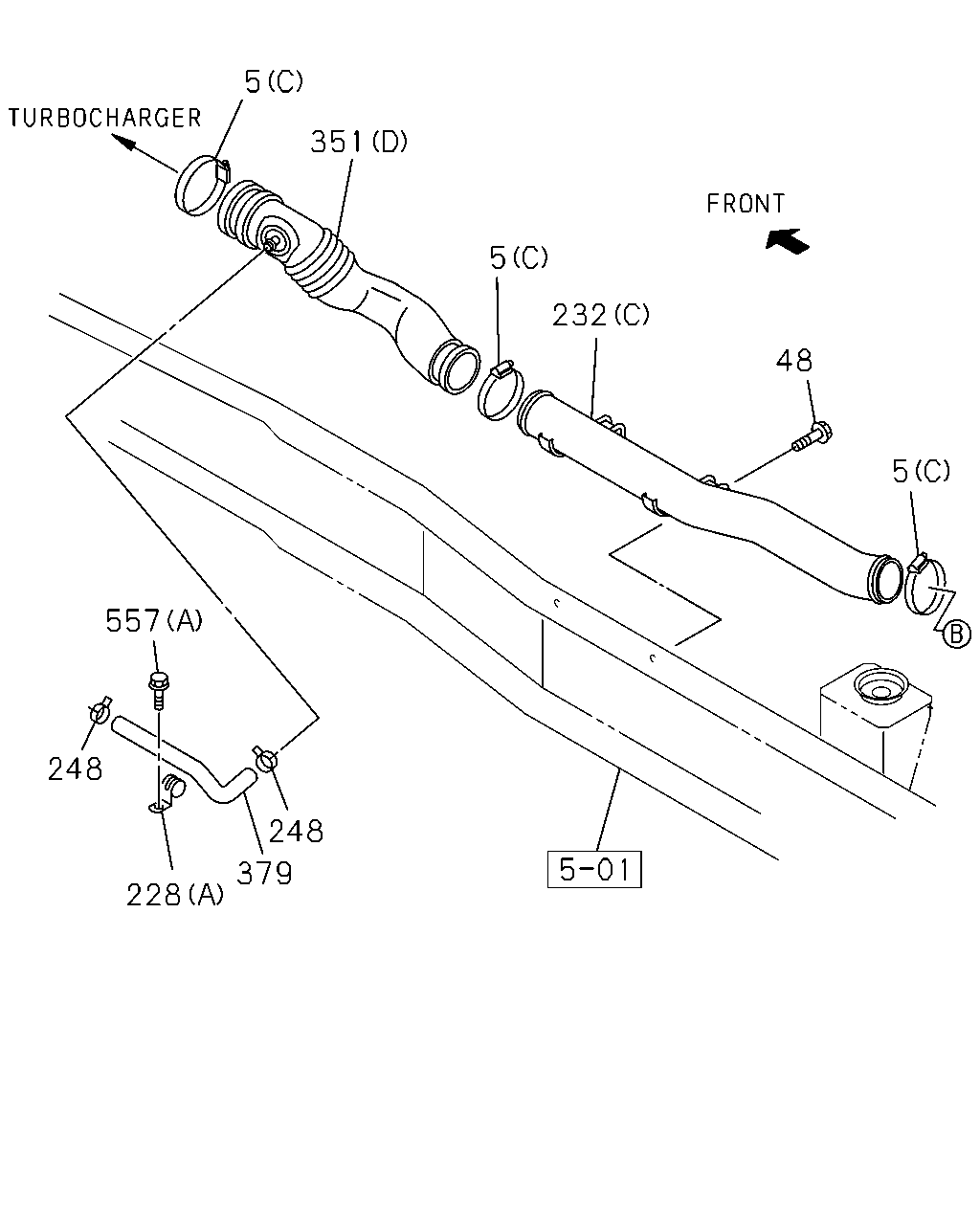

çizim 160166
248 379 228 248 557 5 351 5 232 48 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 1012- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0908-1011 ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1012- ● ●
48 03.417 BOLT; AIR DUCT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
228 03.278 CLIP; PCV HOSE
EURO5 SPECIFICATION(NT5) (A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1009-1011 ●
228 03.278 CLIP; PCV HOSE
EURO5 SPECIFICATION(NT5) (A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1012- ●
228 03.278 CLIP; PCV HOSE
(A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1012- ●
228 03.278 CLIP; PCV HOSE
04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0908-1001 ●
228 03.278 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1002-1008 ●
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1009- ●
228 03.278 CLIP; PCV HOSE
09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0908-1001 ●
228 03.278 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002-1008 ●
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1009- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1012- ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 0908- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0908-1011 ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1012- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1012- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0908-1011 ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0908- ●
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98156-950-0 01 1 1009-1011 ●
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98156-950-0 01 1 1012- ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1012- ●
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0908-1008 ●
379 03.675 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) 03.278 		8-98045-343-0 01 1 1009- ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0908-1008 ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1009-1011 ●
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ● ●
557 03.403 BOLT; HOSE CLIP
03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0908-1008 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1009- ●

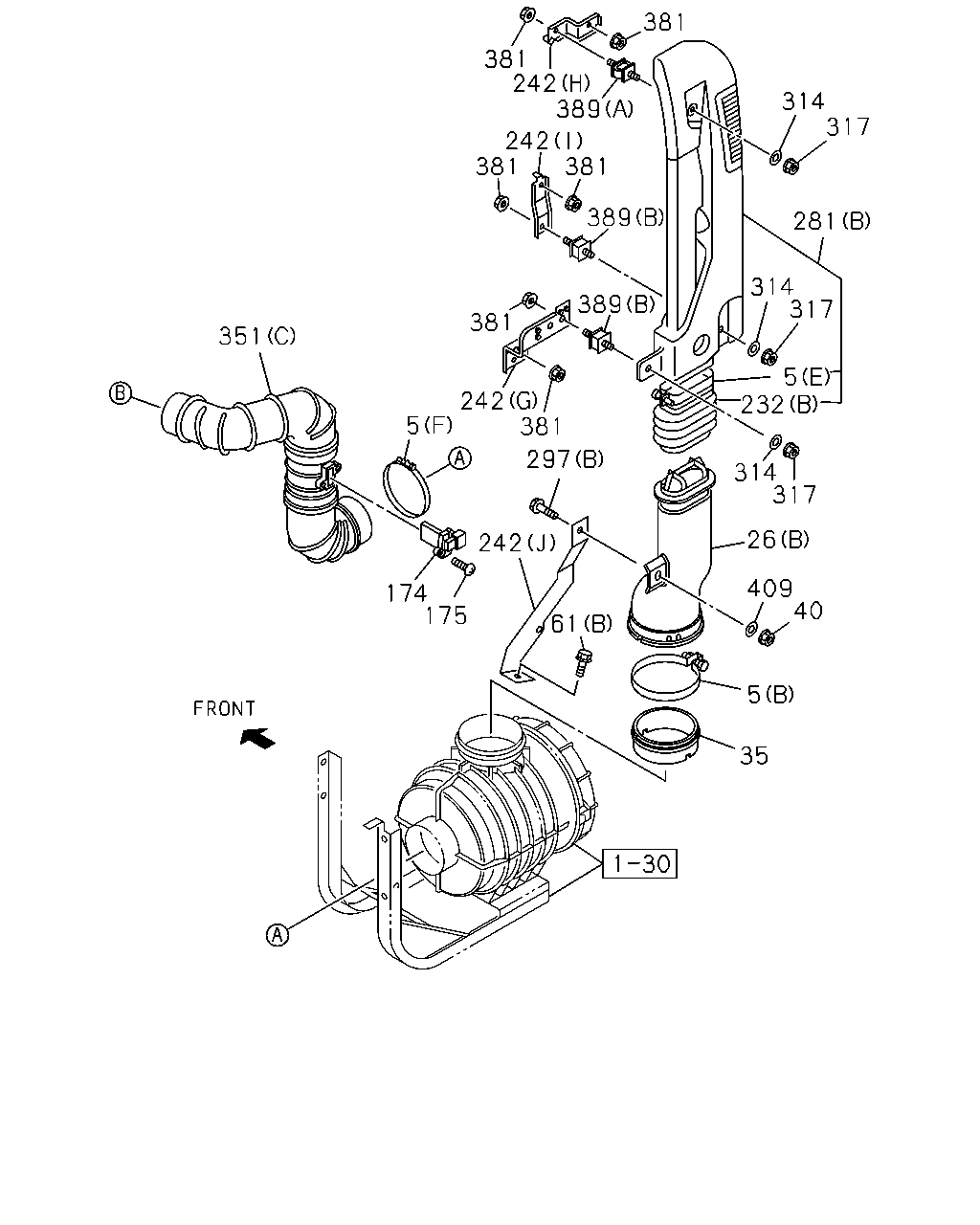

çizim 160171
351 5 174 175 242 61 297 381 242 381 381 242 381 389 242 381 381 389 389 35 5 40 409 26 317 314 232 5 317 314 281 317 314
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 1012- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0908-1011 ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0908-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-1011 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1012- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0908- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0908-1011 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0908-1011 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
174 03.682 SENSOR; AIR FLOW CONT
EURO5 SPECIFICATION(NT5) 		8-98113-202-1 01 1 1009-1011 ●
174 03.682 SENSOR; AIR FLOW CONT
EURO5 SPECIFICATION(NT5) 		8-98113-202-1 01 1 1012- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1012- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0908-1008 ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 1009- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0908-1011 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1012- ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0908- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 0908-1011 ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 0908- ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0908-1011 ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1012- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0908-1011 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0908-1011 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1012- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1012- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0908-1011 ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0908- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0912-1011 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 05 1 0908-0911 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0912- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0908-1011 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0908-1011 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0908-1011 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
