Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#52923) — 52 parça

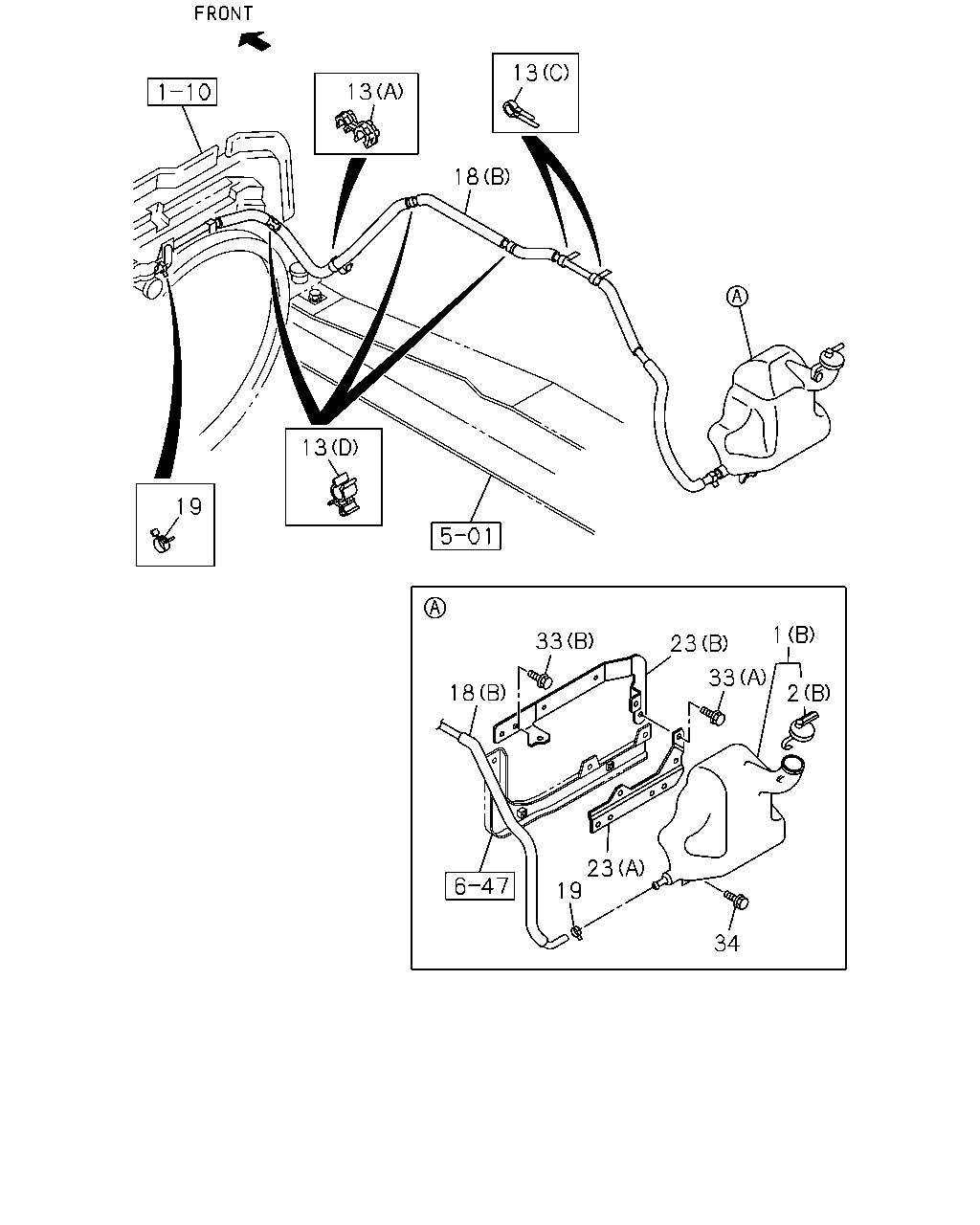

34 2 1 33 23 33 18 23 19 13 19 13 18 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1012-	●
1	01.219 TANK; SURGE,RAD (A)	8-97387-632-1	01	1	0908-1010		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1011-		●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1012-	●
2	01.203 CAP; SURGE TANK (A)	8-97217-796-0	01	1	0908-1010		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1011-		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0908-		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK (B)	8-98037-222-3	01	1	1012-	●
18	01.240 HOSE; RAD TO SURGE TANK (A)	8-98082-769-0	01	1	0908-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0908-0911		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	0912-1011		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1012-	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1012-	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0908-1011		●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-	●	●

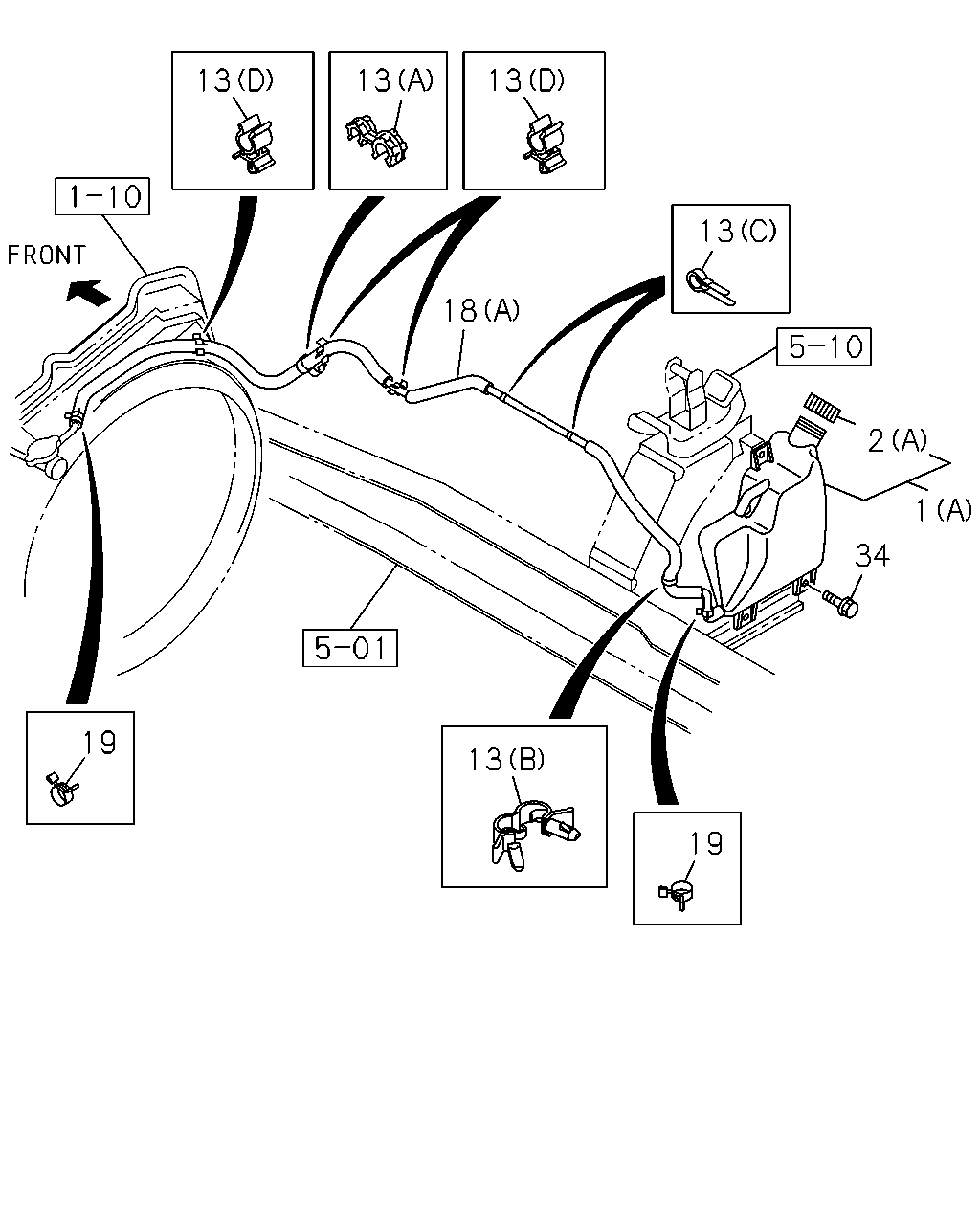

19 13 19 34 2 1 18 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1012-	●
1	01.219 TANK; SURGE,RAD (A)	8-97387-632-1	01	1	0908-1010		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1011-		●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1012-	●
2	01.203 CAP; SURGE TANK (A)	8-97217-796-0	01	1	0908-1010		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1011-		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0908-		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	0908-1011		●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK (B)	8-98037-222-3	01	1	1012-	●
18	01.240 HOSE; RAD TO SURGE TANK (A)	8-98082-769-0	01	1	0908-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0908-0911		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	0912-1011		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0908-1011		●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-	●	●

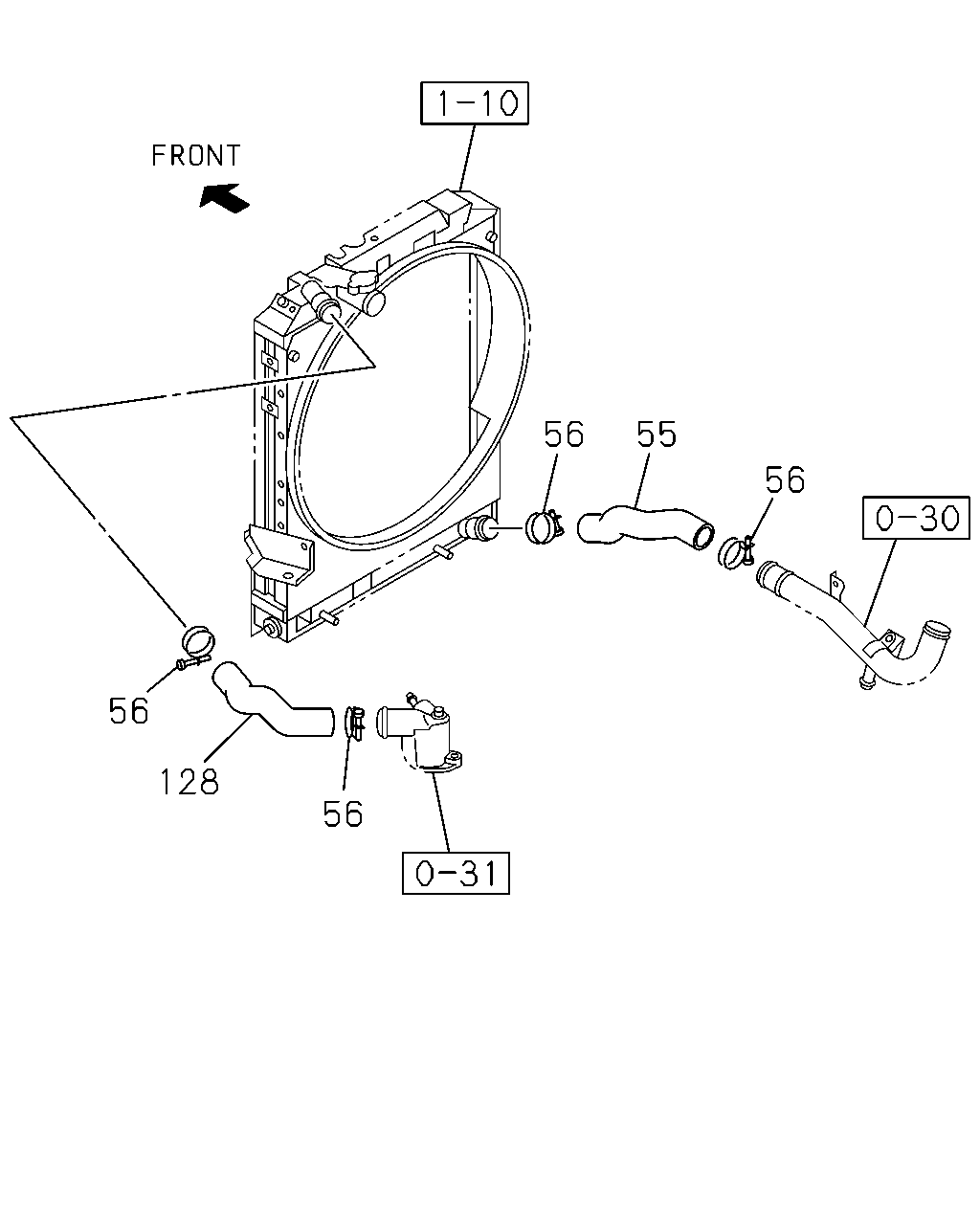

56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-815-0	01	1	0908-1011		●
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-815-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	0908-1011		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	0908-1011		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	1012-	●	●
128	01.159 HOSE; WATER,RAD INL	8-98024-051-1	01	1	0908-1011		●
128	01.159 HOSE; WATER,RAD INL	8-98024-051-1	01	1	1012-	●	●
