0-52 — OIL AND VACUUM PIPING; ENGINE (#52915) — 101 parça

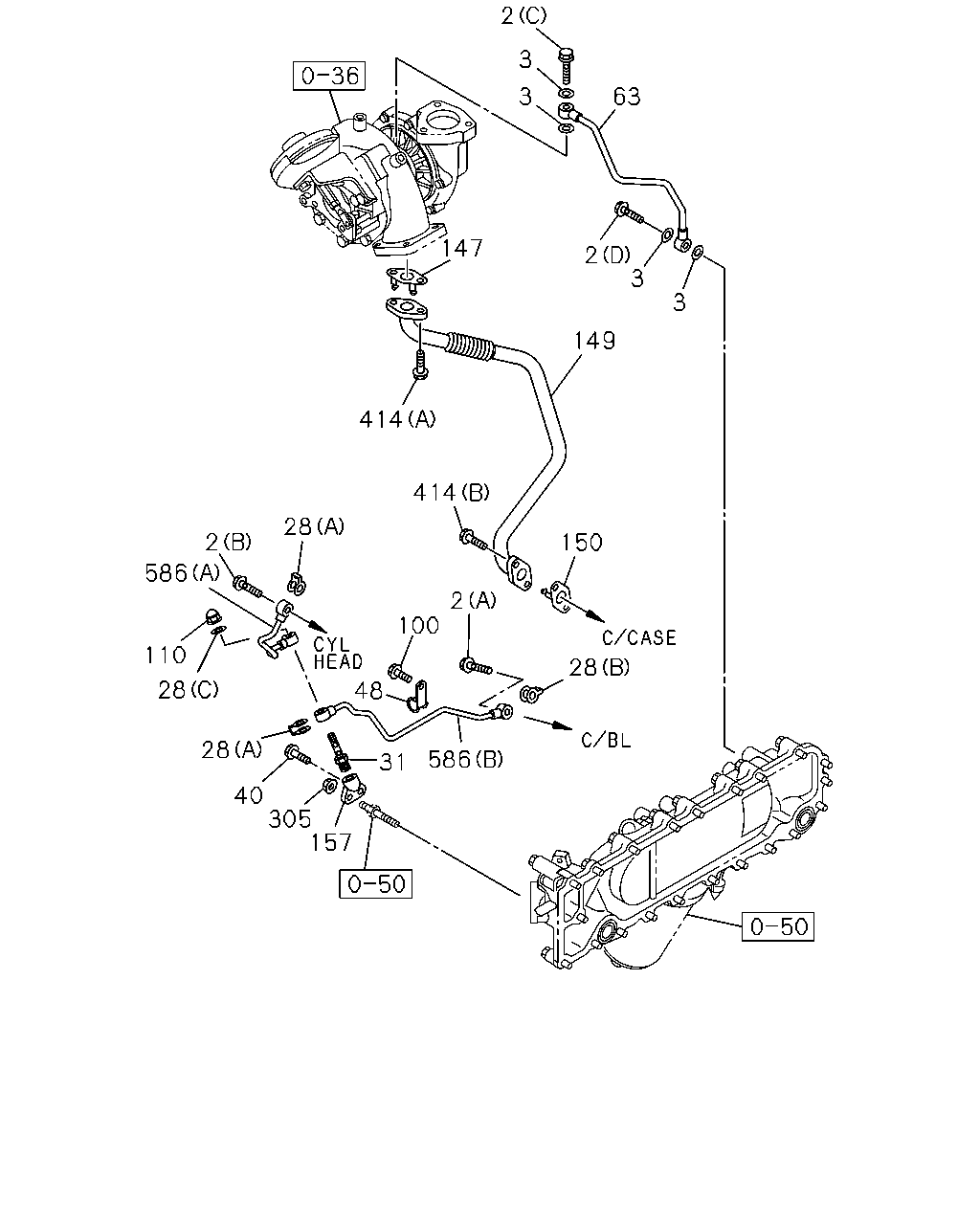

2 3 3 63 2 3 3 149 147 414 414 150 2 28 586 31 157 305 40 28 28 110 100 48 586 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.531 BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (E) M8X23 FLANGE	8-98108-689-0	01	1	1009-
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0908-
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0908-1008
2	01.531 BOLT; EYE,OIL PIPE EURO4 SPECIFICATION(NT4) (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1009-
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0908-
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0908-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0908-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0908-1008
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1009-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0908-1008
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.162 (A) ID=8.2	8-97251-046-0	02	1	1009-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	0908-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 03.162 (A) ID=8.2	8-97251-046-0	03	1	1009-
31	01.540 NIPPLE; OIL PIPE EURO5 SPECIFICATION(NT5)	8-98130-410-1	01	1	1009-
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	0908-1008
31	01.540 NIPPLE; OIL PIPE EURO4 SPECIFICATION(NT4)	8-98044-067-1	01	1	1009-
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0908-1008
40	01.531 BOLT; OIL PIPE EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1009-
48	01.531 CLIP; OIL PIPE EURO5 SPECIFICATION(NT5) ID=7 L=28	8-98121-233-0	02	1	1009-
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	0908-1008
48	01.531 CLIP; OIL PIPE EURO4 SPECIFICATION(NT4) ID=7 L=28	8-98121-233-0	01	1	1009-
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0908-
100	01.531 BOLT; CLIP EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1009-
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0908-1008
100	01.531 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0908-1309
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	0908-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0908-
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0908-
157	01.519 BRACKET; OIL PIPE	8-98043-093-0	01	1	0908-1008
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4)	8-98043-093-0	01	1	1009-
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1008
305	01.540 NUT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0908-1107
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0908-
586	01.519 PIPE; OIL,TENSIONER EURO5 SPECIFICATION(NT5) (C)	8-98074-743-1	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER EURO5 SPECIFICATION(NT5) (D)	8-98130-165-0	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0908-1008
586	01.519 PIPE; OIL,TENSIONER EURO4 SPECIFICATION(NT4) (A)	8-98039-566-0	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0908-1008
586	01.519 PIPE; OIL,TENSIONER EURO4 SPECIFICATION(NT4) (B)	8-98039-567-0	01	1	1009-

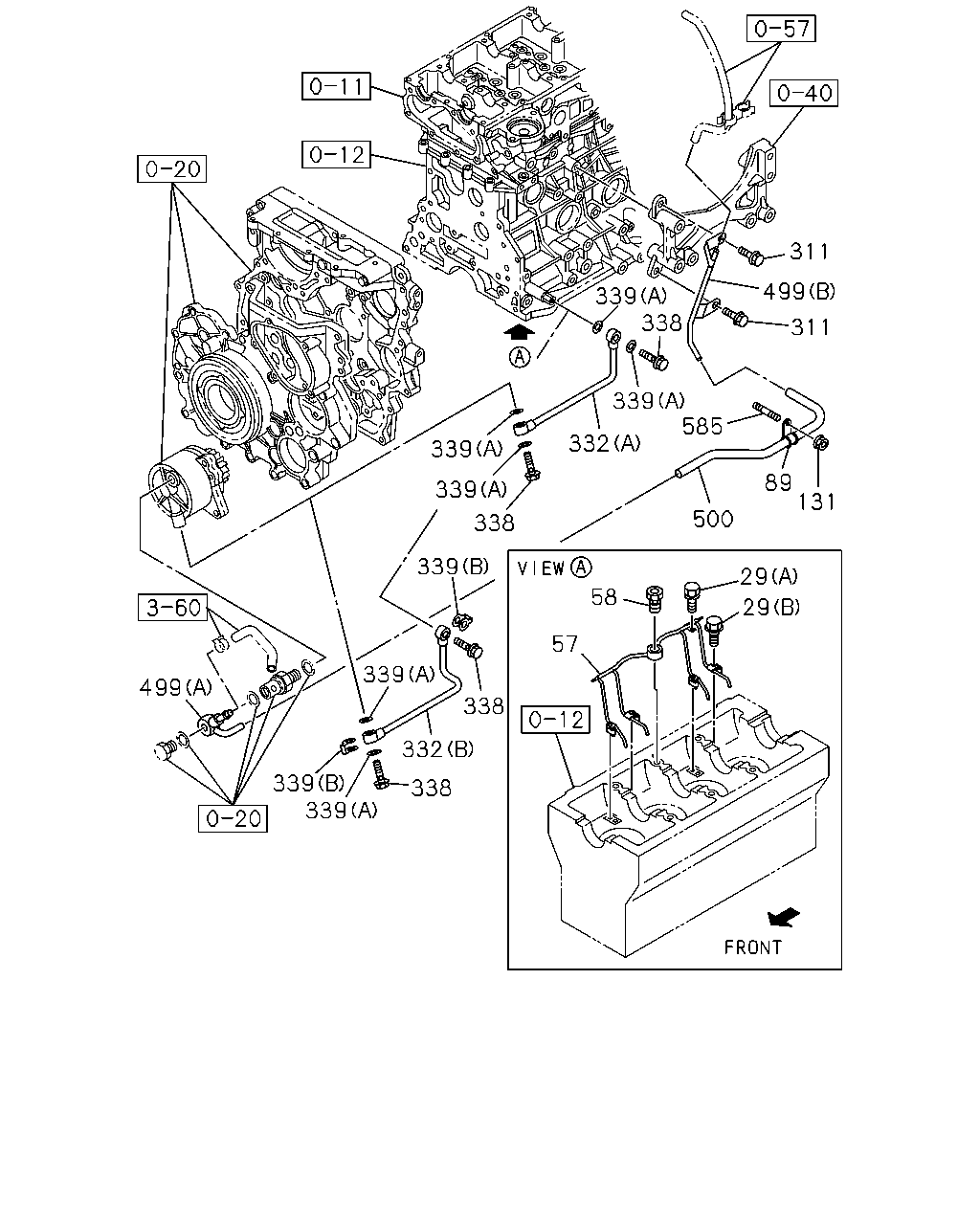

311 499 311 131 89 500 585 339 332 338 339 339 338 339 339 339 338 57 58 29 29 332 338 339 339 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0908-
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0908-
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0908-
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0908-1407
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-
89	04.681 CLIP; VAC HOSE	9-09520-835-0	01	1	0908-
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0908-
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0908-
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0908-1212
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0908-
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0908-1212
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0908-
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0908-
500	04.681 HOSE; VACUUM	8-97369-587-1	01	1	0908-
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0908-

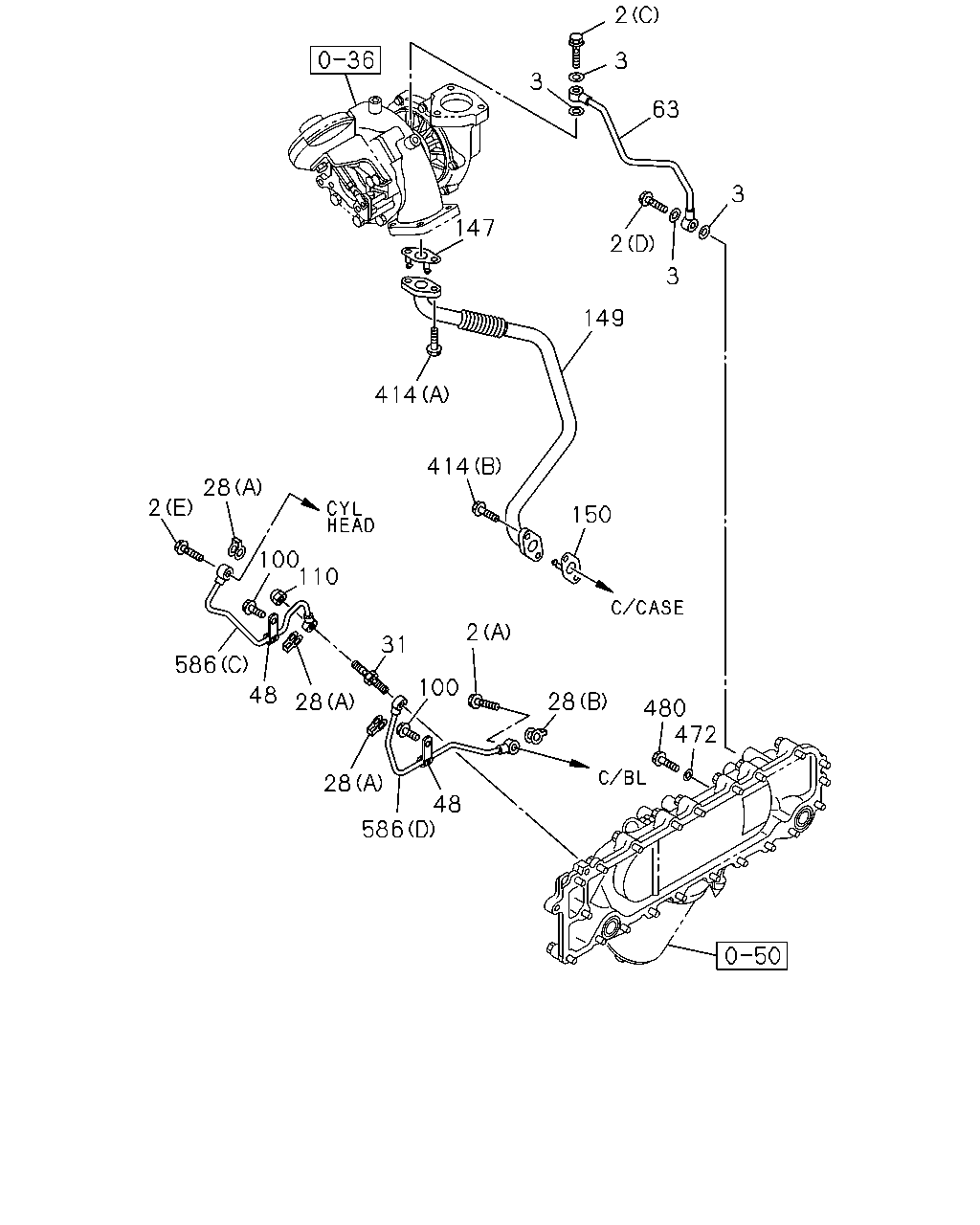

2 3 3 63 147 3 2 3 149 414 414 150 2 28 100 110 586 48 28 31 28 100 2 586 48 28 480 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.531 BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (E) M8X23 FLANGE	8-98108-689-0	01	1	1009-
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0908-
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0908-1008
2	01.531 BOLT; EYE,OIL PIPE EURO4 SPECIFICATION(NT4) (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1009-
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0908-
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0908-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0908-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0908-1008
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1009-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0908-1008
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.162 (A) ID=8.2	8-97251-046-0	02	1	1009-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	0908-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 03.162 (A) ID=8.2	8-97251-046-0	03	1	1009-
31	01.540 NIPPLE; OIL PIPE EURO5 SPECIFICATION(NT5)	8-98130-410-1	01	1	1009-
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	0908-1008
31	01.540 NIPPLE; OIL PIPE EURO4 SPECIFICATION(NT4)	8-98044-067-1	01	1	1009-
48	01.531 CLIP; OIL PIPE EURO5 SPECIFICATION(NT5) ID=7 L=28	8-98121-233-0	02	1	1009-
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	0908-1008
48	01.531 CLIP; OIL PIPE EURO4 SPECIFICATION(NT4) ID=7 L=28	8-98121-233-0	01	1	1009-
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0908-
100	01.531 BOLT; CLIP EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1009-
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0908-1008
100	01.531 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0908-1309
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	0908-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0908-
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0908-
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0908-1107
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0908-
472	01.519 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-
480	01.519 PLUG; OIL FILTER EURO5 SPECIFICATION(NT5) M10X10	1-09604-074-0	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER EURO5 SPECIFICATION(NT5) (C)	8-98074-743-1	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER EURO5 SPECIFICATION(NT5) (D)	8-98130-165-0	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0908-1008
586	01.519 PIPE; OIL,TENSIONER EURO4 SPECIFICATION(NT4) (A)	8-98039-566-0	01	1	1009-
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0908-1008
586	01.519 PIPE; OIL,TENSIONER EURO4 SPECIFICATION(NT4) (B)	8-98039-567-0	01	1	1009-
