0-36 — TURBOCHARGER SYSTEM (#52908) — 53 parça

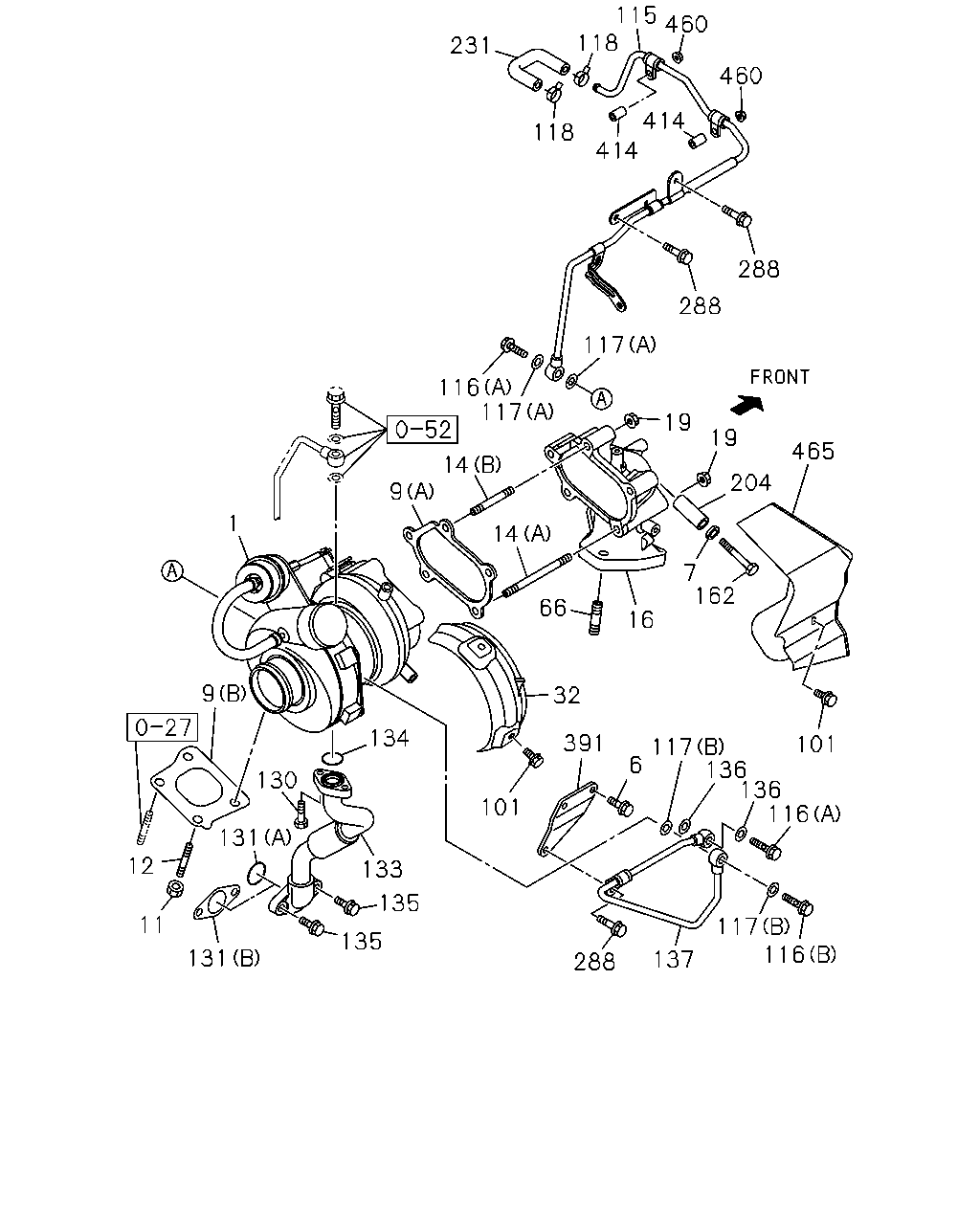

116 117 137 288 116 136 136 117 6 101 391 101 32 16 162 7 204 465 19 19 66 14 14 9 117 116 117 288 288 134 133 135 135 131 131 130 9 1 12 11 118 118 115 414 414 460 460 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0804-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0804-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0804-
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0804-
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0804-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0804-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0804-
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0804-
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0804-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0804-
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0804-
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0804-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98096-928-0	01	1	0804-
116	03.342 BOLT; WATER PIPE 01.531 (B) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0804-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-0804
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-0804
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	0804-
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0804-
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0804-1006
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0804-1006
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0804-
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0804-
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0804-1312
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98063-840-0	01	1	0804-
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0804-
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0804-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0804-
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0804-
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	0804-
414	03.602 SPACER 01.429 M8X10	1-11369-081-0	02	1	0804-
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	0804-1204
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-

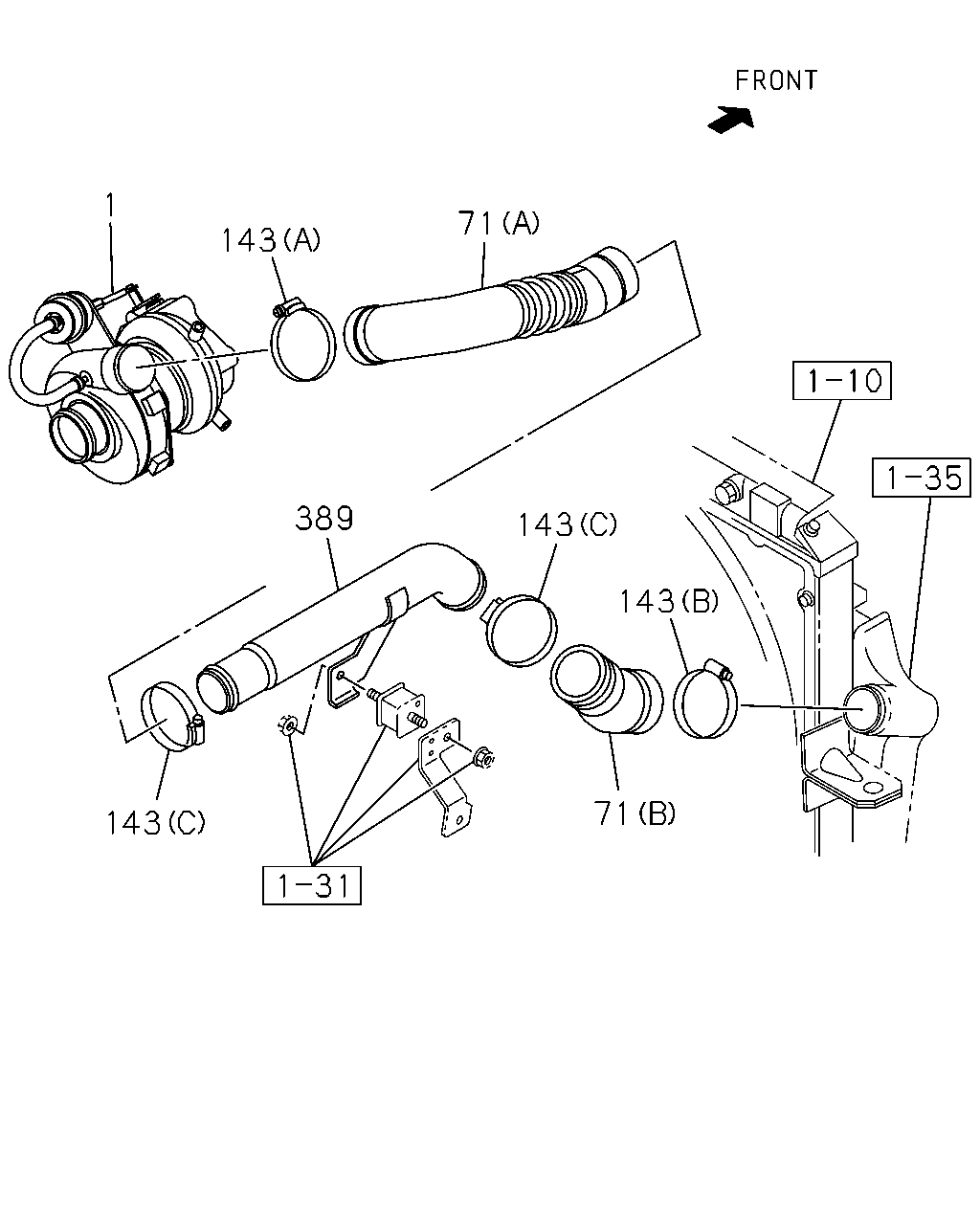

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	0804-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	0804-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	0901-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	0901-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=68-85	1-09707-202-0	01	1	0804-0810
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	01	1	0811-0812
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	0901-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (C) ID=58-76	1-09707-203-0	02	1	0804-0811
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=55-75	8-98133-349-0	02	1	0812-0812
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=45-65	8-98133-348-0	02	1	0901-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	01	1	0804-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0804-
