Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

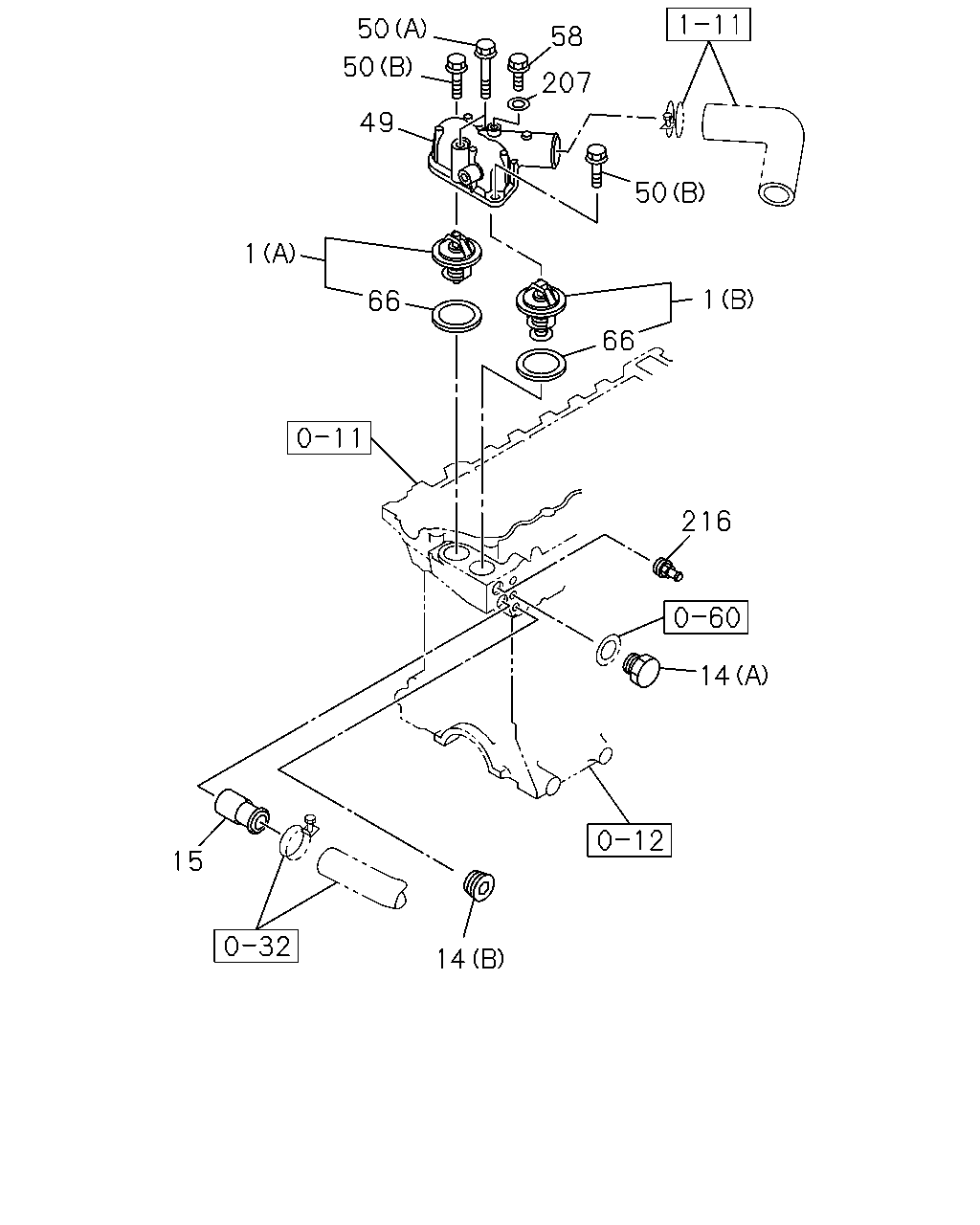

0-31 — THERMOSTAT AND HOUSING
(#52904) — 13 parça
50
50
49
1
66
66
50
1
207
58
216
14
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.246 THERMOSTAT
(A) 85 CELSIUS
8-97300-787-3
01
1
0804-
1
01.246 THERMOSTAT
(B) 82 CELSIUS
8-97300-790-3
01
1
0804-
14
01.252 PLUG; SW
01.073 (B) PT3/8
5-09605-005-0
01
1
0804-
14
01.252 PLUG; SW
04.520 (A) M16X8 PLUG
9-09661-005-0
01
1
0804-
15
01.251 PIPE; BYPASS
01.153
8-94342-574-0
01
1
0804-
49
01.153 PIPE; WATER OUTLET
8-97329-914-0
01
1
0804-
50
01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
0804-
50
01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE
1-09044-072-1
02
1
0804-
58
00.073 PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0804-
66
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0804-1501
66
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
207
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2
1-09630-082-0
01
1
0804-
216
01.153 PIPE ASM; WATER,TURBOCHARGER RET
8-97358-699-0
01
1
0804-
