Sayfa 4-25B - Isuzu EPC

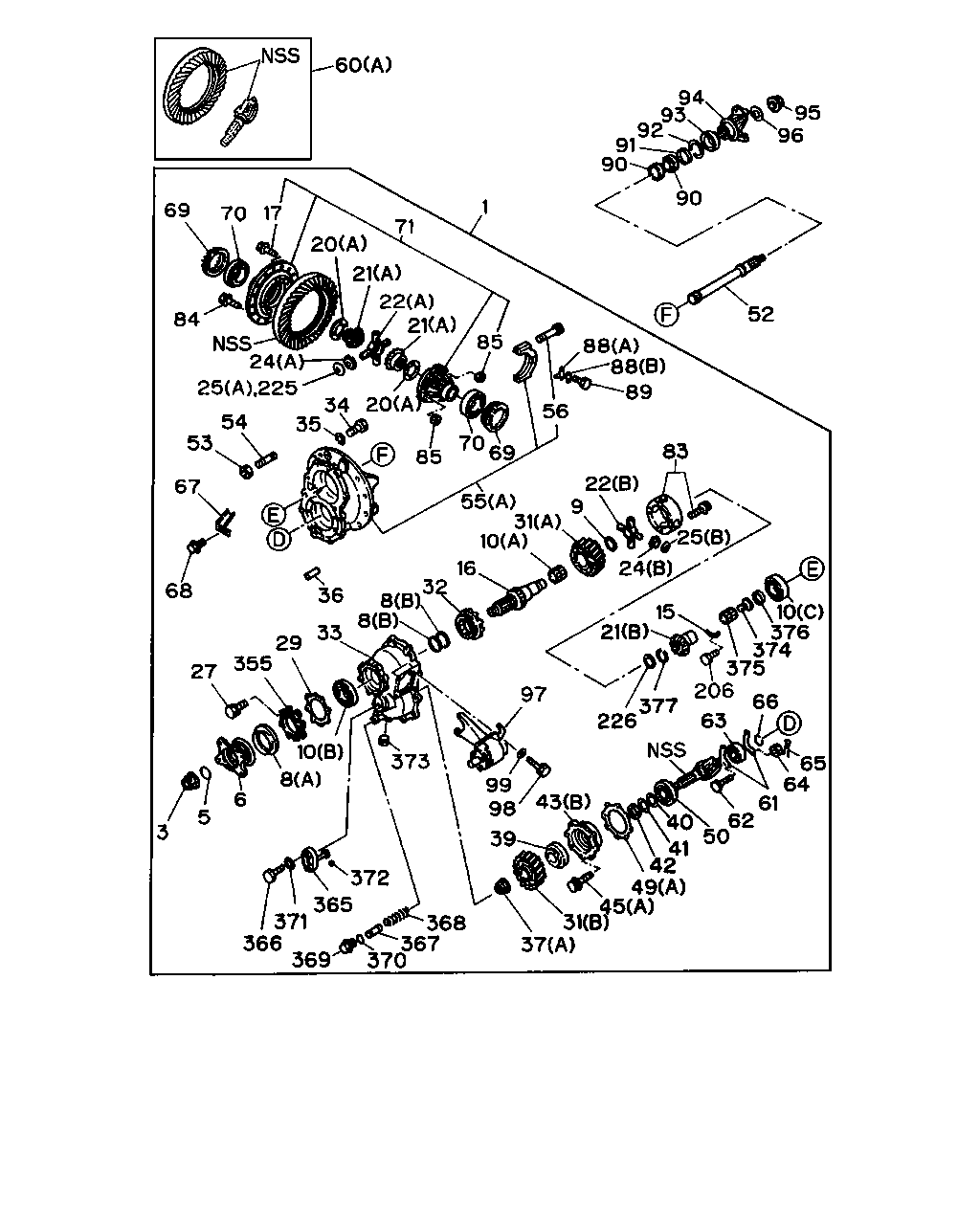

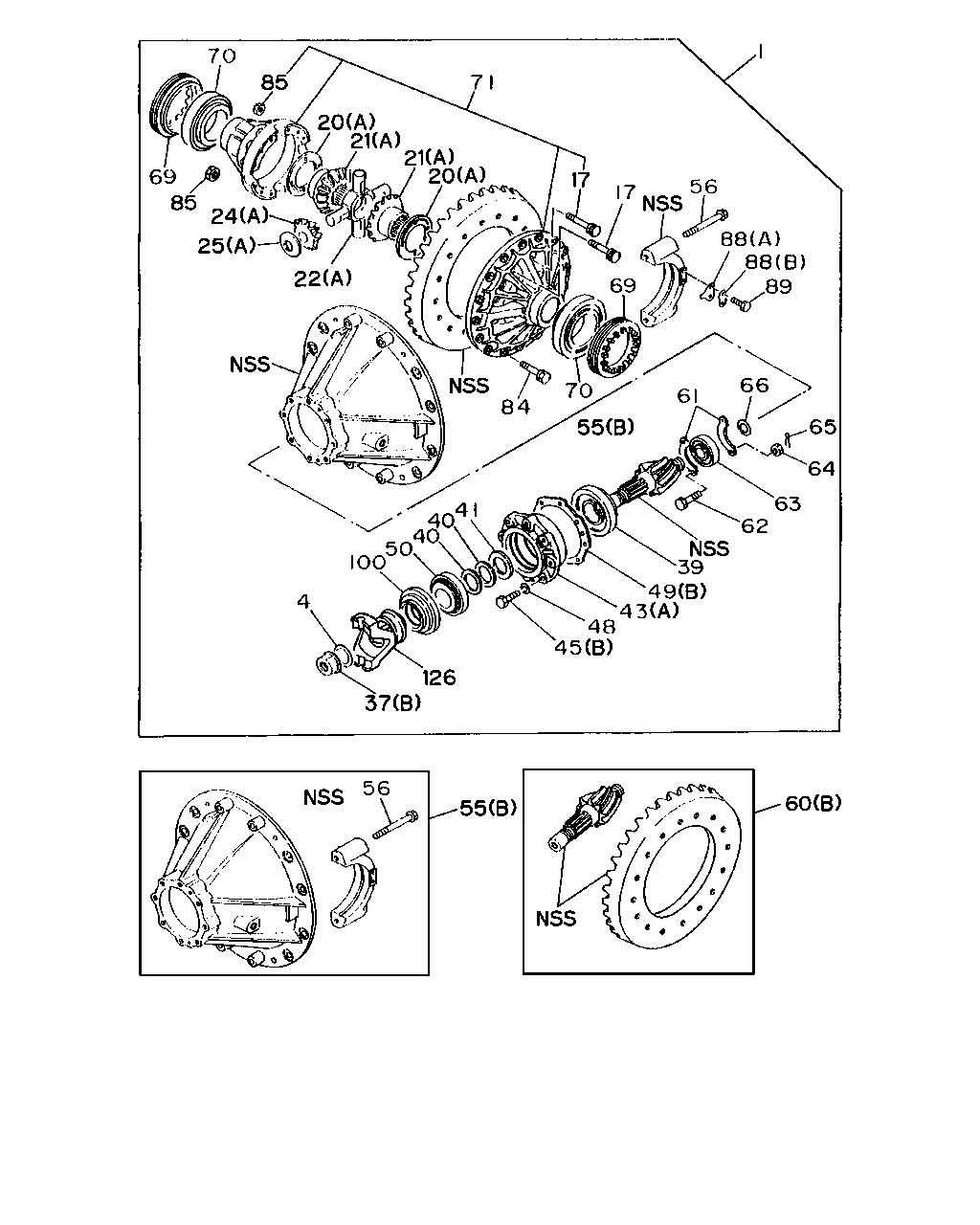

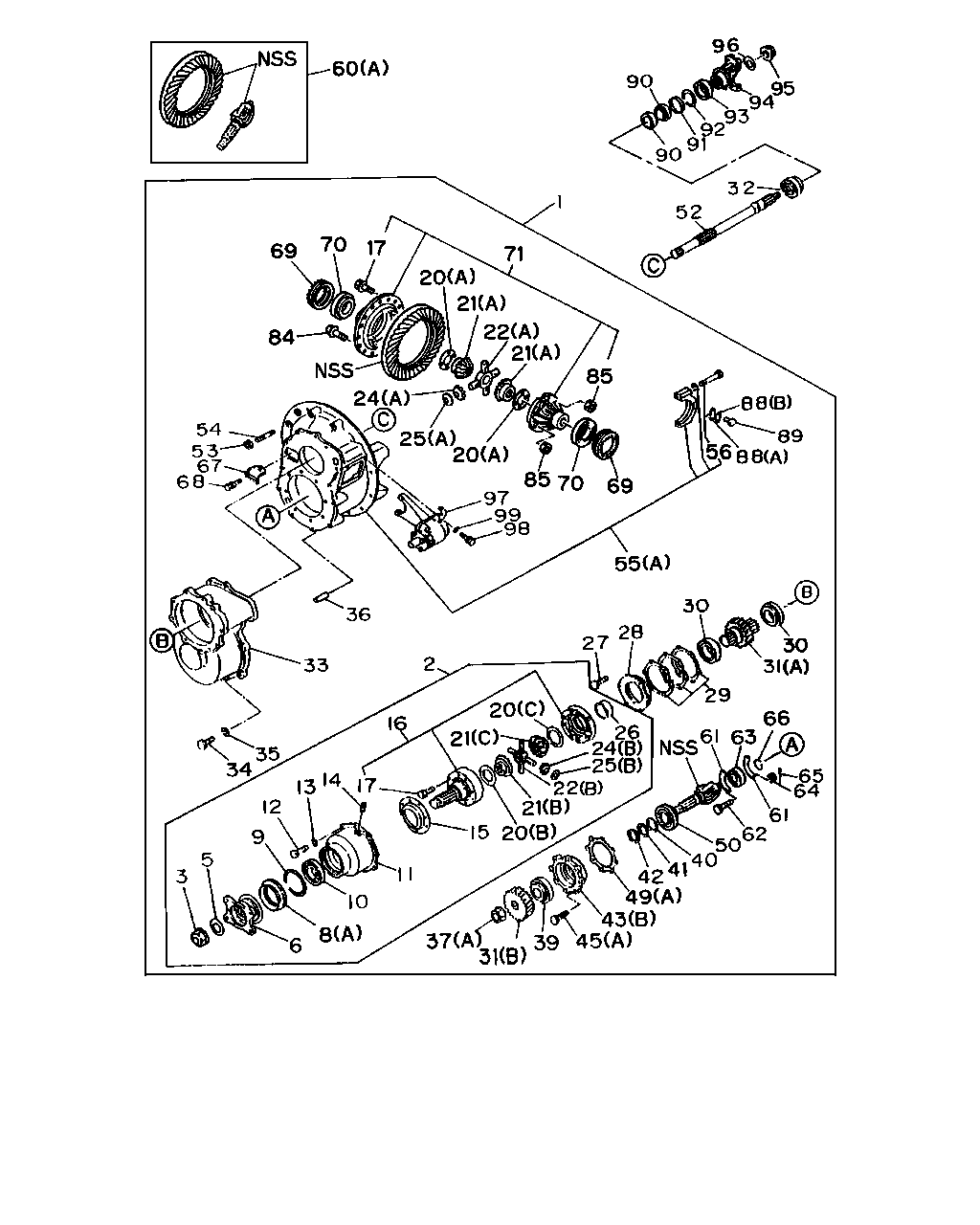

4-25B — REAR FINAL DRIVE (#529) — 818 parça

60 90 96 95 94 93 92 91 90 32 52 1 71 69 70 17 84 20 24 21 22 21 85 25 20 85 70 69 56 88 89 55 98 99 97 54 53 67 68 36 33 35 34 3 5 9 12 13 14 17 11 10 8 6 37 31 39 45 43 49 42 41 40 50 62 61 64 65 66 63 61 29 30 26 24 25 22 21 20 15 21 20 27 28 30 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41001-005-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-014-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-287-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-303-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-304-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-397-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-434-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41000-839-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-002-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-430-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-614-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-362-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-562-0	01	1	9307-					●
2	DIFF ASM; INTER,FINAL	1-41320-018-0	01	1	8712-8911	●		●	●
2	DIFF ASM; INTER,FINAL	1-41320-025-0	01	1	8912-9001	●		●	●
2	DIFF ASM; INTER,FINAL	1-41320-018-0	01	1	9002-9306		●
2	DIFF ASM; INTER,FINAL	1-41320-026-0	01	1	9002-9306			●	●	●
3	NUT; INPUT SHAFT M46	1-09449-045-0	01	1	8712-8906	●		●	●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	8907-9001	●		●	●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	9002-9110		●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	9111-		●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	8712-	●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-200-1	01	1	8712-9001	●		●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-143-2	01	1	9002-9306		●
6	FLANGE ASM; INPUT SHAFT	1-37245-211-2	01	1	9002-9306			●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-267-2	01	1	9307-				●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	8712-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	9307-				●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	8712-9306	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	8712-9306	●	●	●	●	●
10	BEARING; INPUT SHAFT KOYO	1-09800-174-0	01	1	8712-9306	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) KOYO	1-09811-346-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (C) KOYO	1-09812-182-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (B) KOYO	1-09812-198-0	01	1	9307-				●	●
11	COVER; INTER AXLE DIFF	1-41323-011-1	01	1	8712-9306	●	●	●	●	●
12	BOLT; COVER TO CASE M12X55	9-01656-255-0	08	1	8712-9005	●	●	●	●	●
12	BOLT; COVER TO CASE M12X55	0-16806-255-0	08	1	9006-9306		●	●	●	●
13	WASHER; COVER TO CASE ID=12.2	9-09150-512-0	08	1	8712-9306	●	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	8712-9306	●	●	●	●	●
15	CATCHER; OIL	1-41349-028-1	01	1	8712-9306	●	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	9307-				●	●
16	SHAFT ASM; INPUT	1-41340-046-0	01	1	8712-9306	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	9307-				●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	08	1	8712-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	8712-9306	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-				●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	16	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	AR	1	9110-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-034-1	04	1	8712-8809	●		●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	04	1	8810-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-				●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-017-0	02	1	8712-8809	●		●	●
22	PIN; CROSS,DIFF PINION (A) OD=35	1-41521-037-0	02	1	8810-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-019-0	01	1	8712-9306	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-049-1	01	1	9307-				●	●
24	GEAR; PINION,DIFF (A)	1-41551-017-2	08	1	8712-8809	●		●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	08	1	8810-	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	8712-9306	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-031-0	04	1	9307-				●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	08	1	8712-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	8712-9306	●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-				●	●
26	BUSHING; DIFF CAGE	1-41519-006-0	01	1	8712-9306	●	●	●	●	●
27	BOLT; BRG RET M8X22 HEX SOCKET	9-05820-822-0	02	1	8712-9306	●	●	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	9307-				●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-008-0	01	1	8712-8906	●	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-011-0	01	1	8907-9306	●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-029-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-030-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.20	1-41355-031-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.15	1-41355-032-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	9307-				●	●
30	BEARING; TAPER ROLLER NSK	1-09812-066-0	02	1	8712-8907	●	●	●	●	●
30	BEARING; TAPER ROLLER KOYO	1-09812-067-1	02	1	8712-8907	●	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-161-0	02	1	8908-9306	●	●	●	●	●
30	BEARING; TAPER ROLLER KOYO	1-09812-162-0	02	1	8908-9306	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=28	1-41351-014-1	01	1	8712-8902	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=28	1-41352-017-0	01	1	8712-8902	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=32-31-23	1-41351-023-0	01	1	8903-8907	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-026-0	01	1	8903-8910	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	8911-				●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	9307-				●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	8712-9306	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	9307-				●	●
33	CASE; POWER DIVIDER	1-41321-013-0	01	1	8712-9306	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	9307-				●	●
34	BOLT; CASE TO CARRIER M14X45	9-91656-445-0	08	1	8712-9001	●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	9-92351-445-0	08	1	9002-9005		●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	0-23801-445-0	08	1	9006-9306		●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	9-92351-440-0	02	1	8712-9005	●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	02	1	9006-9306		●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	9307-				●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-514-0	10	1	8712-9306	●	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	9307-				●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	8712-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M42	1-09449-015-0	01	1	8712-8908	●	●	●	●	●
37	NUT; DRIVING PINION (B) M42	1-09449-061-0	01	1	8909-9001	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	8712-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110		●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-		●	●	●	●
39	BEARING; FINAL PINION FORWARD NSK	1-09812-075-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION FORWARD KOYO	1-09812-076-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION REARWARD NSK	1-09812-073-0	01	1	9307-		●	●	●	●
39	BEARING; FINAL PINION REARWARD KOYO	1-09812-074-0	01	1	9307-		●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-077-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-078-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-079-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-080-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-081-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-082-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-083-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-084-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-085-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-086-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-087-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-072-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-073-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-074-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-075-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-076-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-117-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-118-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-119-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	8910-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	8712-		●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	8712-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	8712-9306	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-				●	●
45	BOLT; FINAL PINION CAGE (B)	9-91656-655-0	08	1	8712-9005	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B)	0-16806-655-0	08	1	9006-		●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	9-92361-645-0	08	1	8712-9207	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-09070-107-0	08	1	9208-		●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-				●	●
50	BEARING; FINAL PINION FORWARD NSK	1-09812-073-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION FORWARD KOYO	1-09812-074-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION REARWARD NSK	1-09812-075-0	01	1	9307-		●	●	●	●
50	BEARING; FINAL PINION REARWARD KOYO	1-09812-076-0	01	1	9307-		●	●	●	●
52	SHAFT; OUTPUT	1-41343-009-1	01	1	8712-9306	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	9307-				●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	8712-9306	●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	01	1	9307-				●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	8712-9306	●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	9307-				●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	8712-9602	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	8712-9306	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-				●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	08	1	8712-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-316-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-341-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-348-1	01	1	8712-9001			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-413-1	01	1	9002-9306			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-383-1	01	1	8712-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-441-0	01	1	9209-9306			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-283-1	01	1	8712-9001				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	8712-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-402-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-434-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-414-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-470-0	01	1	9311-					●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	04	1	8712-9204	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	04	1	9205-		●	●	●	●
62	BOLT; RET	9-01145-838-0	04	1	8712-9005	●	●	●	●	●
62	BOLT; RET	1-09042-036-0	04	1	9006-9204		●	●	●	●
62	BOLT; RET	1-09042-038-1	04	1	9205-		●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-097-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	02	1	8812-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-098-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	02	1	8812-	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	04	1	8712-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	04	1	8712-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	02	1	8712-	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-001-2	01	1	8712-9306	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	9307-				●	●
68	BOLT; OIL PICKUP FIX M8X16	9-01970-816-0	02	1	8712-9005	●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9006-9306		●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	9307-				●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	02	1	8712-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	02	1	8712-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	9-00093-199-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	04	1	8810-	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=40	9-00093-200-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	04	1	8810-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-139-0	02	1	8712-9001				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	02	1	9002-		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-140-0	02	1	8712-9001	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	02	1	9002-					●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	32	1	8712-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	24	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	04	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	04	1	8712-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	08	1	8712-9204	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	08	1	9205-		●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	8712-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	8712-	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	8712-	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	8712-	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	8712-	●	●	●	●	●
95	NUT; OUTPUT SHAFT	1-09449-009-0	01	1	8712-8910	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	8911-	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	8712-	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	8712-9306	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-				●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	9-01656-055-0	01	1	8712-9004	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	0-16806-055-0	01	1	9005-9409		●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	9410-				●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	9-01931-025-0	03	1	8712-9002	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-9409		●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	9410-				●	●
99	WASHER; LK ID=10.2	9-09150-510-0	01	1	8712-9409	●	●	●	●	●

1 71 70 85 20 21 21 20 17 17 56 88 88 89 69 70 84 25 24 85 69 66 61 65 55 64 63 62 39 49 43 48 45 126 37 4 100 50 40 40 41 56 55 60 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41001-005-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-014-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-287-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-303-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-304-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-397-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-434-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41000-839-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-002-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-430-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-614-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-362-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-562-0	01	1	9307-					●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9002-		●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	08	1	8712-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	8712-9306	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-				●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	16	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	AR	1	9110-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-034-1	04	1	8712-8809	●		●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	04	1	8810-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-				●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-017-0	02	1	8712-8809	●		●	●
22	PIN; CROSS,DIFF PINION (A) OD=35	1-41521-037-0	02	1	8810-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-019-0	01	1	8712-9306	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-049-1	01	1	9307-				●	●
24	GEAR; PINION,DIFF (A)	1-41551-017-2	08	1	8712-8809	●		●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	08	1	8810-	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	8712-9306	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-031-0	04	1	9307-				●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	08	1	8712-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	8712-9306	●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-				●	●
37	NUT; DRIVING PINION (B) M42	1-09449-015-0	01	1	8712-8908	●	●	●	●	●
37	NUT; DRIVING PINION (B) M42	1-09449-061-0	01	1	8909-9001	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	8712-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110		●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-		●	●	●	●
39	BEARING; FINAL PINION FORWARD NSK	1-09812-075-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION FORWARD KOYO	1-09812-076-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION REARWARD NSK	1-09812-073-0	01	1	9307-		●	●	●	●
39	BEARING; FINAL PINION REARWARD KOYO	1-09812-074-0	01	1	9307-		●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-077-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-078-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-079-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-080-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-081-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-082-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-083-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-084-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-085-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-086-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-087-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-072-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-073-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-074-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-075-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-076-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-117-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-118-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-119-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	8910-	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	8712-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	8712-9306	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-				●	●
45	BOLT; FINAL PINION CAGE (B)	9-91656-655-0	08	1	8712-9005	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B)	0-16806-655-0	08	1	9006-		●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	9-92361-645-0	08	1	8712-9207	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-09070-107-0	08	1	9208-		●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-				●	●
50	BEARING; FINAL PINION FORWARD NSK	1-09812-073-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION FORWARD KOYO	1-09812-074-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION REARWARD NSK	1-09812-075-0	01	1	9307-		●	●	●	●
50	BEARING; FINAL PINION REARWARD KOYO	1-09812-076-0	01	1	9307-		●	●	●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	8712-9602	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	8712-9306	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-				●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	08	1	8712-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-316-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-341-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-348-1	01	1	8712-9001			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-413-1	01	1	9002-9306			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-383-1	01	1	8712-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-441-0	01	1	9209-9306			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-283-1	01	1	8712-9001				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	8712-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-402-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-434-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-414-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-470-0	01	1	9311-					●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	04	1	8712-9204	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	04	1	9205-		●	●	●	●
62	BOLT; RET	9-01145-838-0	04	1	8712-9005	●	●	●	●	●
62	BOLT; RET	1-09042-036-0	04	1	9006-9204		●	●	●	●
62	BOLT; RET	1-09042-038-1	04	1	9205-		●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-097-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	02	1	8812-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-098-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	02	1	8812-	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	04	1	8712-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	04	1	8712-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	02	1	8712-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	02	1	8712-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	02	1	8712-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	9-00093-199-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	04	1	8810-	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=40	9-00093-200-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	04	1	8810-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-139-0	02	1	8712-9001				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	02	1	9002-		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-140-0	02	1	8712-9001	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	02	1	9002-					●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	32	1	8712-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	24	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	04	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	04	1	8712-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	08	1	8712-9204	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	08	1	9205-		●	●	●	●
100	SEAL; OIL,FINAL PINION	1-09625-030-0	01	1	8712-9001	●		●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9002-		●	●	●	●
100	SEAL; OIL,FINAL PINION	1-09625-030-0	01	1	9002-9306					●
126	COUPLING; DRIVING PINION	1-37245-133-0	01	1	8712-9001	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-225-1	01	1	9002-		●	●	●	●

60 94 95 96 93 92 91 90 90 52 1 71 69 70 17 20 21 22 21 85 88 88 89 56 84 24 25 225 34 20 85 70 69 54 53 67 68 36 55 22 83 9 31 10 16 32 8 8 33 29 355 27 3 5 6 8 10 373 372 365 371 366 369 370 367 368 37 31 45 49 42 41 50 40 62 61 64 65 43 39 98 99 97 226 377 63 66 206 375 374 376 21 15 24 25 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41001-005-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-014-0	01	1	8712-9001	●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-287-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-303-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-304-0	01	1	8712-9001			●
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-397-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR FORWARD 39/9	1-41001-434-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41000-839-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-002-0	01	1	8712-9001				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-430-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-614-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-362-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41001-562-0	01	1	9307-					●
3	NUT; INPUT SHAFT M46	1-09449-045-0	01	1	8712-8906	●		●	●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	8907-9001	●		●	●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	9002-9110		●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	9111-		●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	8712-	●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-200-1	01	1	8712-9001	●		●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-143-2	01	1	9002-9306		●
6	FLANGE ASM; INPUT SHAFT	1-37245-211-2	01	1	9002-9306			●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-267-2	01	1	9307-				●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	8712-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	9307-				●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	8712-9306	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	8712-9306	●	●	●	●	●
10	BEARING; INPUT SHAFT KOYO	1-09800-174-0	01	1	8712-9306	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) KOYO	1-09811-346-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (C) KOYO	1-09812-182-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	9307-				●	●
10	BEARING; INPUT SHAFT (B) KOYO	1-09812-198-0	01	1	9307-				●	●
15	CATCHER; OIL	1-41349-028-1	01	1	8712-9306	●	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	9307-				●	●
16	SHAFT ASM; INPUT	1-41340-046-0	01	1	8712-9306	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	9307-				●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	08	1	8712-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	8712-9306	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-				●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	16	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	8712-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	AR	1	8712-9306	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	AR	1	9110-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-034-1	04	1	8712-8809	●		●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	04	1	8810-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	8712-9306	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-				●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-017-0	02	1	8712-8809	●		●	●
22	PIN; CROSS,DIFF PINION (A) OD=35	1-41521-037-0	02	1	8810-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-019-0	01	1	8712-9306	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-049-1	01	1	9307-				●	●
24	GEAR; PINION,DIFF (A)	1-41551-017-2	08	1	8712-8809	●		●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	08	1	8810-	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	8712-9306	●	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-031-0	04	1	9307-				●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	08	1	8712-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	8712-9306	●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-				●	●
27	BOLT; BRG RET M8X22 HEX SOCKET	9-05820-822-0	02	1	8712-9306	●	●	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	9307-				●	●
29	SHIM; BRG RET T=1.00	1-41355-029-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-030-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.20	1-41355-031-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.15	1-41355-032-0	AR	1	8712-9306	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	9307-				●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	9307-				●	●
31	GEAR; DRIVEN,HELICAL (A) Z=28	1-41351-014-1	01	1	8712-8902	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=28	1-41352-017-0	01	1	8712-8902	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=32-31-23	1-41351-023-0	01	1	8903-8907	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-026-0	01	1	8903-8910	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	8911-				●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	9307-				●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	8712-9306	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	9307-				●	●
33	CASE; POWER DIVIDER	1-41321-013-0	01	1	8712-9306	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	9307-				●	●
34	BOLT; CASE TO CARRIER M14X45	9-91656-445-0	08	1	8712-9001	●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	9-92351-445-0	08	1	9002-9005		●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	0-23801-445-0	08	1	9006-9306		●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	9-92351-440-0	02	1	8712-9005	●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	02	1	9006-9306		●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	9307-				●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-514-0	10	1	8712-9306	●	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	9307-				●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	8712-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M42	1-09449-015-0	01	1	8712-8908	●	●	●	●	●
37	NUT; DRIVING PINION (B) M42	1-09449-061-0	01	1	8909-9001	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	8712-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110		●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-		●	●	●	●
39	BEARING; FINAL PINION FORWARD NSK	1-09812-075-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION FORWARD KOYO	1-09812-076-0	02	1	8712-		●	●	●	●
39	BEARING; FINAL PINION REARWARD NSK	1-09812-073-0	01	1	9307-		●	●	●	●
39	BEARING; FINAL PINION REARWARD KOYO	1-09812-074-0	01	1	9307-		●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-077-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-078-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-079-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-080-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-081-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-082-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-083-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-084-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-085-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-086-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	8910-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-087-0	AR	1	8712-8909	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-072-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-073-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-074-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-075-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-076-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-117-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-118-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	8910-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-119-0	AR	1	8712-8909	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	8910-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	8712-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	8712-		●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	8712-		●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	8712-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	8712-9306	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-				●	●
45	BOLT; FINAL PINION CAGE (B)	9-91656-655-0	08	1	8712-9005	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B)	0-16806-655-0	08	1	9006-		●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	9-92361-645-0	08	1	8712-9207	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-09070-107-0	08	1	9208-		●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	8712-9306	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	8712-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-				●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-				●	●
50	BEARING; FINAL PINION FORWARD NSK	1-09812-073-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION FORWARD KOYO	1-09812-074-0	02	1	8712-		●	●	●	●
50	BEARING; FINAL PINION REARWARD NSK	1-09812-075-0	01	1	9307-		●	●	●	●
50	BEARING; FINAL PINION REARWARD KOYO	1-09812-076-0	01	1	9307-		●	●	●	●
52	SHAFT; OUTPUT	1-41343-009-1	01	1	8712-9306	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	9307-				●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	8712-9306	●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	01	1	9307-				●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	8712-9306	●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	9307-				●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	8712-9602	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	8712-9306	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-				●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	08	1	8712-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-316-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-341-1	01	1	8712-9001	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9306		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-348-1	01	1	8712-9001			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-413-1	01	1	9002-9306			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-383-1	01	1	8712-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-441-0	01	1	9209-9306			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-283-1	01	1	8712-9001				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	8712-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-402-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-434-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-414-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-470-0	01	1	9311-					●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	04	1	8712-9204	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	04	1	9205-		●	●	●	●
62	BOLT; RET	9-01145-838-0	04	1	8712-9005	●	●	●	●	●
62	BOLT; RET	1-09042-036-0	04	1	9006-9204		●	●	●	●
62	BOLT; RET	1-09042-038-1	04	1	9205-		●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-097-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	02	1	8812-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-098-0	02	1	8712-8811	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	02	1	8812-	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	04	1	8712-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	04	1	8712-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	02	1	8712-	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-001-2	01	1	8712-9306	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	9307-				●	●
68	BOLT; OIL PICKUP FIX M8X16	9-01970-816-0	02	1	8712-9005	●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9006-9306		●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	9307-				●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	02	1	8712-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	02	1	8712-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	9-00093-199-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	04	1	8810-	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=40	9-00093-200-0	04	1	8712-8809	●		●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	04	1	8810-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-139-0	02	1	8712-9001				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	02	1	9002-		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-140-0	02	1	8712-9001	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	02	1	9002-					●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	9307-				●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	32	1	8712-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	24	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	04	1	8712-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	04	1	8712-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	08	1	8712-9204	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	08	1	9205-		●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	8712-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	8712-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	8712-	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	8712-	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	8712-	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	8712-	●	●	●	●	●
95	NUT; OUTPUT SHAFT	1-09449-009-0	01	1	8712-8910	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	8911-	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	8712-	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	8712-9306	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-				●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	9-01656-055-0	01	1	8712-9004	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	0-16806-055-0	01	1	9005-9409		●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	9410-				●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	9-01931-025-0	03	1	8712-9002	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-9409		●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	9410-				●	●
99	WASHER; LK ID=10.2	9-09150-510-0	01	1	8712-9409	●	●	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	9307-				●	●
225	WASHER; THRUST T=5.9	1-41552-024-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.0	1-41552-025-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.1	1-41552-026-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.2	1-41552-027-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.3	1-41552-028-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.4	1-41552-029-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.5	1-41552-030-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.6	1-41552-031-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.7	1-41552-032-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.8	1-41552-033-1	AR	1	9307-				●	●
225	WASHER; THRUST T=6.9	1-41552-034-1	AR	1	9307-				●	●
225	WASHER; THRUST T=7.0	1-41552-035-1	AR	1	9307-				●	●
225	WASHER; THRUST T=7.1	1-41552-036-1	AR	1	9307-				●	●
226	WASHER; THRUST	1-41562-267-0	01	1	9307-				●	●
355	RETAINER; BRG	1-41227-011-0	01	1	9307-				●	●
365	PUMP ASM; OIL	1-41381-008-0	01	1	9307-				●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	9307-				●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	9307-				●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	9307-				●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	9307-				●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	9307-				●	●
371	WASHER; LK,PUMP ID=8.2	9-09150-808-0	04	1	9307-				●	●
372	BALL; CASE	9-00097-517-0	01	1	9307-				●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	9307-				●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	9307-				●	●
375	BEARING; SIDE GEAR KOYO	1-09811-348-0	01	1	9307-				●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	9307-				●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	9307-				●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	9307-				●	●

97 242 241 244 384 383 241 356 242 205 292 360 381 287 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	8712-9306	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-				●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	9307-				●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	8712-9306	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	9307-				●	●
242	BOLT; COVER M8X20	9-02040-820-0	04	1	8712-9210	●	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	9211-		●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	8712-	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	8712-9306		●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-011-1	01	1	9307-				●	●
292	SPRING; PISTON	1-48265-007-0	01	1	8712-	●	●	●	●	●
356	NIPPLE; SHIFT UNIT M20 & PT1/4 ELBOW	1-48269-012-0	01	1	8712-	●	●	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	8712-9306	●	●	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	9307-				●	●
380	GASKET; PISTON	1-48269-064-0	01	1	8712-	●	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	8712-	●	●	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	9307-				●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	9307-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
