◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51159 - NPR(BUS CHAS)RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#52895) — 39 parça

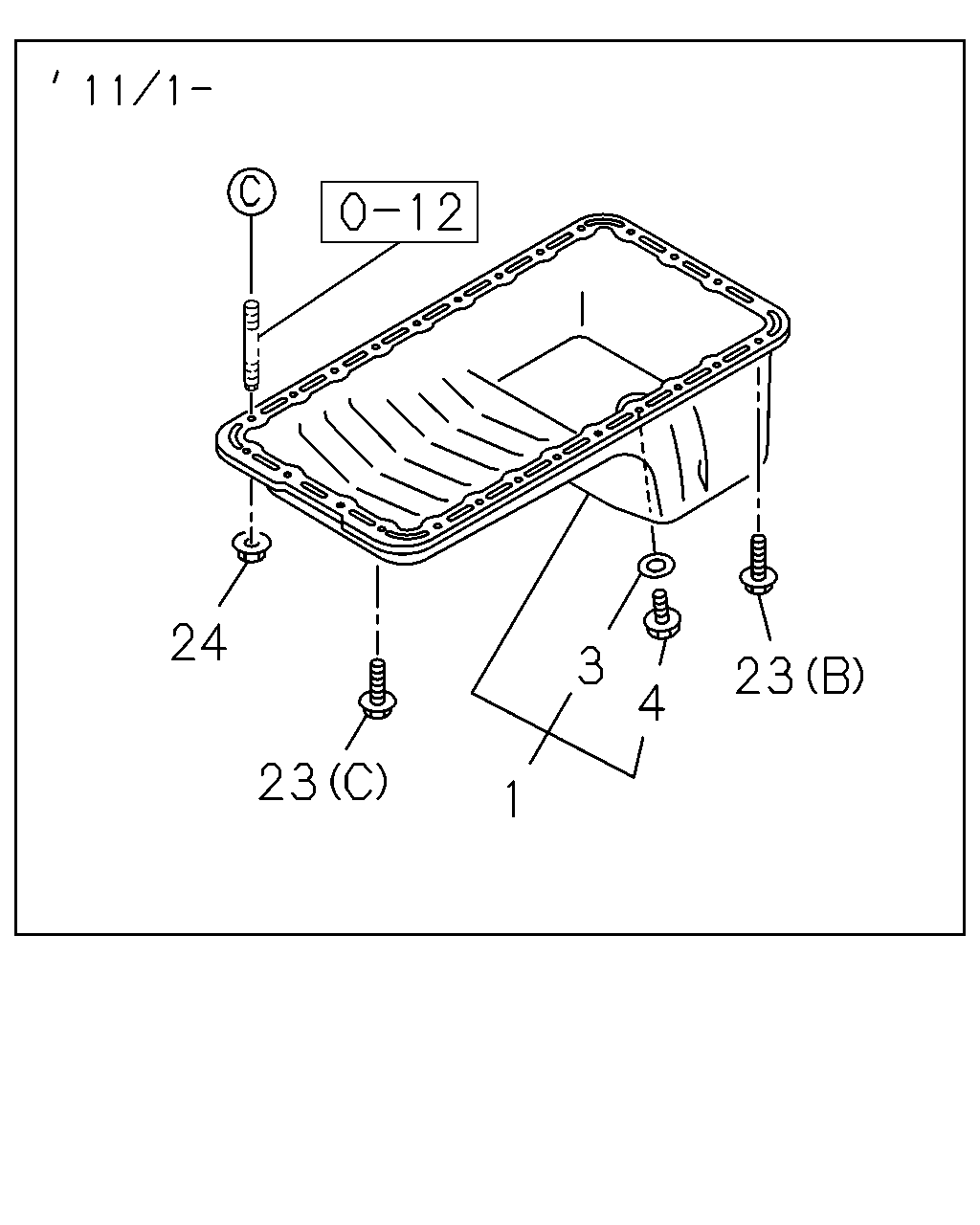

çizim 156897
24 3 23 4 23 1
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-97386-772-0 01 1 0804-0810
1 01.426 PAN ASM; OIL 8-98113-023-0 01 1 0811-1012
1 01.426 PAN ASM; OIL 8-97149-314-0 01 1 1101-1109
1 01.426 PAN ASM; OIL 8-98191-050-0 01 1 1110-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0804-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0804-
23 01.428 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1101-
23 01.428 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0804-1012
23 01.428 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1101-
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0804-1012
24 01.453 NUT; OIL PAN
03.417 M8 W/LK WASHER 		8-97581-234-0 07 1 1101-

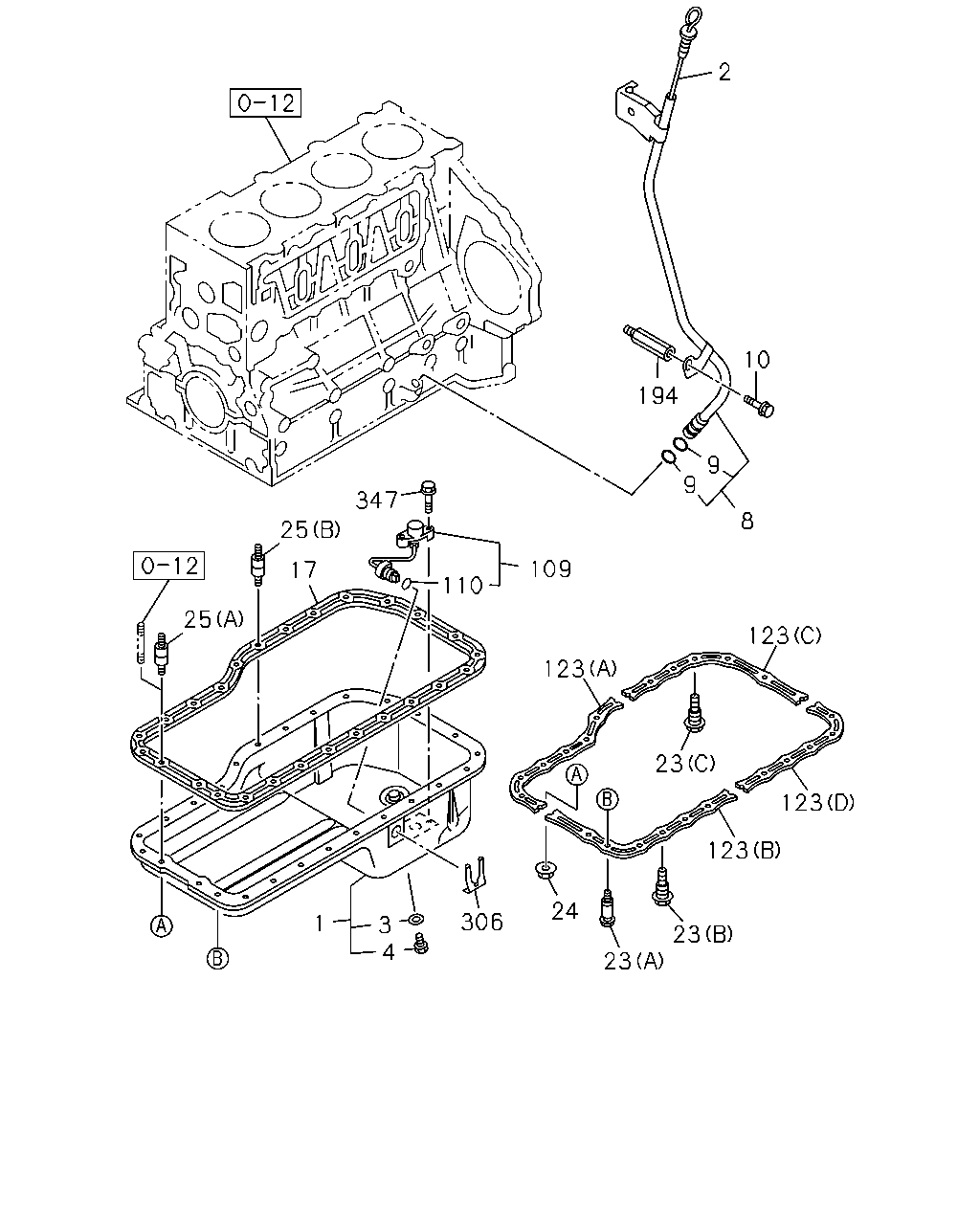

çizim 156926
2 10 8 9 9 194 123 123 23 123 23 23 24 123 109 110 347 25 25 17 3 4 1 306
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-97386-772-0 01 1 0804-0810
1 01.426 PAN ASM; OIL 8-98113-023-0 01 1 0811-1012
1 01.426 PAN ASM; OIL 8-97149-314-0 01 1 1101-1109
1 01.426 PAN ASM; OIL 8-98191-050-0 01 1 1110-
2 01.516 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0804-1011
2 01.516 GAUGE; OIL LEVEL 8-98183-344-0 01 1 1012-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0804-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0804-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0804-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0804-
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0804-
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0804-1012
23 01.428 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1101-
23 01.428 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0804-1012
23 01.428 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1101-
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0804-1012
24 01.453 NUT; OIL PAN
03.417 M8 W/LK WASHER 		8-97581-234-0 07 1 1101-
25 01.453 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0804-1012
25 01.453 STUD; OIL PAN
01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0804-1012
109 01.516 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0804-1012
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0804-1012
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0804-1012
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0804-1012
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0804-1012
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0804-1012
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0804-
306 01.516 CLIP; CONNECTOR 8-97229-219-0 01 1 0804-1012
347 01.516 BOLT; OIL LEVEL SW
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 0804-1012
