0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#5289) — 119 parça

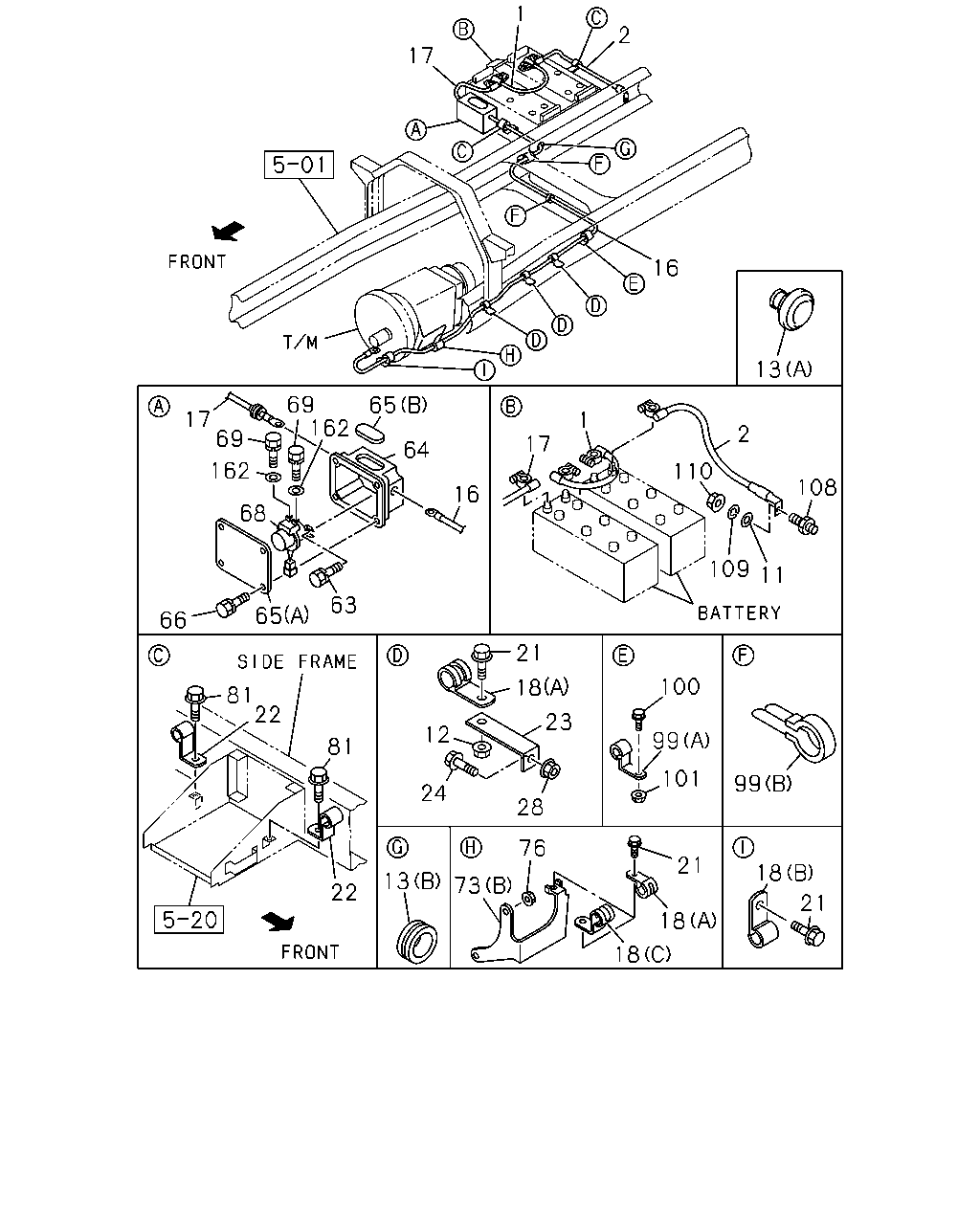

çizim 5117
1 2 17 16 13 69 162 65 17 69 1 2 17 64 162 110 108 16 68 109 11 63 65 66 21 100 18 81 22 23 12 99 81 101 99 24 28 76 18 21 13 73 22 21 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9603-9901 ● ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9905- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-0 01 1 9603-9702 ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9703-9901 ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9905- ● ● ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9603-9901 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9902-9904 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9905- ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9901 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9902-9904 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9905- ● ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9603-9606 ● ●
12 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 03 1 9607-9708 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9709-9901 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9901 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9902-9904 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905- ● ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9901 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9902-9904 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9905- ● ● ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9902-9904 ● ●
16 CABLE; STARTER TO RELAY
L=3850 		1-82652-601-0 01 1 9603-9608 ● ●
16 CABLE; STARTER TO RELAY
L=2790 		1-82652-634-0 01 1 9609-9901 ● ●
16 CABLE; STARTER TO RELAY
L=2790 		1-82652-634-0 01 1 9905- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9603-9901 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9902-9904 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9603-9901 ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9902-9904 ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9603-9901 ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9902-9904 ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9603-9901 ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 9603-9901 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 04 1 9603-9603 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 05 1 9604-9606 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9607-9901 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9902-9904 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9905- ● ● ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9603-9901 ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9902-9904 ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9905- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9603-9901 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9902-9904 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9905- ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9901 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9902-9904 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9905- ● ● ● ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 03 1 9603-9606 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9607-9901 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9603-9901 ● ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9902-9904 ● ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9905- ● ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9603-9611 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9612-9901 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9902-9904 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9905- ● ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9603-9901 ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9902-9904 ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9905- ● ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9603-9611 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9612-9901 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9902-9904 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9905- ● ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9603-9901 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9902-9904 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9905- ● ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9603-9711 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9712-9901 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9902-9904 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9905- ● ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9603-9901 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9902-9904 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9905- ● ● ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-822-0 01 1 9603-9901 ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82698-139-0 01 1 9905-9910 ● ● ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82698-139-0 01 1 9911- ● ● ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9607-9901 ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9901 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9603-9901 ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9902-9904 ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9905- ● ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9603-9901 ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9902-9904 ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9905- ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9603-9606 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9603-9901 ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9902-9904 ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9905- ● ● ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9603-9603 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-508-0 01 1 9604-9810 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9811-9901 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9902-9904 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9905- ● ● ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9603-9901 ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9902-9904 ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9905- ● ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9603-9901 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9902-9904 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9905- ● ● ● ●
