8-65 — CONTROL LEVER; HEATER AND AIR CON (#52883) — 16 parça

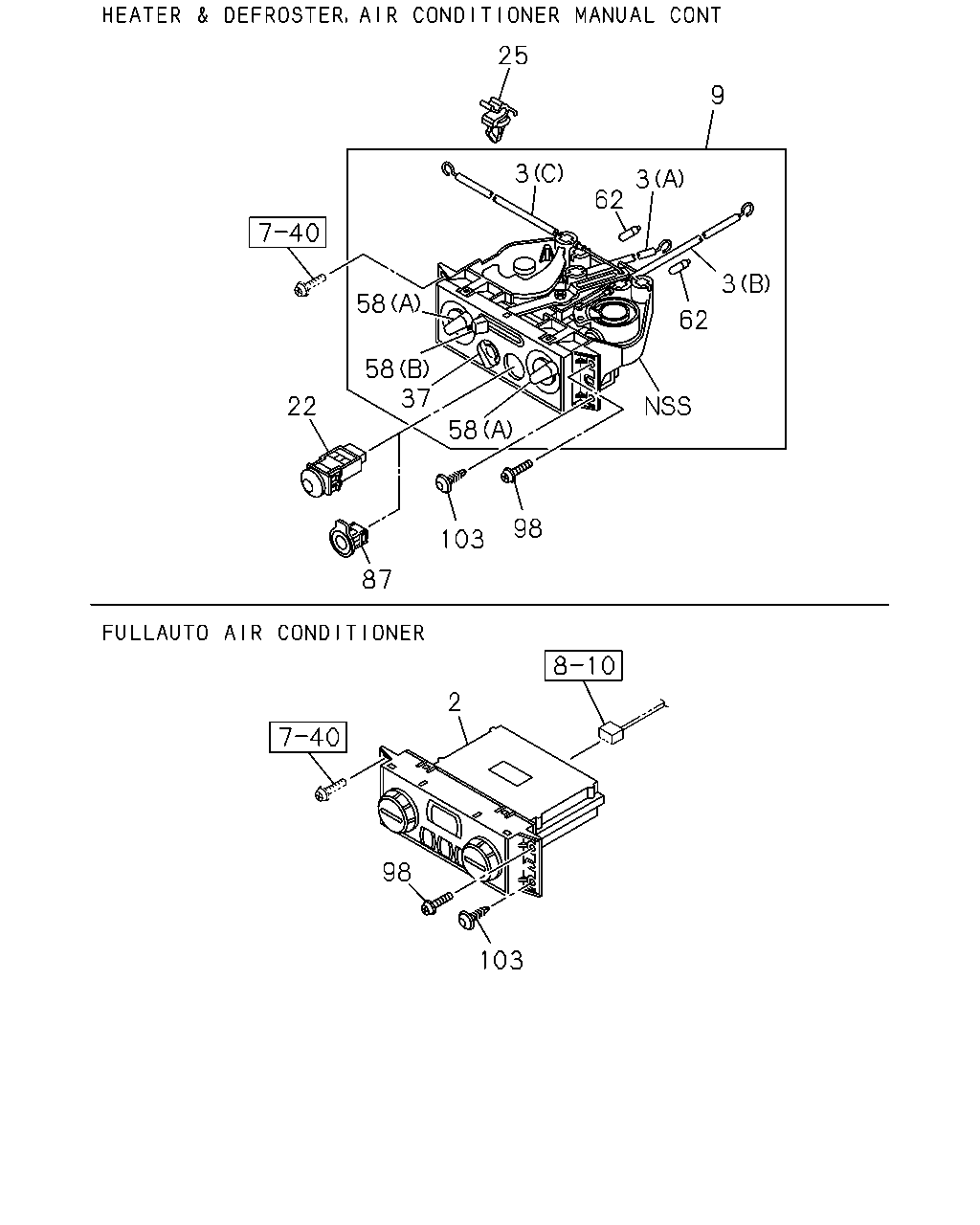

çizim 156625
25 9 3 3 62 3 58 62 58 37 58 22 98 103 87 2 98 103
BalonParca AdiParca NoAdetTipApplied Date A B C
2 08.852 PANEL ASM; CONT,ILLUMINATION
FULLAUTO AIR CONDITIONER(C68) 		8-98021-984-0 01 1 0712- ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 0712- ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 0712- ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 0712- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 0712- ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0712- ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 0712- ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0712- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0712- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0712- ● ● ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0712- ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 0712- ● ● ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0712-1101 ● ● ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 1301- ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.742 DARK GRAY 		8-97098-326-0 01 1 0712- ● ● ●
