0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#5288) — 143 parça

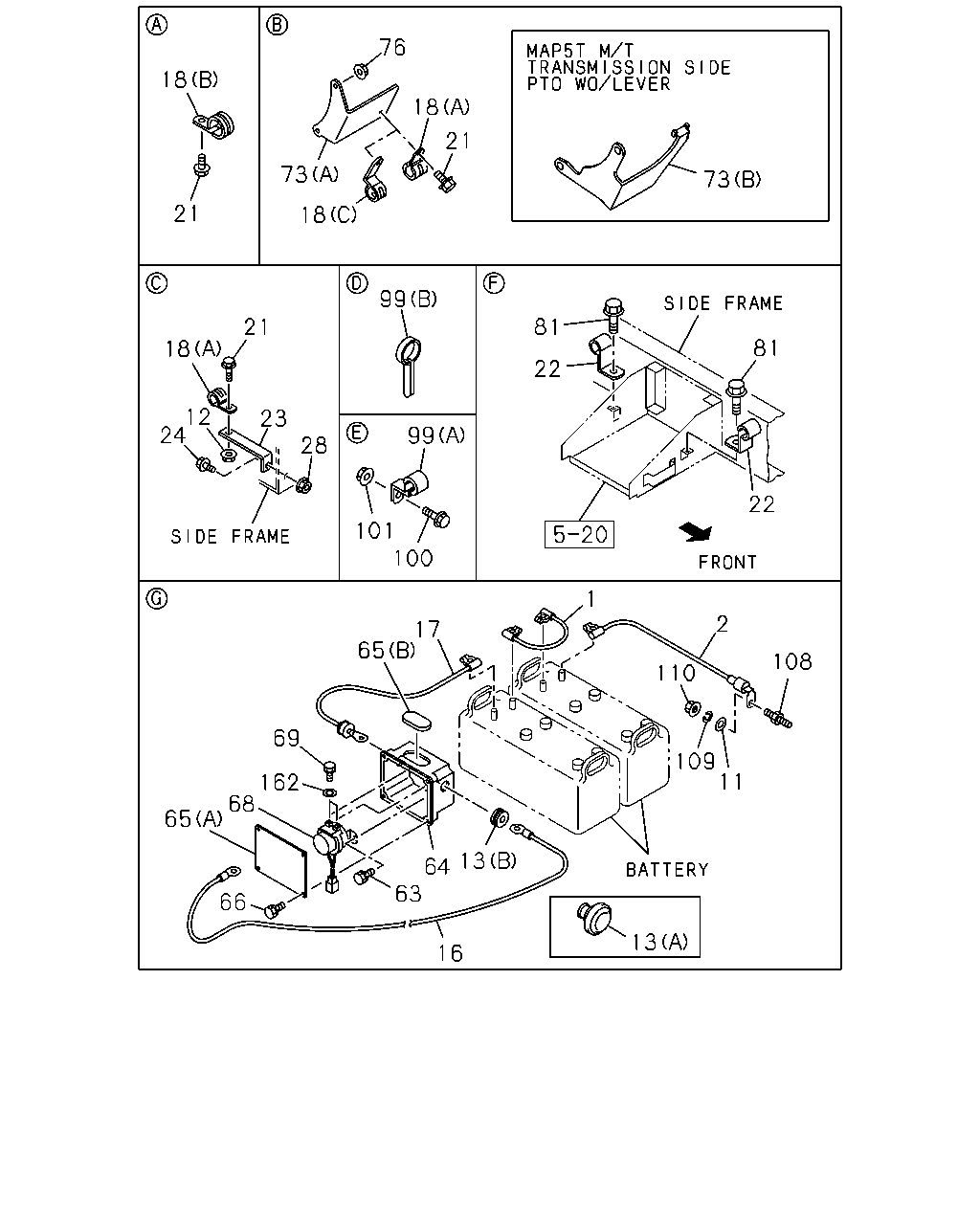

çizim 7334
76 18 18 21 73 73 21 18 99 81 21 81 18 22 12 24 23 99 28 22 101 100 1 2 17 65 108 110 69 109 11 162 68 65 13 64 63 66 13 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9603-9901 ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9902-9904 ● ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9905- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-0 01 1 9603-9702 ● ● ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9703-9901 ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9902-9904 ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9905- ● ● ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9603-9901 ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9902-9904 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9905- ● ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9901 ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9902-9904 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9905- ● ● ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9603-9606 ●
12 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 03 1 9607-9708 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9709-9901 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9901 ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9902-9904 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905- ● ● ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9901 ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9902-9904 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9905- ● ● ● ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-602-0 01 1 9603-9608 ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9609-9901 ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9902-9904 ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9905- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9603-9901 ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9902-9904 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9905- ● ● ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9603-9901 ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9902-9904 ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9905- ● ● ● ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9603-9901 ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9902-9904 ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9905- ● ● ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9603-9901 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9902-9904 ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 04 1 9603-9603 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 05 1 9604-9606 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9607-9901 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9902-9904 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9905- ● ● ● ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9603-9901 ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9902-9904 ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9905- ● ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9603-9901 ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9902-9904 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9905- ● ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9901 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9902-9904 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9905- ● ● ● ● ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 03 1 9603-9606 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9607-9901 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ● ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9603-9901 ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9902-9904 ● ●
63 BOLT; RELAY BATTERY
W/LK&PL WASHER M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9905- ● ● ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9603-9611 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9612-9901 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9902-9904 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9905- ● ● ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9603-9901 ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9902-9904 ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9905- ● ● ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9603-9611 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9612-9901 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9902-9904 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9905- ● ● ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9603-9901 ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9902-9904 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9905- ● ● ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9603-9711 ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9712-9901 ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9902-9904 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9905- ● ● ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9603-9901 ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9902-9904 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9905- ● ● ● ● ●
73 BRACKET; BATTERY CABLE
(A) 		1-82699-493-0 01 1 9603-9901 ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (A) 		1-82699-493-0 01 1 9902-9904 ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (A) 		1-82699-493-0 01 1 9905-9910 ● ● ● ●
73 BRACKET; BATTERY CABLE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5T M/T(Y1K),MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) (A) 		1-82699-493-0 01 1 9911- ● ● ● ●
73 BRACKET; BATTERY CABLE
CXZ&LONG CHASSIS(CXZ6MF) MAP5T M/T(Y4J) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82699-493-0 01 1 9911- ●
73 BRACKET; BATTERY CABLE
CXZ&LONG CHASSIS(CXZ6MF) MAP5T M/T(Y4J) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82698-139-0 01 1 9911- ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9607-9901 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9902-9904 ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9901 ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9603-9901 ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9902-9904 ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9905- ● ● ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9603-9901 ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9902-9904 ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9905- ● ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9603-9606 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9603-9901 ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9902-9904 ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9905- ● ● ● ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9603-9603 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-508-0 01 1 9604-9810 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9811-9901 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9902-9904 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9905- ● ● ● ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9603-9901 ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9902-9904 ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9905- ● ● ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9603-9901 ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9902-9904 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9905- ● ● ● ● ●

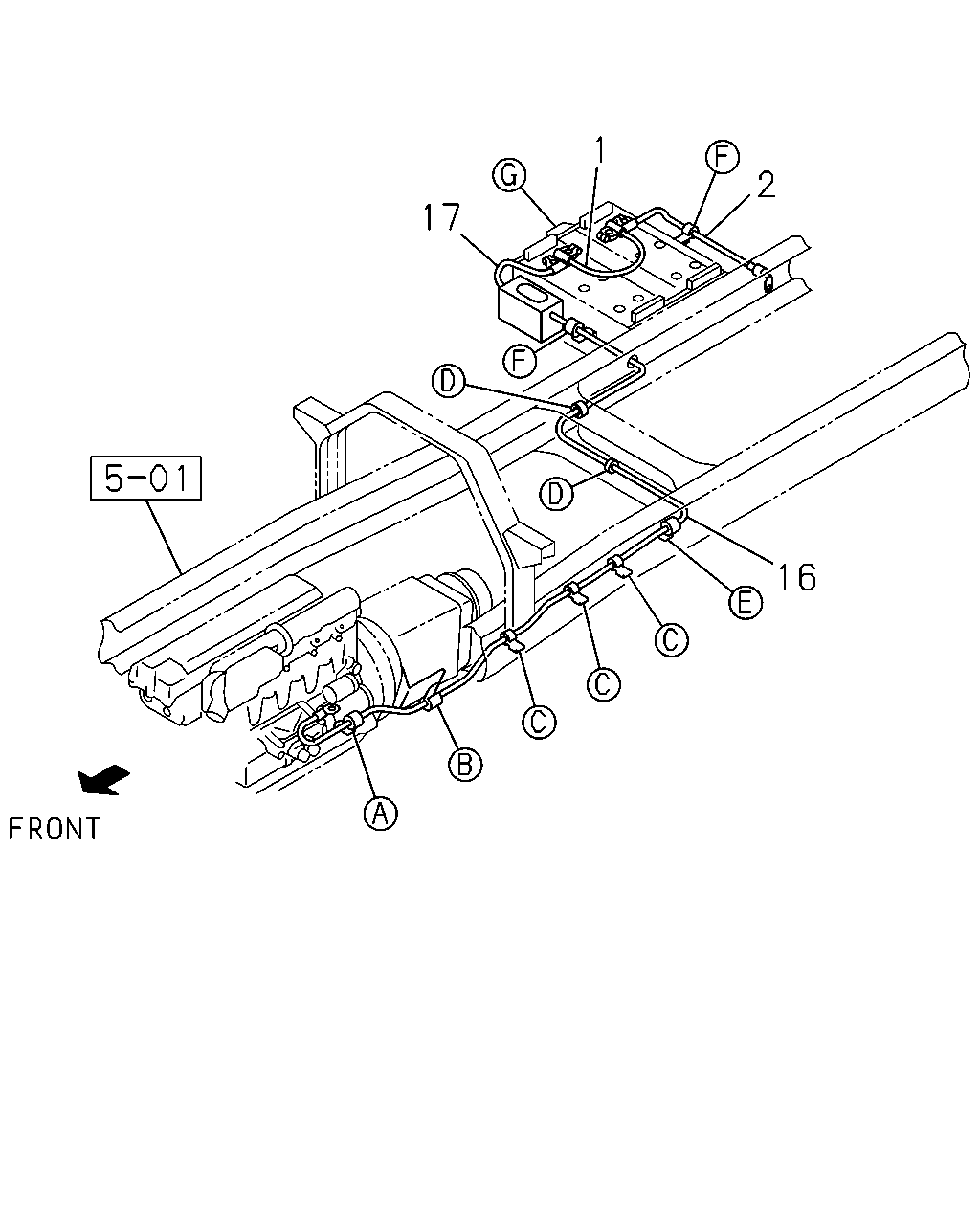

çizim 39393
1 2 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9603-9901 ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9902-9904 ● ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9905- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-0 01 1 9603-9702 ● ● ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9703-9901 ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9902-9904 ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9905- ● ● ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9603-9901 ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9902-9904 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9905- ● ● ● ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-602-0 01 1 9603-9608 ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9609-9901 ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9902-9904 ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9905- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9603-9901 ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9902-9904 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9905- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
